Isuzu WW
▶
TRUCKS
▶
FTR
▶
11420 - FTR(AUST)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶

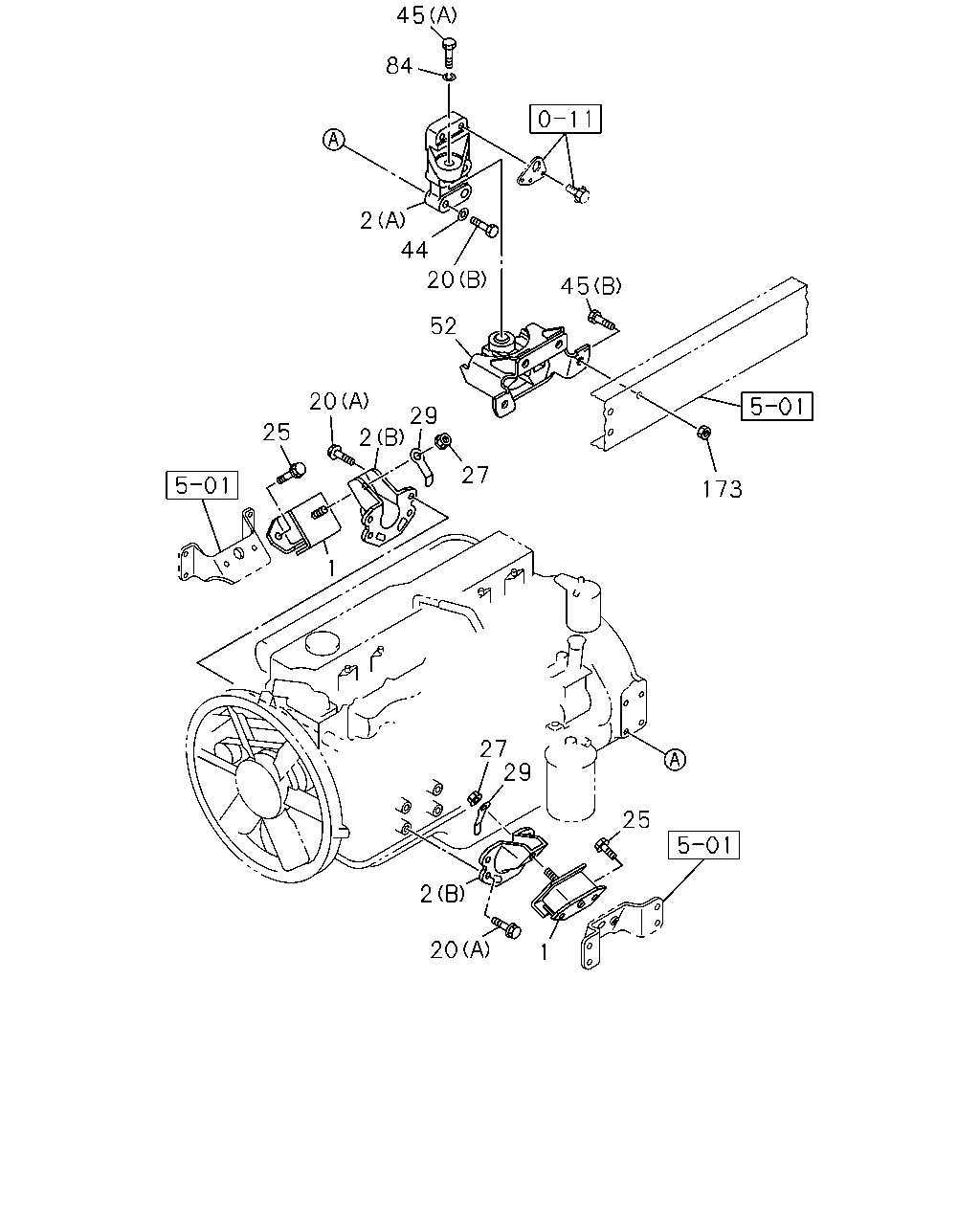

0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#58025) — 20 parça
45
84
2
44
20
45
52
20
29
2
25
27
173
1
27
29
25
2
20
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
0710-
2
FOOT; ENG
(B)
8-94392-141-3
02
1
0710-1008
2
FOOT; ENG
(B)
8-97602-589-1
02
1
1009-
2
FOOT; ENG
(A)
8-97611-988-0
01
1
0710-
2
FOOT; ENG
(A)
8-97611-989-0
01
1
0710-
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
0710-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
0710-1008
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1009-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0710-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0710-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
0710-
44
WASHER; LK,ENG FOOT
ID=12.5
0-91614-512-0
08
1
0710-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M18X65
8-94393-260-1
02
1
0710-0906
45
BOLT; CUSHION RUBBER TO FRAME
(A) M18X65
8-94393-260-1
02
1
0907-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
0710-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
0710-0906
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
0907-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
0710-0906
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
0907-
173
NUT; ENG MTG RR TO FRAME
M14 FLANGE
0-91180-214-0
08
1
0710-
