3-46 — AIR DRYER (#5802) — 45 parça

2 3 70 77 65

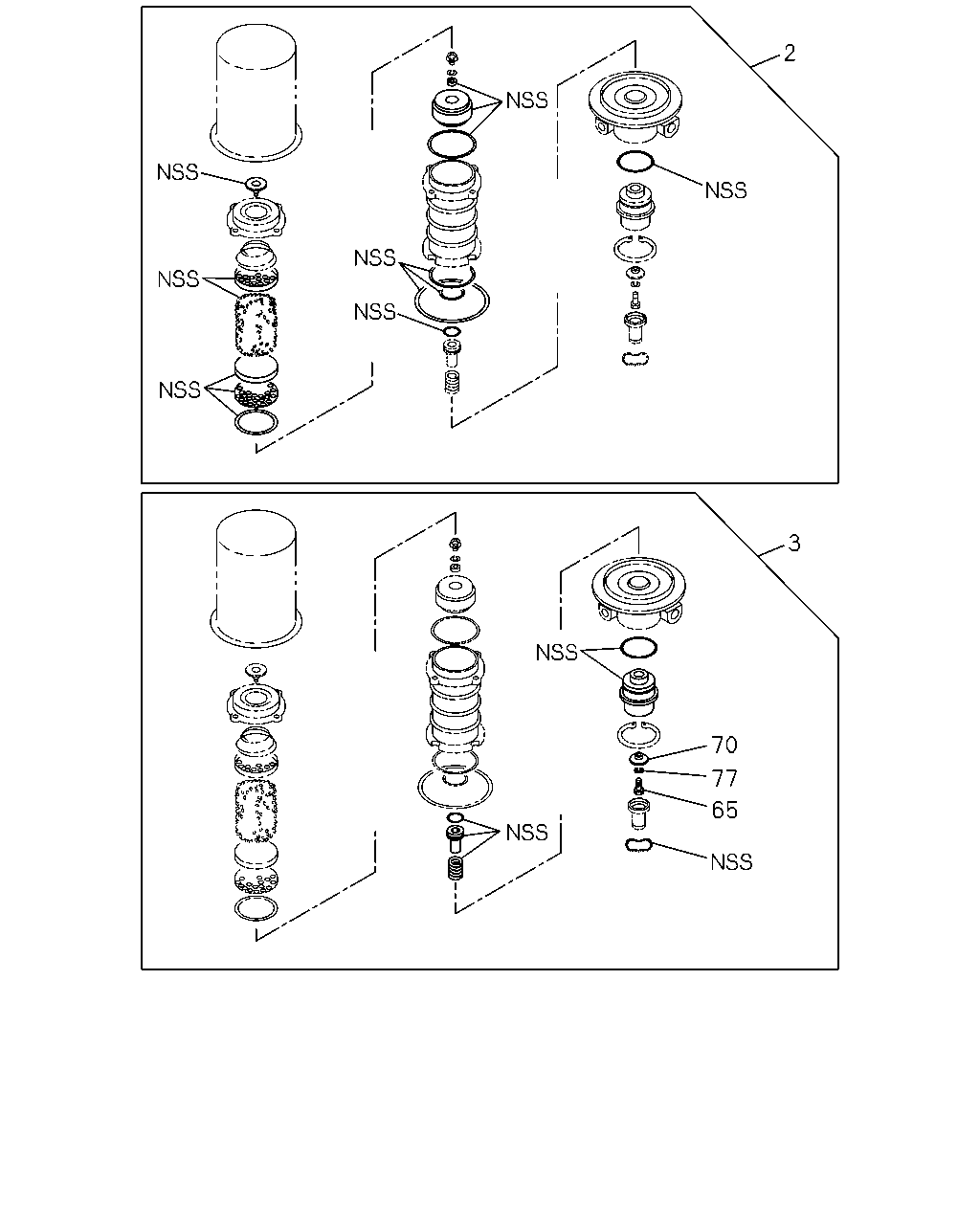

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	9603-	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	9603-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9603-9704	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	9705-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9603-	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9603-9704	●	●

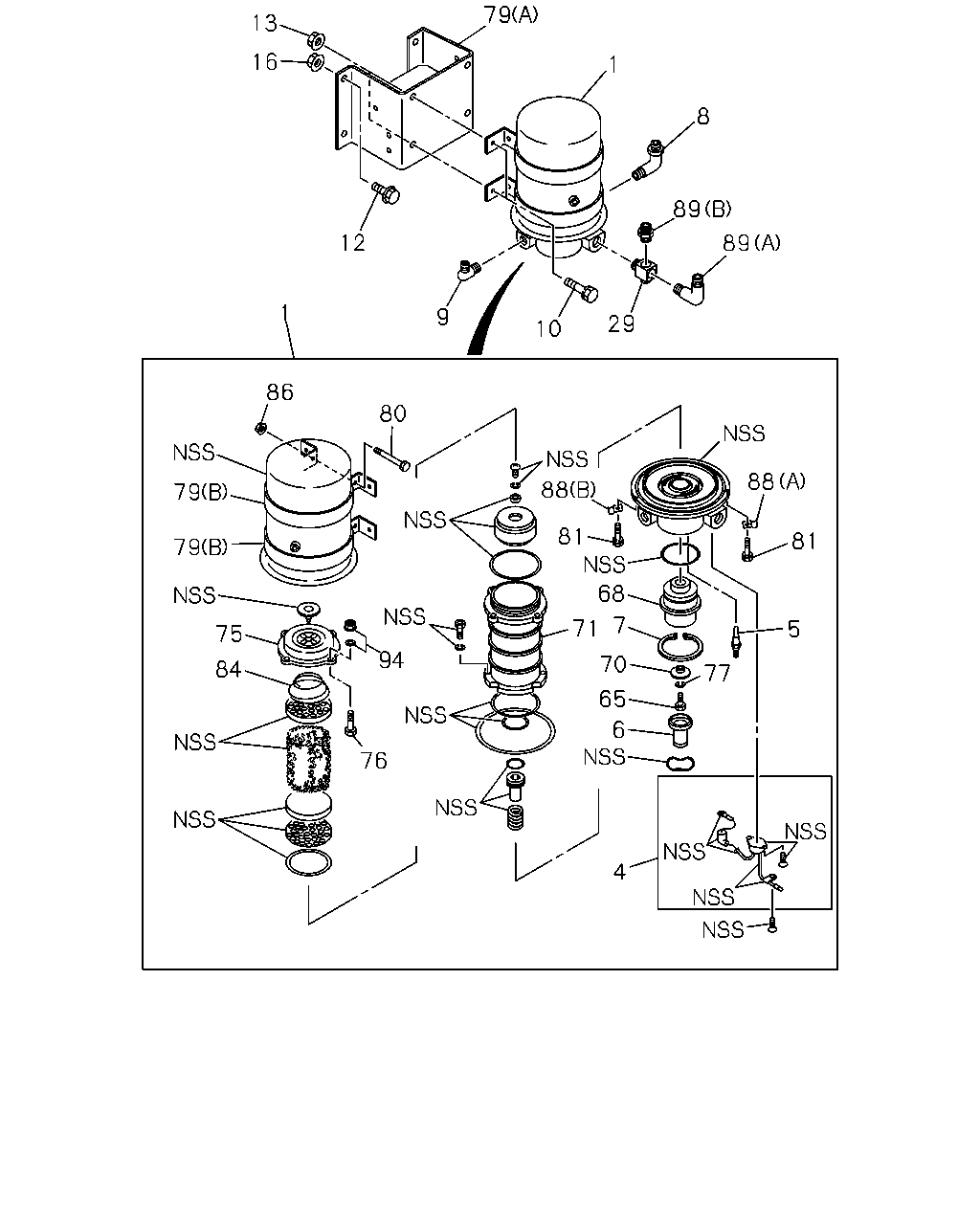

79 13 16 1 8 89 12 89 1 9 29 10 86 80 88 88 79 81 81 79 68 7 71 5 75 94 70 84 77 65 6 76 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	9603-	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	9603-	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	9603-	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9603-	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	9603-	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9603-9904	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9603-	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	04	1	9603-9606	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-	●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X35 FLANGE	0-28081-035-0	04	1	9603-9606	●	●
12	BOLT; BRKT AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9607-	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9603-9606	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-	●	●
16	NUT; BRKT AIR DRYER<PS7> M10	9-09110-510-0	04	1	9603-9606	●	●
16	NUT; BRKT AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-	●	●
29	UNION; 3 WAY,PURGE TANK AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9603-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9603-9704	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	9705-	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9603-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9603-	●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	9603-	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	9603-	●	●
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-478-0	06	1	9905-	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9603-9704	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (B)	1-48199-189-0	02	1	9603-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7> (A)	1-53497-540-1	01	1	9603-	●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	9603-	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	9603-	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	9603-	●	●
86	NUT; BRKT AIR DRYER<PS7>	1-48199-320-0	02	1	9603-	●	●
88	PLATE; STOPPER AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9603-	●	●
88	PLATE; STOPPER AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9603-	●	●
89	ADAPTER AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904	●	●
89	ADAPTER AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-	●	●
89	ADAPTER AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9904	●	●
89	ADAPTER AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005	●	●
89	ADAPTER AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●	●
94	NUT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-479-0	07	1	9905-	●	●
