3-45 — LOAD SENSING PROPORTIONING VALVE (#5801) — 143 parça

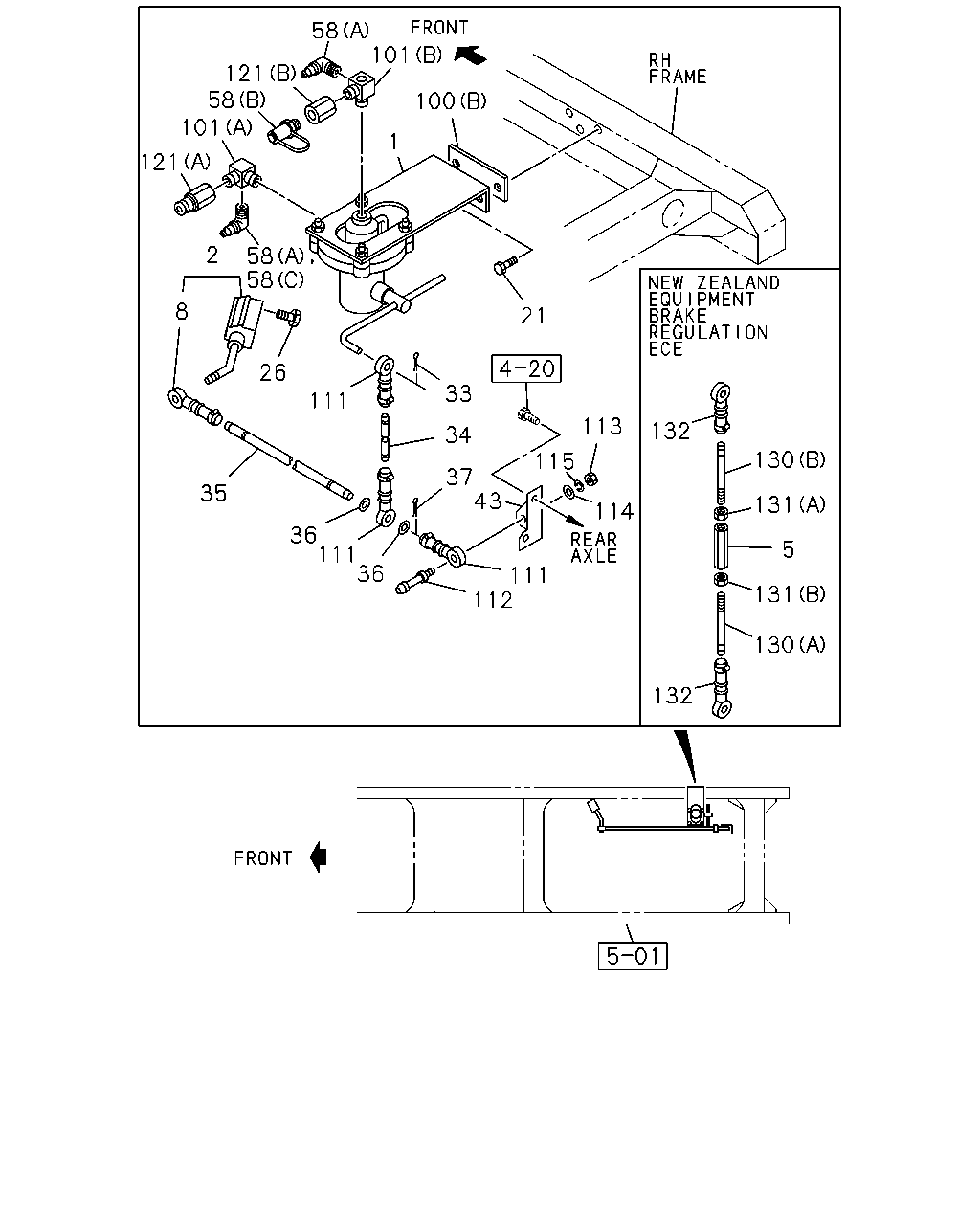

58 101 121 58 101 100 1 121 2 58 58 8 21 26 33 111 113 132 34 130 115 37 43 35 131 114 36 111 36 5 111 112 131 130 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	9603-9904	●
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-061-0	01	1	9905-	●
2	DAMPER NEW ZEALAND EQUIPMENT(PK5)	1-47725-016-0	01	1	9603-9904	●
2	DAMPER BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	9905-	●	●
5	JOINT NEW ZEALAND EQUIPMENT(PK5)	1-09768-004-0	01	1	9605-9704	●
5	JOINT NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	9705-9904	●
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	9905-	●	●
8	ROD END NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	01	1	9603-9904	●
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9905-	●	●
21	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28080-830-0	04	1	9603-9606	●
21	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	04	1	9607-9904	●
21	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	04	1	9905-	●	●
26	BOLT; DAMPER NEW ZEALAND EQUIPMENT(PK5) M8X12 FLANGE	0-28080-812-0	02	1	9603-9904	●
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	9905-	●	●
33	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	01	1	9603-9904	●
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	9905-	●	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-048-0	01	1	9603-9604	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47725-023-0	01	1	9605-9611	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47725-024-1	01	1	9612-9704	●
34	ROD; LEVER TO ROD,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47725-025-0	01	1	9705-9904	●
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	9905-	●	●
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-049-0	01	1	9603-9610	●
35	ROD; LINK,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-09740-086-0	01	1	9611-9904	●
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV>	1-09740-086-0	01	1	9905-	●	●
36	WASHER; PL,ROD NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	02	1	9603-9904	●
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9905-	●	●
37	PIN; SPLIT,ROD NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=25	9-08112-025-0	02	1	9603-9904	●
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	9905-	●	●
43	BRACKET; DAMPER TO AXLE NEW ZEALAND EQUIPMENT(PK5)	1-42129-185-0	01	1	9603-9904	●
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	9905-	●	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9712	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9801-9904	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	01	1	9603-9904	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47459-013-0	01	1	9905-	●
58	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9801-9904	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-42129-204-0	01	1	9603-9702	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-42129-245-0	01	1	9703-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (B)	1-42129-245-0	01	1	9905-	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-147-0	01	1	9603-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-147-0	01	1	9905-	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-9606	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9607-9612	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-09656-557-1	01	1	9701-9904	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A)	1-09656-557-1	01	1	9905-	●
101	CONNECTOR; LSPV NEW ZEALAND EQUIPMENT(PK5) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9607-9904	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9905-	●
111	RUBBER; JOINT,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	03	1	9603-9604	●
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	03	1	9905-	●	●
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-052-0	01	1	9603-9611	●
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-123-0	01	1	9612-9904	●
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	9905-	●	●
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9603-9611	●
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	01	1	9612-9904	●
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
114	WASHER; PL,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	01	1	9603-9611	●
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9905-	●	●
115	WASHER; LK,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.2	9-09150-508-0	01	1	9603-9611	●
121	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9603-9904	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
121	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9603-9904	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9905-	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-071-0	01	1	9605-9611	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-280-1	01	1	9612-9704	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (A)	1-09765-282-0	01	1	9705-9904	●
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	9905-	●	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-212-0	01	1	9605-9611	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-281-1	01	1	9612-9704	●
130	ROD; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-09765-283-0	01	1	9705-9904	●
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	9905-	●	●
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) (A) LH THREAD	1-09409-002-0	01	1	9605-9904	●
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	9905-	●	●
131	NUT; JOINT NEW ZEALAND EQUIPMENT(PK5) (B)	1-48119-089-0	01	1	9605-9904	●
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	9905-	●	●
132	RUBBER ASM; CONN NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	9605-9904	●
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9905-	●	●

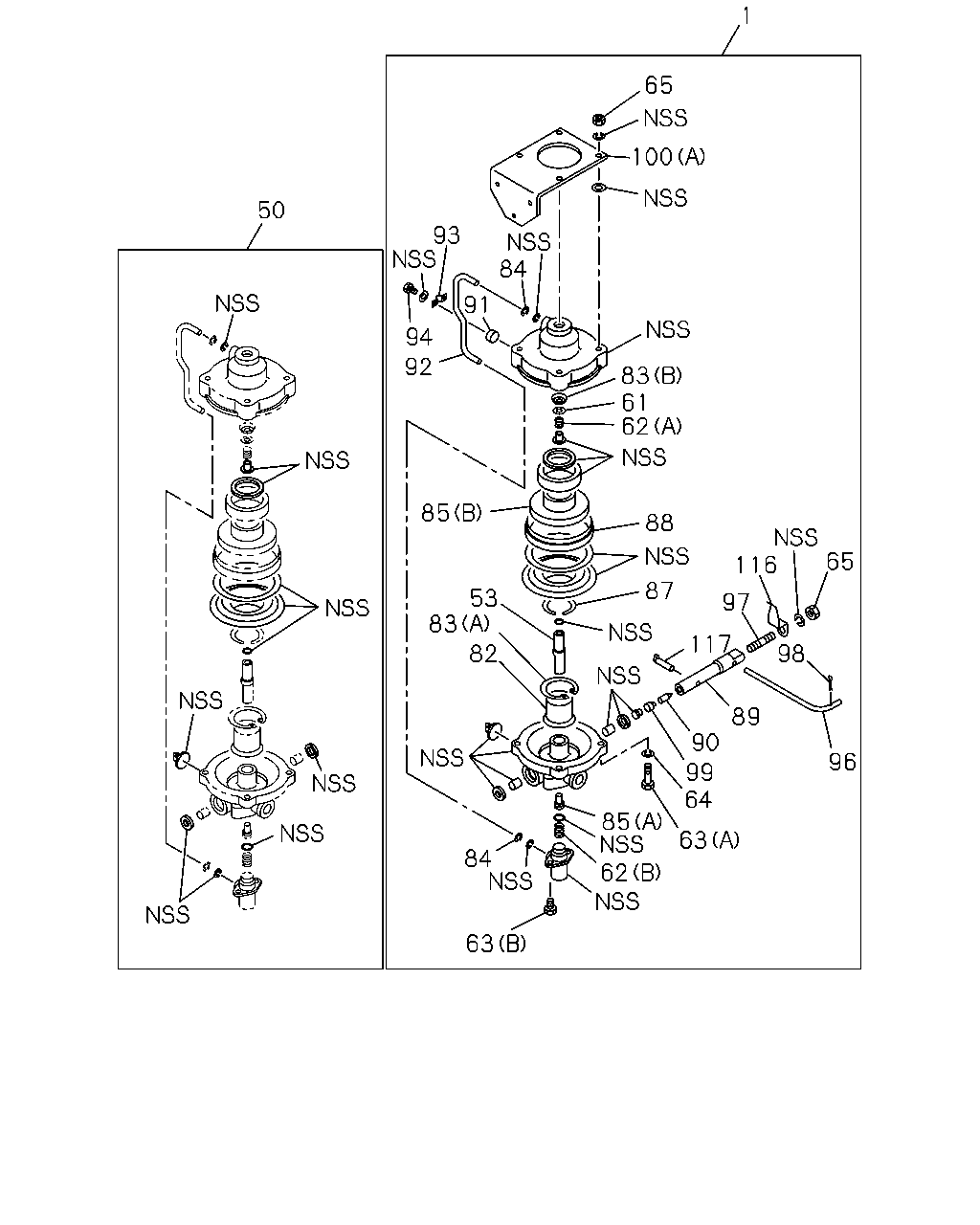

1 65 100 50 93 84 91 94 92 83 61 62 85 88 116 65 87 53 83 97 117 98 82 89 90 96 99 64 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	VALVE ASM; LOAD SENSING PROPORTIONING NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	9603-9904	●
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-061-0	01	1	9905-	●
50	REPAIR KIT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-088-0	01	1	9603-9904	●
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-088-0	01	1	9905-	●
53	PLUNGER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	9603-9904	●
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	9905-	●
61	RETAINER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-47769-026-0	01	1	9603-9904	●
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-026-0	01	1	9905-	●
62	SPRING; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-025-0	01	1	9603-9904	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	9905-	●
62	SPRING; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-042-0	01	1	9603-9904	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	9905-	●
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	9603-9904	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	9905-	●
63	BOLT; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-094-0	04	1	9603-9904	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	9905-	●
64	WASHER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-079-0	04	1	9603-9904	●
64	WASHER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-079-0	04	1	9905-	●
65	NUT; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	9603-9904	●
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	9905-	●
82	GUIDE; PISTON,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	9603-9904	●
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	9905-	●
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	9603-9904	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	9905-	●
83	RING; SNAP,RET NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-027-0	01	1	9603-9904	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-027-0	01	1	9905-	●
84	RETAINER; GASKET NEW ZEALAND EQUIPMENT(PK5)	1-47769-021-0	02	1	9603-9904	●
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	9905-	●
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-023-0	01	1	9603-9904	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-023-0	01	1	9905-	●
85	PISTON; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-043-0	01	1	9603-9904	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	9905-	●
87	RETAINER; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	9603-9904	●
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	9905-	●
88	GUIDE; DIAPH NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	9603-9904	●
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	9905-	●
89	ROD; CONN,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	9603-9904	●
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	9905-	●
90	SCREW; CAM NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	9603-9904	●
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	9905-	●
91	FILTER; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	9603-9904	●
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	9905-	●
92	PIPE; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	9603-9904	●
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	9905-	●
93	CLIP; PIPE NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	9603-9904	●
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	9905-	●
94	SCREW; CLIP NEW ZEALAND EQUIPMENT(PK5)	1-47769-144-0	02	1	9603-9904	●
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-144-0	02	1	9905-	●
96	ARM; OPERATING NEW ZEALAND EQUIPMENT(PK5)	1-47769-143-0	01	1	9603-9904	●
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-143-0	01	1	9905-	●
97	BOLT; OPERATING ARM NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	9603-9904	●
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	9905-	●
98	PIN; SPLIT NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	9603-9904	●
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	9905-	●
99	CAP; SCREW NEW ZEALAND EQUIPMENT(PK5)	1-47769-055-0	01	1	9603-9904	●
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	9905-	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-42129-204-0	01	1	9603-9702	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (B)	1-42129-245-0	01	1	9703-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (B)	1-42129-245-0	01	1	9905-	●
100	BRACKET; LSPV NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-147-0	01	1	9603-9904	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-147-0	01	1	9905-	●
116	INDICATOR; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-078-0	01	1	9603-9904	●
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	9905-	●
117	CAM; LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47769-038-0	01	1	9603-9904	●
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	9905-	●
