◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11419 - FSS(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#58006) — 81 parça

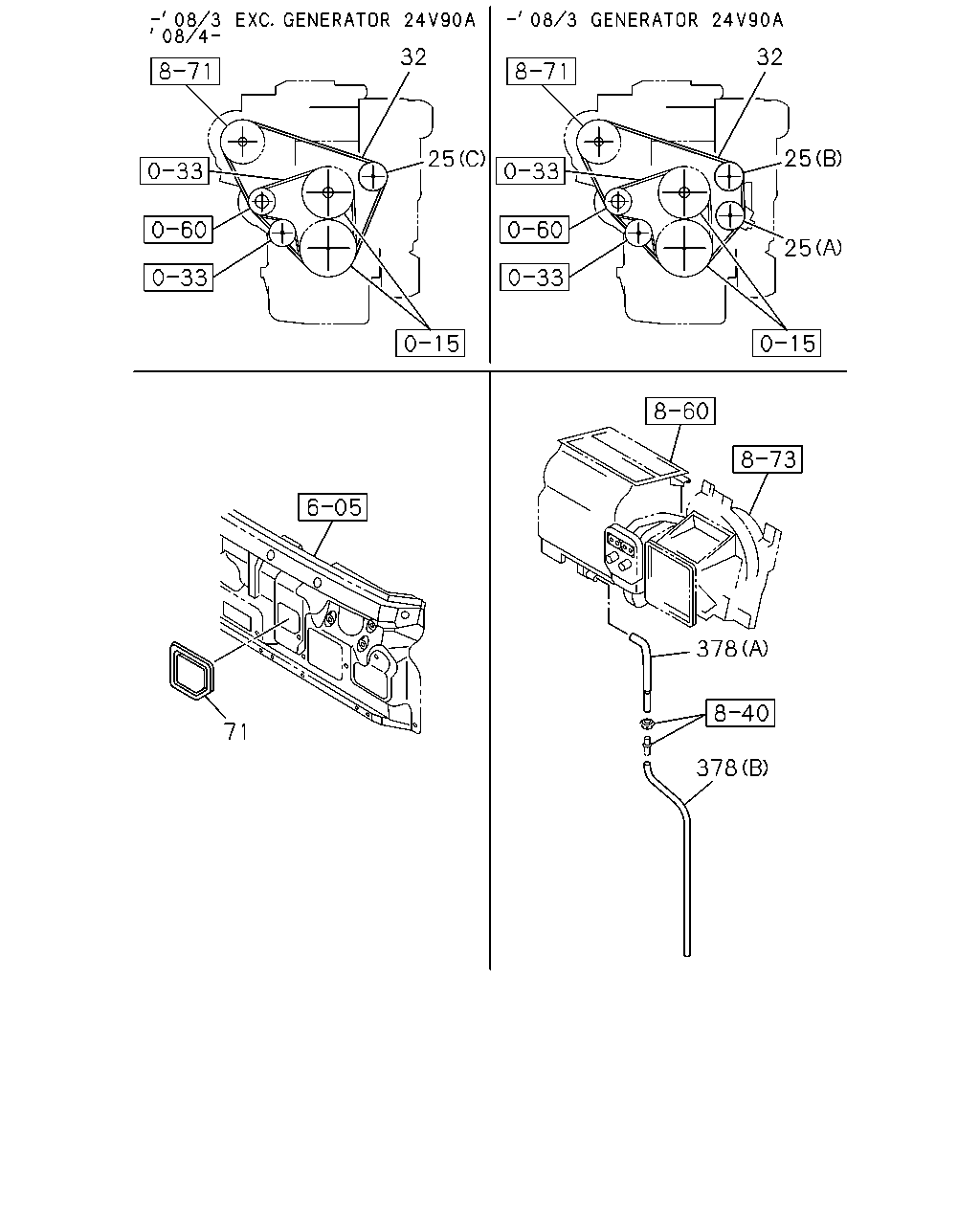

çizim 146364
32 32 25 25 25 378 71 378
BalonParca AdiParca NoAdetTipApplied Date A B
25 PULLEY ASM; IDLER,CMPR
GENERATOR 24V90A(K44) (A) 1-GROOVE 		8-94334-696-2 01 1 0712-0803 ● ●
25 PULLEY ASM; IDLER,CMPR
GENERATOR 24V90A(K44) (B) 1-GROOVE 		8-94334-873-0 01 1 0712-0803 ● ●
25 PULLEY ASM; IDLER,CMPR
EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE 		8-97161-198-1 01 1 0712-0803 ● ●
25 PULLEY ASM; IDLER,CMPR
(C) 1-GROOVE 		8-97161-198-1 01 1 0804-0808 ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 1-GROOVE 		8-97161-198-1 01 1 0809- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE 		8-97161-198-1 01 1 0809- ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		1-87610-100-0 01 1 1207- ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-100-0 01 1 1207- ●
32 BELT; A/C CMPR
L=1594 		8-97383-577-0 01 1 0712-0808 ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1594 		8-97383-577-1 01 1 0809- ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1594 		8-97383-577-1 01 1 0809- ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0712-0803 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-234-1 01 1 0712-0803 ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0804- ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-234-1 01 1 0804- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-759-0 01 1 0712-1111 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-759-0 01 1 0712-1111 ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-846-0 01 1 1112- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1112- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 0712-0803 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-428-0 01 1 0712-0803 ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 0804- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-428-0 01 1 0804- ●

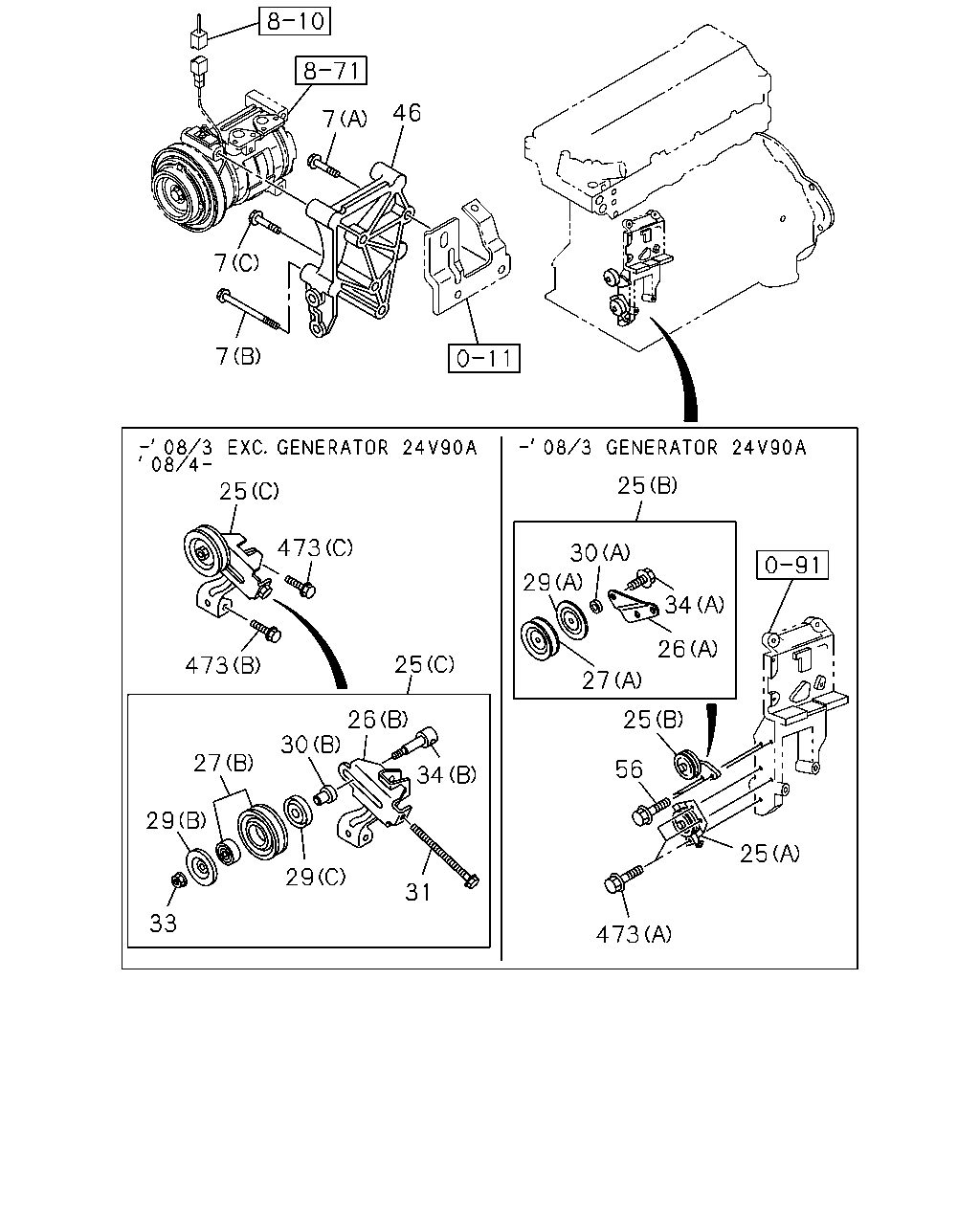

çizim 146376
46 7 7 7 25 25 473 30 29 34 26 25 473 27 26 30 25 27 56 34 29 25 29 31 33 473
BalonParca AdiParca NoAdetTipApplied Date A B
7 BOLT; BRKT
(A) M10X45 FLANGE 		0-28151-045-0 02 1 0712- ● ●
7 BOLT; BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 0712-0803 ● ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 01 1 0804- ● ●
7 BOLT; BRKT
GENERATOR 24V90A(K44) (C) M10X130 FLANGE 		0-28156-013-0 01 1 0712- ● ●
7 BOLT; BRKT
EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE 		0-28151-080-0 02 1 0804- ● ●
25 PULLEY ASM; IDLER,CMPR
GENERATOR 24V90A(K44) (A) 1-GROOVE 		8-94334-696-2 01 1 0712-0803 ● ●
25 PULLEY ASM; IDLER,CMPR
GENERATOR 24V90A(K44) (B) 1-GROOVE 		8-94334-873-0 01 1 0712-0803 ● ●
25 PULLEY ASM; IDLER,CMPR
EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE 		8-97161-198-1 01 1 0712-0803 ● ●
25 PULLEY ASM; IDLER,CMPR
(C) 1-GROOVE 		8-97161-198-1 01 1 0804-0808 ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 1-GROOVE 		8-97161-198-1 01 1 0809- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE 		8-97161-198-1 01 1 0809- ●
26 BRACKET; IDLE PULLEY,A/C
GENERATOR 24V90A(K44) (A) 		8-97060-362-0 01 1 0712-0803 ● ●
26 BRACKET; IDLE PULLEY,A/C
EXC. GENERATOR 24V90A(K44) (B) 		8-97161-031-1 01 1 0712-0803 ● ●
26 BRACKET; IDLE PULLEY,A/C
(B) 		8-97161-031-1 01 1 0804-0808 ● ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97161-031-1 01 1 0809- ●
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97161-031-1 01 1 0809- ●
27 PULLEY; IDLE,A/C
GENERATOR 24V90A(K44) (A) 		9-13663-606-0 01 1 0712-0803 ● ●
27 PULLEY; IDLE,A/C
EXC. GENERATOR 24V90A(K44) (B) 		8-97386-869-0 01 1 0712-0803 ● ●
27 PULLEY; IDLE,A/C
(B) 		8-97386-869-0 01 1 0804-0808 ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97386-869-0 01 1 0809- ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97386-869-0 01 1 0809- ●
29 COVER; DUST,IDLE PULLEY
GENERATOR 24V90A(K44) (A) 		9-13669-603-0 02 1 0712-0803 ● ●
29 COVER; DUST,IDLE PULLEY
EXC. GENERATOR 24V90A(K44) (B) 		8-97384-114-0 01 1 0712-0803 ● ●
29 COVER; DUST,IDLE PULLEY
(B) 		8-97384-114-0 01 1 0804-0808 ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97384-114-0 01 1 0809- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-114-0 01 1 0809- ●
29 COVER; DUST,IDLE PULLEY
EXC. GENERATOR 24V90A(K44) (C) 		8-97384-115-0 01 1 0712-0803 ● ●
29 COVER; DUST,IDLE PULLEY
(C) 		8-97384-115-0 01 1 0804-0808 ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-97384-115-0 01 1 0809- ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-97384-115-0 01 1 0809- ●
30 COLLAR; IDLE PULLEY
GENERATOR 24V90A(K44) (A) 		8-94207-192-0 01 1 0712-0803 ● ●
30 COLLAR; IDLE PULLEY
EXC. GENERATOR 24V90A(K44) (B) 		8-97384-117-0 01 1 0712-0803 ● ●
30 COLLAR; IDLE PULLEY
(B) 		8-97384-117-0 01 1 0804-0808 ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97384-117-0 01 1 0809- ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-117-0 01 1 0809- ●
31 BOLT; ADJ,IDLE PULLEY
EXC. GENERATOR 24V90A(K44) 		8-97384-113-0 01 1 0712-0803 ● ●
31 BOLT; ADJ,IDLE PULLEY 8-97384-113-0 01 1 0804-0808 ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97384-113-0 01 1 0809- ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-113-0 01 1 0809- ●
33 NUT; IDLER PULLEY
EXC. GENERATOR 24V90A(K44) 		8-97384-118-0 01 1 0712-0803 ● ●
33 NUT; IDLER PULLEY 8-97384-118-0 01 1 0804-0808 ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97384-118-0 01 1 0809- ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97384-118-0 01 1 0809- ●
34 SHAFT; IDLE PULLEY
GENERATOR 24V90A(K44) (A) M10X30 		0-28121-030-0 01 1 0712-0803 ● ●
34 SHAFT; IDLE PULLEY
EXC. GENERATOR 24V90A(K44) (B) 		8-97384-116-0 01 1 0712-0803 ● ●
34 SHAFT; IDLE PULLEY
(B) 		8-97384-116-0 01 1 0804-0808 ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97384-116-0 01 1 0809- ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97384-116-0 01 1 0809- ●
46 BRACKET; CMPR
GENERATOR 24V90A(K44) 		8-98101-365-0 01 1 0712- ● ●
46 BRACKET; CMPR
EXC. GENERATOR 24V90A(K44) 		8-98101-364-0 01 1 0712- ● ●
56 BOLT; IDLER PULLEY
GENERATOR 24V90A(K44) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0803 ● ●
473 BOLT; TENSIONER
(B) M10X65 FLANGE 		8-94344-540-1 01 1 0804-0808 ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0809- ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0809- ●
473 BOLT; TENSIONER
GENERATOR 24V90A(K44) (A) M8X16 FLANGE 		0-28050-816-0 03 1 0712-0803 ● ●
473 BOLT; TENSIONER
(C) M8X50 FLANGE 		0-28050-850-0 01 1 0804-0808 ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X50 FLANGE 		0-28050-850-0 01 1 0809- ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X50 FLANGE 		0-28050-850-0 01 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
