Isuzu WW
▶
TRUCKS
▶
FVR
▶
11329 - FVR AUST/NZ EURO5
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#58004) — 39 parça
Tümü
A - FGD5MV
B - FGR5MV
◀

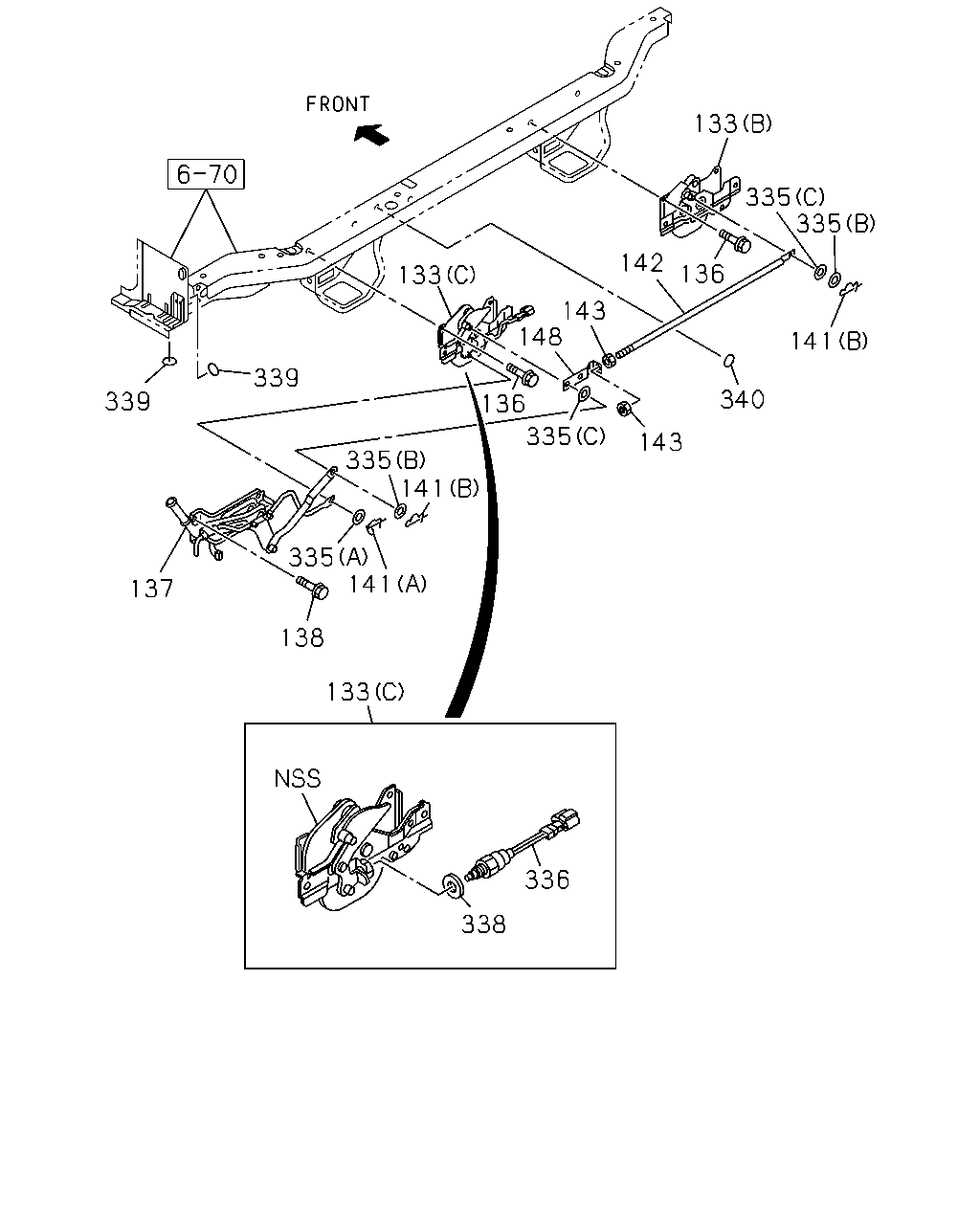

[515A] CAB REAR LOCK (18 parça)

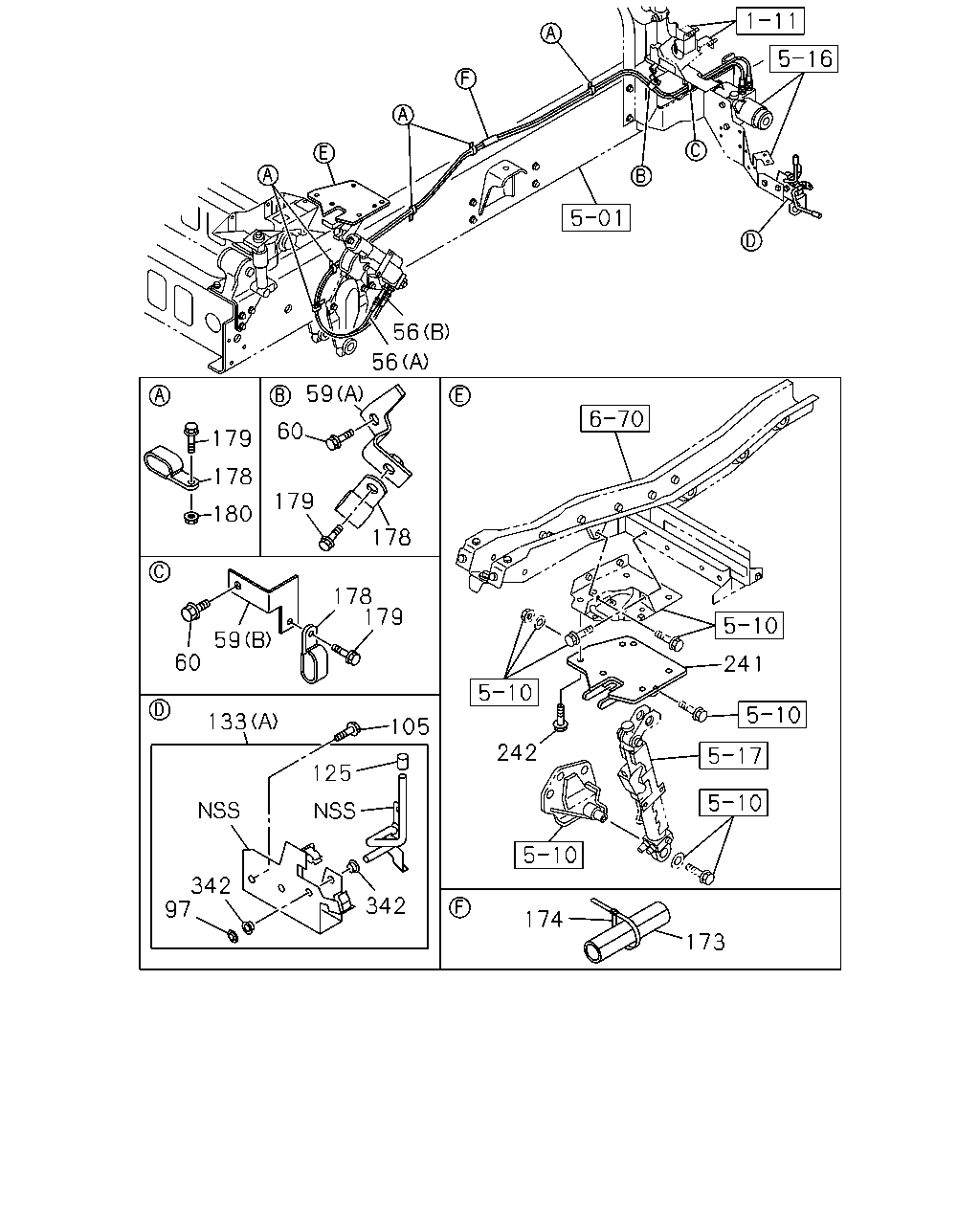

[515A] CAB TILT PIPING (21 parça)
▶
338
336
133
138
137
141
335
141
335
339
339
335
143
136
340
141
148
143
142
136
335
335
133
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
(A)
8-97608-198-0
01
1
1010-
●
●
133
LOCK ASM; CAB
(C)
8-98094-285-2
01
1
1010-
●
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1010-
●
●
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1010-
●
●
137
CONTROL UNIT; CAB LOCK
8-97587-592-5
01
1
1010-
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1010-
●
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1010-
●
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1010-
●
●
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1010-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1010-
●
●
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1010-
●
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1010-
●
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1010-
●
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1010-
●
●
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1010-
●
●
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1010-
●
●
339
SEAL; TILT HANDLE
OD=25 BLACK
1-76798-019-0
04
1
1010-
●
●
340
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
1010-
●
●
56
56
59
60
179
178
180
179
178
178
179
59
60
133
125
105
342
97
342
174
173
241
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
56
HOSE; FLEX,OIL PIPE
(A)
8-98022-487-2
01
1
1010-
●
●
56
HOSE; FLEX,OIL PIPE
(B)
8-98087-331-1
01
1
1010-
●
●
59
BRACKET; CLIP
(A)
8-98083-608-1
01
1
1010-
●
●
59
BRACKET; CLIP
(B)
8-98083-609-0
01
1
1010-
●
●
60
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1010-
●
●
97
NUT; CAB STAY PIN
ID=9.9 PUSH NUT
8-97022-566-0
01
1
1010-
●
●
105
BOLT; CAB STAY
M8X16 FLANGE
0-28050-816-0
02
1
1010-
●
●
125
GRIP; HAND LEVER,CAB LOCK
ID=9.0
8-94207-303-0
01
1
1010-
●
●
133
LOCK ASM; CAB
(A)
8-97608-198-0
01
1
1010-
●
●
133
LOCK ASM; CAB
(C)
8-98094-285-2
01
1
1010-
●
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1010-
●
●
173
SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40
1-09337-012-0
01
1
1010-
●
●
174
CLIP; BAND,FLEX HOSE
L=140
5-09707-031-1
01
1
1010-
●
●
178
CLIP; FLEX HOSE
ID=11X2 L=20
0-95325-035-0
07
1
1010-
●
●
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
06
1
1010-
●
●
179
BOLT; CLIP,FLEX HOSE
M8X30 FLANGE
0-28650-830-0
03
1
1010-
●
●
180
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
180
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
1010-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
8-98022-417-1
01
1
1010-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
M10X30 FLANGE
0-28661-030-0
05
1
1010-
●
●
342
BUSHING; LEVER,CAB LOCK
T=6 OD=17.5
9-33659-249-0
02
1
1010-
●
●
