Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#58002) — 235 parça

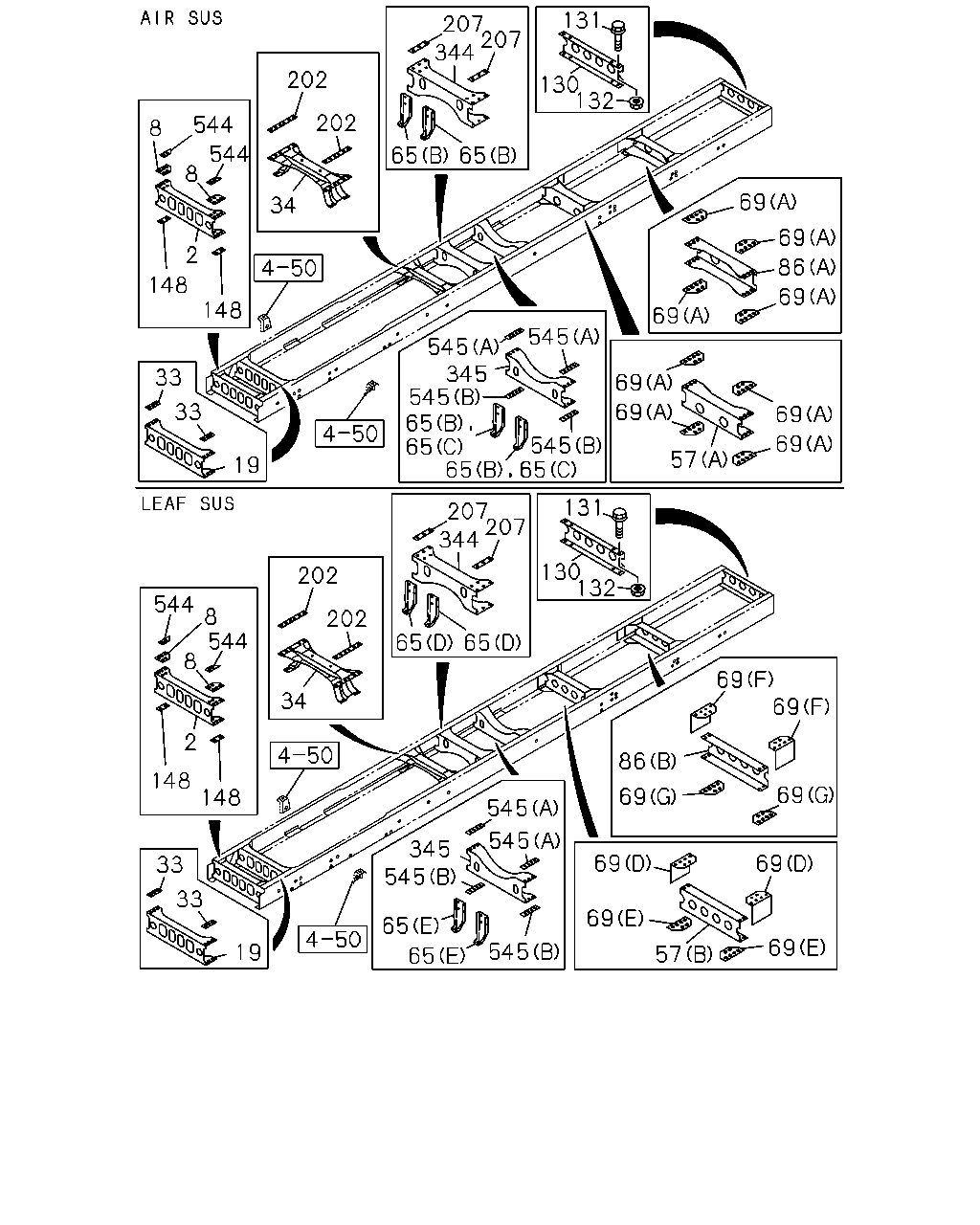

69 69 57 69 69 69 69 69 69 86 545 545 345 545 65 545 65 19 33 33 148 148 2 34 202 202 544 8 8 544 65 65 207 207 344 131 132 130 69 69 57 69 69 545 545 345 545 65 65 65 65 545 19 33 33 148 148 2 34 8 8 544 544 202 202 65 65 207 344 207 130 132 131 69 69 69 86 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	1010-	●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1010-		●	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1010-		●	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (G)	8-97623-393-0	02	1	1307-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) COUNTRY NEW ZEALAND(CX6) (B)	8-97614-136-0	04	1	1110-1111		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	04	1	1112-		●
65	BRACKET; CENTER BRG (A)	8-97621-250-0	02	1	1010-	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (C)	8-97611-329-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) EXC. COUNTRY NEW ZEALAND(CX6) (C)	8-97611-329-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) EXC. COUNTRY NEW ZEALAND(CX6) (B)	8-97614-136-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (E)	8-97614-133-0	02	1	1010-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (D)	8-97621-881-0	02	1	1010-		●
65	BRACKET; CENTER BRG (F)	8-97614-126-0	02	1	1010-			●
65	BRACKET; CENTER BRG (G)	8-97614-140-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (G)	8-97614-140-0	02	1	1307-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (H)	8-97612-486-0	02	1	1010-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (I)	8-97623-367-0	02	1	1010-			●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	1010-		●	●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	1010-		●	●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	1010-		●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-907-1	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-908-1	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-910-0	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-911-0	01	1	1010-			●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	1010-	●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1010-		●	●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1010-		●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1010-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1010-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1010-	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1010-		●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	1307-			●
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	1010-		●

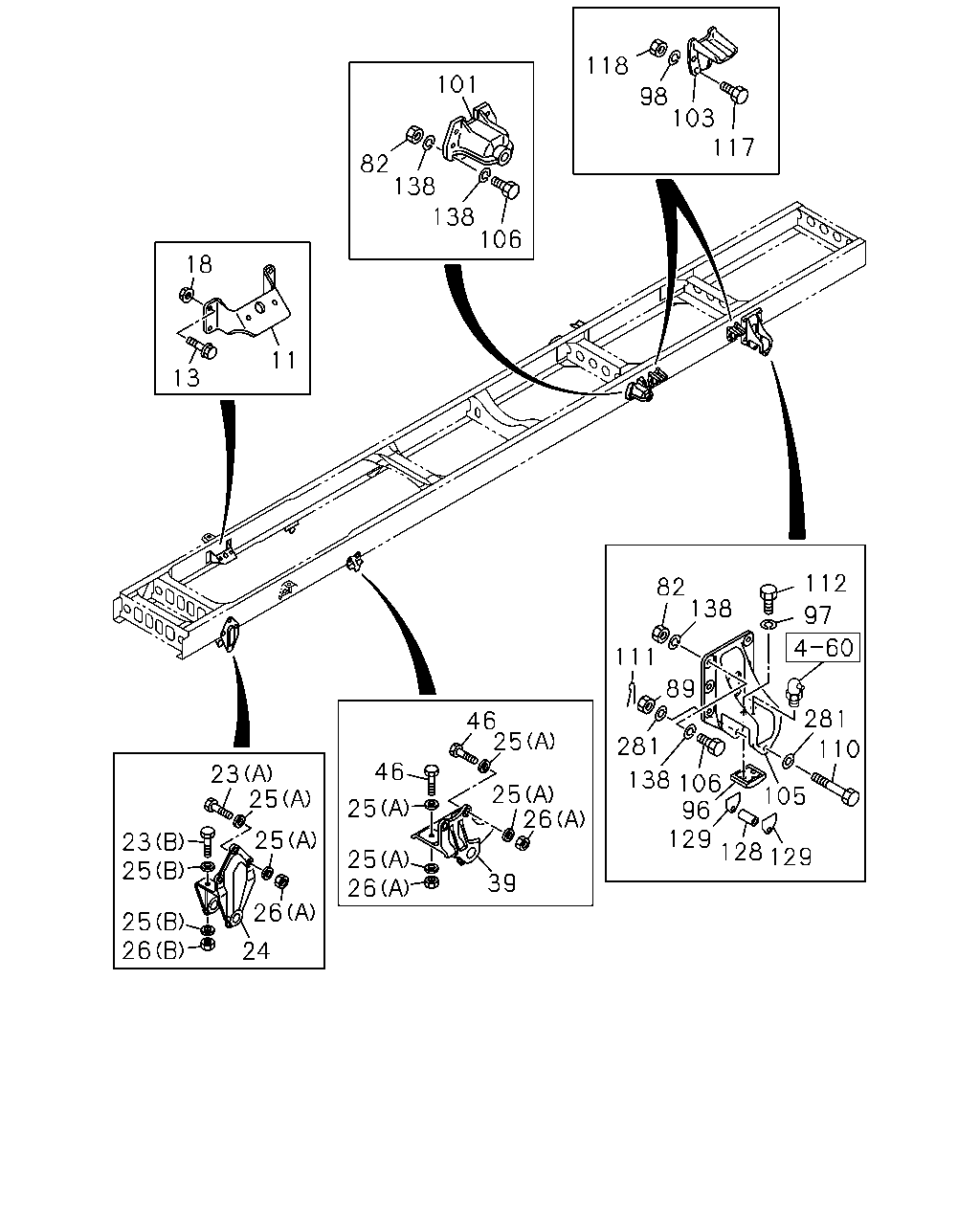

18 11 13 82 101 106 138 138 118 117 98 103 23 23 25 25 25 26 24 26 26 25 46 25 26 39 25 25 46 25 82 111 112 281 105 129 128 129 110 97 138 89 281 138 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1010-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	1010-	●
82	NUT; BRKT FVR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	1010-		●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1010-	●
89	NUT; LEAF SPR STOPPER FVR LEAF SUS(FGR***) M14 SLOTTED	0-91116-514-0	02	1	1010-		●	●
96	PAD; RR SPR	1-53359-047-0	02	1	1010-	●
96	PAD; RR SPR FVR LEAF SUS(FGR***)	1-53359-047-0	02	1	1010-		●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	1010-	●
97	WASHER; LK,PAD FVR LEAF SUS(FGR***) ID=14.2	0-91510-514-0	04	1	1010-		●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1010-	●
98	WASHER; LK,STOPPER FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	16	1	1010-		●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	1010-	●
101	BRACKET; RR SPR,FRT FVR LEAF SUS(FGR***)	1-53353-078-1	02	1	1010-		●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	1010-	●
103	STOPPER; SUB SPR FVR LEAF SUS(FGR***)	1-53356-057-0	04	1	1010-		●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	1010-	●
105	BRACKET; RR SPR,RR FVR LEAF SUS(FGR***)	1-53354-064-1	02	1	1010-		●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	1010-	●
106	BOLT; BRKT FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	24	1	1010-		●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	1010-	●
110	BOLT; LEAF SPR STOPPER FVR LEAF SUS(FGR***)	1-09000-007-0	02	1	1010-		●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	1010-	●
111	PIN; SPLIT,LEAF SPR STOPPER FVR LEAF SUS(FGR***) OD=2.8 L=28	0-81123-028-0	02	1	1010-		●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	1010-	●
112	BOLT; PAD FVR LEAF SUS(FGR***) M14X35	0-20851-435-0	04	1	1010-		●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1010-	●
117	BOLT; STOPPER FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	16	1	1010-		●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1010-	●
118	NUT; STOPPER FVR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	1010-		●	●
128	COLLAR; RUBBER FVR LEAF SUS(FGR***) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-53359-004-0	02	1	1010-1306	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	1307-	●
128	COLLAR; RUBBER FVR LEAF SUS(FGR***)	1-53359-004-0	02	1	1307-		●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	1010-	●
129	SHIM; SIDE FVR LEAF SUS(FGR***) T=4.5	1-53359-061-1	02	1	1010-		●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	1010-	●
129	SHIM; SIDE FVR LEAF SUS(FGR***) T=3.2	1-53359-062-1	02	1	1010-		●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	1010-	●
138	WASHER; LK,BRKT FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	24	1	1010-		●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	1010-	●
281	WASHER; LEAF SPR STOPPER FVR LEAF SUS(FGR***) ID=15 OD=30	9-09160-614-0	04	1	1010-		●	●

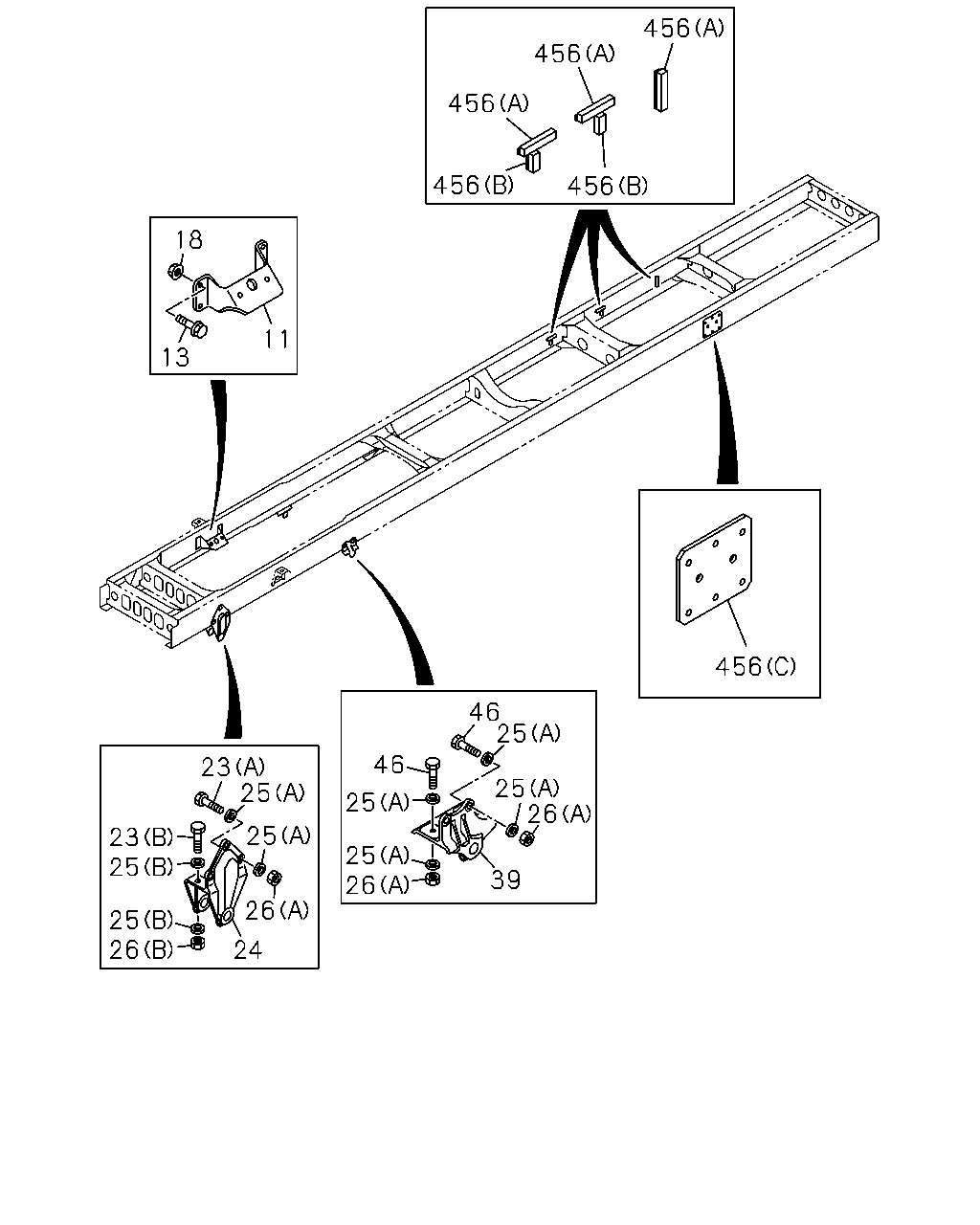

18 13 11 456 456 456 456 456 456 46 25 25 26 39 26 25 25 46 24 25 23 25 26 26 25 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1010-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-	●	●	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (C)	8-97611-251-0	01	1	1010-		●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (A)	8-97611-248-0	06	1	1010-1201		●	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (A)	8-97642-212-0	06	1	1202-		●	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (B)	8-97611-249-0	04	1	1010-1201		●	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (B)	8-97642-213-0	04	1	1202-		●	●

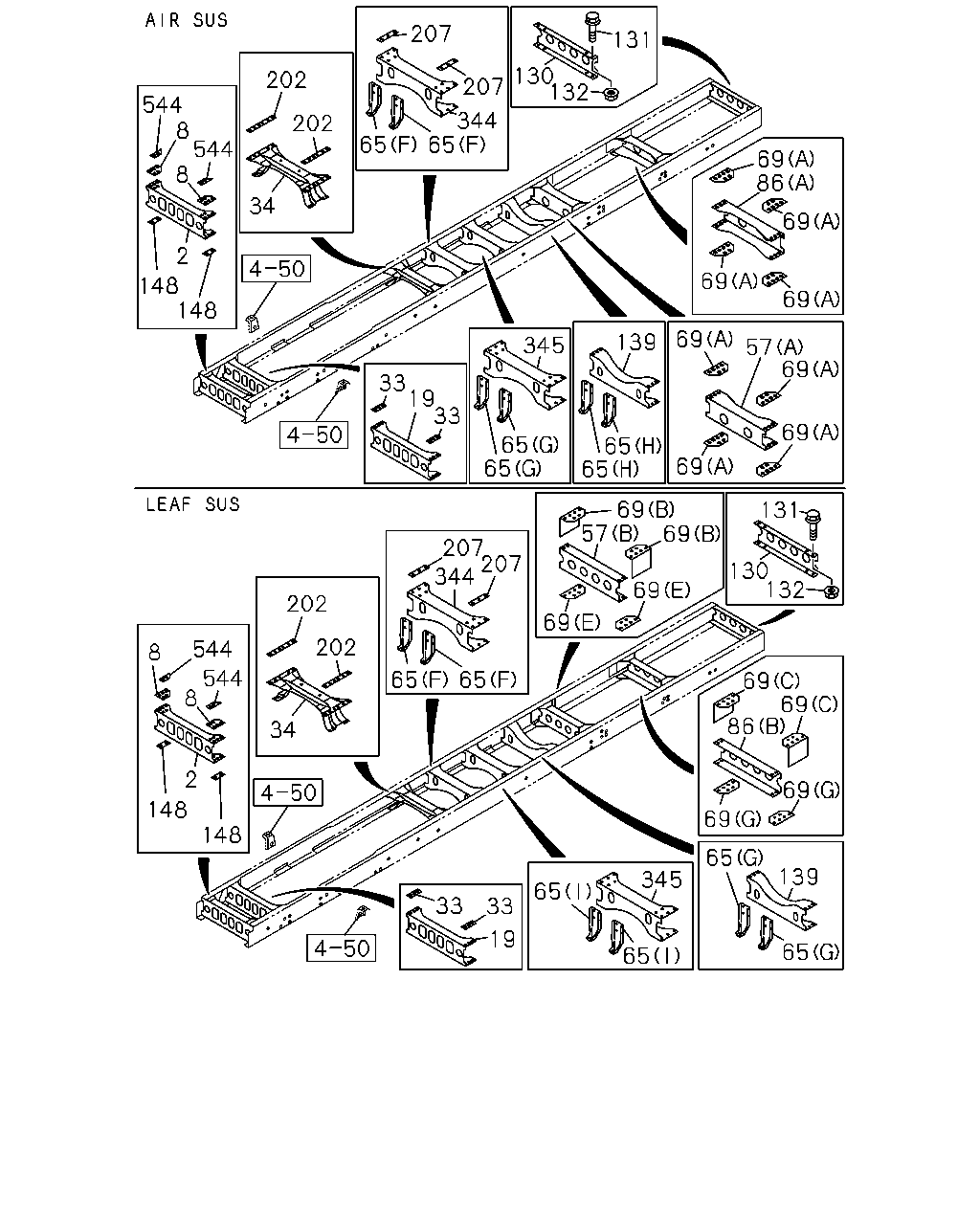

8 544 8 544 2 148 148 19 33 33 202 202 34 130 131 132 69 69 86 207 69 69 344 207 65 65 69 69 69 69 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	1010-	●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1010-		●	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1010-		●	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (G)	8-97623-393-0	02	1	1307-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) COUNTRY NEW ZEALAND(CX6) (B)	8-97614-136-0	04	1	1110-1111		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	04	1	1112-		●
65	BRACKET; CENTER BRG (A)	8-97621-250-0	02	1	1010-	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (C)	8-97611-329-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) EXC. COUNTRY NEW ZEALAND(CX6) (C)	8-97611-329-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) EXC. COUNTRY NEW ZEALAND(CX6) (B)	8-97614-136-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (E)	8-97614-133-0	02	1	1010-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (D)	8-97621-881-0	02	1	1010-		●
65	BRACKET; CENTER BRG (F)	8-97614-126-0	02	1	1010-			●
65	BRACKET; CENTER BRG (G)	8-97614-140-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (G)	8-97614-140-0	02	1	1307-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (H)	8-97612-486-0	02	1	1010-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (I)	8-97623-367-0	02	1	1010-			●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	1010-		●	●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	1010-		●	●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	1010-		●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-907-1	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-908-1	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-910-0	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-911-0	01	1	1010-			●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	1010-	●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1010-		●	●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1010-		●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1010-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1010-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1010-	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-	●	●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●

544 8 544 8 2 148 148 202 202 34 207 207 344 65 65 131 130 132 33 19 33 345 65 65 139 65 65 69 86 69 69 69 69 57 69 69 69 8 544 544 8 2 148 148 202 202 34 207 207 344 65 65 69 57 69 69 69 131 130 132 33 33 19 65 345 65 69 69 86 69 69 65 139 65

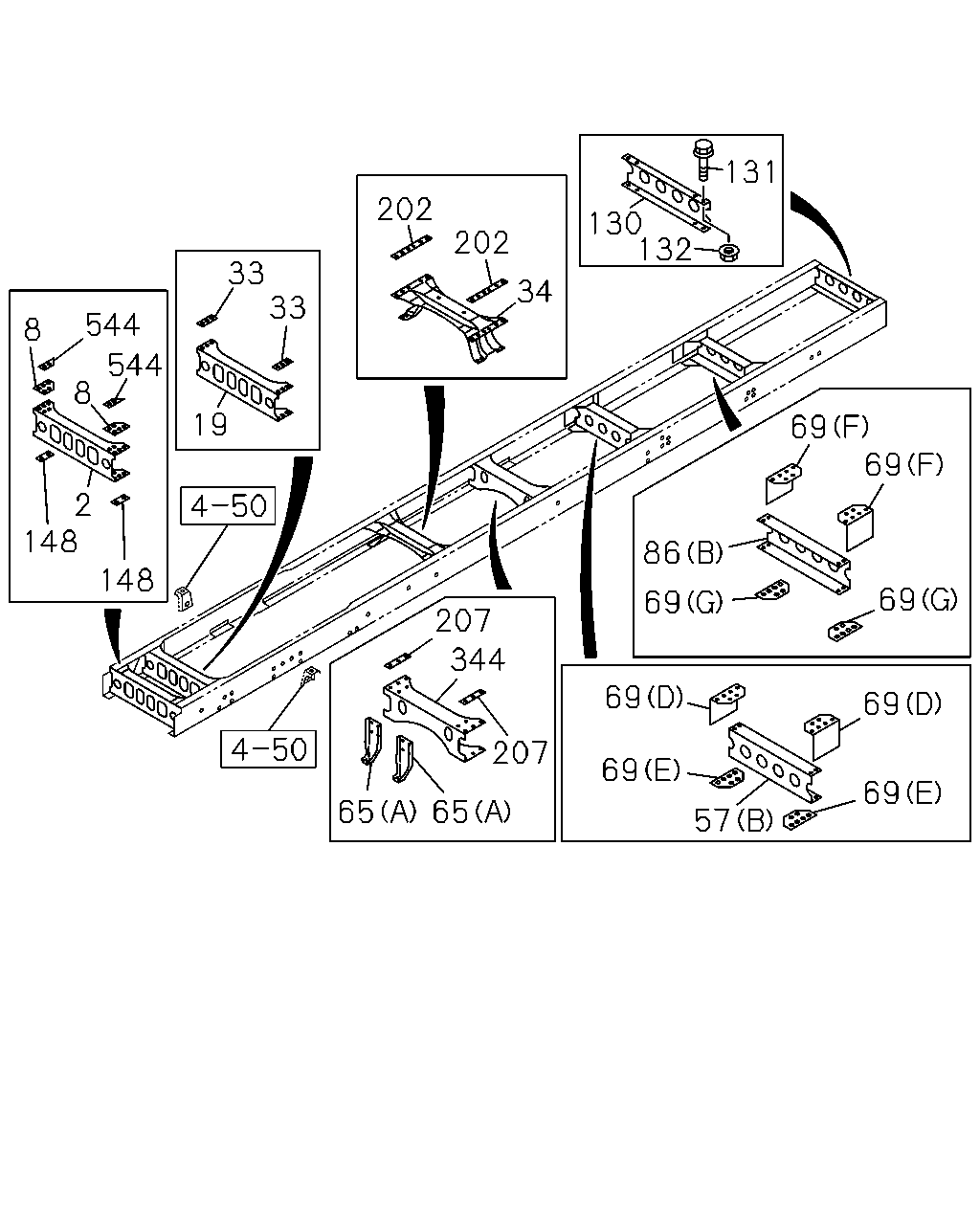

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	1010-	●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1010-		●	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1010-		●	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (G)	8-97623-393-0	02	1	1307-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) COUNTRY NEW ZEALAND(CX6) (B)	8-97614-136-0	04	1	1110-1111		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	04	1	1112-		●
65	BRACKET; CENTER BRG (A)	8-97621-250-0	02	1	1010-	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (C)	8-97611-329-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) EXC. COUNTRY NEW ZEALAND(CX6) (C)	8-97611-329-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) EXC. COUNTRY NEW ZEALAND(CX6) (B)	8-97614-136-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (E)	8-97614-133-0	02	1	1010-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (D)	8-97621-881-0	02	1	1010-		●
65	BRACKET; CENTER BRG (F)	8-97614-126-0	02	1	1010-			●
65	BRACKET; CENTER BRG (G)	8-97614-140-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG ZF9S1110 M/T(Y5E) (G)	8-97614-140-0	02	1	1307-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (H)	8-97612-486-0	02	1	1010-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (I)	8-97623-367-0	02	1	1010-			●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	1010-		●	●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	1010-		●	●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	1010-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	1010-		●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	1010-		●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-907-1	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-908-1	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-910-0	01	1	1010-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-911-0	01	1	1010-			●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	1010-	●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1010-		●	●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1010-		●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
139	MEMBER; CROSS,6TH	8-97611-238-1	01	1	1010-			●
148	SPACER; C/MBR	8-97611-039-0	02	1	1010-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1010-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1010-	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1010-		●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
