◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#58) — 44 parça

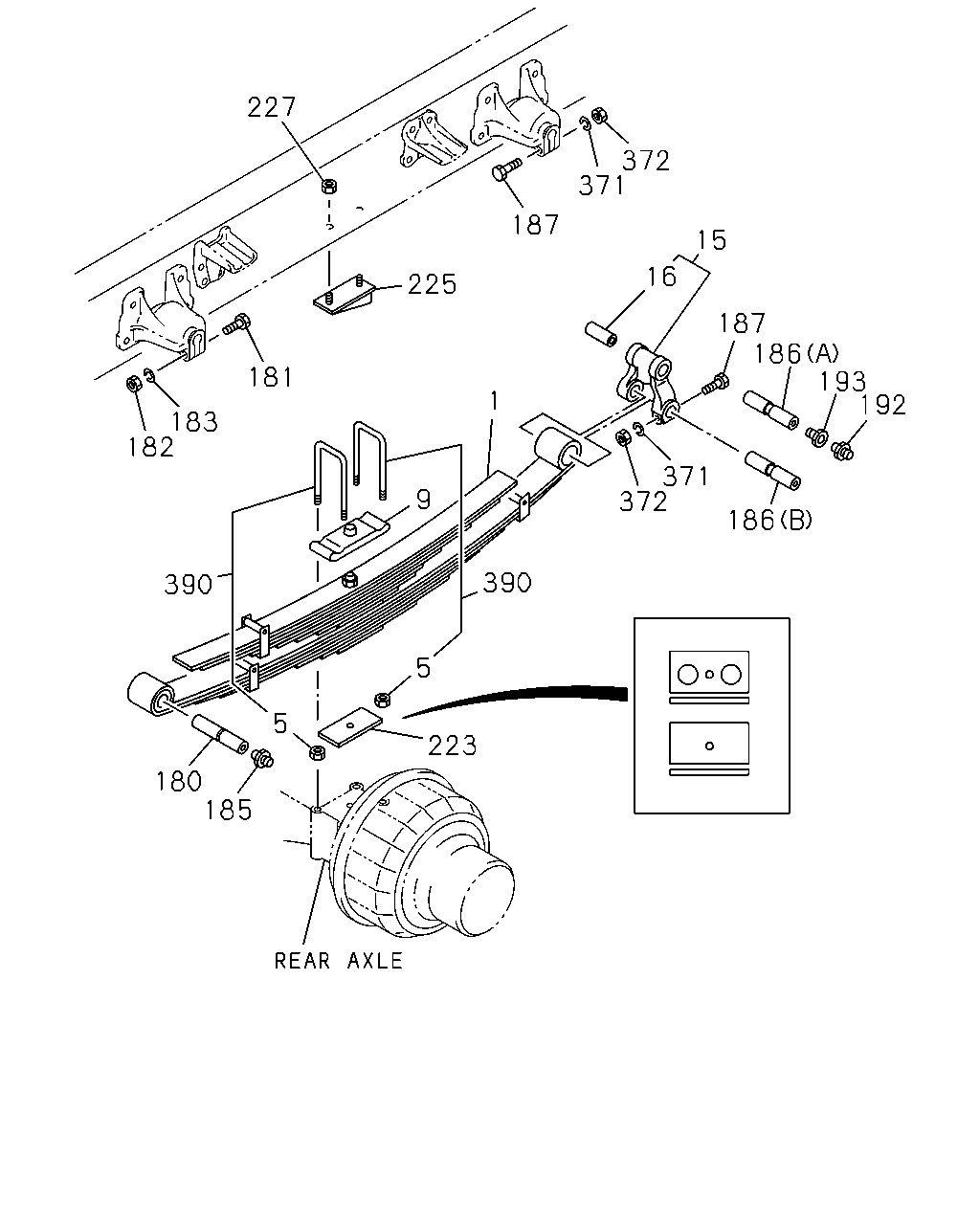

çizim 92639
227 372 371 187 15 16 225 187 186 193 192 181 1 183 182 371 372 9 186 390 390 5 5 223 180 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY VER2(G51) EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) 		1-51300-364-0 02 1 9202- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> EXC. REAR SPRING HEAVY DUTY VER1(G50),REAR SPRING HEAVY DUTY VER2(G51) 13-LEAF 		1-51300-333-2 02 1 9202- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,REAR SPRING HEAVY DUTY VER1(G50),REAR SPRING HEAVY DUTY VER2(G51), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 15-LEAF 		1-51300-362-2 02 1 9202- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40>,REAR SPRING HEAVY DUTY VER1(G50),REAR SPRING HEAVY DUTY VER2(G51) 14-LEAF 		1-51300-331-1 02 1 9202- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY VER1(G50) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> 		1-51300-332-1 02 1 9202- ● ●
5 NUT; U-BOLT,RR SPR
SUSPENSION HEAVY DUTY<F40> M24 		9-99112-824-0 08 1 9202- ● ●
5 NUT; U-BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> M18 FLANGE 		1-09440-039-1 08 1 9202- ● ●
9 PAD; U BOLT,RR SPR
SUSPENSION HEAVY DUTY<F40> 		1-51372-048-1 02 1 9202- ● ●
9 PAD; U BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> 		1-51372-059-0 02 1 9202- ● ●
15 SHACKLE; RR SPR
SUSPENSION HEAVY DUTY<F40> 		1-51362-049-1 02 1 9202- ● ●
15 SHACKLE; RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> 		1-51362-038-1 02 1 9202- ● ●
16 BUSHING; SHACKLE,RR SPR
SUSPENSION HEAVY DUTY<F40> 		9-51351-019-0 02 1 9202- ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> ID=25 		9-51151-032-0 02 1 9202- ● ●
180 PIN; RR SPR
SUSPENSION HEAVY DUTY<F40> DO=28 L=131 PT1/8 		1-51361-015-0 02 1 9202- ● ●
180 PIN; RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9202- ● ●
181 BOLT; SPR & SHACKLE
SUSPENSION HEAVY DUTY<F40> M14X65 		0-10811-465-0 02 1 9202- ● ●
181 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> M12X55 		0-10811-255-0 02 1 9202- ● ●
182 NUT; PIN,RR SPR
SUSPENSION HEAVY DUTY<F40> M14 		9-99110-414-0 02 1 9202- ● ●
182 NUT; PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> M12 		9-99110-512-0 02 1 9202- ● ●
183 WASHER; LK,PIN,RR SPR
SUSPENSION HEAVY DUTY<F40> ID=14.2 		9-09150-514-0 02 1 9202- ● ●
183 WASHER; LK,PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> ID=12.2 		9-09150-512-0 02 1 9202-9209 ● ●
183 WASHER; LK,PIN,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> ID=12.2 		9-09150-612-0 02 1 9210- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9202- ● ●
186 PIN; SHACKLE,RR SPR
SUSPENSION HEAVY DUTY<F40> (A),(B) DO=28 L=131 PT1/8 		1-51361-015-0 04 1 9202- ● ●
186 PIN; SHACKLE,RR SPR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. SUSPENSION HEAVY DUTY<F40> (A),(B) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 9202- ● ●
186 PIN; SHACKLE,RR SPR
WHEEL BASE 4800MM(48W) EXC. SUSPENSION HEAVY DUTY<F40> (A) DO=25 L=115 PT1/8 		1-51361-016-0 02 1 9202- ● ●
186 PIN; SHACKLE,RR SPR
WHEEL BASE 4800MM(48W) EXC. SUSPENSION HEAVY DUTY<F40> (B) DO=25 L=115 M12 		1-51361-017-0 02 1 9202- ● ●
187 BOLT; SPR & SHACKLE
SUSPENSION HEAVY DUTY<F40> M14X65 		0-10811-465-0 04 1 9202- ● ●
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> M12X65 		0-10811-265-0 04 1 9202-9411 ● ●
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> M12X65 		0-10811-265-0 02 1 9412- ● ●
187 BOLT; SPR & SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> M12X55 		0-10811-255-0 02 1 9412- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9202- ● ●
193 ATTACHMENT; GREASE NIPPLE
WHEEL BASE 4800MM(48W) EXC. SUSPENSION HEAVY DUTY<F40> 		9-43165-001-0 02 1 9202- ● ●
223 SPACER; U BOLT,RR SPR
SUSPENSION HEAVY DUTY<F40> 		1-51377-166-0 02 1 9202- ● ●
223 SPACER; U BOLT,RR SPR
EXC. SUSPENSION HEAVY DUTY<F40> 		1-51377-284-1 02 1 9202- ● ●
225 RUBBER; CUSHION,RR SPR
SUSPENSION HEAVY DUTY<F40> 		1-53366-102-1 02 1 9202- ● ●
227 NUT; CUSHION RUBBER
SUSPENSION HEAVY DUTY<F40> M10 		9-09110-510-0 04 1 9202- ● ●
371 WASHER; LK,SHACKLE
SUSPENSION HEAVY DUTY<F40> ID=14.2 		9-09150-514-0 04 1 9202- ● ●
371 WASHER; LK,SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> ID=12.2 		9-09150-512-0 04 1 9202-9209 ● ●
371 WASHER; LK,SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> ID=12.2 		9-09150-612-0 04 1 9210- ● ●
372 NUT; SHACKLE
SUSPENSION HEAVY DUTY<F40> M14 		9-99110-414-0 04 1 9202- ● ●
372 NUT; SHACKLE
EXC. SUSPENSION HEAVY DUTY<F40> M12 		9-99110-512-0 04 1 9202- ● ●
390 U-BOLT SET; RR SPRING
SUSPENSION HEAVY DUTY<F40> L=455 		1-87870-268-0 04 1 9202- ● ●
390 U-BOLT SET; RR SPRING
EXC. SUSPENSION HEAVY DUTY<F40> L=405 		1-87870-353-0 04 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
