◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#57994) — 107 parça

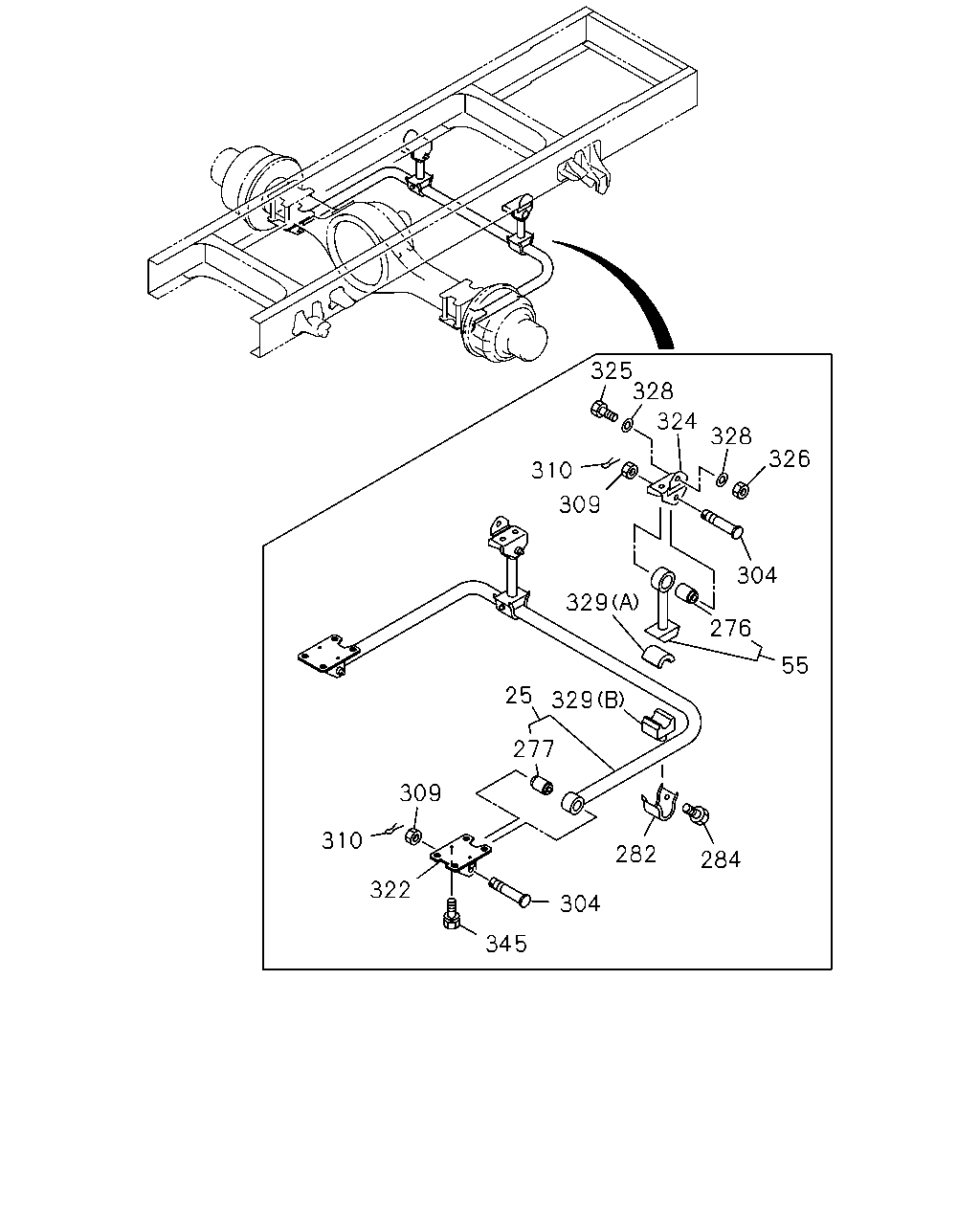

çizim 172048
325 328 304 326 324 328 310 329 309 276 55 329 25 277 282 284 304 345 309 310 322
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-030-2 01 1 1010-1306 ●
25 BAR ASM; STAB,RR SUSP 1-51770-030-2 01 1 1307- ●
55 ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1> 		1-51770-035-1 02 1 1010-1306 ●
55 ROD; STAB 1-51770-035-1 02 1 1307- ●
276 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-019-0 02 1 1010-1306 ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 1307- ●
277 BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51779-067-0 02 1 1010-1306 ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 1307- ●
282 RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-015-2 02 1 1010-1306 ●
282 RETAINER; STAB BAR 1-51789-015-2 02 1 1307- ●
284 BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25 		8-94463-351-0 08 1 1010-1306 ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 1307- ●
304 PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> 		1-51789-020-2 04 1 1010-1306 ●
304 PIN; STAB ROD 1-51789-020-2 04 1 1307- ●
309 NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24 		9-99116-424-0 04 1 1010-1306 ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 1307- ●
310 PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45 		0-81125-045-0 04 1 1010-1306 ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 1307- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-127-0 01 1 1010-1306 ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-127-0 01 1 1307- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-048-4 01 1 1010-1306 ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-048-4 01 1 1307- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> 		1-51781-059-0 02 1 1010-1306 ●
324 BRACKET; STAB BAR TO FRAME 1-51781-059-0 02 1 1307- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X40 		0-20951-440-0 02 1 1010-1306 ●
325 BOLT; BRKT TO FRAME
M14X40 		0-20951-440-0 02 1 1307- ●
325 BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X45 		9-92061-445-0 04 1 1010-1306 ●
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 04 1 1307- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 06 1 1010-1306 ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1307- ●
326 NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 		0-91110-514-0 04 1 1010-1306 ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 12 1 1010-1306 ●
328 WASHER; PL,BRKT
ID=15 		8-98010-627-1 10 1 1307- ●
328 WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=15 		8-98010-627-1 10 1 1010-1306 ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (A) 		1-51789-051-1 02 1 1010-1306 ●
329 BUSHING; STAB ROD
(A) 		1-51789-051-1 02 1 1307- ●
329 BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> (B) 		1-51789-052-0 02 1 1010-1306 ●
329 BUSHING; STAB ROD
(B) 		1-51789-052-0 02 1 1307- ●
345 BOLT; BRKT
STABILIZER REAR LIGHT DUTY<GN1> M10X16 FLANGE 		0-28051-016-0 04 1 1010-1306 ●
345 BOLT; BRKT
M10X16 FLANGE 		0-28051-016-0 04 1 1307- ●

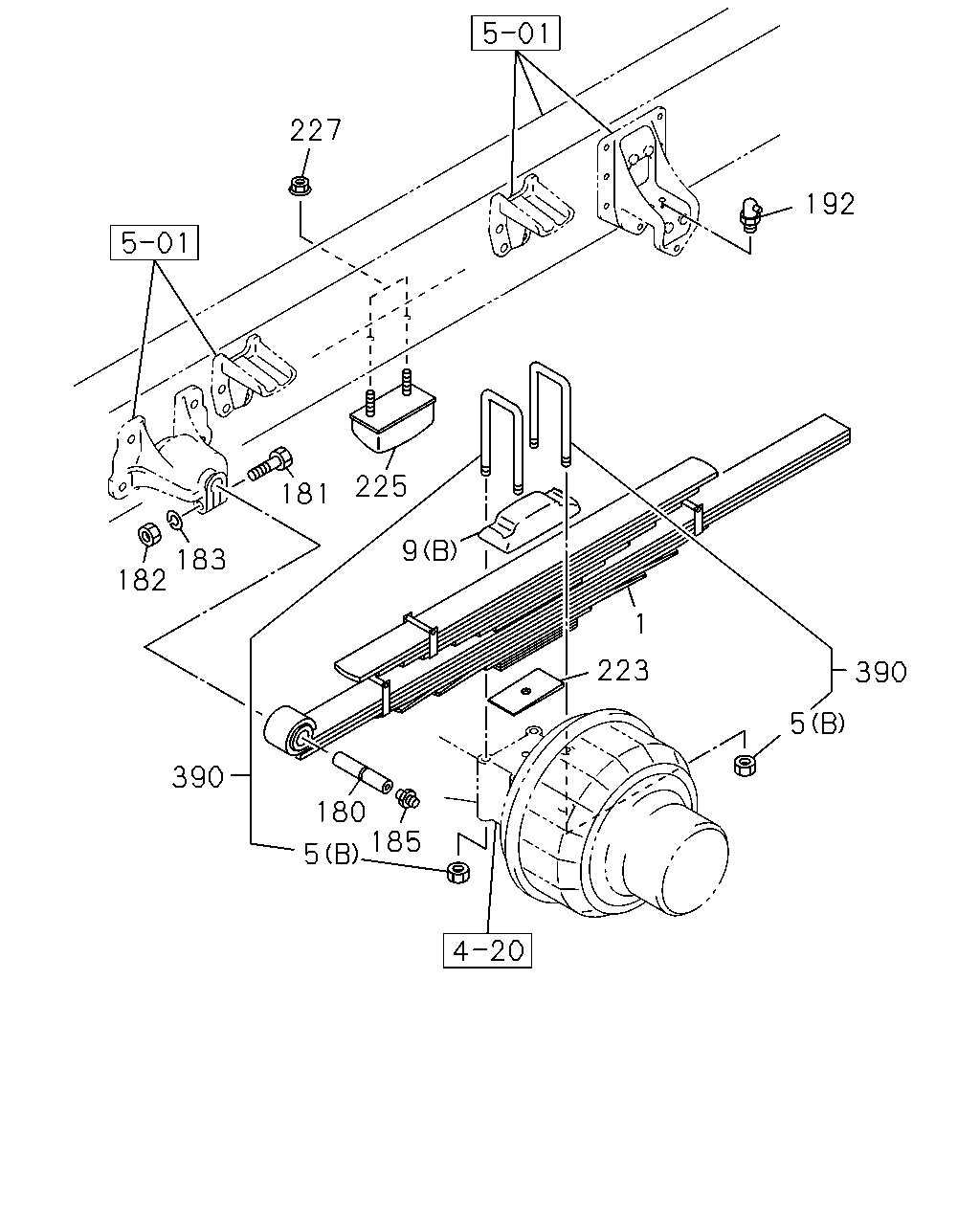

çizim 172062
192 390 5 223 9 225 181 183 182 390 180 185 5 227 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-566-1 02 1 1010-1306 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98017-565-0 02 1 1010-1306 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98017-565-0 02 1 1307- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 01 1 1010- ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 1010- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 02 1 1010- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-030-0 02 1 1010- ●
180 PIN; RR SPR 1-51361-020-0 02 1 1010- ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1010- ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1010- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1010- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1010- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010- ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98091-873-0 02 1 1010-1111 ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-385-0 02 1 1112-1306 ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-51377-385-0 02 1 1307- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1010-1101 ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1010-1101 ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1010-1101 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1102-1306 ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51377-371-1 02 1 1102-1306 ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 1102-1306 ●
223 SPACER; U BOLT,RR SPR
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 1307- ●
223 SPACER; U BOLT,RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 1307- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-045-1 02 1 1010-1306 ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53366-081-1 02 1 1010-1306 ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 1307- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1010- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1010- ●

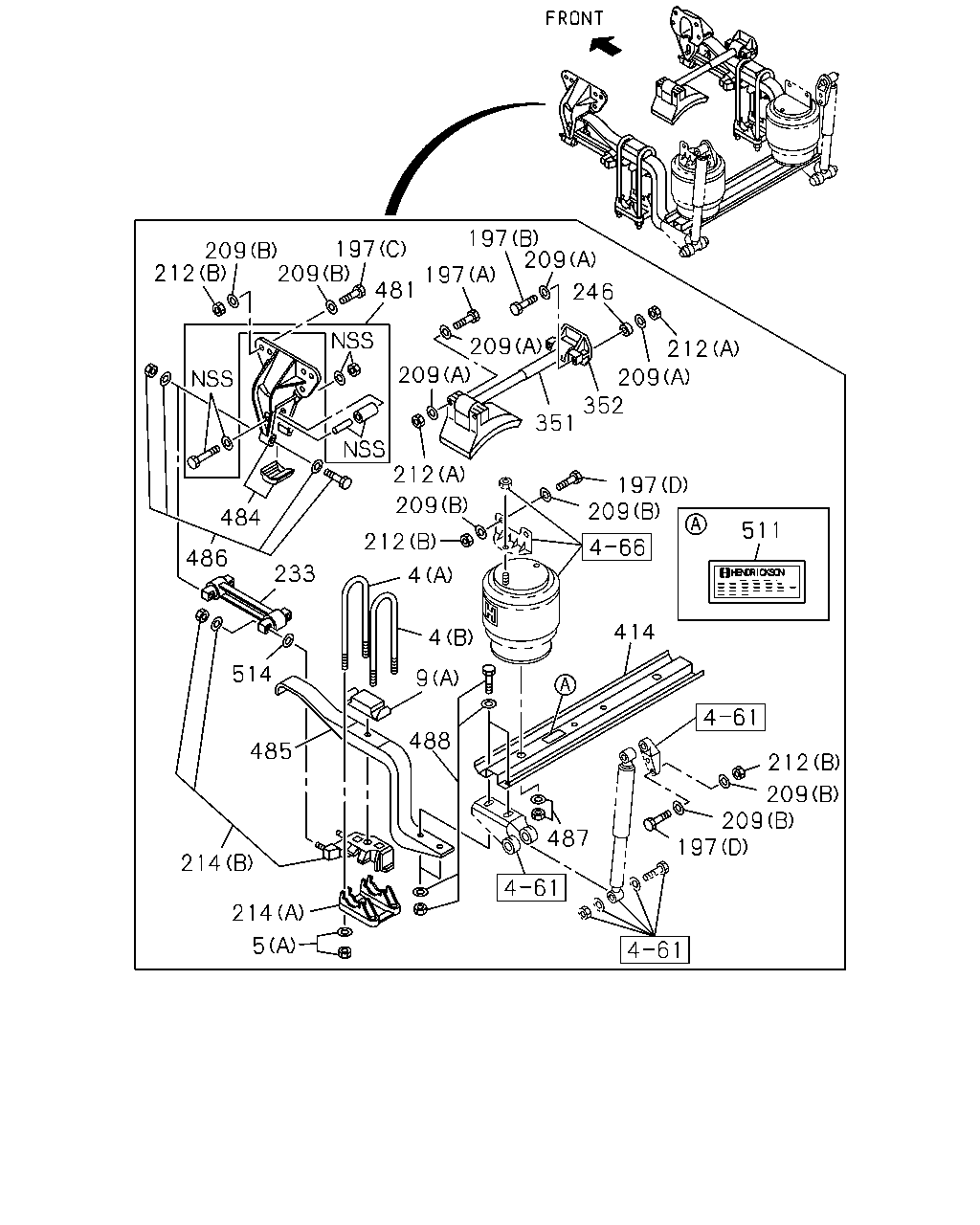

çizim 172157
212 209 352 351 197 209 511 414 212 209 209 197 487 488 214 214 5 9 485 4 4 212 212 233 209 484 486 212 209 197 197 209 197 481 209 209 246 209 514
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 1010- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 1010- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 01 1 1010- ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 1010- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 02 1 1010- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-030-0 02 1 1010- ●
197 BOLT
(A) 		1-09000-767-0 02 1 1010- ●
197 BOLT
(B) 		1-09000-768-0 02 1 1010- ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 1010- ●
197 BOLT
(D) 		1-09000-771-0 08 1 1010- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1010- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 40 1 1010- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1010- ●
212 NUT
(B) M20 		1-09400-161-0 20 1 1010- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1010- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1010- ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 1010- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 1010- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 1010- ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 1010- ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 1010- ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 1010- ●
485 SPRING; LEAF 1-51410-259-0 02 1 1010- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 1010- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 1010- ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 1010- ●
511 LABEL 1-51399-034-0 01 1 1010- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1010- ●

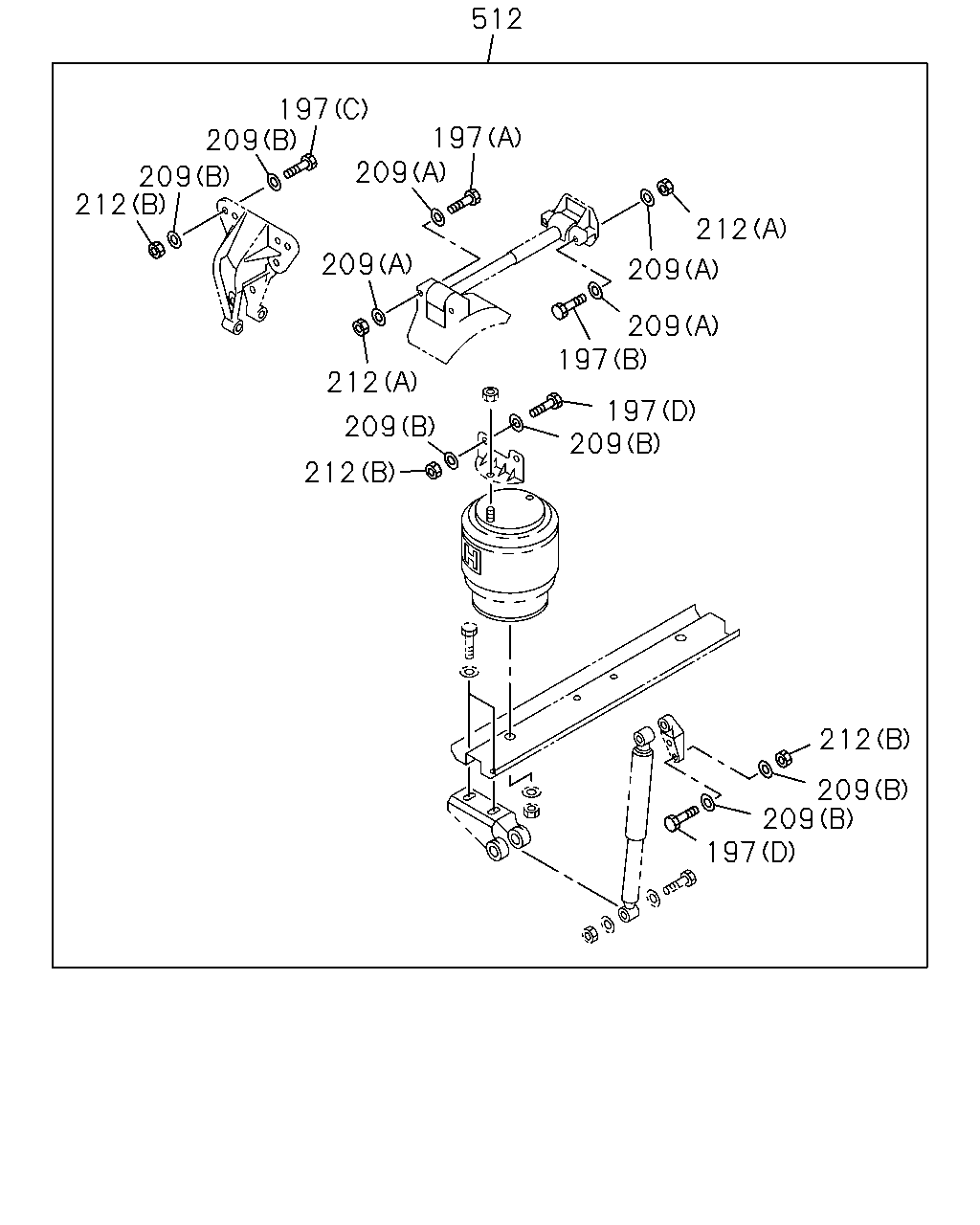

çizim 172392
512 212 209 197 209 209 197 209 197 209 212 209 212 212 197 209 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(A) 		1-09000-767-0 02 1 1010- ●
197 BOLT
(B) 		1-09000-768-0 02 1 1010- ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 1010- ●
197 BOLT
(D) 		1-09000-771-0 08 1 1010- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1010- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 40 1 1010- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1010- ●
212 NUT
(B) M20 		1-09400-161-0 20 1 1010- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 01 1 1010- ●
