◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#57992) — 44 parça

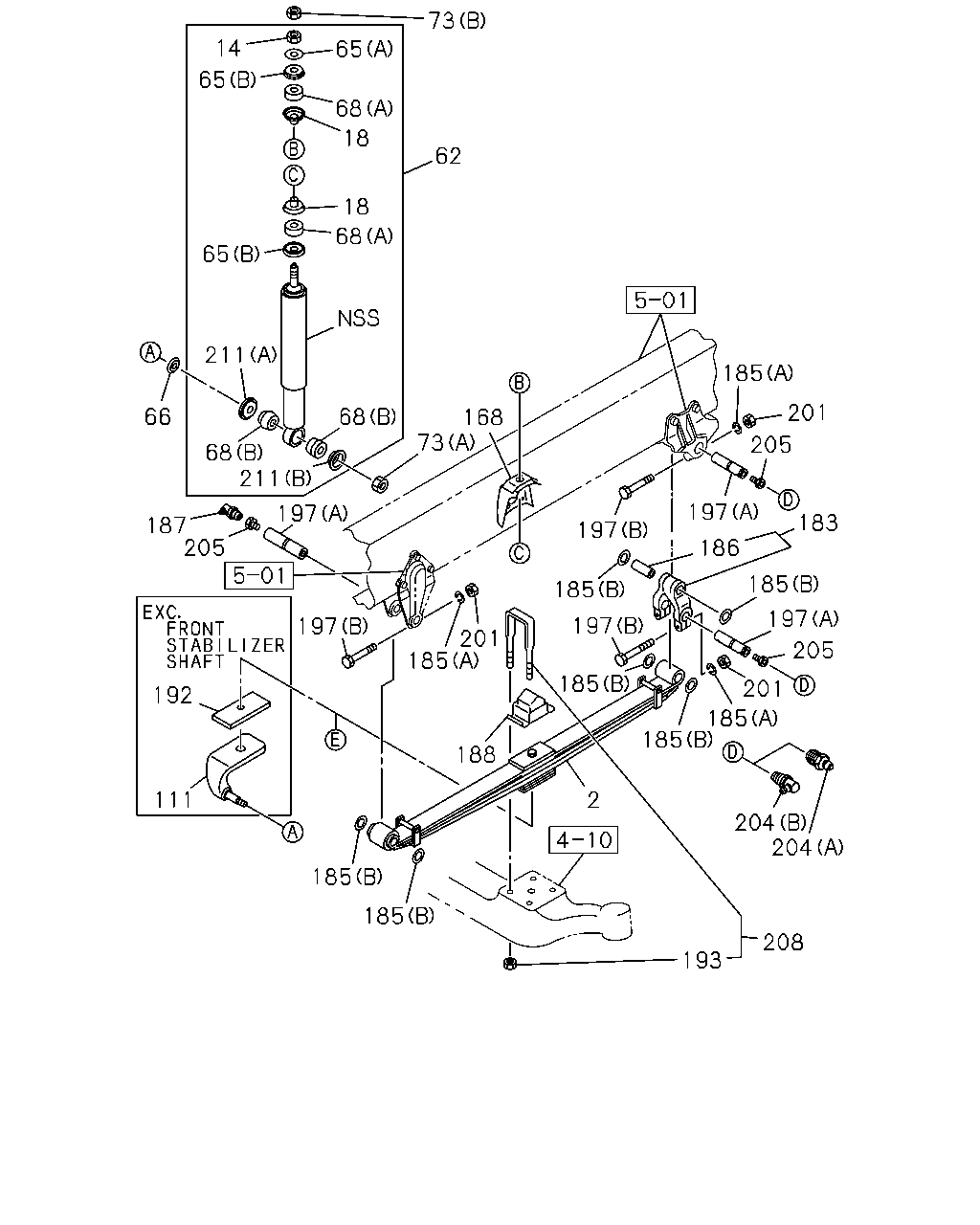

çizim 172039
208 193 204 204 185 201 185 205 185 197 197 197 183 205 201 185 185 2 197 186 188 185 197 201 185 185 111 192 205 187 211 68 68 197 185 73 168 68 65 62 18 211 66 65 14 73 65 68 18
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98069-483-0 02 1 1010- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1010- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1010- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 1010-1203 ● ●
62 ABSORBER ASM; SHOCK,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT STABILIZER SHAFT<F59> 		1-51600-415-0 02 1 1204-1306 ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-369-0 02 1 1010-1306 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98029-369-0 02 1 1307- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1010- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1010- ● ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1010- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1010- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1010- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1010- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1010- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1010-1306 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1010-1306 ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1010- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1010- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1010- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1010- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1010- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1010- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 1010- ● ●
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1010-1306 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1010-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1010- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1010- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1010- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1010- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1010- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1010-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1010- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1010- ● ●

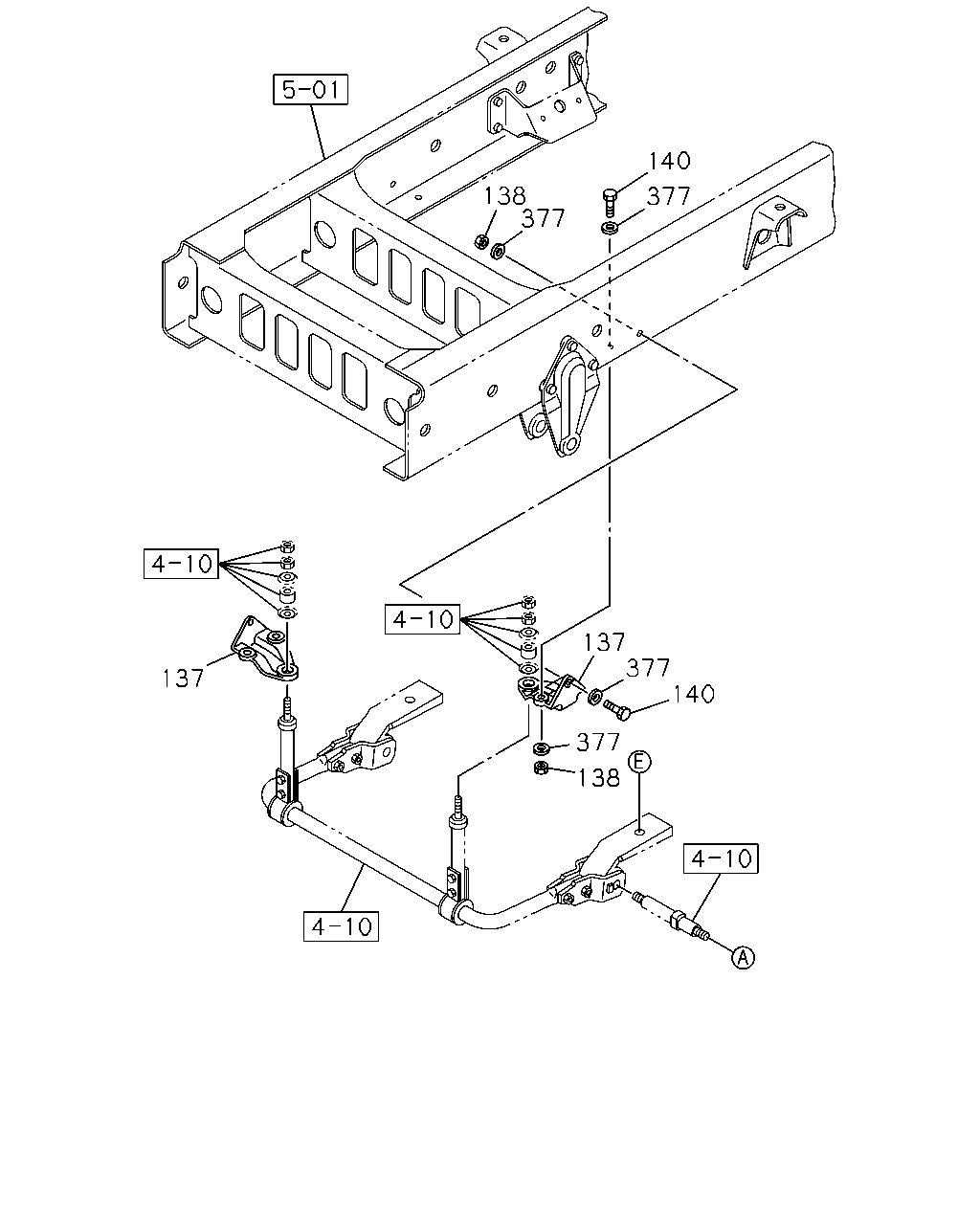

çizim 172067
138 377 140 377 137 137 138 377 377 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98128-356-1 02 1 1010-1306 ● ●
137 BRACKET; STAB BAR TO FRAME 8-98128-356-1 02 1 1307- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 1010-1306 ● ●
138 NUT; BRKT
M14 		0-91110-514-0 06 1 1307- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 1010-1306 ● ●
140 BOLT; BRKT
M14X45 		9-92061-445-0 06 1 1307- ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1010-1306 ● ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 12 1 1307- ● ●
