◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#57987) — 17 parça

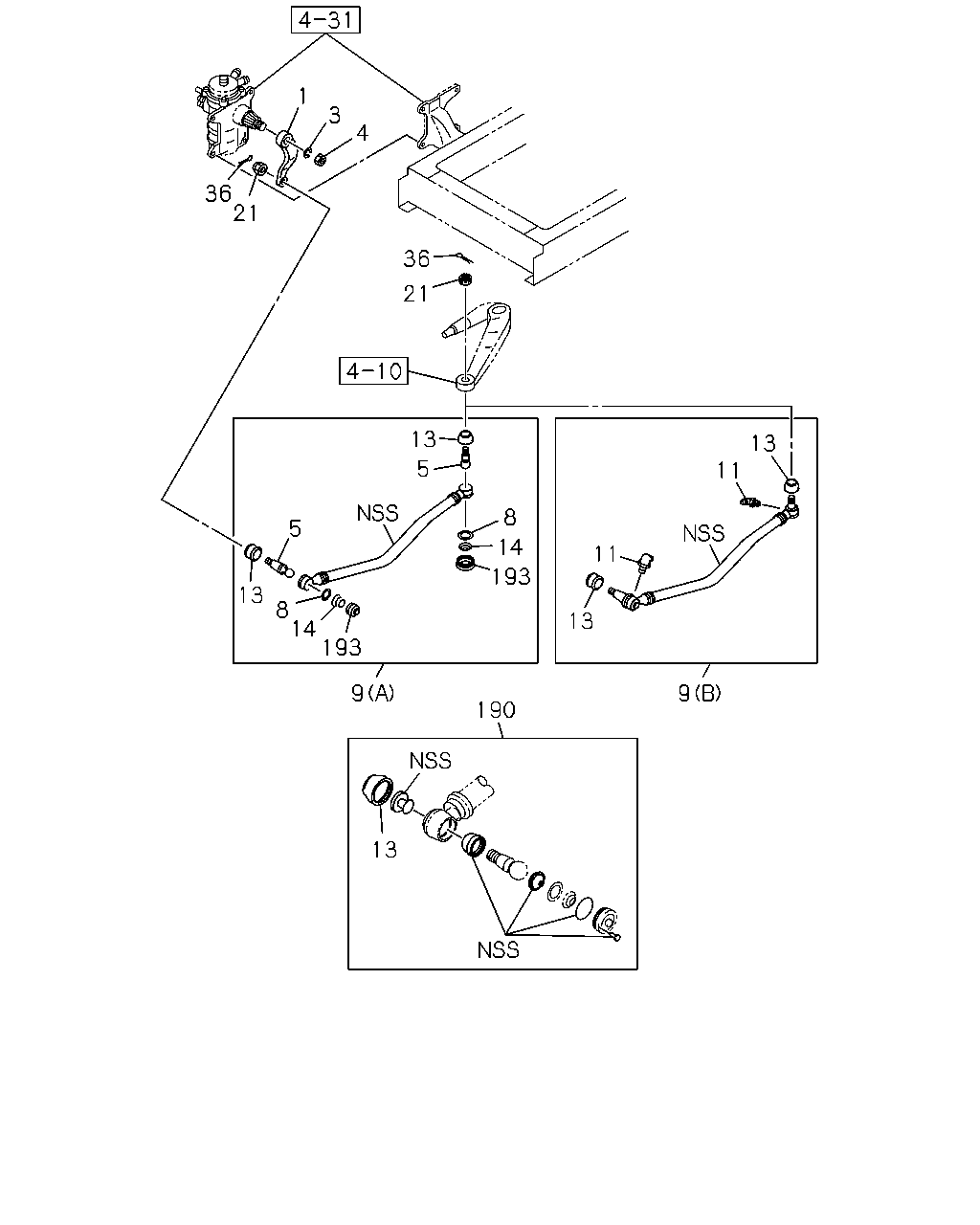

çizim 172038
1 3 4 36 21 36 21 13 5 5 13 8 14 193 9 13 190 9 13 11 11 13 8 14 193
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-423-1 01 1 1010- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 1010- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1010- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 1010-1311 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 1010-1311 ● ●
9 LINK; DRAG
(A) 		1-44380-306-1 01 1 1010-1311 ● ●
9 LINK; DRAG
(B) 		8-98251-664-0 01 1 1312- ● ●
11 NIPPLE; GREASE,DRAG LINK 8-98160-122-0 02 1 1312- ● ●
13 BOOT; DRAG LINK 1-43159-107-0 02 1 1010-1311 ● ●
13 BOOT; DRAG LINK 1-43159-131-0 02 1 1312- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 1010-1311 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 1010-1306 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 1307- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1010-1306 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1307- ● ●
190 REPAIR KIT; DRAG LINK 1-85574-041-0 02 1 1010-1311 ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 1010-1311 ● ●
