◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#57984) — 58 parça

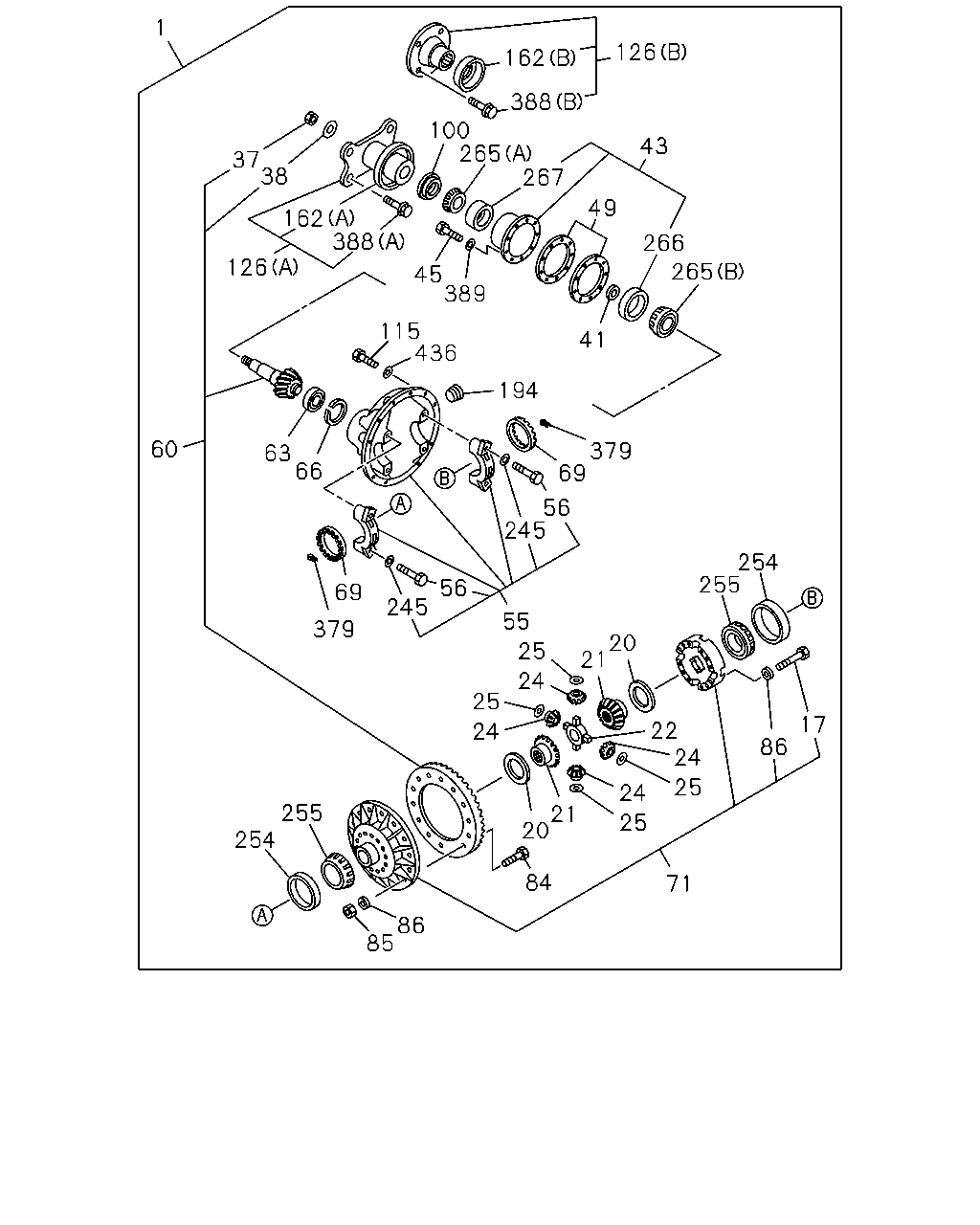

çizim 172161
1 60 37 38 162 126 388 45 389 115 436 63 66 194 41 49 266 265 43 126 162 388 100 265 267 379 69 56 245 56 245 69 379 55 25 24 21 20 255 254 86 17 22 24 25 24 25 71 21 25 24 20 84 255 254 85 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
45/8 		1-41002-744-0 01 1 1010- ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41002-745-0 01 1 1010- ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41002-746-0 01 1 1010- ●
1 DRIVE ASM; FINAL,RR
41/6 		1-41002-747-0 01 1 1010- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1010- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1010- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-116-0 02 1 1010- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1010- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1010- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1010- ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1010- ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 1010- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-360-0 01 1 1010- ● ● ● ●
43 CAGE; FINAL PINION 1-41151-098-0 01 1 1010- ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 1010- ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-114-0 01 1 1010- ● ● ● ●
55 CARRIER; DIFF 1-41110-126-0 01 1 1010- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1010- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-651-0 01 1 1010- ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-652-0 01 1 1010- ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-653-0 01 1 1010- ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-654-0 01 1 1010- ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 1010- ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 1010- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 1010- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-049-0 01 1 1010- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-286-0 01 1 1010- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 1010- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1010- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41229-168-0 24 1 1010- ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1010- ● ● ● ●
115 BOLT; DIFF CARRIER 1-41119-072-0 01 1 1010- ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-364-0 01 1 1010- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (B) 		1-37245-364-0 01 1 1010- ●
126 COUPLING; DRIVING PINION
ALLISON MD3060P A/T(Y4G) (A) 		1-37245-301-0 01 1 1010- ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 1010- ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-190-0 01 1 1010- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (B) 		1-37249-190-0 01 1 1010- ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3060P A/T(Y4G) (A) 		1-37249-161-0 01 1 1010- ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 1010- ●
194 PLUG 1-41119-077-0 01 1 1010- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1010- ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 01 1 1010- ● ● ● ●
254 CUP; DIFF BRG 1-41519-083-0 01 1 1010- ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 01 1 1010- ● ● ● ●
255 CONE; DIFF BRG 1-41519-084-0 01 1 1010- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1010- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-124-0 01 1 1010- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 1010- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41349-050-0 01 1 1010- ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 01 1 1010- ● ● ● ●
379 PIN; SPLIT 1-41129-013-0 01 1 1010- ● ● ● ●
388 BOLT; COUPLING
ALLISON MD3060P A/T(Y4G) (A) 		1-37249-160-0 04 1 1010- ●
388 BOLT; COUPLING
(A) 		1-37249-160-0 04 1 1010- ●
388 BOLT; COUPLING
(B) 		1-37249-204-0 04 1 1010- ● ●
388 BOLT; COUPLING
ZF9S1110 M/T(Y5E) (B) 		1-37249-204-0 04 1 1010- ●
389 WASHER; FINAL PINION CAGE 1-41329-084-0 08 1 1010- ● ● ● ●
436 WASHER; PL,DIFF CARRIER 1-41229-168-0 01 1 1010- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
