◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#57980) — 1057 parça
çizim 172027
56 9 1 128 225 104 9 8 74 56 106 8 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=725 		8-98092-402-1 01 1 1010- ●
1 SHAFT; PROP
(A) L=1119 		8-98092-528-1 01 1 1010- ●
1 SHAFT; PROP
(D) L=1214 		1-37124-501-0 01 1 1010- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=595 		8-98092-400-1 01 1 1307- ●
1 SHAFT; PROP
(F) L=1229 		8-98091-297-0 01 1 1010- ●
1 SHAFT; PROP
(E) L=654 		8-98091-298-0 01 1 1010- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (E) L=659 		8-98241-798-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1070 		8-98092-406-1 02 1 1307- ●
1 SHAFT; PROP
(A) L=1184 		8-98092-529-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1184 		8-98092-529-1 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (D) L=1164 		8-98091-322-0 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 05 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-095-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 2ND,3RD 		1-37300-111-0 02 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 20 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 1010-1306 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1010-1306 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 20 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1010-1306 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 16 1 1010-1306 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1010-1306 ● ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1010-1306 ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1010- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1010- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1010-1306 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1307- ●
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E) (A) 		1-37247-019-0 01 1 1307- ●
128 SEAL; SLEEVE
(B) 		1-37247-021-0 01 1 1010-1306 ●
128 SEAL; SLEEVE
(B) 		1-37247-021-0 01 1 1307- ●
128 SEAL; SLEEVE
ALLISON MD3060P A/T(Y4G) (B) 		1-37247-021-0 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 1010-1306 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=332 		1-37241-109-1 01 1 1010-1306 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=332 		1-37241-109-1 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) L=332 		1-37241-109-1 01 1 1307- ●

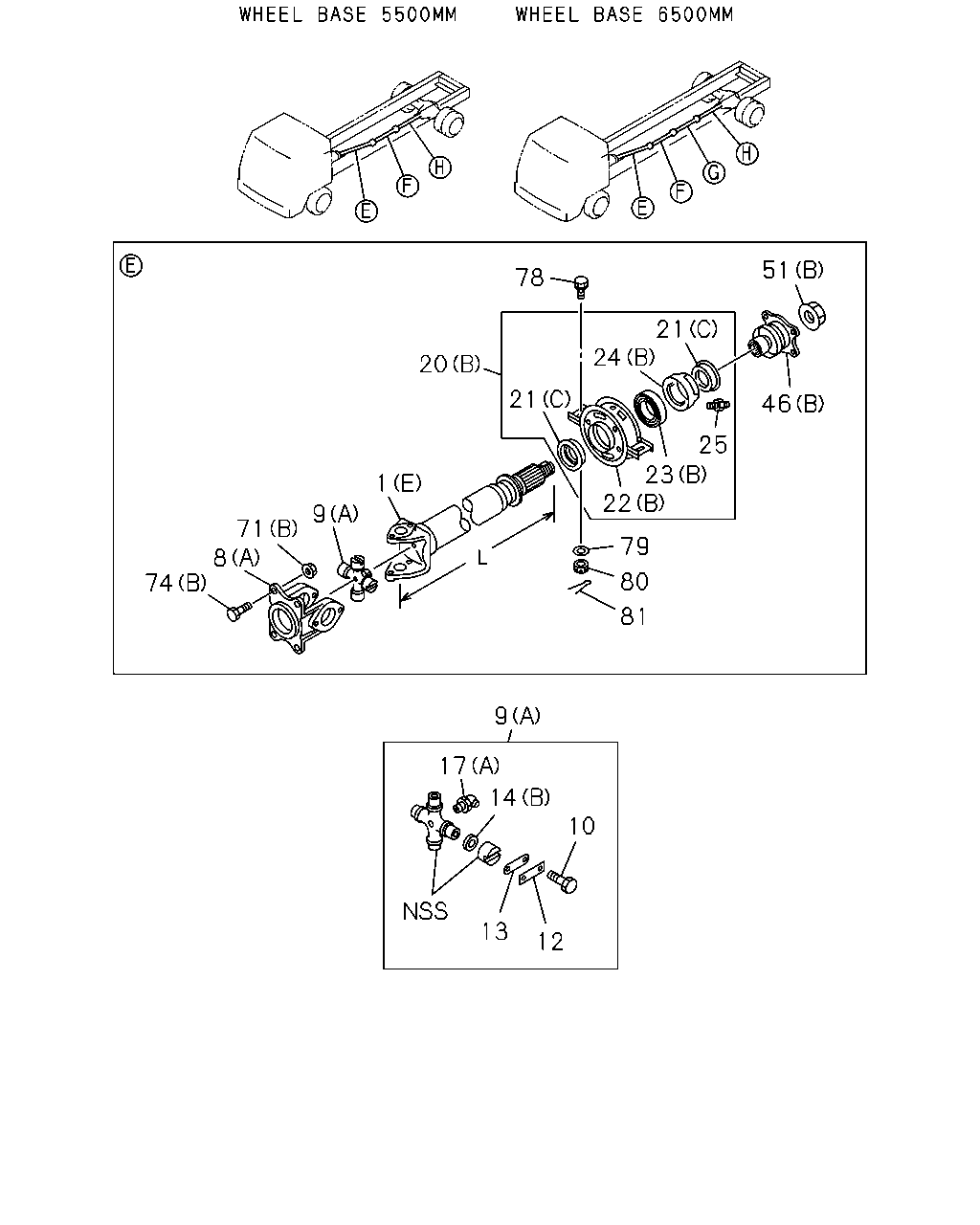

çizim 172033
78 20 1 9 71 8 74 81 80 79 22 23 25 46 51 21 24 21 9 17 14 10 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=725 		8-98092-402-1 01 1 1010- ●
1 SHAFT; PROP
(A) L=1119 		8-98092-528-1 01 1 1010- ●
1 SHAFT; PROP
(D) L=1214 		1-37124-501-0 01 1 1010- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=595 		8-98092-400-1 01 1 1307- ●
1 SHAFT; PROP
(F) L=1229 		8-98091-297-0 01 1 1010- ●
1 SHAFT; PROP
(E) L=654 		8-98091-298-0 01 1 1010- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (E) L=659 		8-98241-798-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1070 		8-98092-406-1 02 1 1307- ●
1 SHAFT; PROP
(A) L=1184 		8-98092-529-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1184 		8-98092-529-1 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (D) L=1164 		8-98091-322-0 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 05 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-095-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 2ND,3RD 		1-37300-111-0 02 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 16 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 16 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 08 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 08 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 20 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 1010-1306 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 03 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 03 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 03 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 03 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 03 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 03 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 03 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1307- ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ● ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 1010-1306 ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
71 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1010- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1010- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ● ● ●

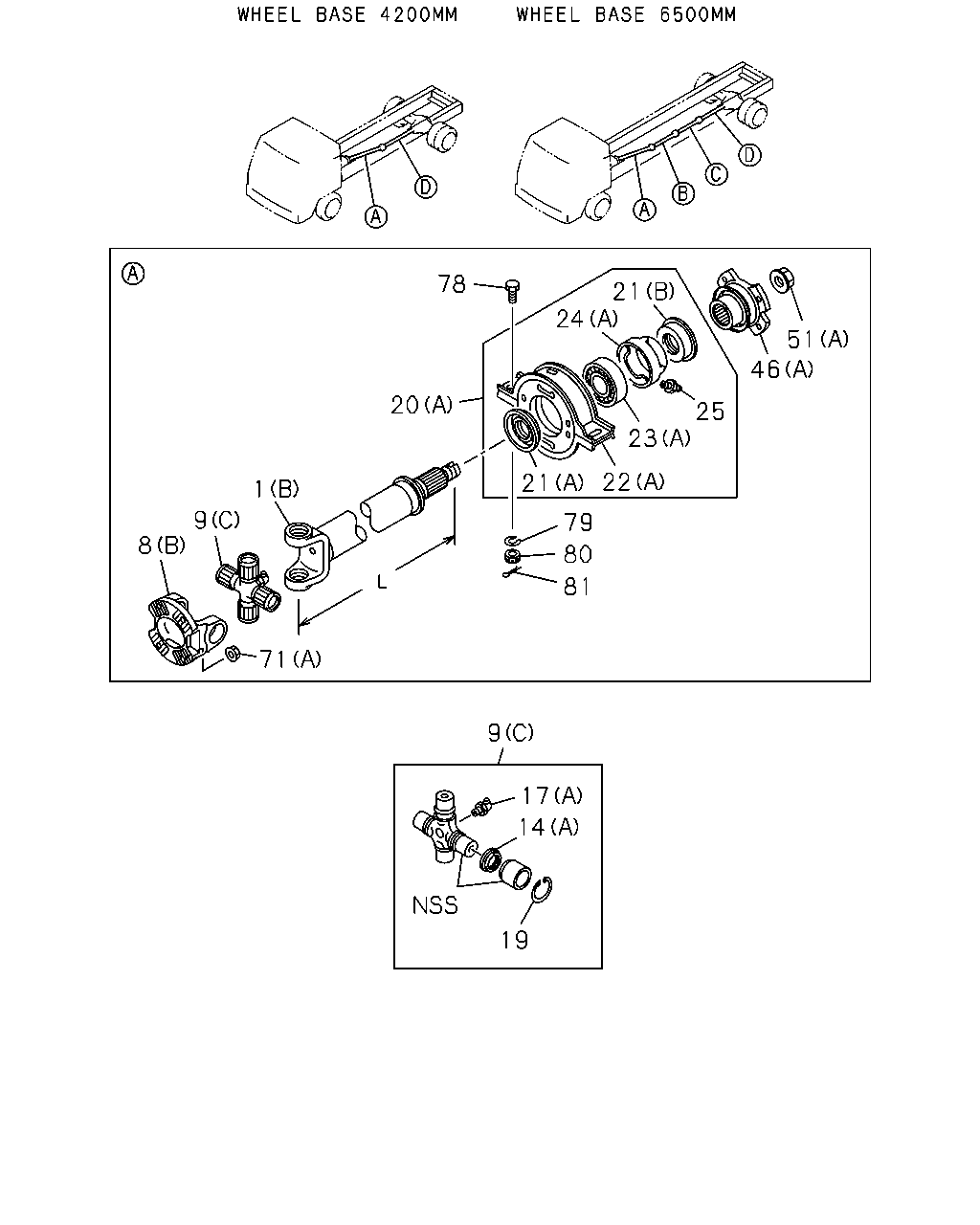

çizim 172053
78 20 1 9 8 71 79 80 81 22 21 23 25 46 51 9 17 14 19 21 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=725 		8-98092-402-1 01 1 1010- ●
1 SHAFT; PROP
(A) L=1119 		8-98092-528-1 01 1 1010- ●
1 SHAFT; PROP
(D) L=1214 		1-37124-501-0 01 1 1010- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=595 		8-98092-400-1 01 1 1307- ●
1 SHAFT; PROP
(F) L=1229 		8-98091-297-0 01 1 1010- ●
1 SHAFT; PROP
(E) L=654 		8-98091-298-0 01 1 1010- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (E) L=659 		8-98241-798-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1070 		8-98092-406-1 02 1 1307- ●
1 SHAFT; PROP
(A) L=1184 		8-98092-529-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1184 		8-98092-529-1 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (D) L=1164 		8-98091-322-0 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 05 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-095-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 2ND,3RD 		1-37300-111-0 02 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 20 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 1010-1306 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1010-1306 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 20 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1010-1306 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 16 1 1010-1306 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 03 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 03 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 03 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 03 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 03 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 03 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 03 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1307- ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ● ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 1010-1306 ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
71 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1010- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1010- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ● ● ●

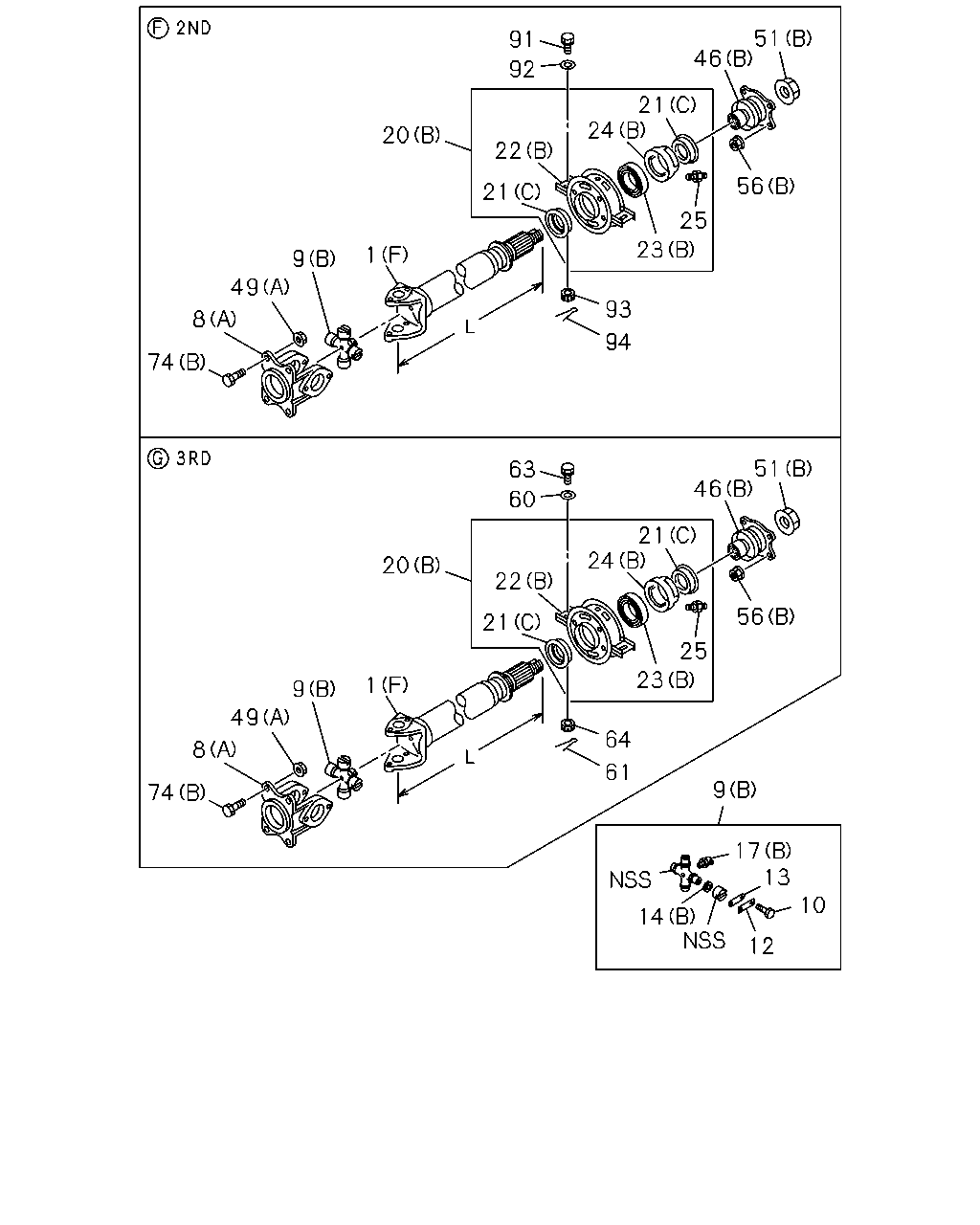

çizim 172072
51 46 21 24 56 25 23 93 94 51 46 56 21 24 25 23 64 61 9 17 13 10 12 14 1 20 22 21 60 63 9 49 8 74 74 8 49 9 1 20 22 21 92 91
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=725 		8-98092-402-1 01 1 1010- ●
1 SHAFT; PROP
(A) L=1119 		8-98092-528-1 01 1 1010- ●
1 SHAFT; PROP
(D) L=1214 		1-37124-501-0 01 1 1010- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=595 		8-98092-400-1 01 1 1307- ●
1 SHAFT; PROP
(F) L=1229 		8-98091-297-0 01 1 1010- ●
1 SHAFT; PROP
(E) L=654 		8-98091-298-0 01 1 1010- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (E) L=659 		8-98241-798-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1070 		8-98092-406-1 02 1 1307- ●
1 SHAFT; PROP
(A) L=1184 		8-98092-529-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1184 		8-98092-529-1 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (D) L=1164 		8-98091-322-0 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 05 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-095-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 2ND,3RD 		1-37300-111-0 02 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 16 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 16 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 08 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 08 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 20 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 1010-1306 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 03 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 03 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 03 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 03 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 03 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 03 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1307- ●
49 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1010-1306 ●
49 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
49 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (A) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
49 NUT; YOKE
(B) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) (B) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 03 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1010-1306 ● ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1010-1306 ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-1 02 1 1010- ●
61 PIN; SPLIT
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 1010- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ●
64 NUT; RET TO BRKT
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1010- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1010- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ● ●
çizim 172127
74 8 9 1 49 20 91 21 24 21 22 23 25 92 93 94 46 51 74 8 9 1 20 63 56 24 21 25 23 22 21 60 64 61 46 51 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=725 		8-98092-402-1 01 1 1010- ●
1 SHAFT; PROP
(A) L=1119 		8-98092-528-1 01 1 1010- ●
1 SHAFT; PROP
(D) L=1214 		1-37124-501-0 01 1 1010- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=595 		8-98092-400-1 01 1 1307- ●
1 SHAFT; PROP
(F) L=1229 		8-98091-297-0 01 1 1010- ●
1 SHAFT; PROP
(E) L=654 		8-98091-298-0 01 1 1010- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (E) L=659 		8-98241-798-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1070 		8-98092-406-1 02 1 1307- ●
1 SHAFT; PROP
(A) L=1184 		8-98092-529-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1184 		8-98092-529-1 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (D) L=1164 		8-98091-322-0 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 05 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-095-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 2ND,3RD 		1-37300-111-0 02 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 20 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 1010-1306 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1010-1306 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) T=2.2 		1-09587-102-1 20 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1010-1306 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 16 1 1010-1306 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) ID=60 		1-37510-115-0 03 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (A) D=120 		1-09625-127-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
ZF9S1110 M/T(Y5E) (B) 		1-09625-621-0 03 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
ALLISON MD3060P A/T(Y4G) (C) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1307- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37516-048-2 03 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) 		9-00090-256-0 03 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37529-109-0 03 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ZF9S1110 M/T(Y5E) MT6 STRAIGHT 		1-09380-006-0 03 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 1010-1306 ●
25 NIPPLE; GREASE,CENTER BRG
ALLISON MD3060P A/T(Y4G) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ZF9S1110 M/T(Y5E) (A) 		1-37245-348-0 03 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
ALLISON MD3060P A/T(Y4G) (B) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 1307- ●
49 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1010-1306 ●
49 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
49 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (A) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
49 NUT; YOKE
(B) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) (B) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
ZF9S1110 M/T(Y5E) (A) M39 FLANGE 		1-09440-046-0 03 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
ALLISON MD3060P A/T(Y4G) (B) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1010-1306 ● ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1010-1306 ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-1 02 1 1010- ●
61 PIN; SPLIT
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 1010- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ●
64 NUT; RET TO BRKT
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1010- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1010- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ● ●
çizim 172363
12 83 13 10 84 17 9 14 74 8 9 104 225 106 106 107 128 1 9 8 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) L=725 		8-98092-402-1 01 1 1010- ●
1 SHAFT; PROP
(A) L=1119 		8-98092-528-1 01 1 1010- ●
1 SHAFT; PROP
(D) L=1214 		1-37124-501-0 01 1 1010- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (B) L=595 		8-98092-400-1 01 1 1307- ●
1 SHAFT; PROP
(F) L=1229 		8-98091-297-0 01 1 1010- ●
1 SHAFT; PROP
(E) L=654 		8-98091-298-0 01 1 1010- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (E) L=659 		8-98241-798-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (F) L=1074 		8-98091-302-0 01 1 1307- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (C) L=1070 		8-98092-406-1 02 1 1307- ●
1 SHAFT; PROP
(A) L=1184 		8-98092-529-0 01 1 1010-1306 ●
1 SHAFT; PROP
ZF9S1110 M/T(Y5E) (A) L=1184 		8-98092-529-1 01 1 1307- ●
1 SHAFT; PROP
ALLISON MD3060P A/T(Y4G) (D) L=1164 		8-98091-322-0 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF9S1110 M/T(Y5E) (B) 		1-37211-079-1 05 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 		1-37211-072-1 02 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1010-1306 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
ZF9S1110 M/T(Y5E) (C) END 		1-37300-110-0 02 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND 		1-37300-095-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) 2ND,3RD 		1-37300-095-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) 1ST,END 		1-37300-094-1 AR 1 1307- ●
9 JOURNAL ASM; PROP SHAFT
(C) 2ND,3RD 		1-37300-111-0 02 1 1010-1306 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-111-0 01 1 1307-1505 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 03 1 1506- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1010-1306 ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 16 1 1307- ●
10 BOLT; UJT
ALLISON MD3060P A/T(Y4G) M10X20 		0-20951-020-0 16 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 08 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 08 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
ZF9S1110 M/T(Y5E) (A) 		1-37249-131-0 20 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1010-1306 ●
14 COVER; DUST,SPIDER
(B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
ALLISON MD3060P A/T(Y4G) (B) 		9-37352-023-0 08 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 1010-1306 ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 12 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1306 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1010-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1010-1306 ● ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 08 1 1307- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1010-1306 ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 08 1 1307- ●
56 NUT; YOKE
ALLISON MD3060P A/T(Y4G) (B) M16 FLANGE 		1-09449-065-0 04 1 1307- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 1010-1306 ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) (A) M14 FLANGE 		8-97365-444-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ● ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (A) M14X50 		1-09000-645-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1010-1306 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
74 BOLT; YOKE,TRANS
ALLISON MD3060P A/T(Y4G) (B) M16X48 		1-09000-383-0 04 1 1307- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
83 PLATE; LK,UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) 		1-37356-010-0 04 1 1307- ●
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
84 COVER; UJT,PROP SHAFT
ALLISON MD3060P A/T(Y4G) T=6 		1-37355-022-0 04 1 1307- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1010- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1010- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1306 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 1010-1306 ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 1307- ●
107 COVER; RET,SLEEVE
ALLISON MD3060P A/T(Y4G) 		1-37249-137-1 01 1 1307- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1010-1306 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 1307- ●
128 SEAL; SLEEVE
ZF9S1110 M/T(Y5E) (A) 		1-37247-019-0 01 1 1307- ●
128 SEAL; SLEEVE
(B) 		1-37247-021-0 01 1 1010-1306 ●
128 SEAL; SLEEVE
(B) 		1-37247-021-0 01 1 1307- ●
128 SEAL; SLEEVE
ALLISON MD3060P A/T(Y4G) (B) 		1-37247-021-0 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 1010-1306 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=330 		1-37241-124-0 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
ZF9S1110 M/T(Y5E) (A) L=330 		1-37241-124-0 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=332 		1-37241-109-1 01 1 1010-1306 ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=332 		1-37241-109-1 01 1 1307- ●
225 YOKE; SLEEVE,PROP SHAFT
ALLISON MD3060P A/T(Y4G) (B) L=332 		1-37241-109-1 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
