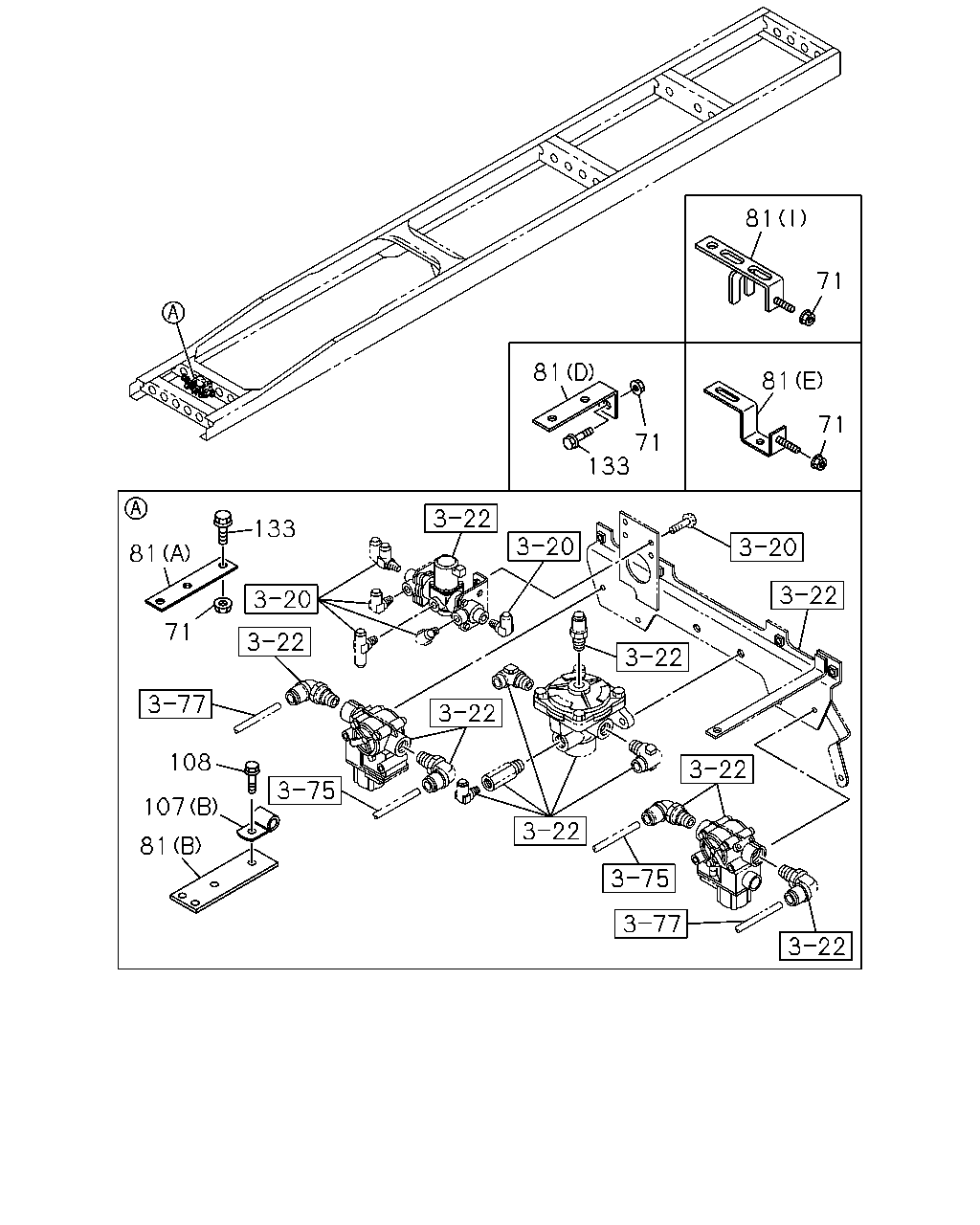

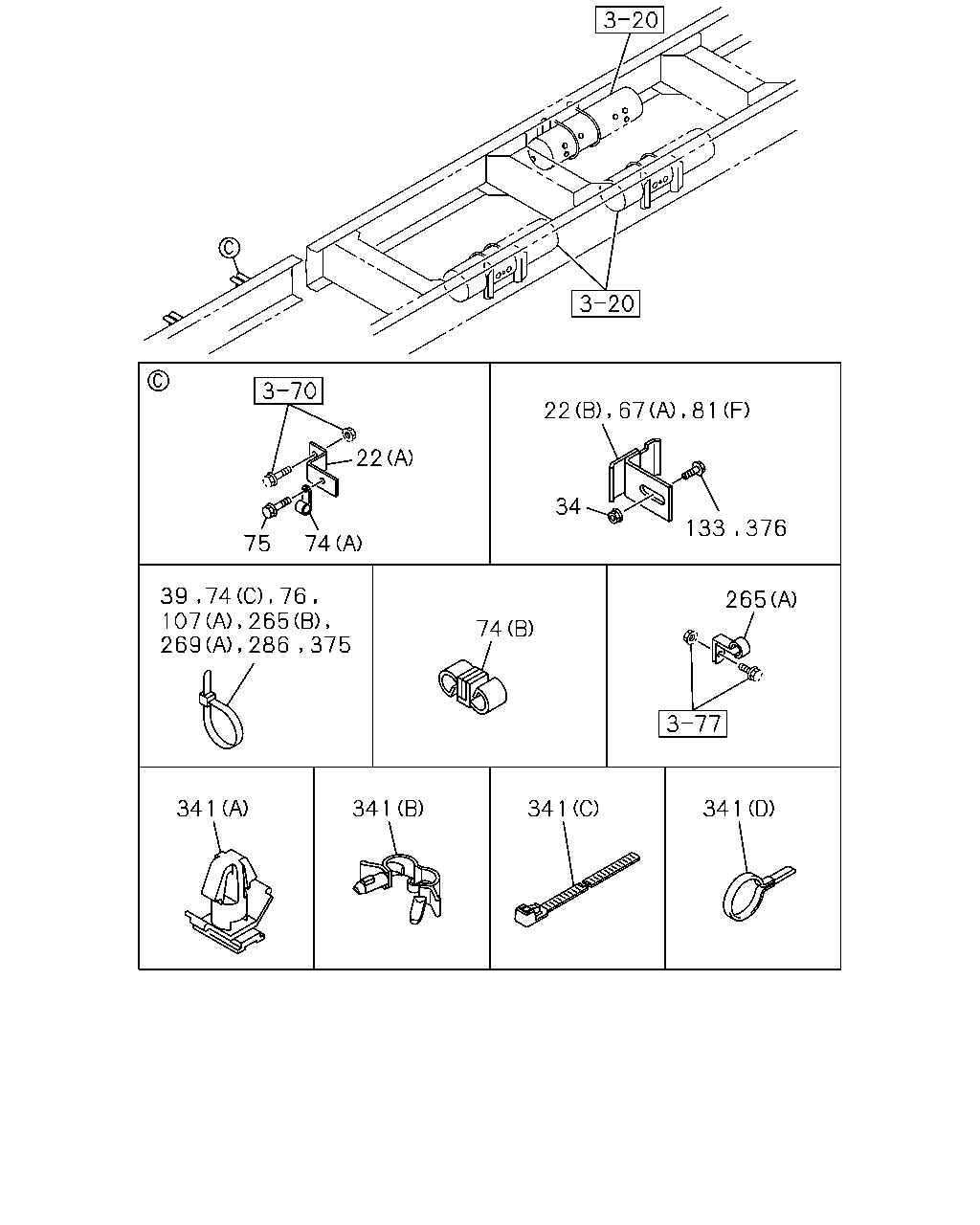

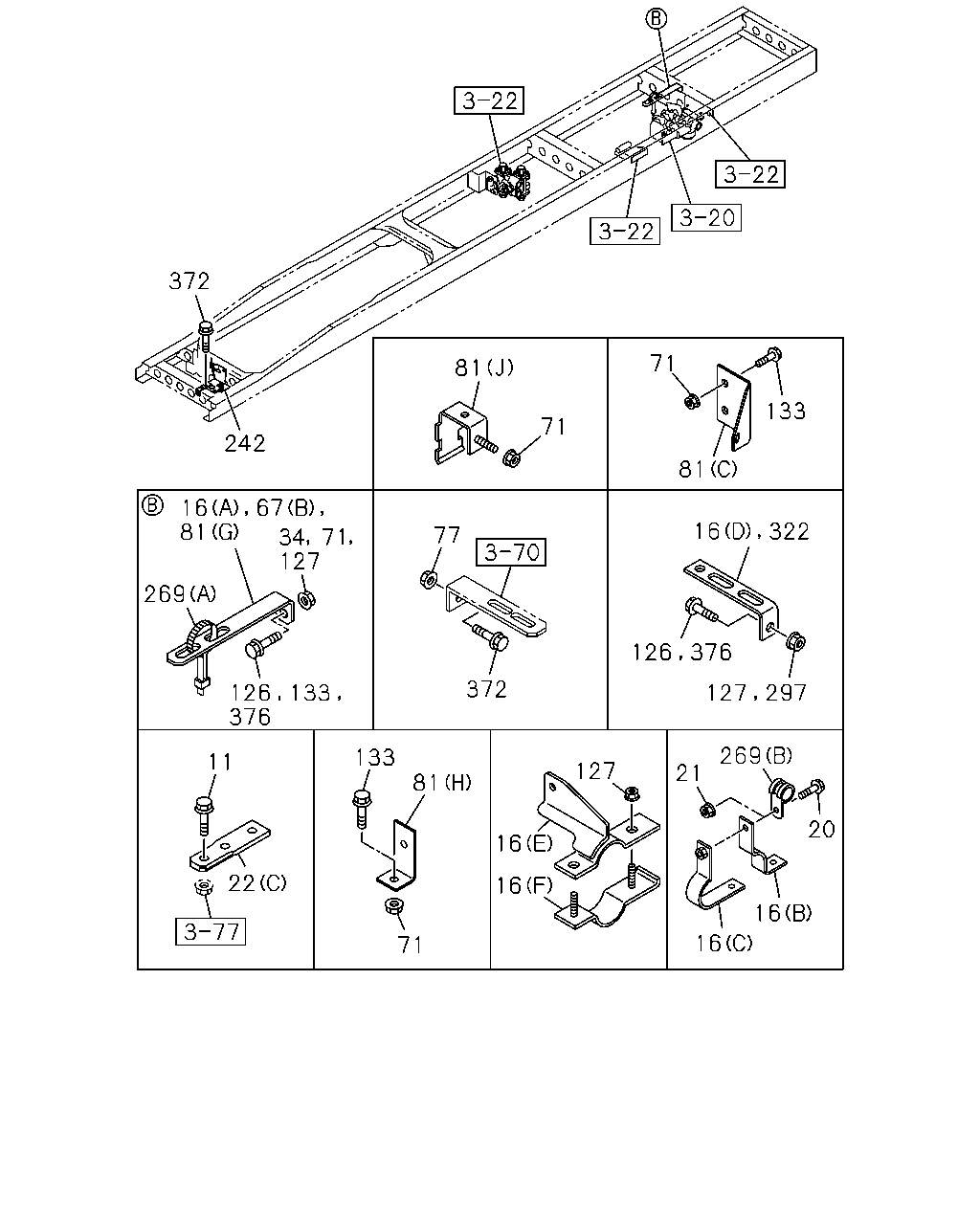

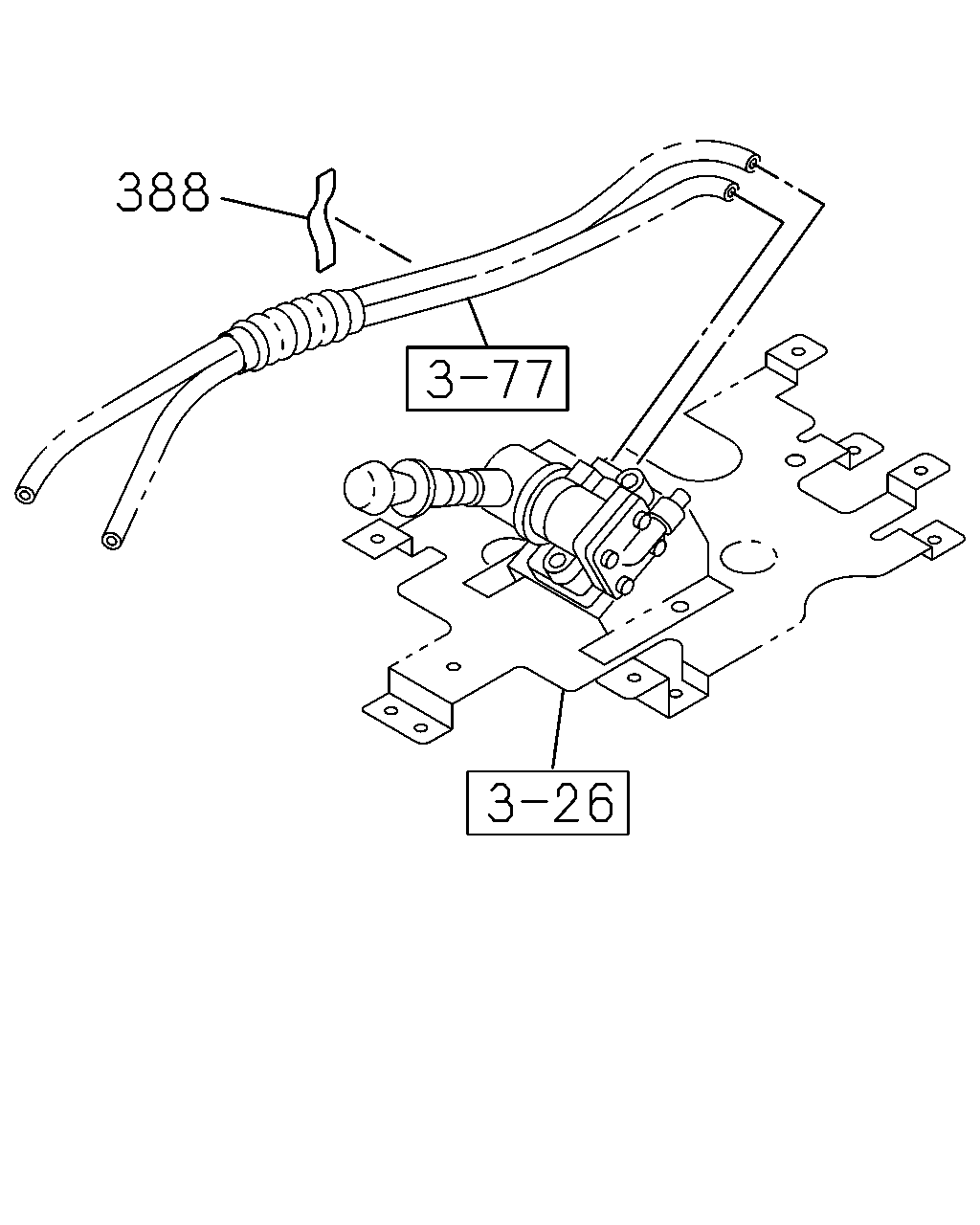

3-78 — FIXING PARTS; AIR PIPING (#57979) — 468 parça

22 74 75 39 74 76 107 265 286 269 341 341 341 341 265 74 375 22 34 67 81 133 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	1010-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-47475-881-0	01	1	1010-		●
22	BRACKET; CLIP (B)	8-98119-184-1	01	1	1010-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98119-184-1	01	1	1010-		●
22	BRACKET; CLIP (C) L=100	1-47477-620-1	01	1	1010-		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1306	●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1010-1306		●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	01	1	1307-	●
34	NUT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	01	1	1307-	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1010-1306	●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-	●
34	NUT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-	●
34	NUT; BRKT EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-		●
34	NUT; BRKT WHEEL BASE 4200MM(42W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
39	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1010-1306	●
39	CLIP; AIR PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	01	1	1010-1306		●
39	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> L=350	1-09707-183-0	01	1	1307-	●	●
39	CLIP; AIR PIPE WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	01	1	1307-	●	●
67	BRACKET; CLIP (A)	8-98119-184-1	01	1	1010-	●
67	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98119-184-1	01	1	1010-		●
67	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1010-	●	●
67	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1010-	●
67	BRACKET; CLIP WHEEL BASE 4200MM(42W) (A)	1-47479-693-0	01	1	1010-		●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	03	1	1010-1306		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) (C) L=350	1-09707-183-0	01	1	1307-		●
74	CLIP; NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	1010-	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=16 L=28	1-09700-872-0	01	1	1010-		●
74	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	02	1	1010-1010	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	02	1	1010-1010		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	02	1	1010-1306	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) (C) L=350	1-09707-183-0	02	1	1307-	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) (C) L=350	1-09707-183-0	02	1	1307-	●
74	CLIP; NYLON TUBE EXC. COUNTRY NEW ZEALAND(CX6) (C) L=350	1-09707-183-0	02	1	1307-		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) COUNTRY NEW ZEALAND(CX6) (C) L=350	1-09707-183-0	02	1	1307-		●
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	07	1	1010-1010	●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	07	1	1010-1010		●
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (C) L=350	1-09707-183-0	07	1	1010-	●	●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	1010-1306	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) ID=12 & 15	1-09709-281-1	01	1	1307-	●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	1307-		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (C) L=350	1-09707-183-0	05	1	1010-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (C) L=350	1-09707-183-0	01	1	1010-1306		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (C) L=350	1-09707-183-0	03	1	1307-		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (C) L=350	1-09707-183-0	03	1	1010-1010		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (C) L=350	1-09707-183-0	09	1	1010-		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-	●
75	BOLT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	01	1	1010-		●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	03	1	1010-1306	●
76	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	03	1	1010-1306		●
76	CLIP; NYLON TUBE L=350	1-09707-183-0	06	1	1307-	●
76	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	06	1	1307-		●
81	BRACKET; CLIP (J)	8-98186-380-0	01	1	1106-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (J)	8-98186-380-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-		●
81	BRACKET; CLIP (G) L=150 H=30	1-47477-629-2	01	1	1010-1306	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (G) L=150 H=30	1-47477-629-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (G) L=150 H=30	1-47477-629-2	01	1	1307-	●
81	BRACKET; CLIP (F)	8-98119-184-1	02	1	1010-1306	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F)	8-98119-184-1	02	1	1010-1306		●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (F)	8-98119-184-1	02	1	1307-	●	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (F)	8-98119-184-1	02	1	1307-	●	●
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D) L=60 H=30	1-47477-716-1	02	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-		●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=170	1-47479-380-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-		●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98031-420-2	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-		●
81	BRACKET; CLIP (E)	8-98129-212-0	04	1	1010-1012	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	04	1	1101-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I)	8-98177-873-0	04	1	1307-	●
81	BRACKET; CLIP (I)	8-98177-873-0	04	1	1307-		●
81	BRACKET; CLIP (C) L=65 B=25	8-98135-584-0	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) L=65 B=25	8-98135-584-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (H)	1-47476-699-2	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (H)	1-47476-699-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (H)	1-47476-699-2	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	1-47479-693-0	01	1	1010-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	11	1	1307-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	11	1	1307-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=350	1-09707-183-0	06	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	06	1	1307-		●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	04	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	04	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	08	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	37	1	1010-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	02	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	02	1	1307-		●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) ID=35 L=33	1-09700-945-0	01	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1307-		●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	41	1	1010-1306	●	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	05	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=350	1-09707-183-0	05	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	35	1	1010-1101		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	36	1	1102-1306		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	07	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	38	1	1010-1306		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	20	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=350	1-09707-183-0	20	1	1307-	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	20	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	20	1	1307-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	02	1	1010-1306		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT EXC. COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) (B) L=350	1-09707-183-0	02	1	1110-1306	●
265	CLIP; NYLON TUBE (A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1010-	●	●
269	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09701-261-0	02	1	1010-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	01	1	1010-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	01	1	1010-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	1010-		●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	03	1	1010-		●
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1010-1306	●
286	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	01	1	1010-1306		●
341	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1307-	●
341	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=250	5-09707-030-1	01	1	1307-		●
341	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1307-	●	●
341	CLIP; HARNESS WHEEL BASE 4200MM(42W) (A) OD=9 H=6	1-09709-178-0	01	1	1307-		●
341	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-	●	●
341	CLIP; HARNESS WHEEL BASE 4200MM(42W) (D) ID=11 L=41	1-09700-403-0	01	1	1307-		●
341	CLIP; HARNESS WHEEL BASE 4200MM(42W) (D) ID=11 L=61	1-09700-484-0	01	1	1307-		●
341	CLIP; HARNESS WHEEL BASE 4200MM(42W) (C) L=250	5-09707-030-1	07	1	1307-		●
375	CLIP; AIR PIPE L=350	1-09707-183-0	02	1	1010-1306	●
375	CLIP; AIR PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	02	1	1010-1306		●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	03	1	1010-1306	●	●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) L=350	1-09707-183-0	01	1	1010-1306		●
375	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) L=350	1-09707-183-0	01	1	1010-1306		●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●
376	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
376	BOLT; BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
376	BOLT; BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	02	1	1010-1306		●

16 16 20 269 21 297 127 376 126 16 322 127 16 16 81 71 133 22 11 376 133 126 372 77 71 127 34 67 16 81 269 71 81 71 81 133 242 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
16	BRACKET; PIPE CLIP (B)	1-47478-588-0	01	1	1010-1110	●
16	BRACKET; PIPE CLIP (E)	8-98199-761-0	01	1	1111-1306	●
16	BRACKET; PIPE CLIP (F)	8-98212-967-0	01	1	1307-	●
16	BRACKET; PIPE CLIP (C)	1-47479-249-0	01	1	1010-1110	●
16	BRACKET; PIPE CLIP (F)	8-98199-763-0	01	1	1111-1306	●
16	BRACKET; PIPE CLIP (E)	8-98212-968-0	01	1	1307-	●
16	BRACKET; PIPE CLIP (A) L=215	1-47479-288-0	01	1	1010-	●
16	BRACKET; PIPE CLIP (D)	1-47479-598-0	01	1	1010-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1010-	●
21	NUT; CLIP M8	0-91110-508-0	01	1	1010-1110	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1010-1110	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1111-	●
22	BRACKET; CLIP (A)	1-47475-881-0	01	1	1010-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-47475-881-0	01	1	1010-		●
22	BRACKET; CLIP (B)	8-98119-184-1	01	1	1010-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98119-184-1	01	1	1010-		●
22	BRACKET; CLIP (C) L=100	1-47477-620-1	01	1	1010-		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1306	●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1010-1306		●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	01	1	1307-	●
34	NUT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	01	1	1307-	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1010-1306	●
34	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-	●
34	NUT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-	●
34	NUT; BRKT EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-		●
34	NUT; BRKT WHEEL BASE 4200MM(42W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	02	1	1307-		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
67	BRACKET; CLIP (A)	8-98119-184-1	01	1	1010-	●
67	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98119-184-1	01	1	1010-		●
67	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1010-	●	●
67	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1010-	●
67	BRACKET; CLIP WHEEL BASE 4200MM(42W) (A)	1-47479-693-0	01	1	1010-		●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1306	●	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	01	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE	0-91180-210-0	01	1	1307-	●
71	NUT; BRKT EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	01	1	1307-		●
71	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	01	1	1307-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1306	●
71	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	01	1	1010-1306		●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	01	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	01	1	1307-	●
71	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	01	1	1307-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1010-1306	●	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	08	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	08	1	1307-	●
71	NUT; BRKT EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	08	1	1307-		●
71	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	08	1	1307-		●
71	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-1306	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	02	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	02	1	1307-	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-		●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-		●
71	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1307-		●
77	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1010-	●
77	NUT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1010-		●
81	BRACKET; CLIP (J)	8-98186-380-0	01	1	1106-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (J)	8-98186-380-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-		●
81	BRACKET; CLIP (G) L=150 H=30	1-47477-629-2	01	1	1010-1306	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (G) L=150 H=30	1-47477-629-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (G) L=150 H=30	1-47477-629-2	01	1	1307-	●
81	BRACKET; CLIP (F)	8-98119-184-1	02	1	1010-1306	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F)	8-98119-184-1	02	1	1010-1306		●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (F)	8-98119-184-1	02	1	1307-	●	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (F)	8-98119-184-1	02	1	1307-	●	●
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D) L=60 H=30	1-47477-716-1	02	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-		●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=170	1-47479-380-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-		●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98031-420-2	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-		●
81	BRACKET; CLIP (E)	8-98129-212-0	04	1	1010-1012	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	04	1	1101-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I)	8-98177-873-0	04	1	1307-	●
81	BRACKET; CLIP (I)	8-98177-873-0	04	1	1307-		●
81	BRACKET; CLIP (C) L=65 B=25	8-98135-584-0	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) L=65 B=25	8-98135-584-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (H)	1-47476-699-2	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (H)	1-47476-699-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (H)	1-47476-699-2	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	1-47479-693-0	01	1	1010-		●
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1110	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1010-1110	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1111-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	02	1	1010-1306		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT EXC. COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	1010-	●	●
269	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09701-261-0	02	1	1010-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	01	1	1010-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	01	1	1010-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	1010-		●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	03	1	1010-		●
297	NUT; BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
297	NUT; BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
322	BRACKET; CLIP ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-47479-598-0	01	1	1010-1306	●	●
322	BRACKET; CLIP ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) ASSISTOR SHIFT CONTROL<WX8>	1-47479-598-0	02	1	1010-1306		●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●
372	BOLT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1010-	●
376	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●
376	BOLT; BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
376	BOLT; BRKT ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	02	1	1010-1306		●

388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	388	SEAL DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40	1-72498-019-1	02	1	1307-	●
	388	SEAL 100X40	1-72498-022-1	03	1	1010-	●	●

81 107 108 71 81 133 133 71 71 81 81 71 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1306	●	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	01	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE	0-91180-210-0	01	1	1307-	●
71	NUT; BRKT EXC. H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	01	1	1307-		●
71	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	01	1	1307-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1306	●
71	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	01	1	1010-1306		●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	01	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	01	1	1307-	●
71	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	01	1	1307-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1010-1306	●	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	08	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	08	1	1307-	●
71	NUT; BRKT EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	08	1	1307-		●
71	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	08	1	1307-		●
71	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-1306	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	02	1	1307-	●
71	NUT; BRKT WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 FLANGE	0-91180-108-0	02	1	1307-	●
71	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-		●
71	NUT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-		●
71	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1307-		●
81	BRACKET; CLIP (J)	8-98186-380-0	01	1	1106-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (J)	8-98186-380-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (J)	8-98186-380-0	01	1	1307-		●
81	BRACKET; CLIP (G) L=150 H=30	1-47477-629-2	01	1	1010-1306	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (G) L=150 H=30	1-47477-629-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (G) L=150 H=30	1-47477-629-2	01	1	1307-	●
81	BRACKET; CLIP (F)	8-98119-184-1	02	1	1010-1306	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F)	8-98119-184-1	02	1	1010-1306		●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (F)	8-98119-184-1	02	1	1307-	●	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (F)	8-98119-184-1	02	1	1307-	●	●
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D) L=60 H=30	1-47477-716-1	02	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (D) L=60 H=30	1-47477-716-1	02	1	1307-		●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=170	1-47479-380-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=170	1-47479-380-0	01	1	1307-		●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98031-420-2	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (B)	8-98031-420-2	01	1	1307-		●
81	BRACKET; CLIP (E)	8-98129-212-0	04	1	1010-1012	●	●
81	BRACKET; CLIP (I)	8-98177-873-0	04	1	1101-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (I)	8-98177-873-0	04	1	1307-	●
81	BRACKET; CLIP (I)	8-98177-873-0	04	1	1307-		●
81	BRACKET; CLIP (C) L=65 B=25	8-98135-584-0	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) L=65 B=25	8-98135-584-0	01	1	1307-	●
81	BRACKET; CLIP EXC. H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (C) L=65 B=25	8-98135-584-0	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (H)	1-47476-699-2	01	1	1010-1306	●	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (H)	1-47476-699-2	01	1	1307-	●
81	BRACKET; CLIP WHEEL BASE 6500MM(65W) (H)	1-47476-699-2	01	1	1307-		●
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (F)	1-47479-693-0	01	1	1010-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	11	1	1307-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	11	1	1307-	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=350	1-09707-183-0	06	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	06	1	1307-		●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	04	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	04	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	08	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	37	1	1010-1306	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	02	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	02	1	1307-		●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) ID=35 L=33	1-09700-945-0	01	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1307-		●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1010-1306	●	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	41	1	1010-1306	●	●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	05	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=350	1-09707-183-0	05	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	35	1	1010-1101		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	36	1	1102-1306		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	07	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	38	1	1010-1306		●
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	20	1	1307-	●
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) L=350	1-09707-183-0	20	1	1307-	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	20	1	1307-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> (A) L=350	1-09707-183-0	20	1	1307-		●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●	●
108	BOLT; TUBE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1307-	●
108	BOLT; TUBE CLIP WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	01	1	1307-	●
108	BOLT; TUBE CLIP EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1307-		●
108	BOLT; TUBE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1307-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
133	BOLT; BRKT EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1307-		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE	0-28650-825-0	02	1	1010-1306		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●
133	BOLT; BRKT EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 6500MM(65W) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT EXC. COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W) COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
133	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1307-		●
133	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	01	1	1010-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
