3-75 — BRAKE PIPING; AIR,FRONT (#57977) — 71 parça

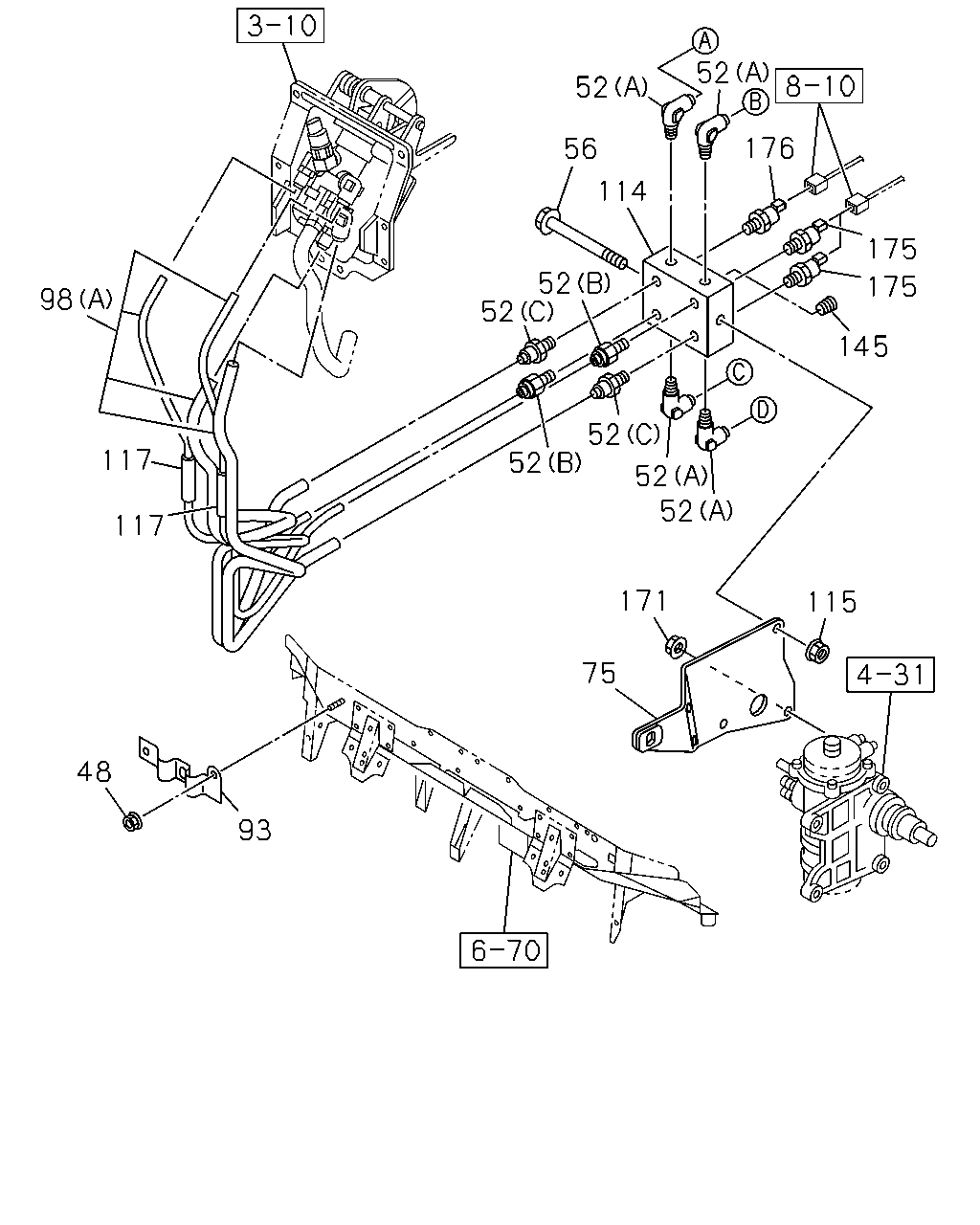

çizim 172098
117 117 98 48 93 75 171 115 52 52 52 52 52 52 114 56 52 52 176 175 175 145
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 1010- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1010- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1010- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 1010- ● ●
75 BRACKET; UNION 8-98099-485-1 01 1 1010- ● ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 1010- ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 1010- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1010- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1010- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1010- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1010- ● ●

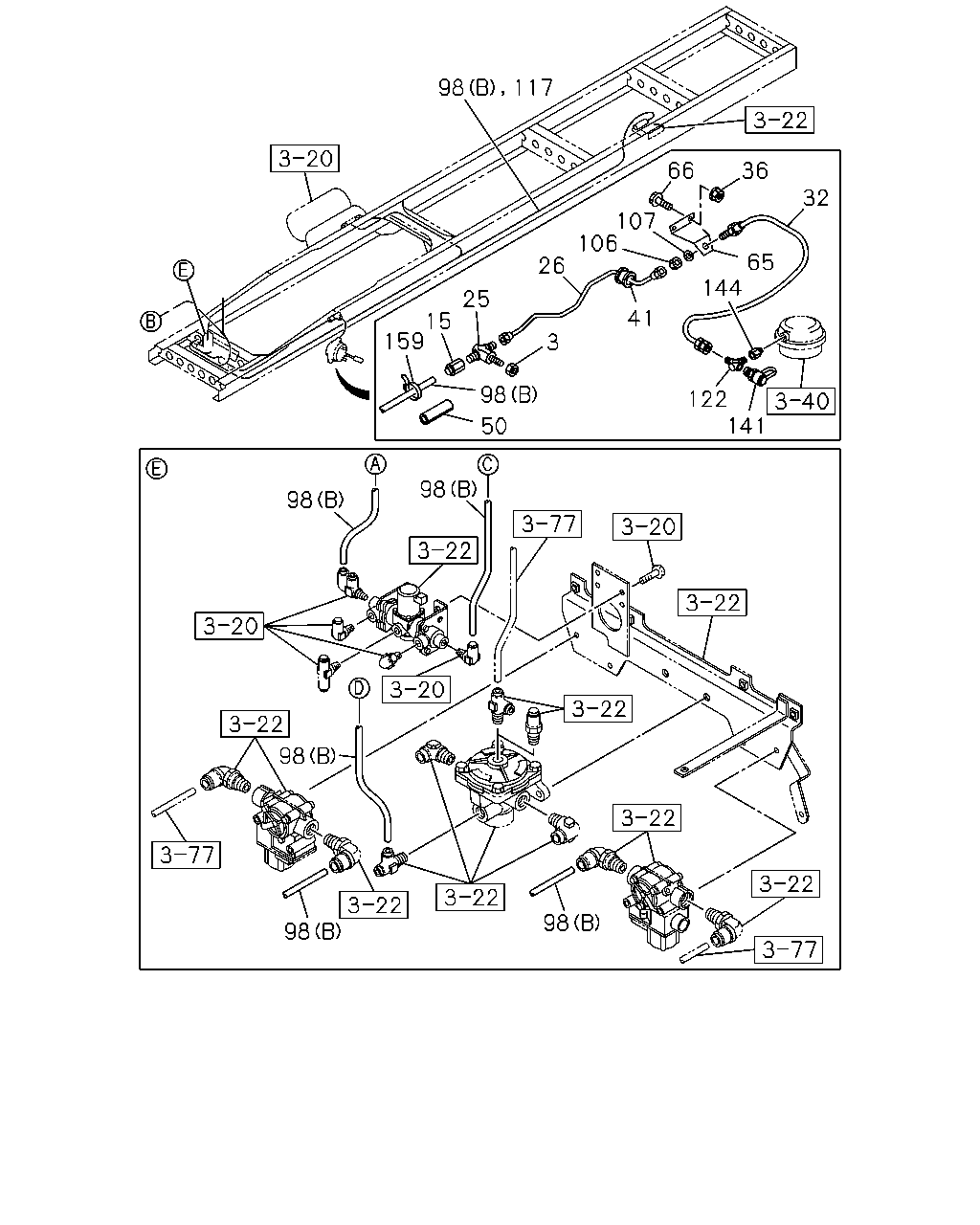

çizim 172380
3 98 50 159 15 25 26 106 41 122 141 144 65 32 36 66 107 98 117 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 1010- ● ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1010- ● ●
25 UNION; AIR PIPE
M16X2 2WAY ELBOW 		1-09654-148-1 02 1 1010- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 		8-98091-274-1 01 1 1010- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=657 		8-98126-150-1 01 1 1010- ● ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 1010- ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 1010- ● ●
50 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1010-1306 ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 1010-1306 ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5500MM(55W) EXC. H.S.A SYSTEM<6EP> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1307- ● ●
50 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 1307- ● ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 1010- ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 1010- ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 1010- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-816-0 02 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1010- ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1010- ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 1010- ● ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1010- ● ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 1010- ● ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1010- ● ●
