Isuzu WW
▶
TRUCKS
▶
FVR
▶
11329 - FVR AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

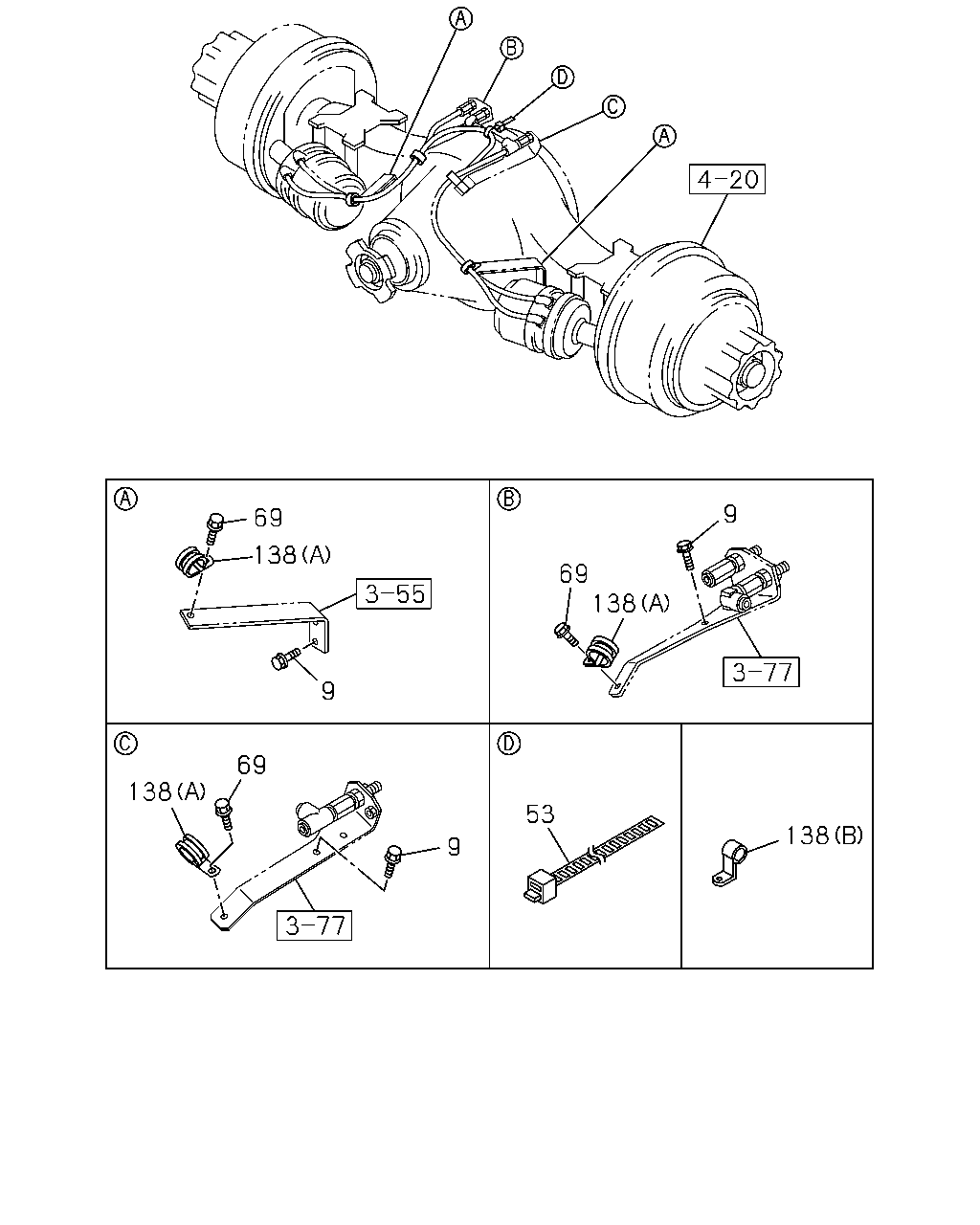

3-58 — FIXING PARTS; OIL PIPING
(#57975) — 9 parça
Tümü
A - FGR5MV
B - FGD5MV
138
69
9
138
53
9
9
69
138
138
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE
0-28050-816-0
08
1
1010-1306
●
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1307-
●
9
BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE
0-28050-816-0
02
1
1010-1306
●
53
CLIP; UNION
L=250
1-09707-126-0
03
1
1010-
●
53
CLIP; UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=250
1-09707-126-0
01
1
1010-1306
●
69
BOLT; CLIP
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE
0-28050-820-0
04
1
1010-1306
●
138
CLIP; TUBE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=35 L=33
1-09700-945-0
04
1
1010-1306
●
138
CLIP; TUBE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1010-1306
●
138
CLIP; TUBE
(B) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1307-
●
