◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#57968) — 364 parça
çizim 172032
106 201 195 189 192 204 190 202 203 198 205 203 201 197 200 199 196 199 198 201 205 197 200 196
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1010- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1010- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1010- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1010- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1010- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1010- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1010- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1010- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1010- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1010- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1010- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1010- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1010- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1010- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1010- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1010- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1010- ● ●
çizim 172036
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 1010-1306 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1307- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1307- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1010- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1010- ● ●

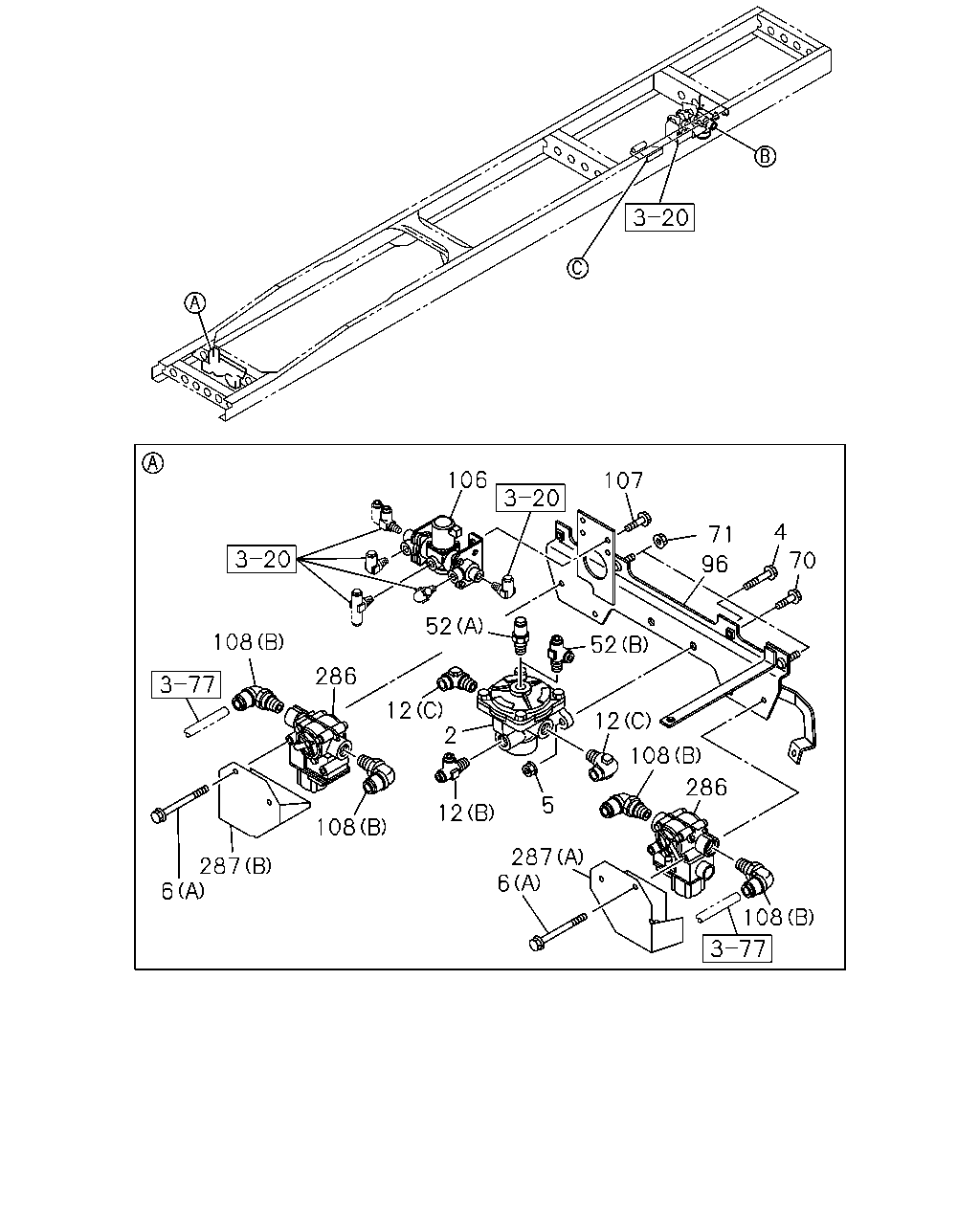

çizim 172047
106 107 71 96 4 70 52 52 12 108 286 108 6 287 5 12 2 12 286 108 108 287 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010-1306 ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1307- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1307- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010-1306 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010-1306 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1010-1410 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1010- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1010- ● ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
96 BRACKET 8-98074-613-3 01 1 1010-1410 ● ●
96 BRACKET 8-98273-496-0 01 1 1411- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1010- ● ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 1010-1306 ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 1307- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010-1306 ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1307- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 1010-1410 ● ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1411- ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 1010-1410 ● ●
287 COVER; MODULATOR
(B) 		8-98273-493-0 01 1 1411- ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 1010-1410 ● ●
287 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1411- ● ●

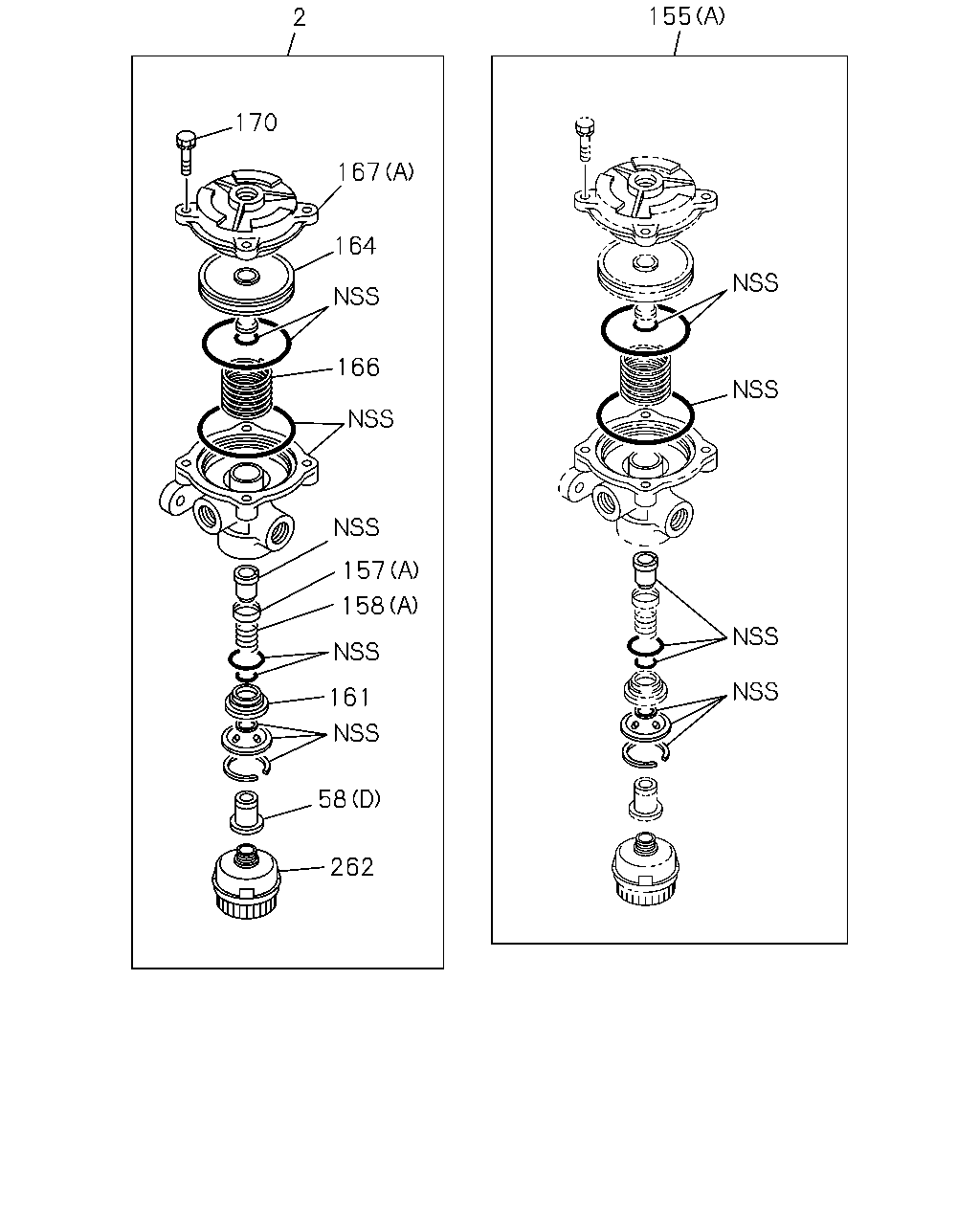

çizim 172052
2 155 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010-1306 ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1307- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1307- ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010-1306 ●
58 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1307- ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(D) 		1-48219-154-0 02 1 1010-1306 ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 1010-1306 ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1307- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1307- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1010- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1010-1306 ●
157 RETAINER; VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-48419-020-0 01 1 1010-1306 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1307- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1010-1306 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1307- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1307- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1010-1306 ●
158 SPRING; VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		9-48419-003-0 01 1 1010-1306 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1307- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1010-1306 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1307- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1307- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 1010-1306 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1307- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1307- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1010-1306 ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1307- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1307- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 1010-1306 ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 1307- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 1307- ● ●
167 COVER; VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		1-48119-625-0 04 1 1307- ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1010-1306 ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1307- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1010-1306 ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1307- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1307- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010-1306 ● ●
262 SILENCER; RELAY VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48219-149-0 01 1 1010-1306 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010-1010 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010-1010 ●
262 SILENCER; RELAY VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48219-149-0 01 1 1010-1010 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1010-1306 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1307- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1307- ● ●

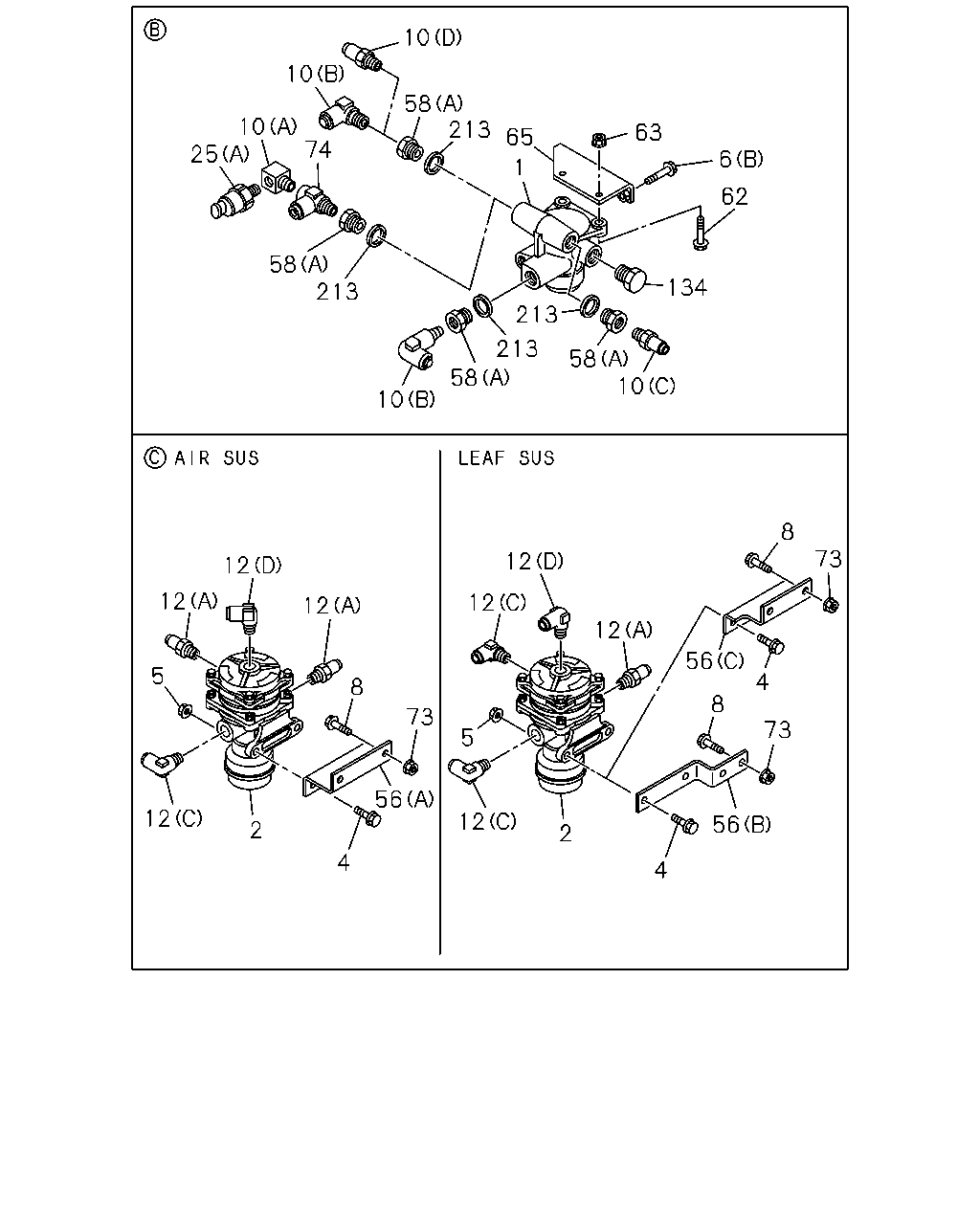

çizim 172068
25 10 10 10 58 74 58 213 213 65 63 62 134 58 213 213 10 58 10 12 12 12 12 5 8 73 56 4 2 12 12 12 8 73 56 4 8 73 56 4 2 12 5 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010-1306 ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1307- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1307- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010-1306 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1307- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010-1306 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1010-1410 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
10 CONNECTOR
(A) PT1/4 2WAY 		1-09660-693-0 01 1 1010- ● ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1010- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010- ●
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1010- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 1010-1306 ● ●
25 SWITCH; PRESSURE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) STAMP 5.5 		8-97609-249-0 01 1 1307- ● ●
25 SWITCH; PRESSURE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) STAMP 5.5 		8-97609-249-0 01 1 1307- ●
25 SWITCH; PRESSURE
(A) STAMP 2.0 		8-98010-856-2 01 1 1010- ● ●
56 BRACKET; RELAY VLV
(A) 		1-47478-233-0 01 1 1010- ●
56 BRACKET; RELAY VLV
(B) 		8-98031-257-0 01 1 1010-1306 ●
56 BRACKET; RELAY VLV
(C) 		8-98126-366-0 01 1 1307- ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010-1306 ●
58 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1307- ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(D) 		1-48219-154-0 02 1 1010-1306 ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ●
62 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
63 NUT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1010- ● ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
74 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1010- ● ●
134 PLUG; RELAY VALVE
M22 		1-09661-502-0 01 1 1010- ● ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1010- ● ●

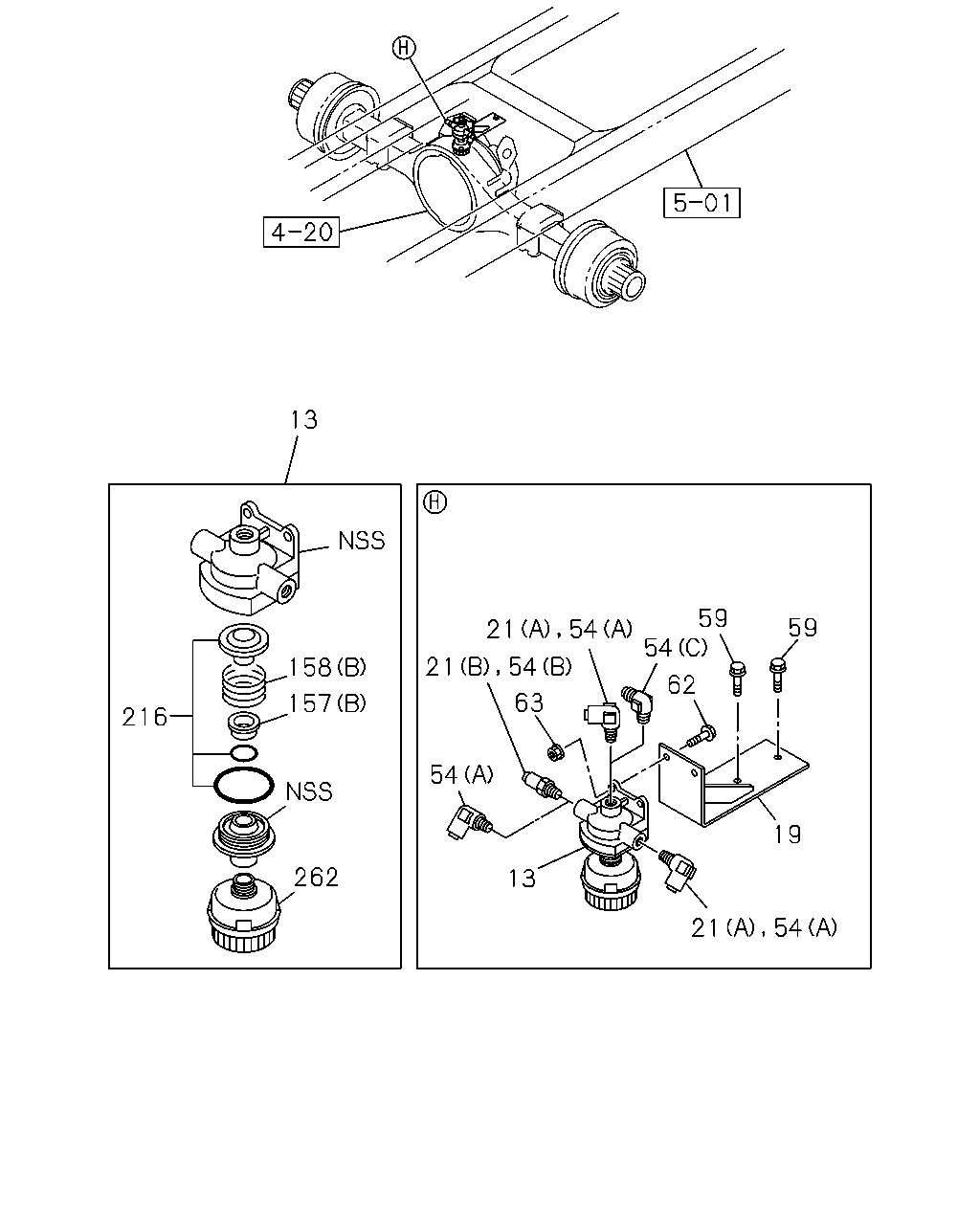

çizim 172231
13 216 158 157 262 21 21 54 13 21 54 19 59 59 54 54 63 62 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 01 1 1010-1306 ●
13 VALVE ASM; QUICK RELEASE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98170-207-0 01 1 1010-1306 ●
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 01 1 1307- ● ●
19 BRACKET; QUICK RELEASE VLV 8-98179-172-0 01 1 1108- ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 1010-1107 ●
19 BRACKET; QUICK RELEASE VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98033-795-0 01 1 1010-1107 ●
19 BRACKET; QUICK RELEASE VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98033-795-0 01 1 1108-1306 ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 1307- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108- ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1108- ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010-1107 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010-1107 ●
54 CONNECTOR; QUICK RELEASE VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010-1107 ●
54 CONNECTOR; QUICK RELEASE VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108-1306 ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1307- ●
54 CONNECTOR; QUICK RELEASE VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1010-1306 ●
54 CONNECTOR; QUICK RELEASE VLV
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307- ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 02 1 1010- ●
59 BOLT; RELEASE VALVE FIX
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE 		0-28050-816-0 01 1 1010-1306 ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
59 BOLT; RELEASE VALVE FIX
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28050-820-0 01 1 1010-1306 ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 01 1 1307- ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ●
62 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
63 NUT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1010-1306 ●
157 RETAINER; VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-48419-020-0 01 1 1010-1306 ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1307- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1010-1306 ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1307- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1307- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1010-1306 ●
158 SPRING; VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		9-48419-003-0 01 1 1010-1306 ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 1307- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1010-1306 ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1307- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1307- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 01 1 1010-1306 ●
216 REPAIR KIT; QUICK RELEASE VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98171-596-0 01 1 1010-1306 ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 01 1 1307- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010-1306 ● ●
262 SILENCER; RELAY VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48219-149-0 01 1 1010-1306 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010-1010 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010-1010 ●
262 SILENCER; RELAY VALVE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48219-149-0 01 1 1010-1010 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1010-1306 ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1307- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1307- ● ●

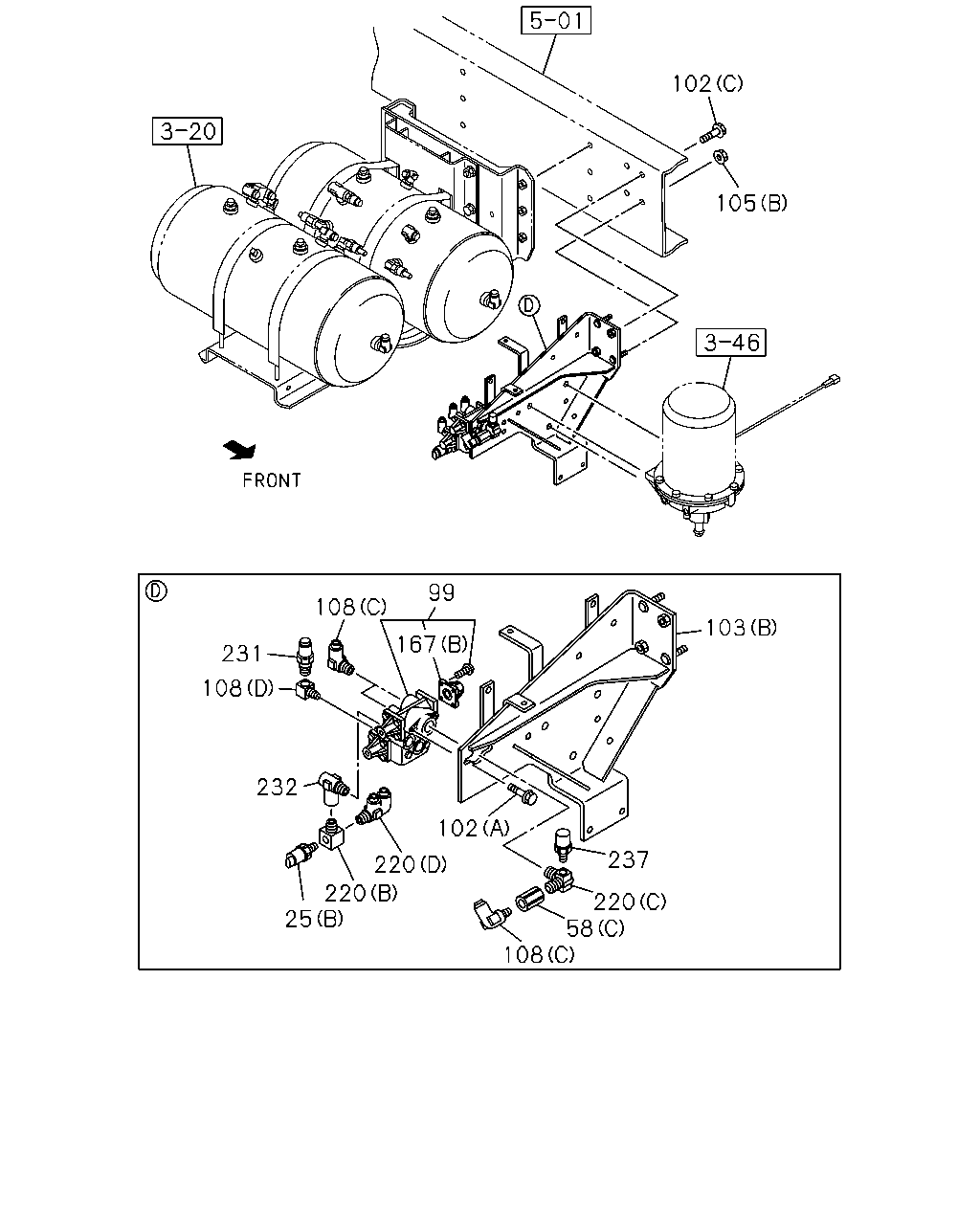

çizim 172355
102 105 231 108 108 99 167 103 237 220 58 102 220 232 220 25 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 1010-1306 ● ●
25 SWITCH; PRESSURE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) STAMP 5.5 		8-97609-249-0 01 1 1307- ● ●
25 SWITCH; PRESSURE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) STAMP 5.5 		8-97609-249-0 01 1 1307- ●
25 SWITCH; PRESSURE
(A) STAMP 2.0 		8-98010-856-2 01 1 1010- ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010-1306 ●
58 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1307- ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(D) 		1-48219-154-0 02 1 1010-1306 ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
99 VALVE; PROTECTION 1-48110-294-1 01 1 1010-1306 ● ●
99 VALVE; PROTECTION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-48110-294-3 01 1 1307- ● ●
99 VALVE; PROTECTION
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) 		1-48110-294-3 01 1 1307- ●
102 BOLT; PROTECTION VALVE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1010-1306 ● ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
102 BOLT; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
102 BOLT; PROTECTION VALVE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE 		0-28651-035-0 02 1 1010-1306 ●
102 BOLT; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE 		0-28651-035-0 02 1 1307- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98119-704-0 01 1 1010-1306 ●
103 BRACKET; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		8-98119-704-0 01 1 1307- ●
103 BRACKET; PROTECTION VALVE
(A) 		8-98090-802-0 01 1 1010- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98090-802-0 01 1 1010- ●
105 NUT; BRKT,VALVE
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
105 NUT; BRKT,VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
105 NUT; BRKT,VALVE
WHEEL BASE 4200MM(42W) (B) M10 FLANGE 		0-91180-210-0 02 1 1010-1306 ●
105 NUT; BRKT,VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) M10 FLANGE 		0-91180-210-0 02 1 1307- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 1010-1306 ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 1307- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010-1306 ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1307- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
167 COVER; VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		1-48119-625-0 04 1 1307- ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1010-1306 ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1307- ● ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1010-1306 ●
220 CONNECTOR; 3WAY
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1010-1306 ●
220 CONNECTOR; 3WAY
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1307- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1010-1306 ●
220 CONNECTOR; 3WAY
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1307- ●
220 CONNECTOR; 3WAY
(A) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-1 01 1 1010- ●
220 CONNECTOR; 3WAY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-1 01 1 1010- ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010-1306 ● ●
231 CONNECTOR; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ● ●
231 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1010-1306 ● ●
232 VALVE; CHECK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1307- ● ●
232 VALVE; CHECK
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1307- ●
237 VALVE; SAFETY 1-48320-012-2 01 1 1010-1306 ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 1307- ● ●
çizim 172366
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1010- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1010- ● ●

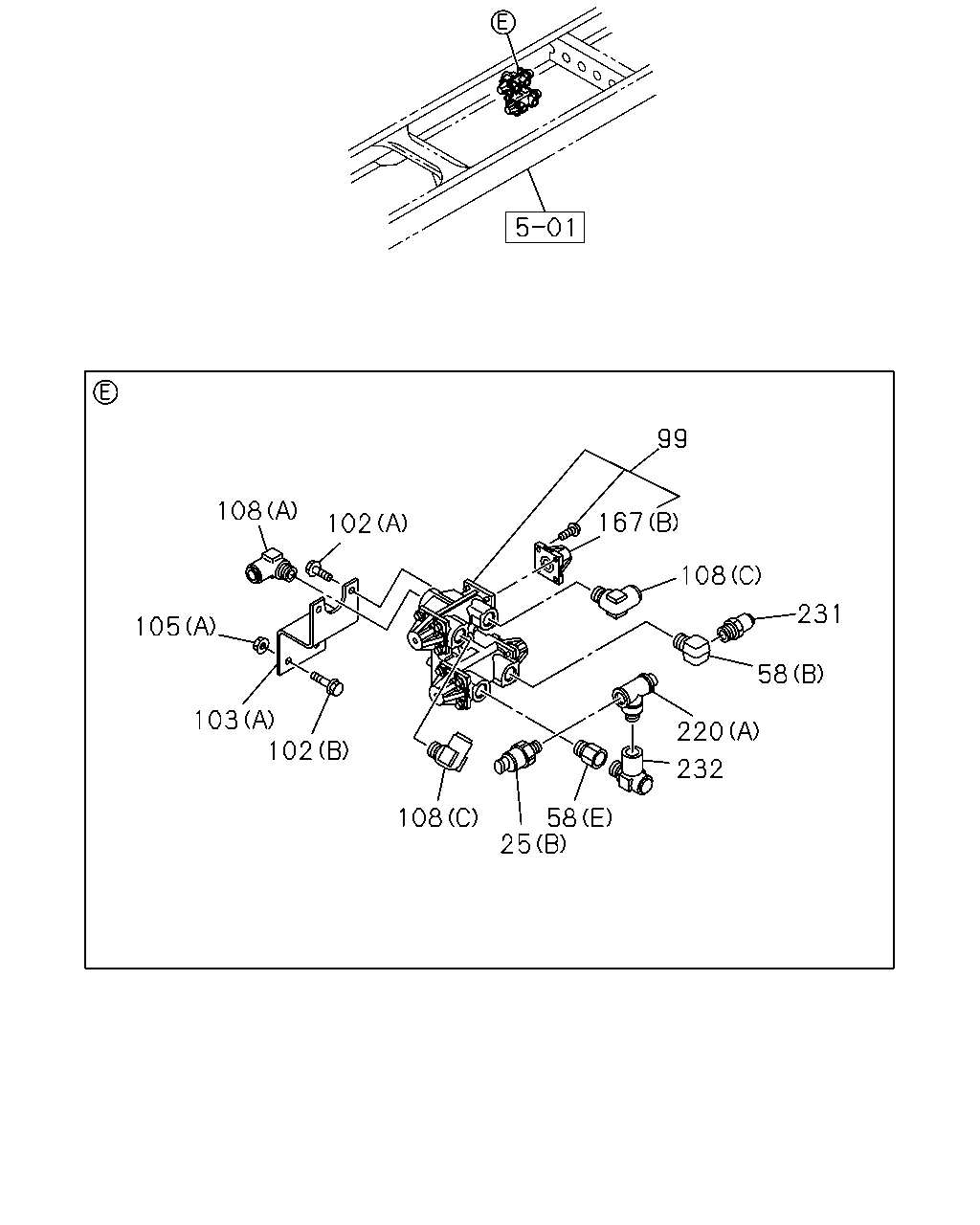

çizim 172367
108 102 105 103 102 108 25 232 58 220 58 231 108 167 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 1010-1306 ● ●
25 SWITCH; PRESSURE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) STAMP 5.5 		8-97609-249-0 01 1 1307- ● ●
25 SWITCH; PRESSURE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) STAMP 5.5 		8-97609-249-0 01 1 1307- ●
25 SWITCH; PRESSURE
(A) STAMP 2.0 		8-98010-856-2 01 1 1010- ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010-1306 ●
58 ADAPTER
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1307- ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 1010- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(D) 		1-48219-154-0 02 1 1010-1306 ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 1307- ● ●
99 VALVE; PROTECTION 1-48110-294-1 01 1 1010-1306 ● ●
99 VALVE; PROTECTION
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-48110-294-3 01 1 1307- ● ●
99 VALVE; PROTECTION
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) 		1-48110-294-3 01 1 1307- ●
102 BOLT; PROTECTION VALVE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1010-1306 ● ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
102 BOLT; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
102 BOLT; PROTECTION VALVE
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE 		0-28651-035-0 02 1 1010-1306 ●
102 BOLT; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE 		0-28651-035-0 02 1 1307- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98119-704-0 01 1 1010-1306 ●
103 BRACKET; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		8-98119-704-0 01 1 1307- ●
103 BRACKET; PROTECTION VALVE
(A) 		8-98090-802-0 01 1 1010- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98090-802-0 01 1 1010- ●
105 NUT; BRKT,VALVE
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
105 NUT; BRKT,VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
105 NUT; BRKT,VALVE
WHEEL BASE 4200MM(42W) (B) M10 FLANGE 		0-91180-210-0 02 1 1010-1306 ●
105 NUT; BRKT,VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) M10 FLANGE 		0-91180-210-0 02 1 1307- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 1010-1306 ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 1307- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010-1306 ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1307- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1010- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
167 COVER; VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		1-48119-625-0 04 1 1307- ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1010-1306 ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1307- ● ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1010-1306 ●
220 CONNECTOR; 3WAY
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1010-1306 ●
220 CONNECTOR; 3WAY
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1307- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1010-1306 ●
220 CONNECTOR; 3WAY
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1307- ●
220 CONNECTOR; 3WAY
(A) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-1 01 1 1010- ●
220 CONNECTOR; 3WAY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & RC1/4 & R3/8 3WAY 		1-09660-988-1 01 1 1010- ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010-1306 ● ●
231 CONNECTOR; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ● ●
231 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1307- ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1010-1306 ● ●
232 VALVE; CHECK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1307- ● ●
232 VALVE; CHECK
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1307- ●
çizim 488166
241
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1010- ● ●
241 REPAIR KIT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-85576-451-2 01 1 1307- ● ●
241 REPAIR KIT; PROTECTION VALVE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) 		1-85576-451-2 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
