◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#57962) — 30 parça

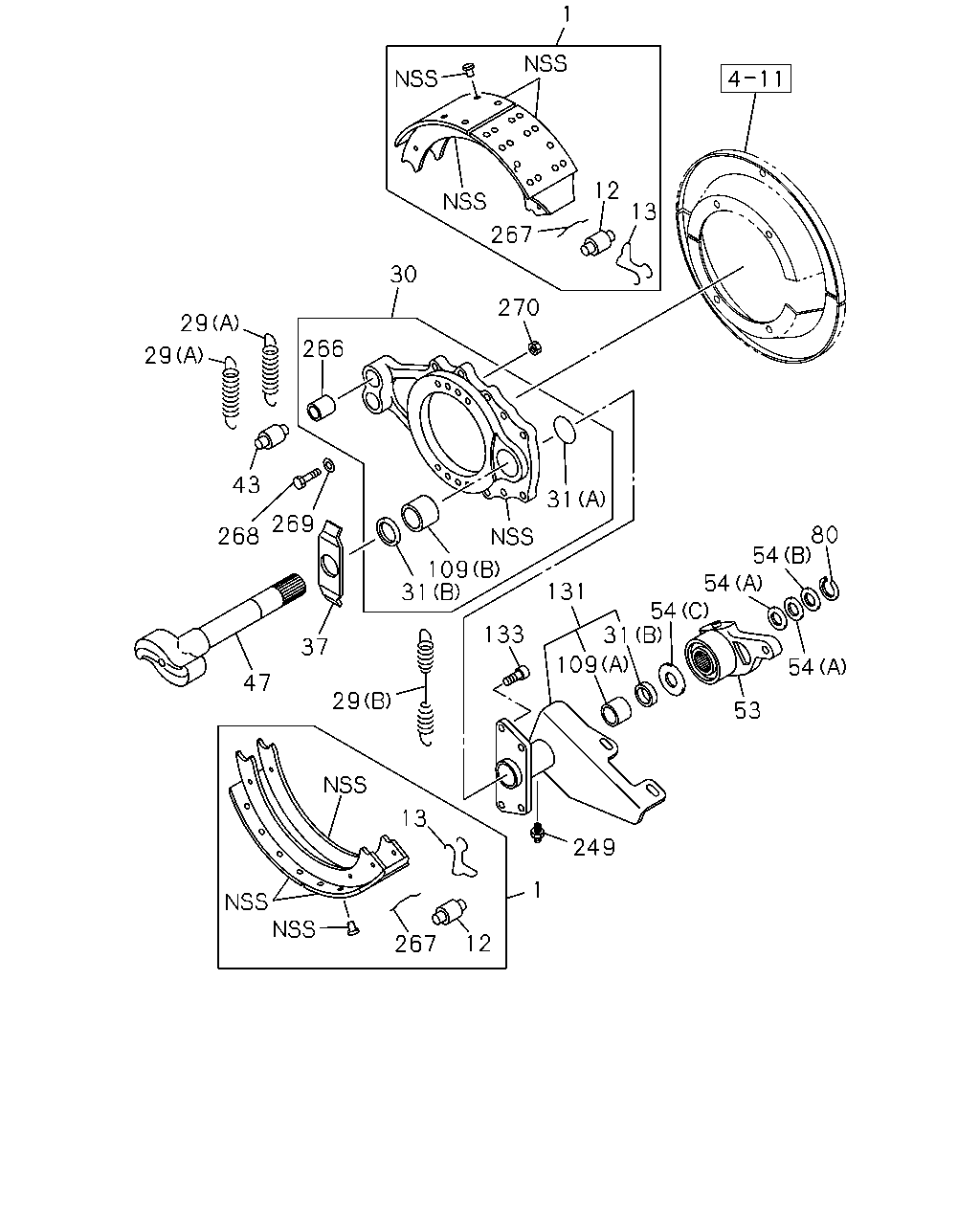

çizim 172105
53 80 54 54 54 54 31 109 131 133 31 29 109 31 269 268 43 37 47 13 1 12 249 267 266 30 29 29 270 13 12 1 267
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 1-47120-832-0 04 1 1010- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 02 1 1010- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 1010- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 1010- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 1010- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-450-0 01 1 1010- ● ●
30 BRACKET; ANCHOR,FRT 1-47137-451-0 01 1 1010- ● ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 1010- ● ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 02 1 1010- ● ●
37 WASHER; ADJ CAM 1-47149-087-0 02 1 1010- ● ●
43 PIN; ANCHOR 1-47131-040-0 04 1 1010- ● ●
47 CAMSHAFT; FRT BRK 1-47141-126-0 01 1 1010- ● ●
47 CAMSHAFT; FRT BRK 1-47141-127-0 01 1 1010- ● ●
53 ADJUSTER ASM; SLACK 1-48270-107-0 02 1 1010- ● ●
54 SPACER; CM/SHF
(A) T=0.06" 		1-47139-121-0 02 1 1010- ● ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 1010- ● ●
54 SPACER; CM/SHF
(A) T=0.03" 		1-47149-060-0 02 1 1010- ● ●
54 SPACER; CM/SHF
(C) 		1-47149-065-0 02 1 1010- ● ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1010- ● ●
109 BUSHING; CM/SHF,FRT BRK
(A) 		1-47146-012-0 02 1 1010- ● ●
109 BUSHING; CM/SHF,FRT BRK
(B) 		1-47146-017-0 02 1 1010- ● ●
131 BRACKET; POWER CHAMBER 1-48258-194-0 01 1 1010- ● ●
131 BRACKET; POWER CHAMBER 1-48258-195-0 01 1 1010- ● ●
133 BOLT; BRKT 1-47139-116-0 08 1 1010- ● ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1010- ● ●
266 BUSHING; BRKT 1-47139-117-0 04 1 1010- ● ●
267 PIN; RETURN SPRING,FRT BRK SHOE 1-47119-116-0 02 1 1010- ● ●
268 BOLT; ANCHOR BRKT 1-47139-122-0 12 1 1010- ● ●
269 WASHER; ANCHOR BRKT 1-41519-102-0 28 1 1010- ● ●
270 NUT; ANCHOR BRKT 1-41229-169-0 14 1 1010- ● ●
