2-53 — TRANSMISSION OIL COOLER SYSTEM (#57958) — 49 parça

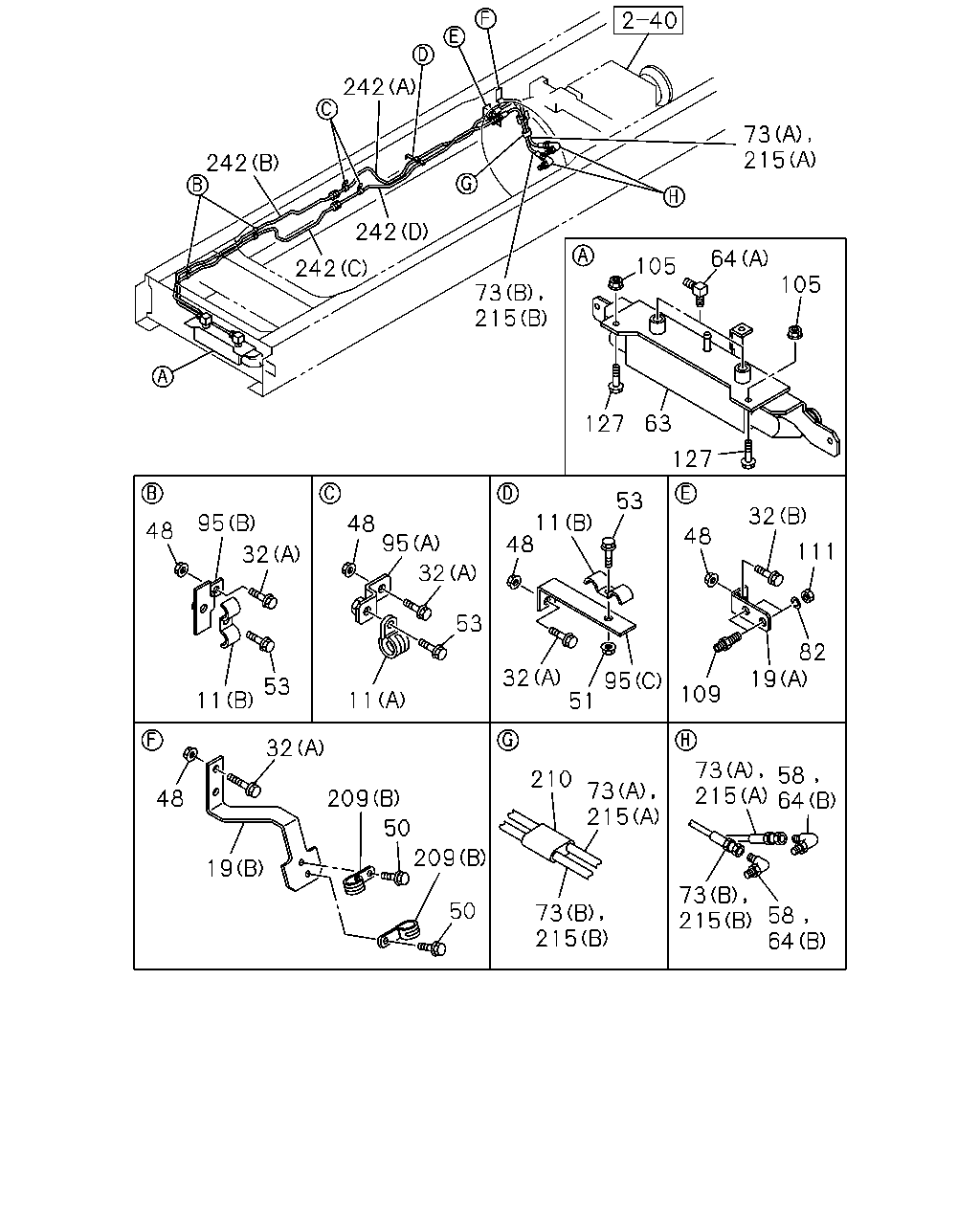

73 215 242 242 242 242 73 215 127 63 127 105 64 105 111 32 48 109 19 82 58 73 215 64 58 64 215 73 215 210 73 73 215 209 50 50 209 32 48 19 11 11 53 53 32 95 48 48 32 95 11 48 32 51 53 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	1010-	●	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1010-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	1010-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (B)	8-98144-397-0	01	1	1010-	●	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	07	1	1010-	●	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	1010-	●	●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	09	1	1010-	●	●
50	BOLT; CLIP ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1010-	●	●
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	8-98144-617-0	02	1	1010-1501	●	●
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G) EXC. VIN MODEL YEAR 2015<VZF>	8-98144-617-0	02	1	1502-	●	●
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98025-666-2	01	1	1011-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-334-0	01	1	1010-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) VIN MODEL YEAR 2015<VZF> (B)	8-98144-617-0	02	1	1504-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	9-09903-722-0	02	1	1010-	●	●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (A)	8-98144-618-0	01	1	1010-1501	●	●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98144-618-0	01	1	1502-	●	●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (B)	8-98144-619-0	01	1	1010-1501	●	●
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98144-619-0	01	1	1502-	●	●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	1010-	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	1-47478-140-0	01	1	1010-1407	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1408-	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	1010-	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	1010-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	1010-	●	●
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1010-	●	●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	1010-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1010-1010	●	●
127	BOLT; COOLER FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1011-	●	●
127	BOLT; COOLER A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X30 FLANGE	0-28650-830-0	02	1	1011-	●	●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	1010-	●	●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (B) ID=26 L=26	1-09701-236-0	02	1	1010-	●	●
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	01	1	1010-	●	●
215	HOSE; OIL COOLER ALLISON MD3060P A/T(Y4G) VIN MODEL YEAR 2015<VZF> (A)	8-98144-618-0	01	1	1504-	●	●
215	HOSE; OIL COOLER ALLISON MD3060P A/T(Y4G) VIN MODEL YEAR 2015<VZF> (B)	8-98144-619-0	01	1	1504-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	1010-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	1010-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98144-258-0	01	1	1010-1306	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98190-140-0	01	1	1307-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98144-259-0	01	1	1010-1306	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98190-142-0	01	1	1307-	●	●

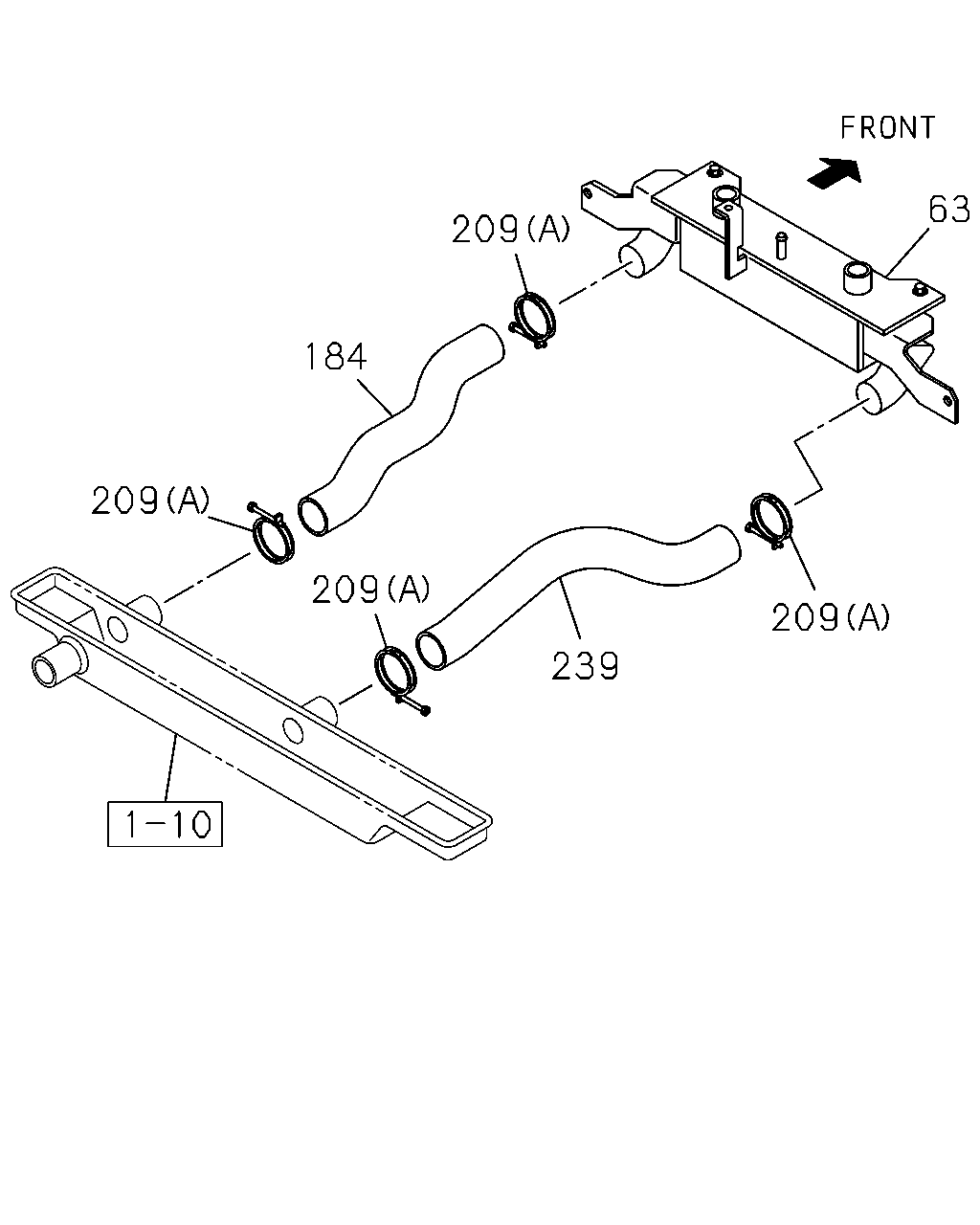

63 209 239 209 184 209 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98025-666-2	01	1	1011-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-334-0	01	1	1010-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D>	8-98025-696-1	01	1	1010-	●	●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	1010-	●	●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (B) ID=26 L=26	1-09701-236-0	02	1	1010-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	1010-	●	●
