◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#57952) — 85 parça

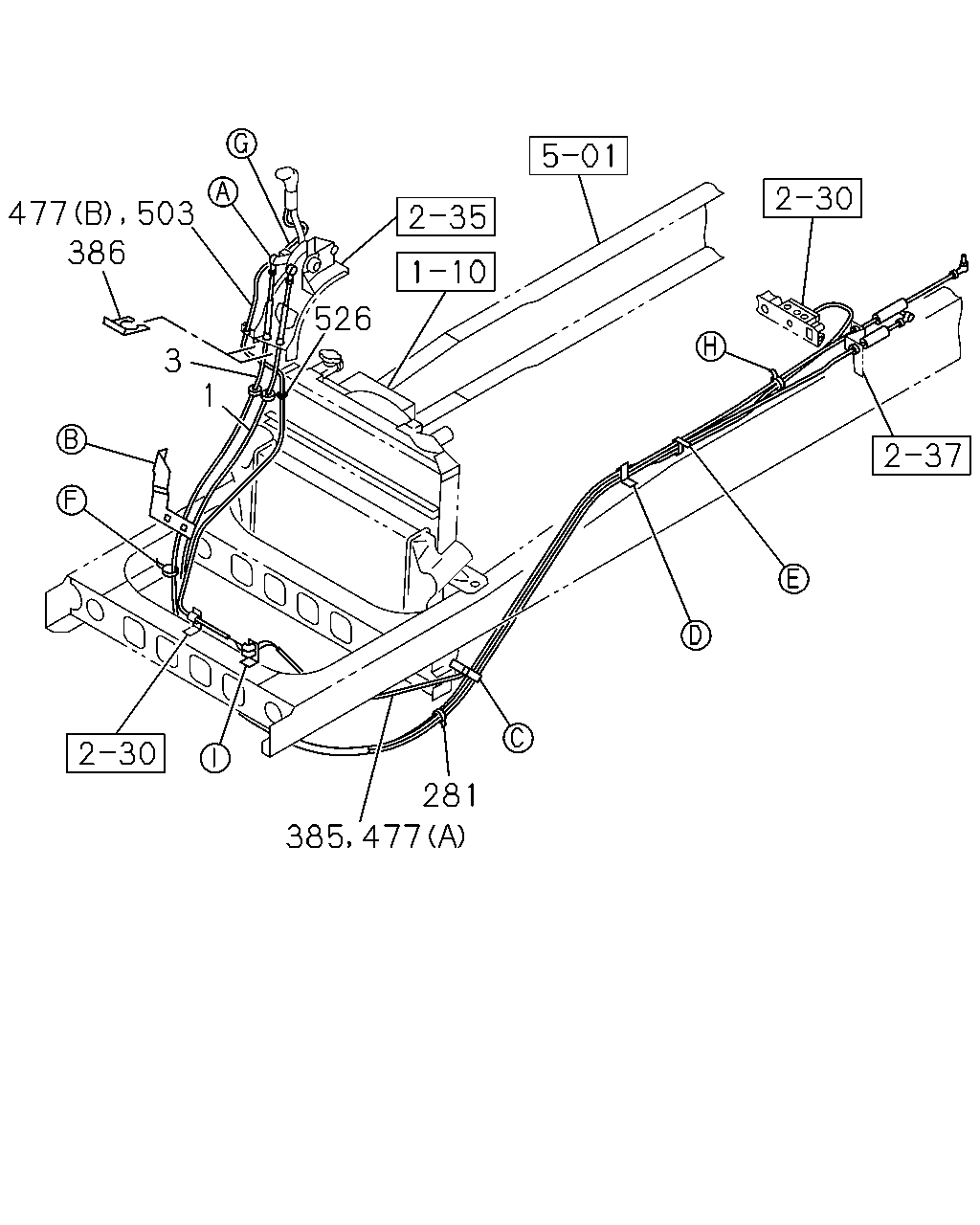

çizim 172313
281 385 477 3 526 1 386 503 477
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 1010- ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 1010- ● ●
281 CLIP; BAND
ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 1010-1306 ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1010-1306 ● ●
281 CLIP; BAND
ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 1307- ● ●
281 CLIP; BAND
ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 1307- ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1010- ● ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 1010-1203 ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1204-1306 ● ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 1307- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1307- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1010- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1010- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1307- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1010- ● ●
526 GROMMET
ZF9S1110 M/T(Y5E) 		5-09333-062-0 01 1 1010- ● ●

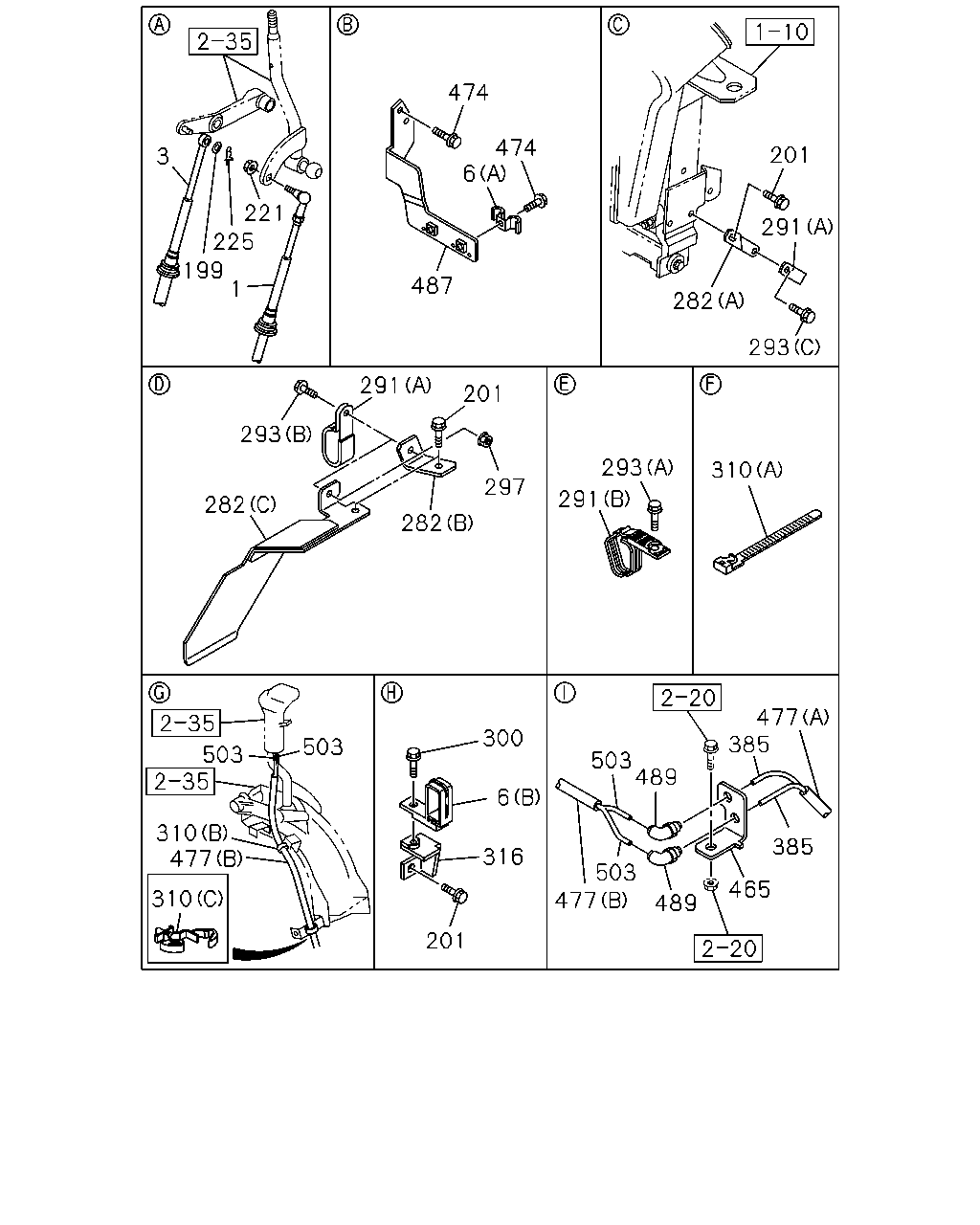

çizim 172361
3 221 225 199 474 474 6 487 1 201 291 282 293 310 293 291 297 282 201 291 293 282 300 6 316 201 503 489 477 385 385 465 489 503 477 503 503 477 310 310
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3620 		8-98099-965-2 01 1 1010- ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) L=3700 		8-98099-967-1 01 1 1010- ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1010- ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1010-1203 ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1204-1306 ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1307- ● ●
199 WASHER; PL,SELECT
ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 1010-1203 ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1204-1306 ● ●
199 WASHER; PL,SELECT
ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 1307- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1306 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1306 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 1010-1306 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1010- ● ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 1010-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1012-1203 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1204-1306 ● ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1307- ● ●
225 PIN; SELECT CABLE
ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 1010-1203 ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1204-1306 ● ●
225 PIN; SELECT CABLE
ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 1307- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82699-199-0 01 1 1010-1103 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98171-762-0 01 1 1104-1306 ● ●
282 BRACKET; TRANS SIDE
ZF9S1110 M/T(Y5E) (C) 		8-98171-762-0 01 1 1307- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-265-2 01 1 1010-1306 ● ●
282 BRACKET; TRANS SIDE
ZF9S1110 M/T(Y5E) (A) 		8-98098-265-2 01 1 1307- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1010-1203 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1204-1306 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1307- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1010-1203 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1204-1306 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1010-1306 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1203 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1204-1306 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 1010-1203 ● ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1204-1306 ● ●
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1010-1306 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (A) L=100 		5-09707-036-1 01 1 1307- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) ID=12 		8-94218-436-0 01 1 1010-1306 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (C) ID=12 		8-94218-436-0 01 1 1307- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1010-1306 ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) (B) ID=6 & 10-13 		8-97069-515-0 01 1 1307- ● ●
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 1010- ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1010- ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 1010-1306 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98141-474-0 01 1 1307- ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 02 1 1307- ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 03 1 1010-1203 ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 03 1 1204-1306 ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 01 1 1307- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1307- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1010- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1010- ● ●
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) 		8-98021-923-2 01 1 1010-1012 ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98180-729-0 01 1 1101-1306 ● ●
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) 		8-98180-729-0 01 1 1307- ● ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1010-1306 ● ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) 		8-98085-747-0 02 1 1307- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1307- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1010- ● ●
