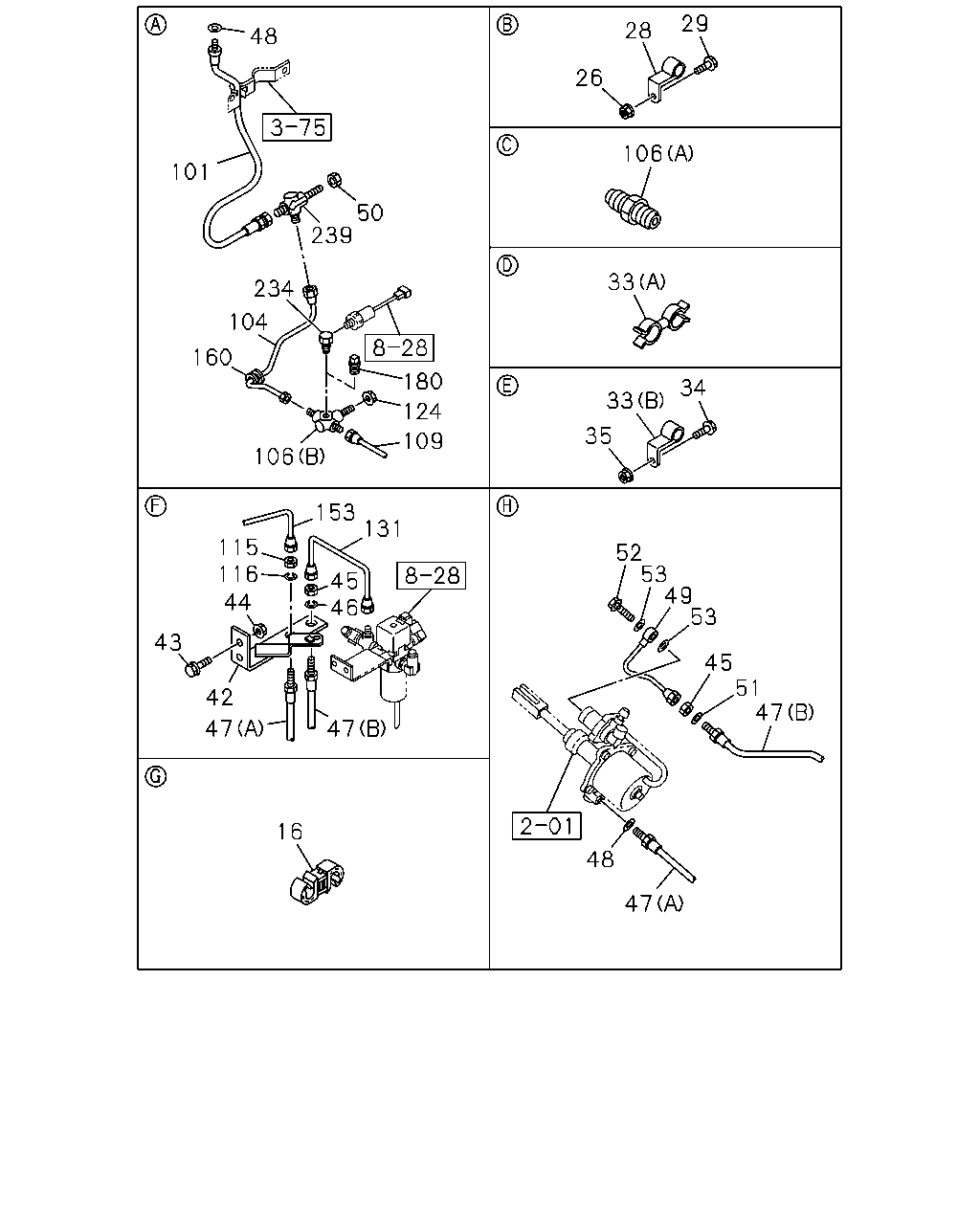

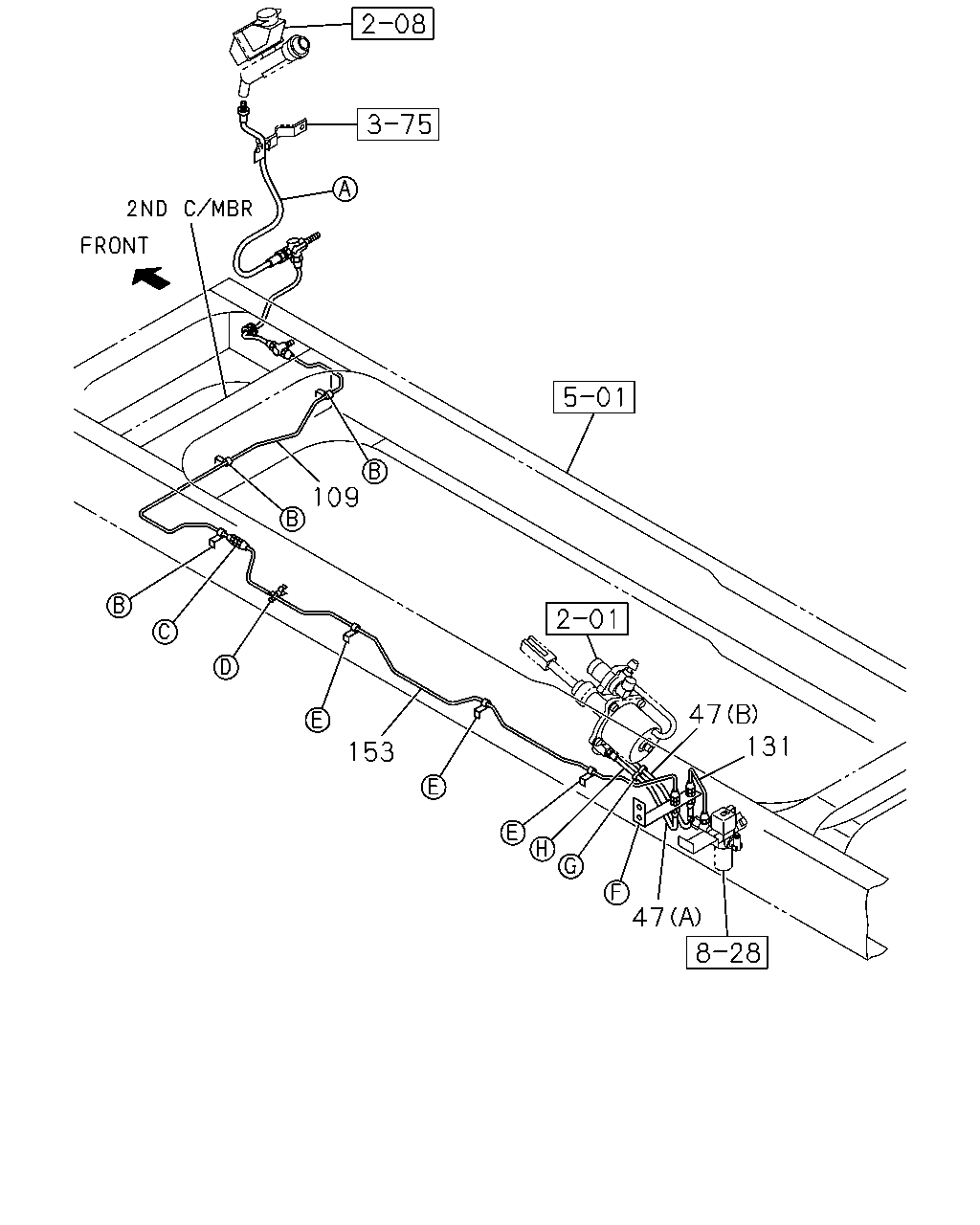

2-05 — CLUTCH PIPING (#57943) — 56 parça

16 48 101 239 50 234 104 160 180 109 124 106 153 115 131 116 45 44 46 43 42 47 47 47 48 47 51 45 53 49 53 52 35 33 34 33 106 26 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	1010-1306	●	●
16	CLIP; FLEX HOSE ZF9S1110 M/T(Y5E) ID=10 & 12	1-09709-278-1	01	1	1307-	●	●
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1010-	●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	1010-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1010-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1010-	●	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1010-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1010-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1010-1306	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1307-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1010-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	1010-1011	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1010-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1010-	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1010-1306	●	●
48	GASKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0	9-09571-410-0	02	1	1307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1010-	●	●
50	NUT; UNION EXC. A/T<X9D> M12	0-91111-512-0	01	1	1010-1306	●	●
50	NUT; UNION ZF9S1110 M/T(Y5E) M12	0-91111-512-0	01	1	1307-	●	●
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1010-	●	●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1010-1312	●	●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=500	8-98072-350-0	01	1	1010-1306	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE ZF9S1110 M/T(Y5E) L=500	8-98072-350-0	01	1	1307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1010-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1010-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1010-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1010-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1010-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	1010-1011	●	●
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1010-1306	●	●
124	NUT; PIPE UNION ZF9S1110 M/T(Y5E) M12	0-91111-512-0	01	1	1307-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	1010-1306	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=203	8-98100-103-0	01	1	1307-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	1010-1306	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) L=244	8-98092-621-0	01	1	1307-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1010-	●	●
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●	●
160	GROMMET; OIL PIPE ZF9S1110 M/T(Y5E) ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-	●	●
180	PLUG; PIPE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1010-	●	●
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1010-	●	●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1010-	●	●

109 47 131 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1010-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1010-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1010-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	1010-1306	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=203	8-98100-103-0	01	1	1307-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	1010-1306	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) L=244	8-98092-621-0	01	1	1307-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1010-	●	●
