Isuzu WW
▶
TRUCKS
▶
FVR
▶
11329 - FVR AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01A - CLUTCH
▶

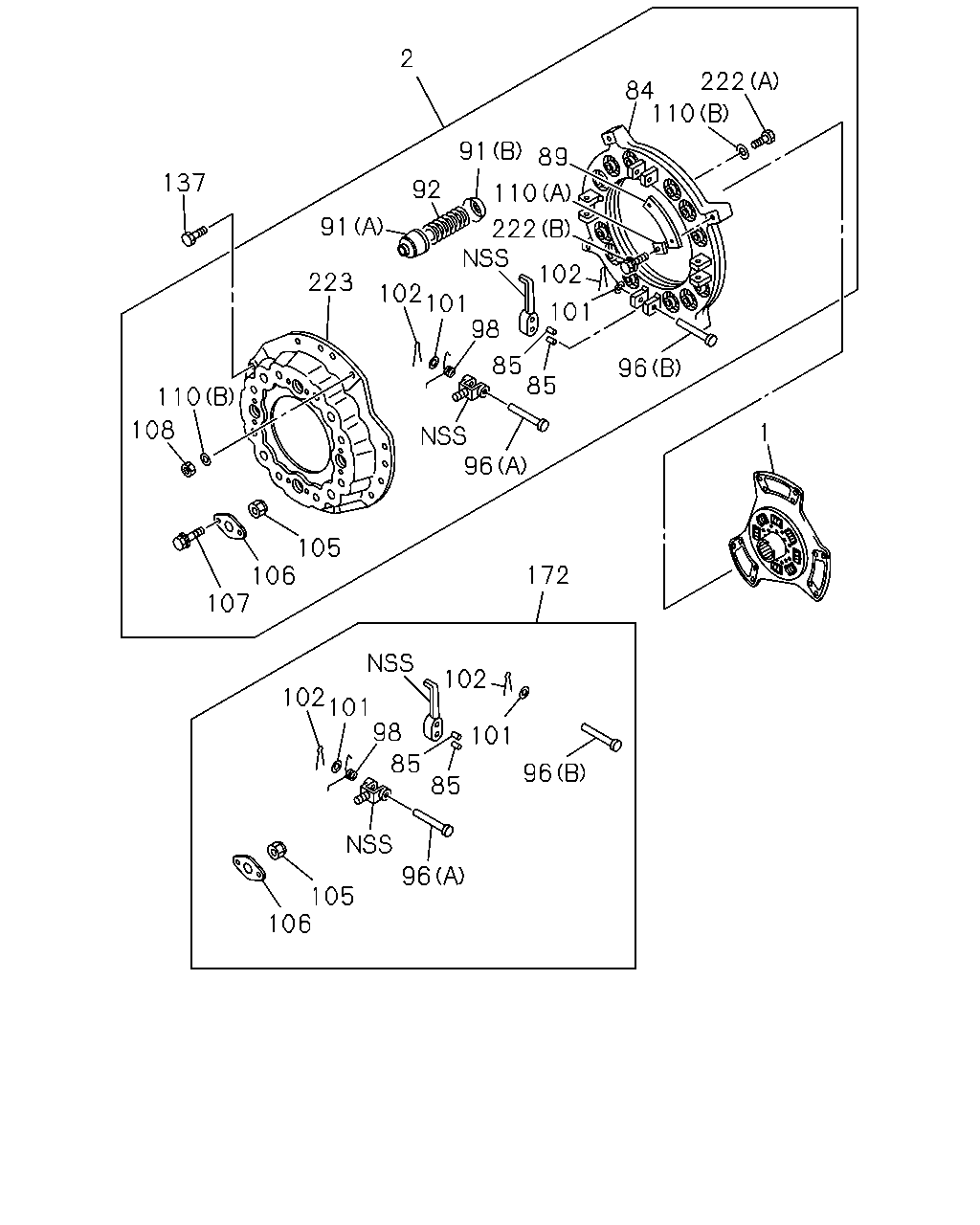

2-01A — CLUTCH
(#57941) — 51 parça
◀
[201A] DISC AND PLATE (26 parça)
[201A] BOOSTER AND BRACKET (25 parça)
▶
106
105
96
85
85
98
101
102
102
101
96
172
1
107
106
105
108
110
96
85
85
96
101
102
222
110
89
84
110
222
2
91
92
91
137
223
102
101
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-977-2
01
1
1010-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-143-0
01
1
1010-
2
PLATE ASM; PRESSURE,CLU
1-31220-380-2
01
1
1010-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-145-0
01
1
1010-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
1010-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1010-
89
PLATE; STRAP
1-31229-050-0
16
1
1010-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
1010-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
1010-
92
SPRING; CLU
1-31214-053-0
12
1
1010-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1010-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1010-
98
SPRING; RETURN
1-31233-003-0
04
1
1010-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1010-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
1010-
105
NUT; SUPPORT
1-31235-014-0
04
1
1010-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1010-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1010-
108
NUT; STRAP
1-09449-036-0
04
1
1010-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
1010-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
1010-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1010-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
1010-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
1010-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
1010-
223
COVER; CLU
1-31211-019-1
01
1
1010-
122
170
155
220
155
170
149
157
157
154
164
166
148
128
128
123
125
116
118
122
57
131
130
120
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-036-0
01
1
1010-
116
BLOCK; SHIFT,CLU
1-31321-086-1
01
1
1010-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
1010-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
1010-
119
SPRING; SHIFT FORK
1-31329-014-0
01
1
1010-
119
SPRING; SHIFT FORK
1-31329-015-0
01
1
1010-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=360
1-09364-881-0
01
1
1010-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW
0-90301-610-0
01
1
1010-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
1010-
123
CLIP; FLEX HOSE,SHIFT BLOCK
8-97010-484-0
01
1
1010-
125
SHAFT; CLU
1-31342-336-0
01
1
1010-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1010-
130
SCREW; SHIFT FORK
9-06120-816-0
01
1
1010-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1010-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1010-
149
EYE; SPRING,RETURN SPRING
1-31426-041-0
01
1
1010-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1010-
155
BRACKET; MINIPACK
(B)
1-31429-472-1
01
1
1010-
155
BRACKET; MINIPACK
(A)
1-31429-473-0
01
1
1010-
157
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
1010-
164
EYE; SPRING
1-31426-050-0
01
1
1010-
166
NUT; SPRING EYE
M10 FLANGE
0-91180-210-0
01
1
1010-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
1010-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
1010-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
1010-
