Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#5794) — 172 parça

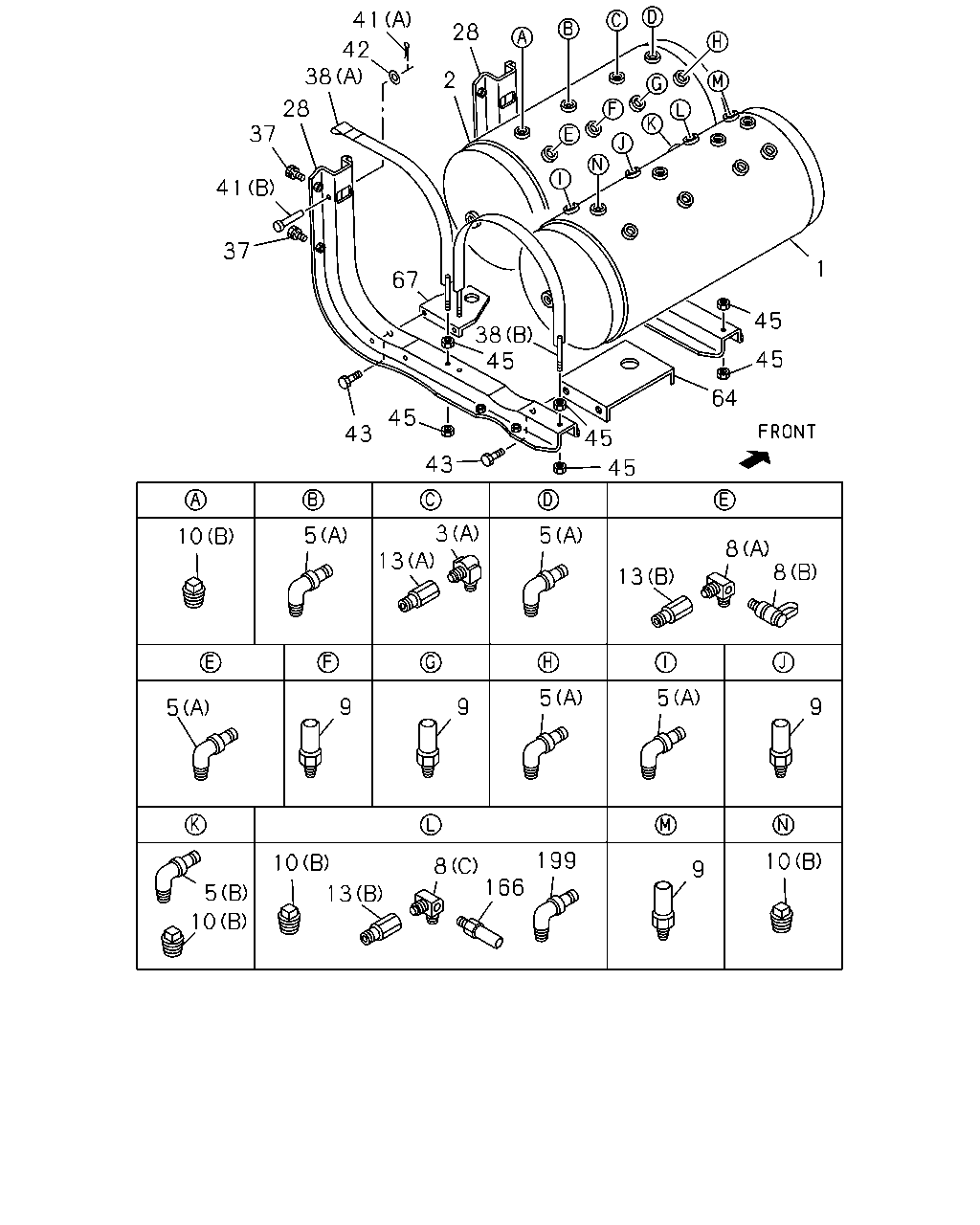

41 28 42 38 2 28 37 41 37 1 67 45 38 45 45 64 45 43 45 43 45 3 5 5 10 8 8 13 13 5 5 9 9 9 5 199 10 10 8 166 9 5 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-221-0	01	1	9603-	●	●
2	TANK; AIR	1-48370-353-0	01	1	9603-	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	04	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	9603-	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9603-9904	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-	●
5	UNION; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	10	1	9603-9904	●	●
5	UNION; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	10	1	9905-	●	●
5	UNION; AIR TANK HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	08	1	9603-9904	●	●
5	UNION; AIR TANK HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	9905-	●	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9603-	●
8	CONNECTOR; AIR TANK (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9603-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> 530KPA	1-48340-054-1	04	1	9603-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> 530KPA	1-48340-054-1	03	1	9603-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	03	1	9603-	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9603-	●	●
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	02	1	9603-	●	●
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (C) PT1/4	9-99204-513-0	01	1	9603-	●	●
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	04	1	9603-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9603-	●	●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (C) PT1/4	9-99204-513-0	02	1	9603-	●	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	9603-9904	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9905-0007	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-0007	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9603-	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9603-	●	●
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9603-	●	●
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9603-	●	●
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9603-	●	●
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9603-	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9603-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9603-	●	●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9603-	●	●
67	STAY; SUB TANK	1-48317-711-0	01	1	9603-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	9603-	●	●
199	CONNECTOR; AIR PIPE,AIR CHAMBER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904	●	●
199	CONNECTOR; AIR PIPE,AIR CHAMBER EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-	●	●

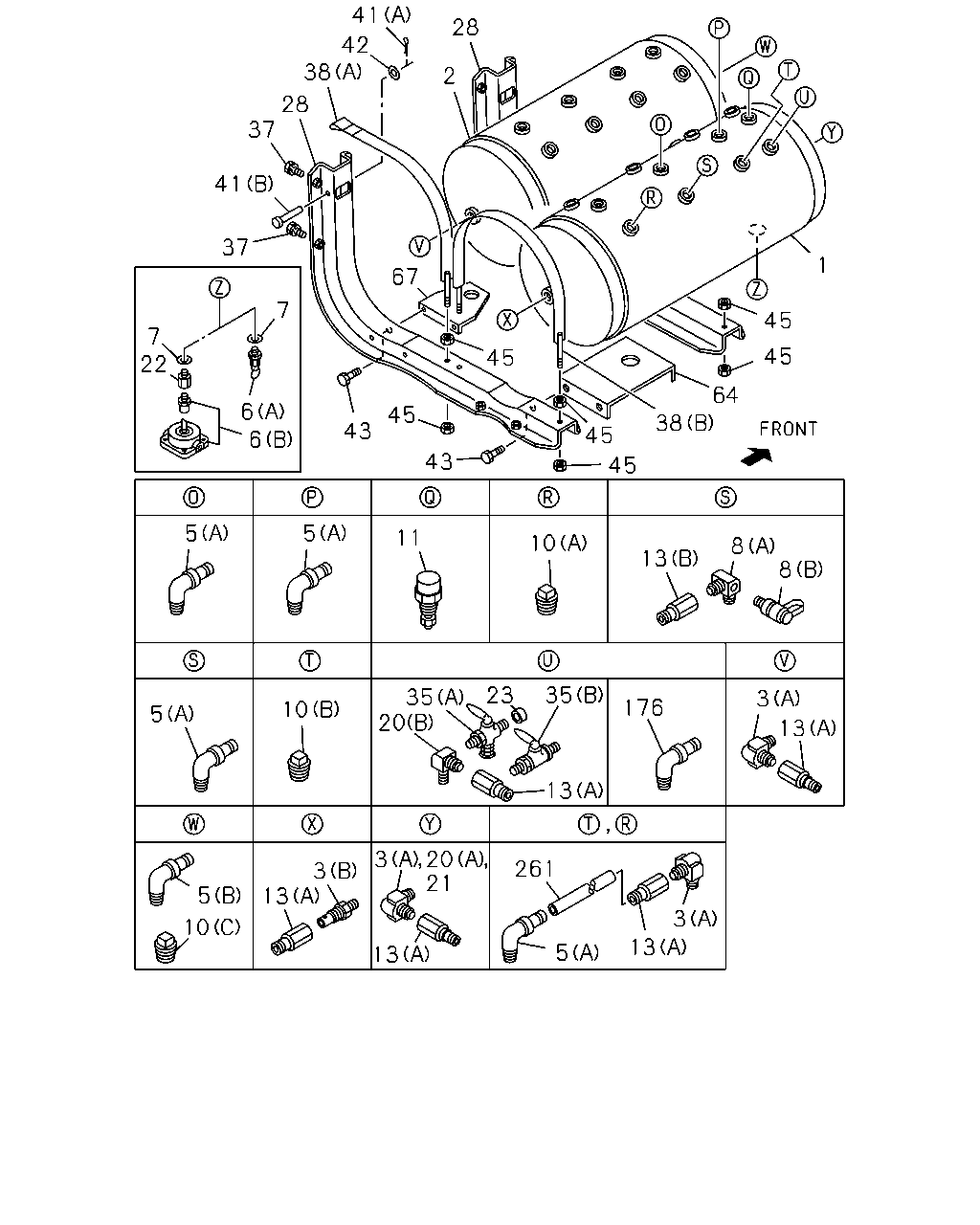

41 28 42 38 2 28 37 41 37 1 67 7 45 7 22 45 45 64 38 6 6 45 43 45 43 45 5 5 11 10 8 8 13 23 35 35 20 3 176 10 5 13 13 3 20 21 261 5 13 3 10 13 5 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR	1-48370-221-0	01	1	9603-	●	●
2	TANK; AIR	1-48370-353-0	01	1	9603-	●	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	04	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	9603-	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9603-9904	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-	●
5	UNION; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	10	1	9603-9904	●	●
5	UNION; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	10	1	9905-	●	●
5	UNION; AIR TANK HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	08	1	9603-9904	●	●
5	UNION; AIR TANK HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	9905-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9603-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9603-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9603-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9603-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9603	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9609-	●	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9603-	●
8	CONNECTOR; AIR TANK (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9603-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	03	1	9603-	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9603-	●	●
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	02	1	9603-	●	●
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (C) PT1/4	9-99204-513-0	01	1	9603-	●	●
10	PLUG; AIR TANK HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	04	1	9603-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9603-	●	●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DUAL LICENCE CHINA & HONG KONG<TEZ> (C) PT1/4	9-99204-513-0	02	1	9603-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	9603-	●	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	9603-9904	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9905-0007	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-0007	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
20	NIPPLE; AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> (A) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> (A) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9603-	●	●
21	VALVE; CHECK,AIR TANK V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9610-9906	●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9603-	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9603-	●	●
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9603-	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47> (A)	1-09680-036-0	01	1	9603-0101	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47> (B)	1-09680-099-0	01	1	0102-	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9603-	●	●
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9603-	●	●
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9603-	●	●
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9603-	●	●
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9603-	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9603-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9603-	●	●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9603-	●	●
67	STAY; SUB TANK	1-48317-711-0	01	1	9603-	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9603-9904	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●	●
261	TUBE; NYLON AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) L=300 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-9904	●	●
261	TUBE; NYLON AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9905-	●	●

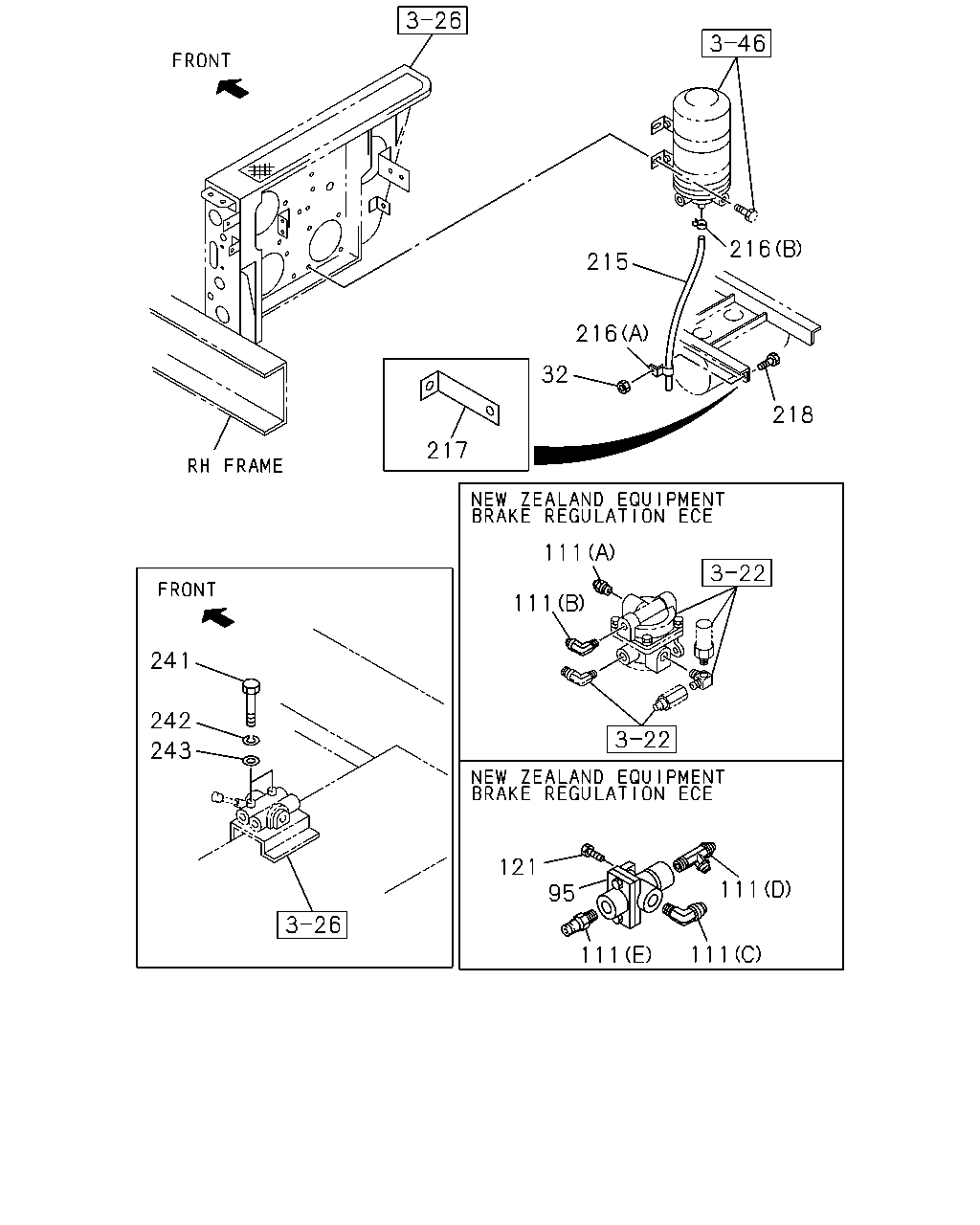

216 215 216 32 218 217 111 111 241 242 243 121 111 95 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●	●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	02	1	9603-9803	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	01	1	9804-9902	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	01	1	9804-9902	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	01	1	9903-9904	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	01	1	9903-9904	●
95	VALVE; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9905-	●
95	VALVE; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9905-	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9904	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	02	1	9603-9803	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9804-9904	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9804-9904	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9603-9904	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9905-	●
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904	●
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	04	1	9905-	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9603-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=21	8-94242-034-0	01	1	9603-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=25 L=55	9-09917-573-0	01	1	9603-	●	●
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> L=95	1-82699-085-0	01	1	9603-	●	●
218	BOLT; BRKT AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
218	BOLT; BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9603-9708	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9709-	●	●
241	BOLT; SET,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X65	0-10805-865-0	02	1	9603-9703	●
241	BOLT; SET,CONT VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> M8X65	0-10805-865-0	02	1	9603-9703		●
241	BOLT; SET,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X70 FLANGE	0-28080-870-0	02	1	9704-9708	●
241	BOLT; SET,CONT VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> M8X70 FLANGE	0-28080-870-0	02	1	9704-9708		●
242	WASHER; LK,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.2	9-09150-508-0	02	1	9603-9703	●
242	WASHER; LK,CONT VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> ID=8.2	9-09150-508-0	02	1	9603-9703		●
243	WASHER; PL,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.4	9-09160-508-0	02	1	9603-9703	●
243	WASHER; PL,CONT VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> ID=8.4	9-09160-508-0	02	1	9603-9703		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
