◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#57938) — 194 parça

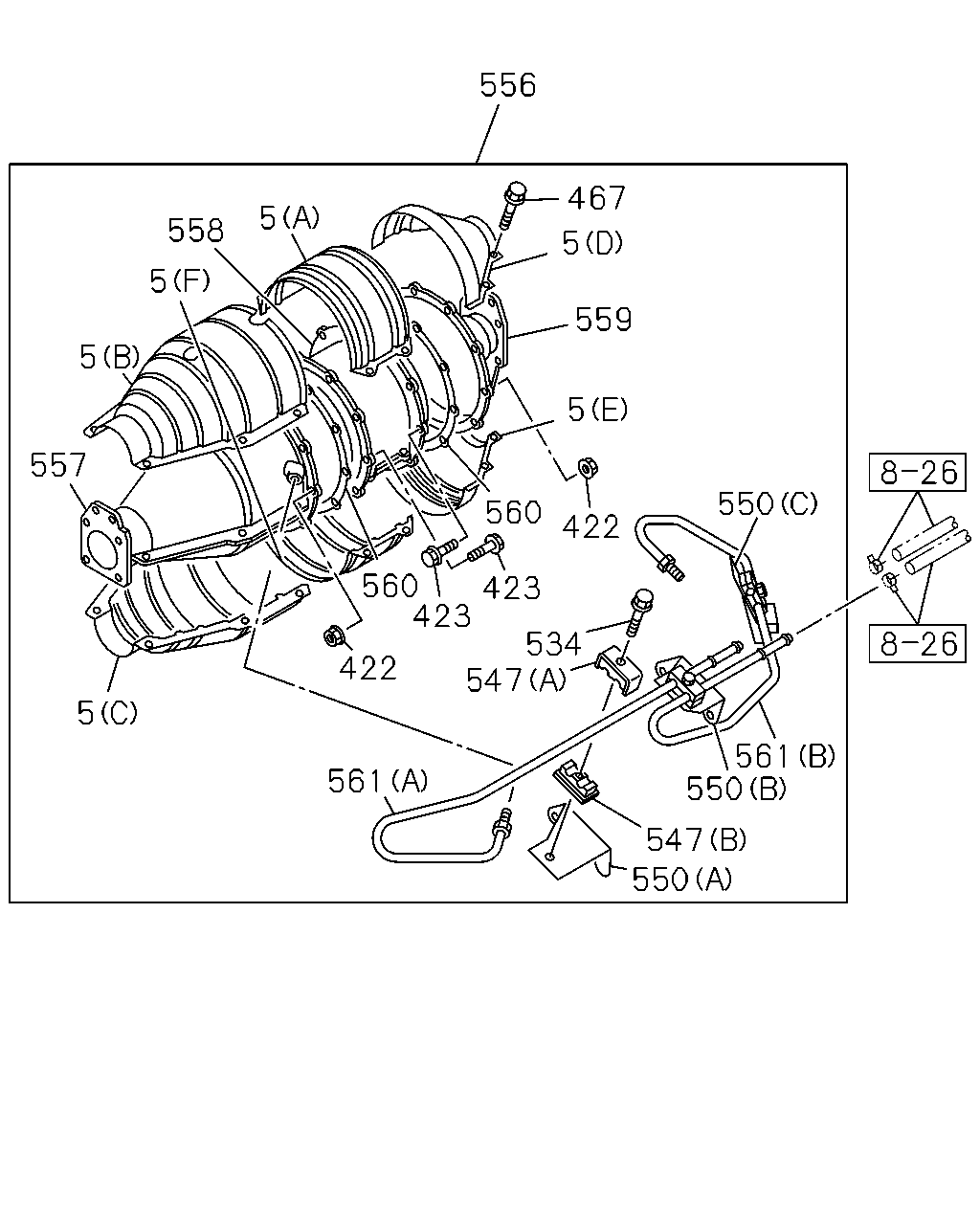

çizim 172295
556 5 558 5 5 557 5 561 422 560 423 423 560 422 5 559 5 467 547 534 550 561 550 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 1010-1306 ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1010- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1010- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1010- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1010- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1010- ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 1010- ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 1010- ● ●
556 DPD ASM 8-97606-314-5 01 1 1010-1011 ● ●
556 DPD ASM 8-97622-899-4 01 1 1012- ● ●
557 CATALYST ASM 8-97608-054-6 01 1 1010- ● ●
558 FILTER ASM 8-97608-056-2 01 1 1010- ● ●
559 COVER; RR 8-97611-090-0 01 1 1010-1011 ● ●
559 COVER; RR 8-97622-903-0 01 1 1012- ● ●
560 GASKET; DPD 8-97611-092-0 02 1 1010- ● ●
561 PIPE; DPD
(A) 		8-97611-093-0 01 1 1010-1011 ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1012- ● ●
561 PIPE; DPD
(B) 		8-97611-094-0 01 1 1010-1011 ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1012- ● ●

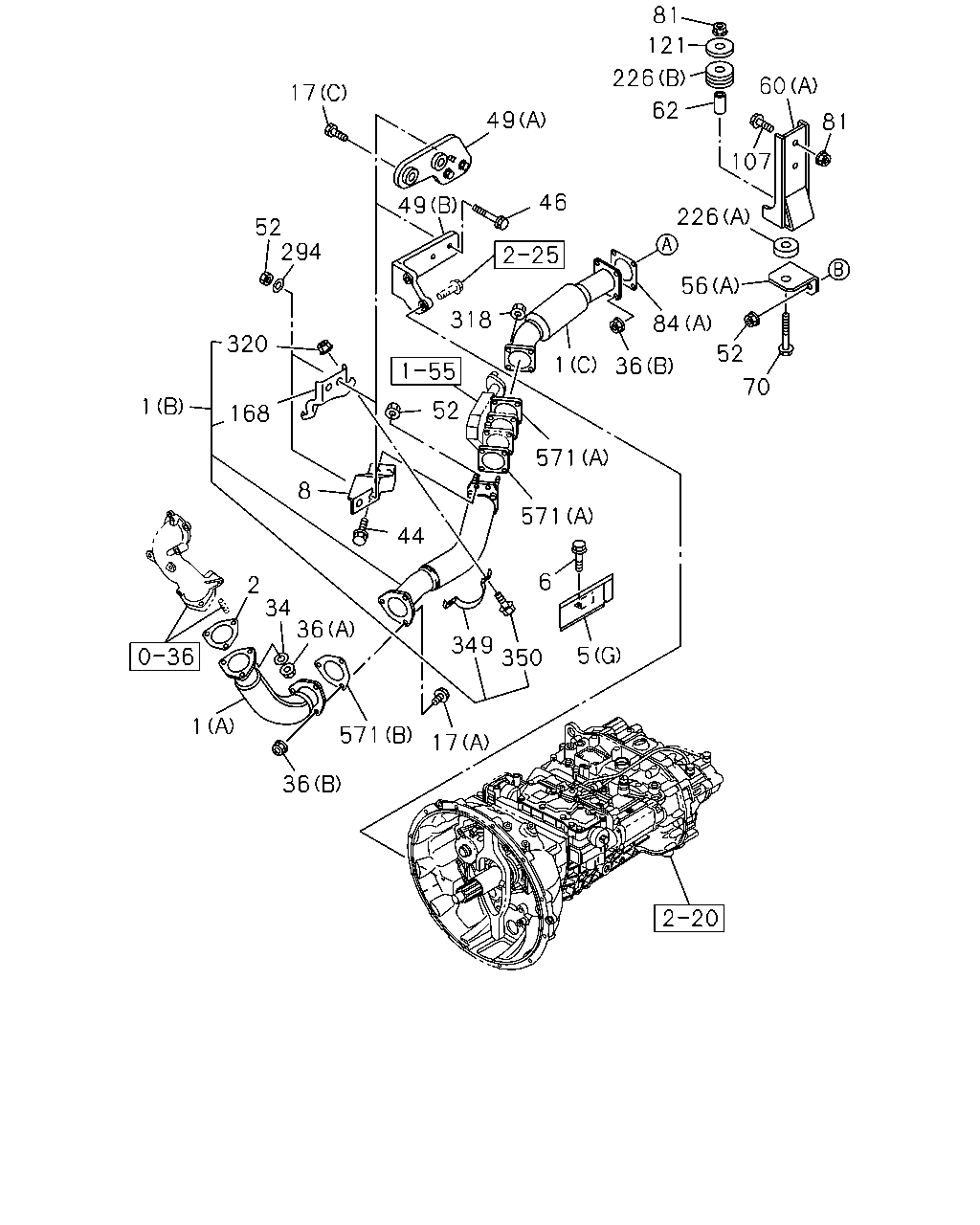

çizim 172310
36 1 2 34 36 571 17 349 350 5 6 571 571 44 8 168 320 52 294 17 49 49 46 318 52 1 36 84 56 52 70 81 226 107 60 62 226 121 81 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 1010-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W) (B) 		8-98153-916-0 01 1 1010-1109 ● ●
1 PIPE; EXH
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (B) 		8-98153-916-0 01 1 1110-1209 ● ●
1 PIPE; EXH
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (B) 		8-98230-002-0 01 1 1210-1306 ● ●
1 PIPE; EXH
ALLISON MD3060P A/T(Y4G) (B) 		8-98230-002-0 01 1 1307- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		1-22123-984-1 01 1 1010-1306 ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) (C) 		1-22123-984-1 01 1 1307- ● ●
1 PIPE; EXH
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) (C) 		1-22123-984-1 01 1 1307- ● ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (B) 		8-98115-164-0 01 1 1010-1209 ● ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (B) 		8-98220-351-0 01 1 1210- ● ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		8-98047-778-0 01 1 1010-1209 ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		8-98221-117-0 01 1 1210- ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (C) 		8-98070-119-0 01 1 1010- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 1010-1306 ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ● ●
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) 		8-98120-522-0 01 1 1010- ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE 		0-28051-235-0 04 1 1204-1306 ● ●
17 BOLT; EXH PIPE
ALLISON MD3060P A/T(Y4G) (C) M16X45 		9-92361-645-0 02 1 1011- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ●
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1010-1306 ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1307- ● ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3060P A/T(Y4G) (A) 		8-98153-928-0 01 1 1010- ● ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (B) 		8-98124-769-0 01 1 1010- ● ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (B) 		8-98120-497-0 01 1 1010- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1010- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1010-1306 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1307- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1010-1306 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1307- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1010-1306 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1307- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1010-1306 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1307-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 02 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W) 		8-98153-918-0 01 1 1010-1109 ● ●
168 BRACKET; EXH PIPE,FRT
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		8-98153-918-0 01 1 1110-1209 ● ●
168 BRACKET; EXH PIPE,FRT
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		8-98230-000-1 01 1 1210-1306 ● ●
168 BRACKET; EXH PIPE,FRT
ALLISON MD3060P A/T(Y4G) 		8-98230-000-1 01 1 1307- ● ●
168 BRACKET; EXH PIPE,FRT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98071-144-0 01 1 1010-1209 ● ●
168 BRACKET; EXH PIPE,FRT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98221-369-1 01 1 1210- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1010- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1010- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
320 NUT; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1010-1109 ● ●
320 NUT; CLAMP,EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1010-1109 ● ●
320 NUT; CLAMP,EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1110-1306 ● ●
320 NUT; CLAMP,EXH PIPE
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M10 FLANGE 		0-91180-210-0 02 1 1110-1306 ● ●
320 NUT; CLAMP,EXH PIPE
ALLISON MD3060P A/T(Y4G) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
320 NUT; CLAMP,EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
349 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W) 		8-98115-162-0 01 1 1010-1109 ● ●
349 CLAMP; EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98115-162-0 01 1 1010-1109 ● ●
349 CLAMP; EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98115-162-0 01 1 1110-1306 ● ●
349 CLAMP; EXH PIPE
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) 		8-98115-162-0 01 1 1110-1306 ● ●
349 CLAMP; EXH PIPE
ALLISON MD3060P A/T(Y4G) 		8-98115-162-0 01 1 1307- ● ●
349 CLAMP; EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98115-162-0 01 1 1307- ● ●
350 BOLT; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 02 1 1010-1109 ● ●
350 BOLT; CLAMP,EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 02 1 1010-1109 ● ●
350 BOLT; CLAMP,EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 02 1 1110-1306 ● ●
350 BOLT; CLAMP,EXH PIPE
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 02 1 1110-1306 ● ●
350 BOLT; CLAMP,EXH PIPE
ALLISON MD3060P A/T(Y4G) M10X30 FLANGE 		0-28651-030-0 02 1 1307- ● ●
350 BOLT; CLAMP,EXH PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 02 1 1307- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1010- ● ●

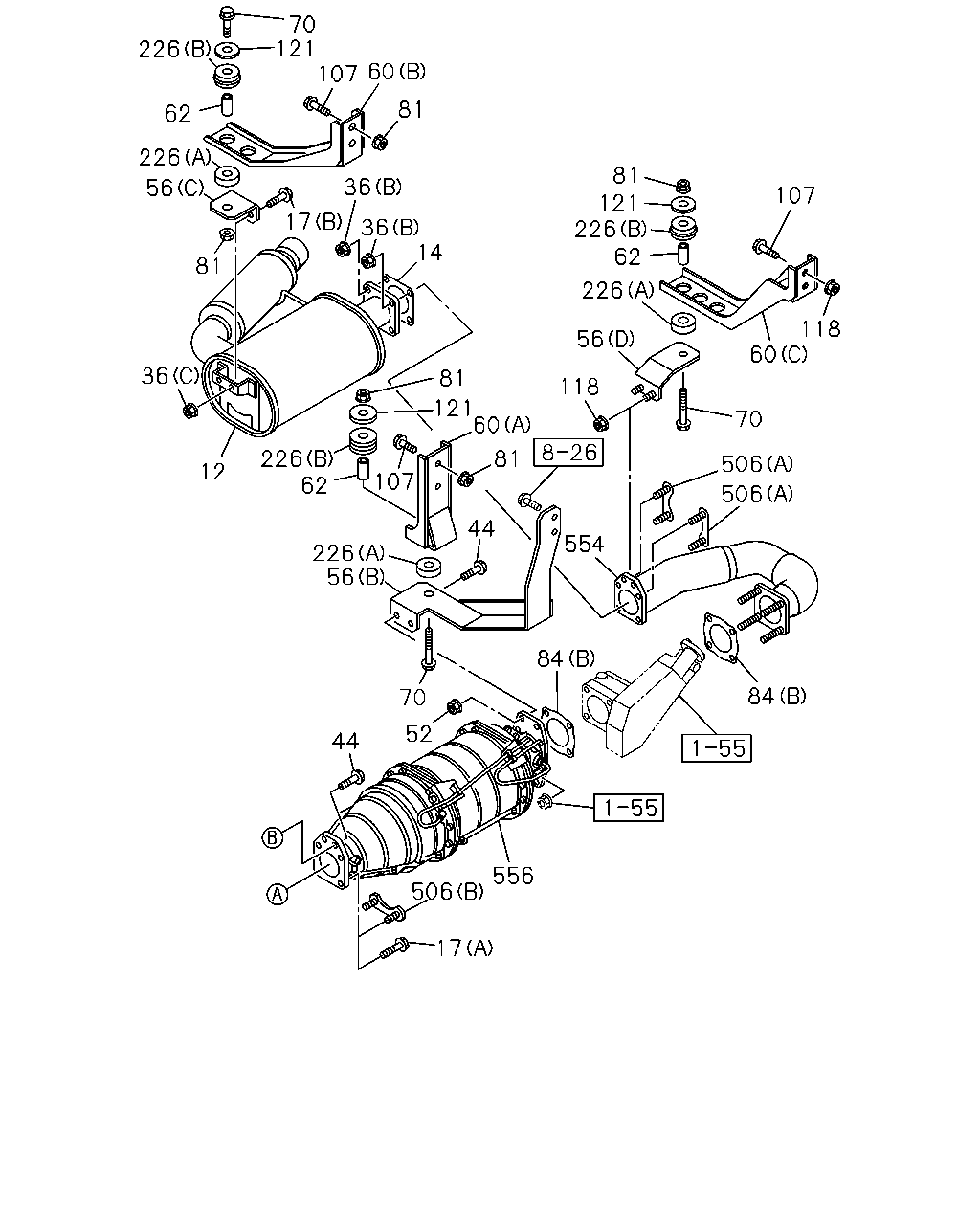

çizim 172342
70 17 506 84 556 52 44 84 70 506 506 70 60 118 107 554 44 56 226 81 60 118 56 226 62 226 121 81 107 121 81 62 226 12 36 81 17 36 14 36 81 60 107 121 226 62 226 56
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1010- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1010- ● ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE 		0-28051-235-0 04 1 1204-1306 ● ●
17 BOLT; EXH PIPE
ALLISON MD3060P A/T(Y4G) (C) M16X45 		9-92361-645-0 02 1 1011- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1010- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1010-1306 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1307- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1010-1306 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1307- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1010-1306 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1307- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1010-1306 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1307-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 02 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 1010- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1010- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1010-1203 ● ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (B) M12X35 		1-22131-963-0 02 1 1204-1306 ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1307- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 1010- ● ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 1010- ● ●
556 DPD ASM 8-97606-314-5 01 1 1010-1011 ● ●
556 DPD ASM 8-97622-899-4 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
