1-40 — FUEL TANK (#57935) — 69 parça

45 43 40 49 40 49 45 43 42 42 1 35 22 19 14 369 14 640 635 159 635 158 158 159 8 11 8 11 14

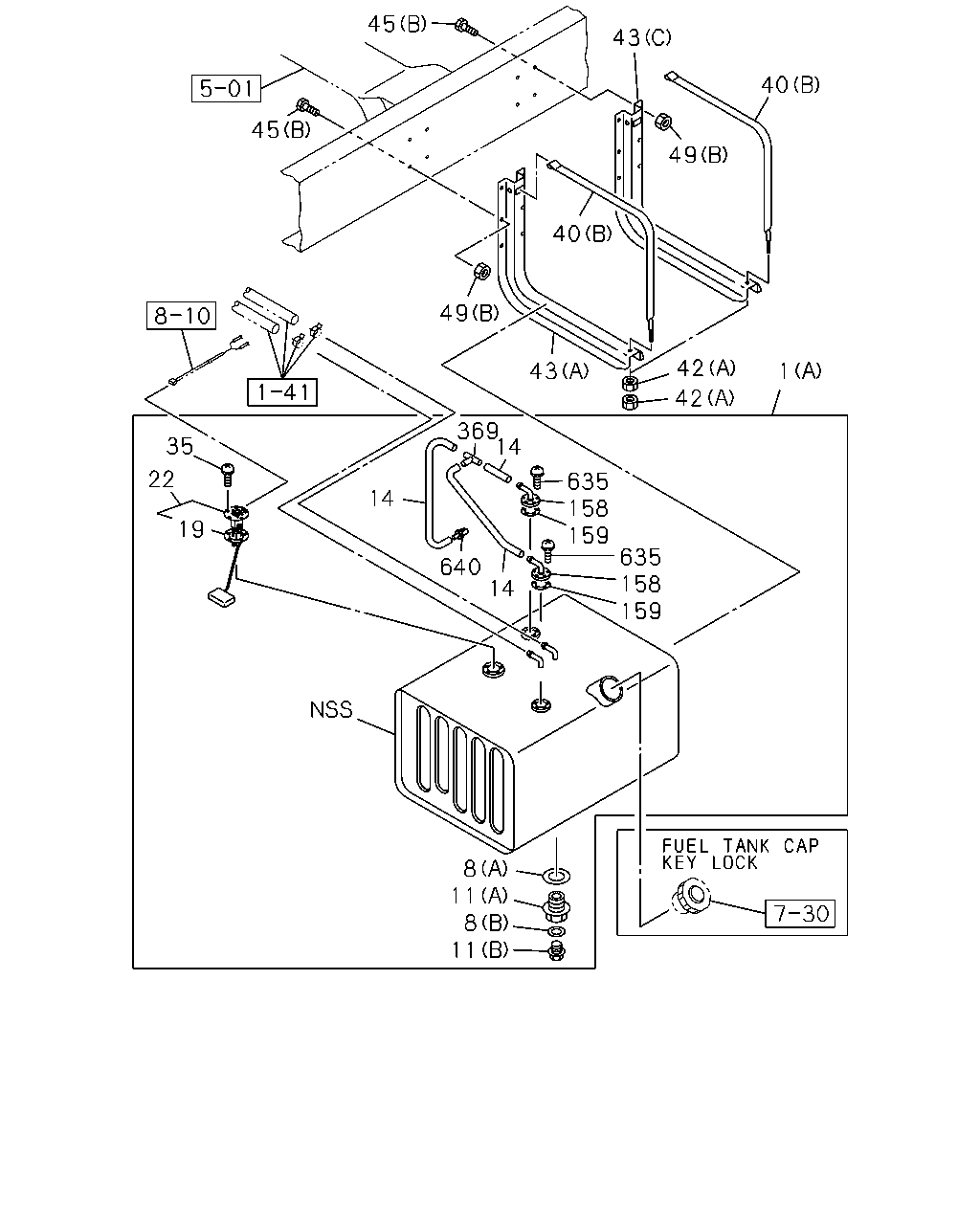

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98122-995-1	01	1	1010-1211	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 885X603X453 200L	8-98187-002-1	01	1	1212-	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1010-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) ID=30	8-98067-041-0	01	1	1010-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	1010-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1010-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M30	8-98067-038-0	01	1	1010-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	1010-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	1010-	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1010-	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=170 SERVICED BY L=3000	0-01256-300-0	01	1	1010-	●	●
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> L=540 SERVICED BY L=3000	0-01256-300-0	01	1	1010-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1307-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	1010-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	1010-1210	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	8-98099-321-0	01	1	1010-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER	0-36220-512-0	05	1	1010-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=1070	8-98067-501-1	02	1	1010-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	1-22550-261-0	02	1	1010-1110	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	8-98202-448-0	02	1	1111-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) M12	0-91110-512-0	04	1	1010-	●	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> (B) M10	0-91110-510-0	04	1	1010-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98010-733-0	01	1	1010-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C)	8-98122-884-0	01	1	1010-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	1010-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M12X35 FLANGE	0-28651-235-0	08	1	1010-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 400L<SDH> (A) M12X40 FLANGE	0-28051-240-0	12	1	1010-	●	●
49	NUT; BRKT ALLISON MD3060P A/T(Y4G) FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	1110-	●	●
49	NUT; BRKT ALLISON MD3060P A/T(Y4G) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	1110-	●	●
49	NUT; BRKT ZF9S1110 M/T(Y5E) FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	1010-	●	●
49	NUT; BRKT ZF9S1110 M/T(Y5E) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	09	1	1010-	●	●
158	VALVE; ROLL OVER & FLOAT FUEL TANK 200L FRAME SIDE<N20>	8-98067-039-0	02	1	1010-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> ID=45 OD=67	1-83149-003-0	02	1	1010-	●	●
369	JOINT; HOSE FUEL TANK 200L FRAME SIDE<N20>	8-98067-080-0	01	1	1010-	●	●
635	SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> M5X12 W/LK WASHER	0-36220-512-0	10	1	1010-	●	●
640	VENTILATOR; HOSE,BREATHER FUEL TANK 200L FRAME SIDE<N20>	8-98092-398-0	01	1	1010-	●	●

19 526 3 1 25 516 8 11 25 45 237 43 49 38 40 237 42 43 237 38 49 40 237 42 42 42

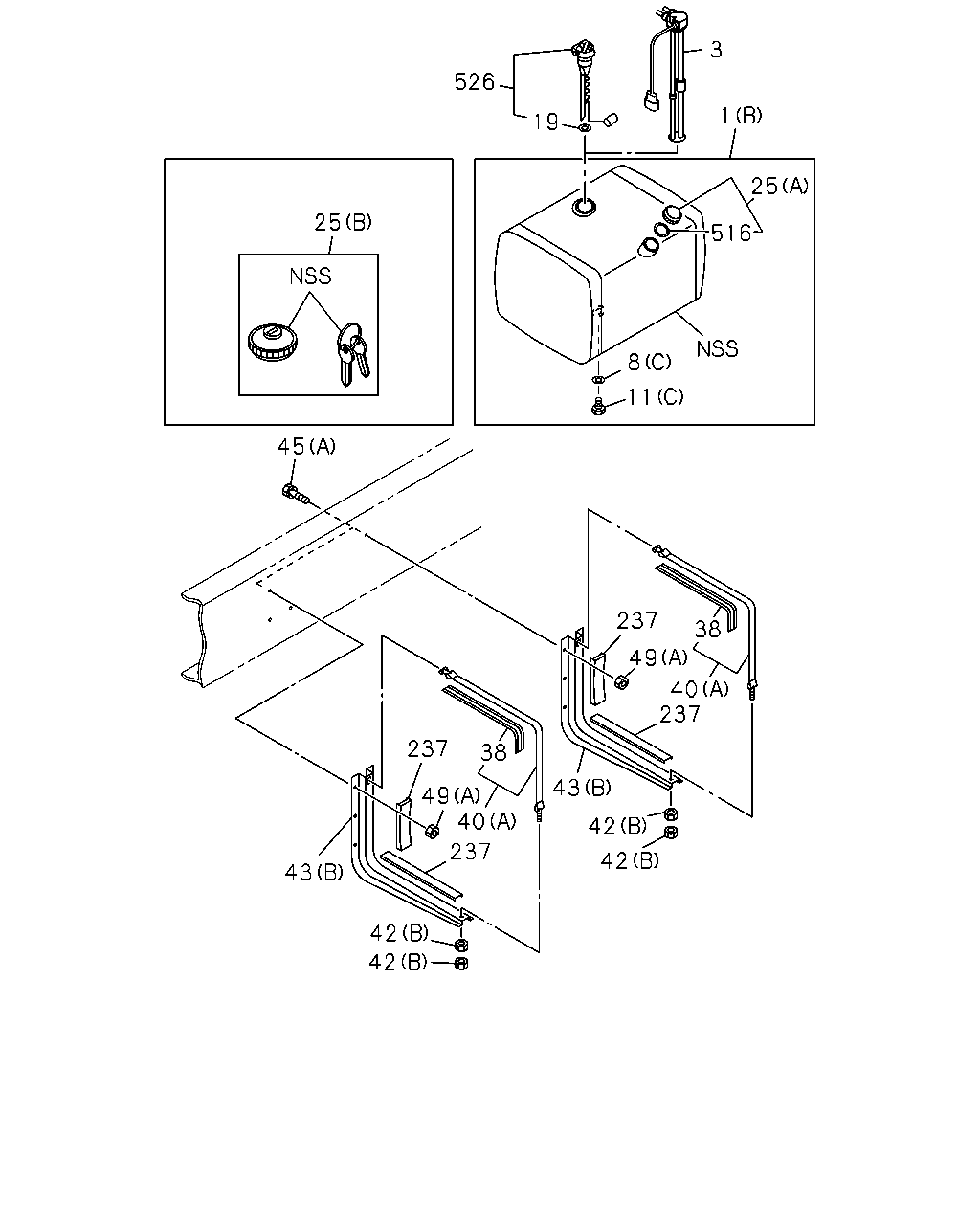

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 855X603X453 200L	8-98122-995-1	01	1	1010-1211	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 885X603X453 200L	8-98187-002-1	01	1	1212-	●	●
1	TANK; FUEL FUEL TANK 400L<SDH> (B) 1020X685X625 400L	1-87412-052-0	01	1	1010-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) ID=30	8-98067-041-0	01	1	1010-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	1010-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1010-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M30	8-98067-038-0	01	1	1010-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M14X14	9-09862-156-0	01	1	1010-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> (C) M18X12	0-92002-418-0	01	1	1010-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=54.5	8-98299-580-0	01	1	1307-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	1010-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> ID=58	1-83149-005-0	01	1	1010-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	1-22440-056-0	01	1	1010-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	1-22440-057-2	01	1	1010-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1010-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=1070	8-98067-501-1	02	1	1010-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	1-22550-261-0	02	1	1010-1110	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (A) L=1210	8-98202-448-0	02	1	1111-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) M12	0-91110-512-0	04	1	1010-	●	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> (B) M10	0-91110-510-0	04	1	1010-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98010-733-0	01	1	1010-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (C)	8-98122-884-0	01	1	1010-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	1010-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) M12X35 FLANGE	0-28651-235-0	08	1	1010-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 400L<SDH> (A) M12X40 FLANGE	0-28051-240-0	12	1	1010-	●	●
49	NUT; BRKT ALLISON MD3060P A/T(Y4G) FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	08	1	1110-	●	●
49	NUT; BRKT ALLISON MD3060P A/T(Y4G) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	1110-	●	●
49	NUT; BRKT ZF9S1110 M/T(Y5E) FUEL TANK 200L FRAME SIDE<N20> (B) M12 FLANGE	0-91180-212-0	04	1	1010-	●	●
49	NUT; BRKT ZF9S1110 M/T(Y5E) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	09	1	1010-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1010-	●	●
516	GASKET; CAP FUEL TANK 400L<SDH> ID=78	8-98259-383-0	01	1	1312-	●	●
526	SENDER; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	1010-1210	●	●
