Isuzu WW
▶
TRUCKS
▶
FTR
▶
11328 - FTR AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶

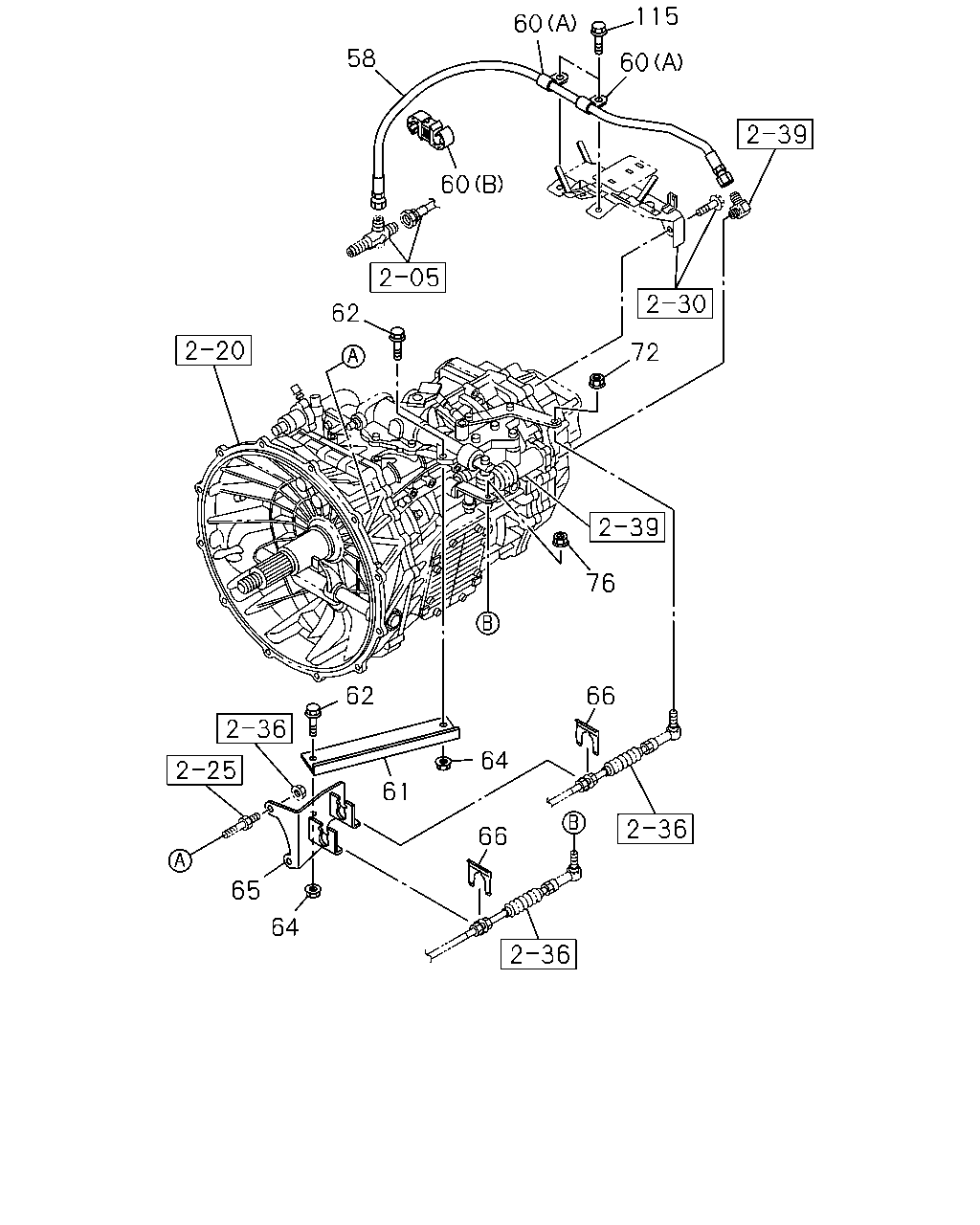

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#57925) — 18 parça
Tümü
A - FGR5MV
B - FGR5WV
64
58
62
60
60
115
60
72
76
66
64
61
62
66
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=640
1-09363-626-1
01
1
1010-
●
●
60
CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20
0-95235-235-0
02
1
1010-
●
●
60
CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10
1-09709-277-1
01
1
1010-
●
●
61
STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
1-33657-267-0
01
1
1010-1306
●
●
61
STAY; BRKT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
1-33657-267-0
01
1
1307-
●
●
62
BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE
0-28651-030-0
02
1
1010-1306
●
●
62
BOLT; STAY
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE
0-28651-030-0
02
1
1307-
●
●
64
NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE
0-91180-210-0
02
1
1010-1306
●
●
64
NUT; STAY
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE
0-91180-210-0
02
1
1307-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>
8-98017-428-0
01
1
1010-1306
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98010-160-0
01
1
1010-
●
●
66
CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2
1-09701-209-1
02
1
1010-1306
●
●
66
CLIP; SELECT BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2
1-09701-209-1
02
1
1307-
●
●
72
NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1010-1306
●
●
72
NUT; TRANS CONT,SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1307-
●
●
76
NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1010-1306
●
●
76
NUT; BALL JOINT,SELECT WIRE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-049-0
01
1
1307-
●
●
115
BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE
0-28050-816-0
02
1
1010-
●
●
