2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#57924) — 66 parça

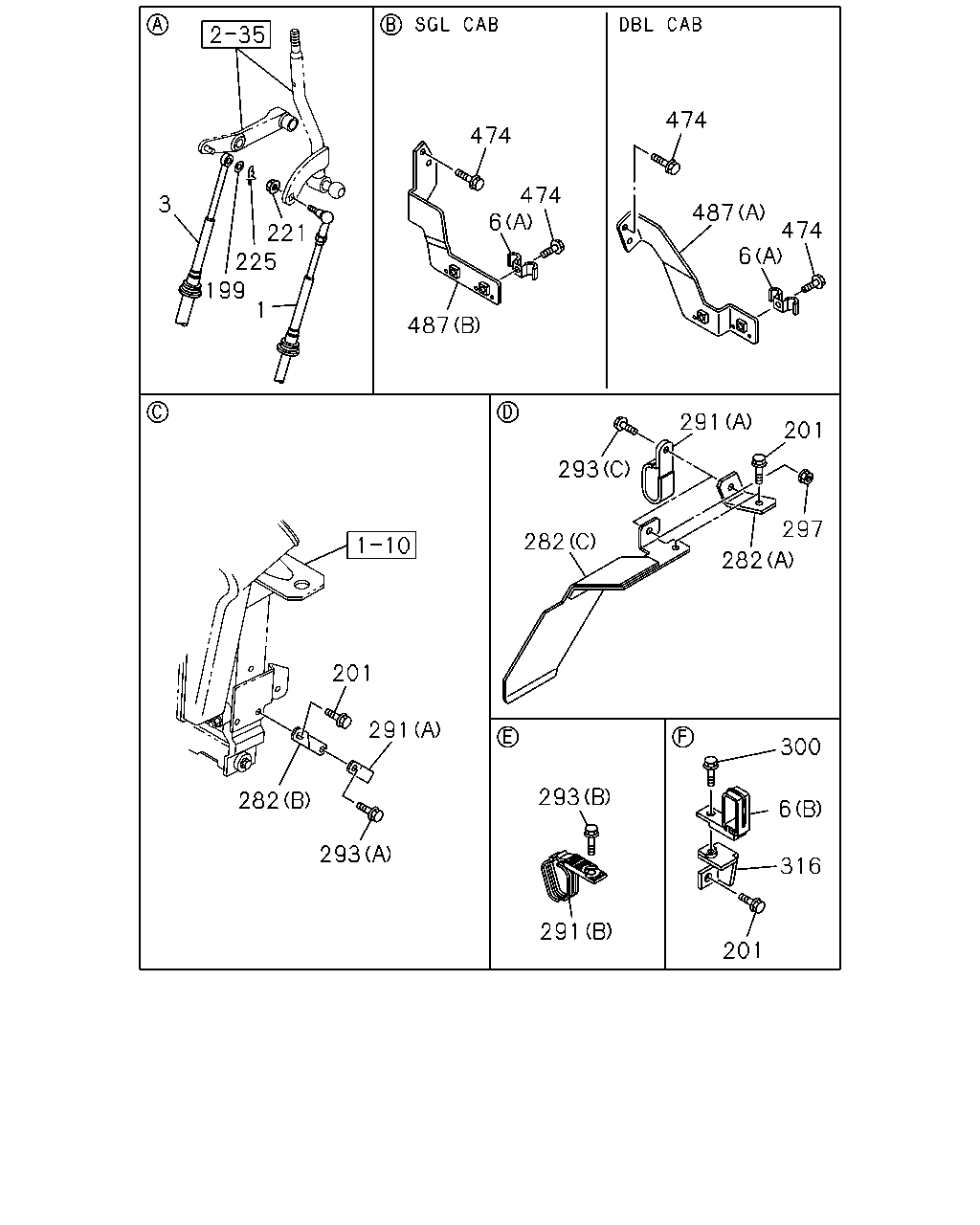

çizim 171735
3 221 225 199 474 6 474 487 474 487 6 474 201 291 293 282 293 291 300 6 316 201 282 282 293 291 297 201 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-3 01 1 1010-1306 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-3 01 1 1010-1306 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 1010-1306 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 1010-1306 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 1307- ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1010- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1010-1306 ● ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1307- ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1010-1306 ● ●
199 WASHER; PL,SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1307- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1306 ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1306 ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 1010-1306 ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1010-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012-1306 ● ●
221 NUT; SHIFT WIRE TO LEVER
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1307- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1010-1306 ● ●
225 PIN; SELECT CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1307- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82699-199-0 01 1 1010-1103 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98171-762-0 01 1 1104-1306 ● ●
282 BRACKET; TRANS SIDE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98171-762-0 01 1 1307- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98010-418-0 01 1 1010-1306 ● ●
282 BRACKET; TRANS SIDE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98010-418-0 01 1 1307- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1010-1306 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16 		0-95325-026-0 02 1 1307- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1010-1306 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1010-1306 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1010-1306 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
297 NUT; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
300 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
316 BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-017-1 01 1 1010- ● ●
474 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1307- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 03 1 1010-1306 ● ●
474 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 1307- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-920-2 01 1 1010-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98183-009-0 01 1 1101-1306 ●
487 BRACKET; CONT CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98183-009-0 01 1 1307- ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-923-2 01 1 1010-1012 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98180-729-0 01 1 1101-1306 ●
487 BRACKET; CONT CABLE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98180-729-0 01 1 1307- ●

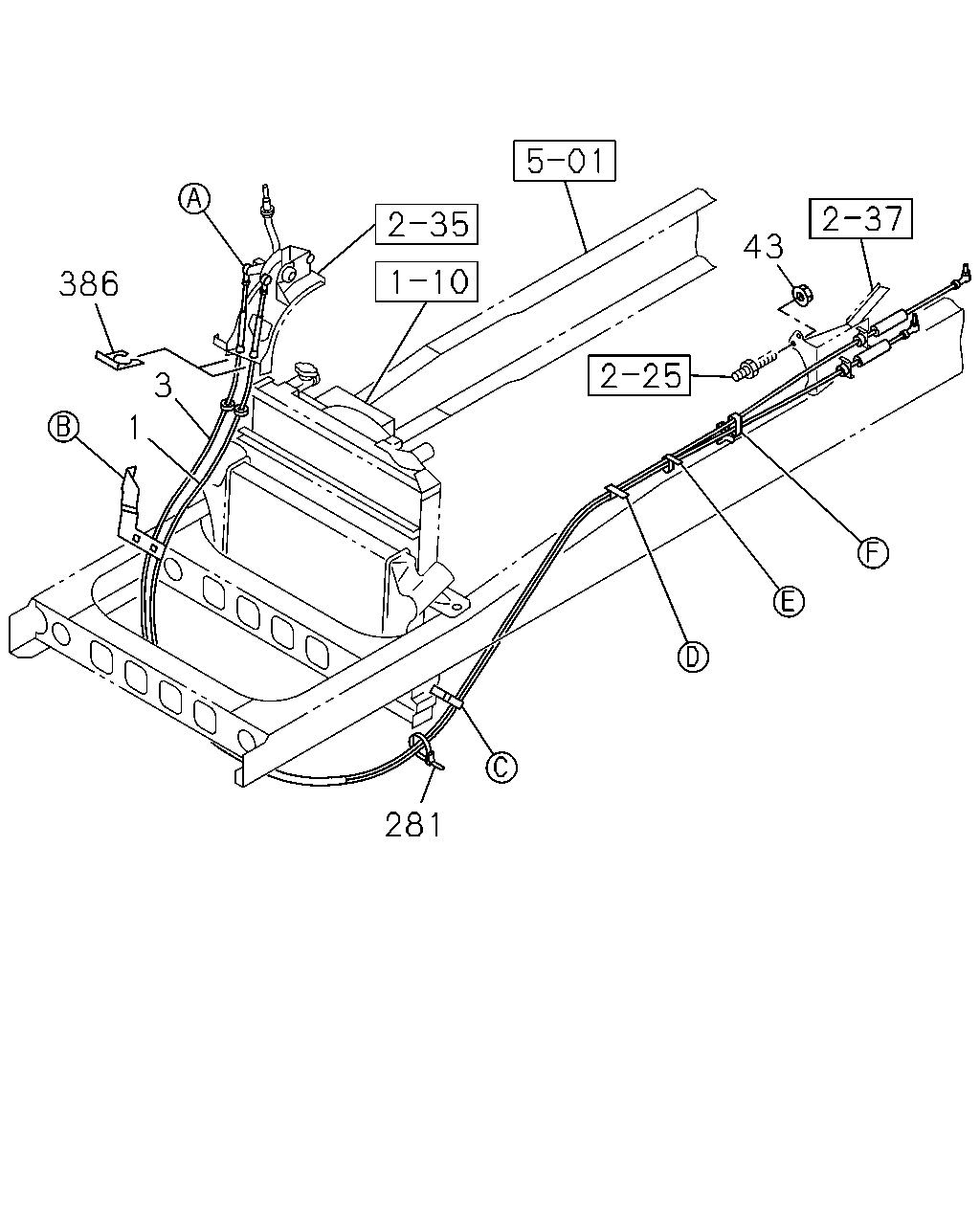

çizim 171968
281 1 3 386 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98017-470-3 01 1 1010-1306 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3485 		8-98010-434-4 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-3 01 1 1010-1306 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3550 		8-98010-435-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 1010-1306 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3690 		8-98010-474-2 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 1010-1306 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3755 		8-98010-475-2 01 1 1307- ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1010-1306 ● ●
43 NUT; BRKT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1010-1306 ● ●
281 CLIP; BAND
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1307- ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1010-1306 ● ●
386 CLIP; CONT CABLE & TUBE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1307- ● ●
