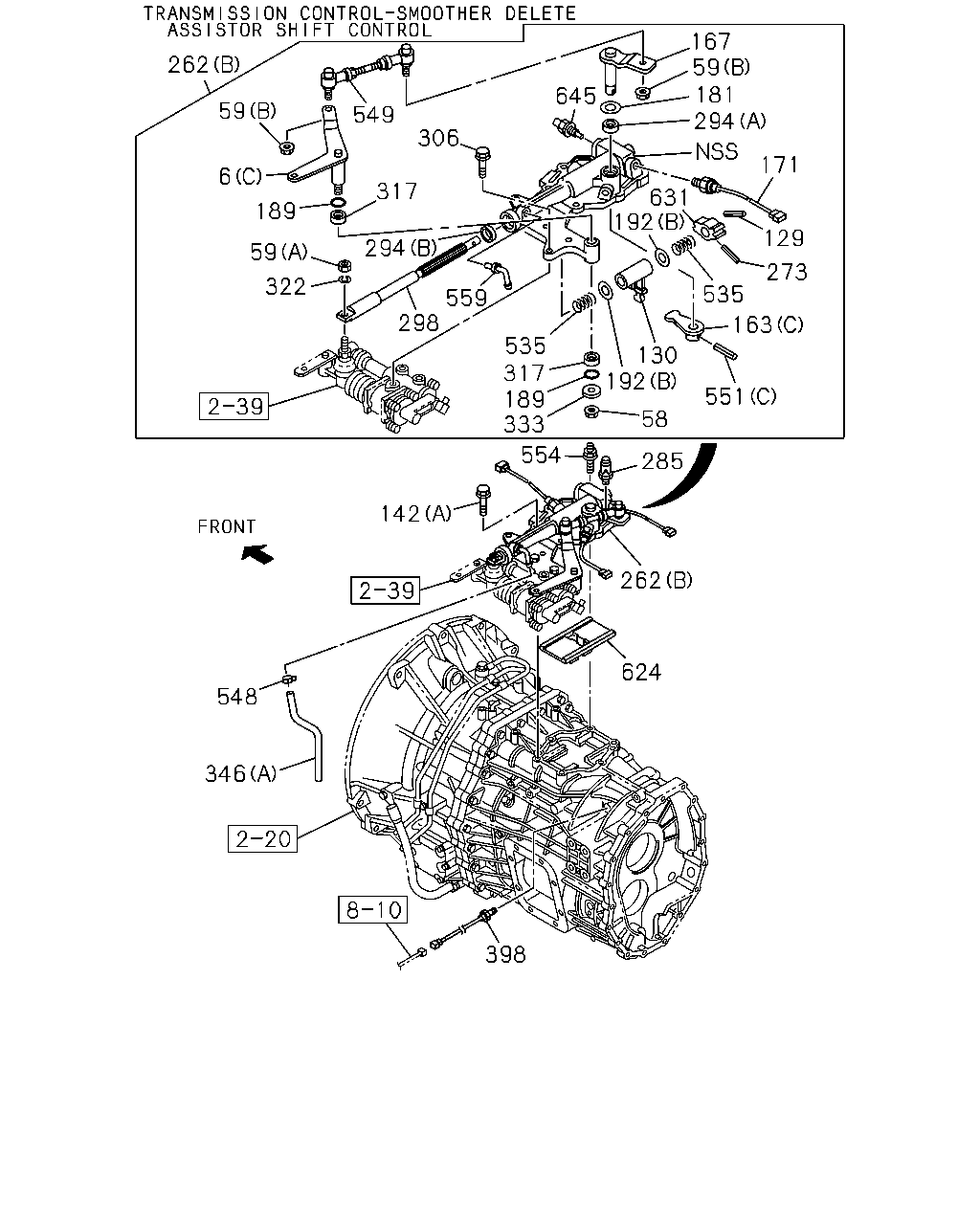

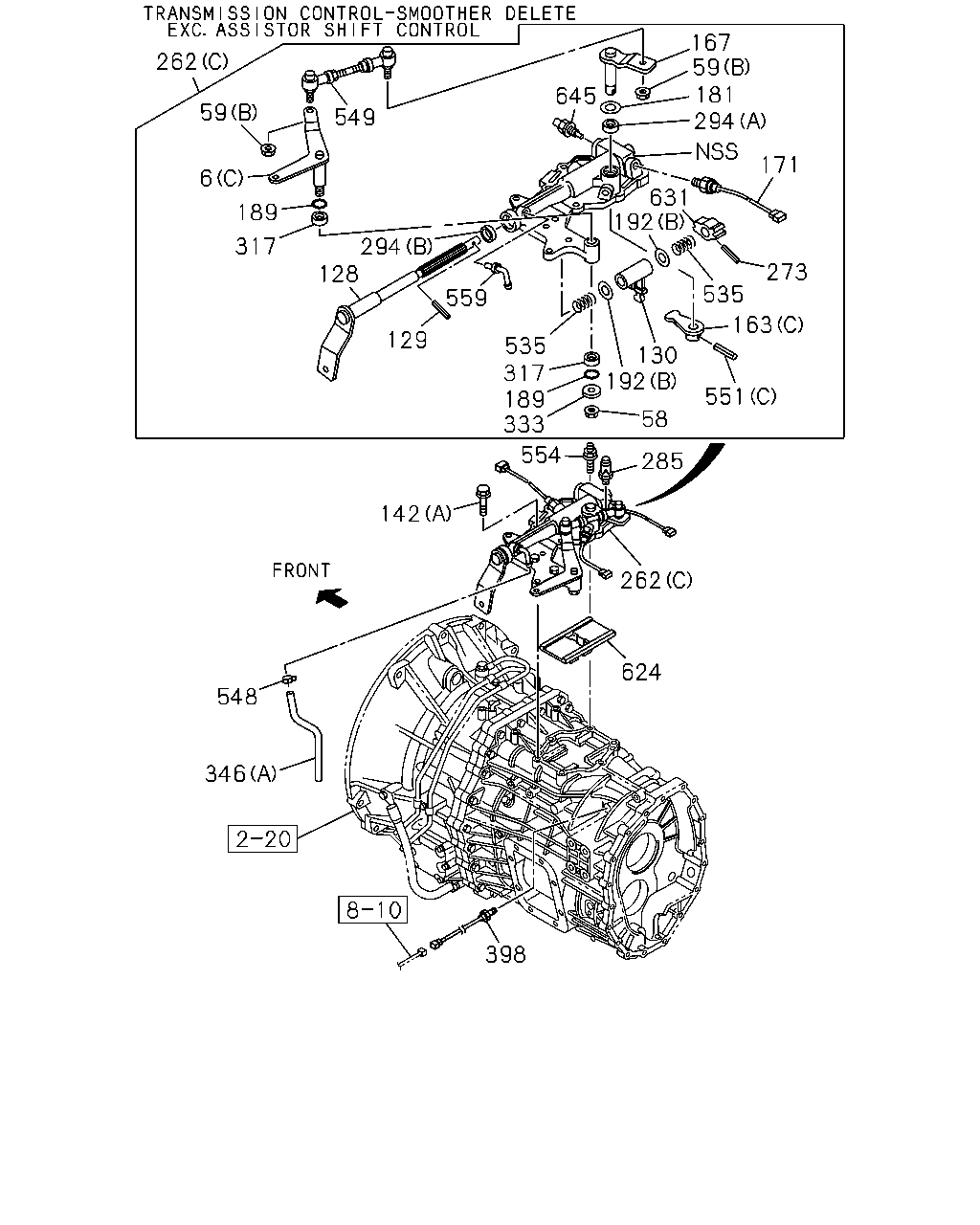

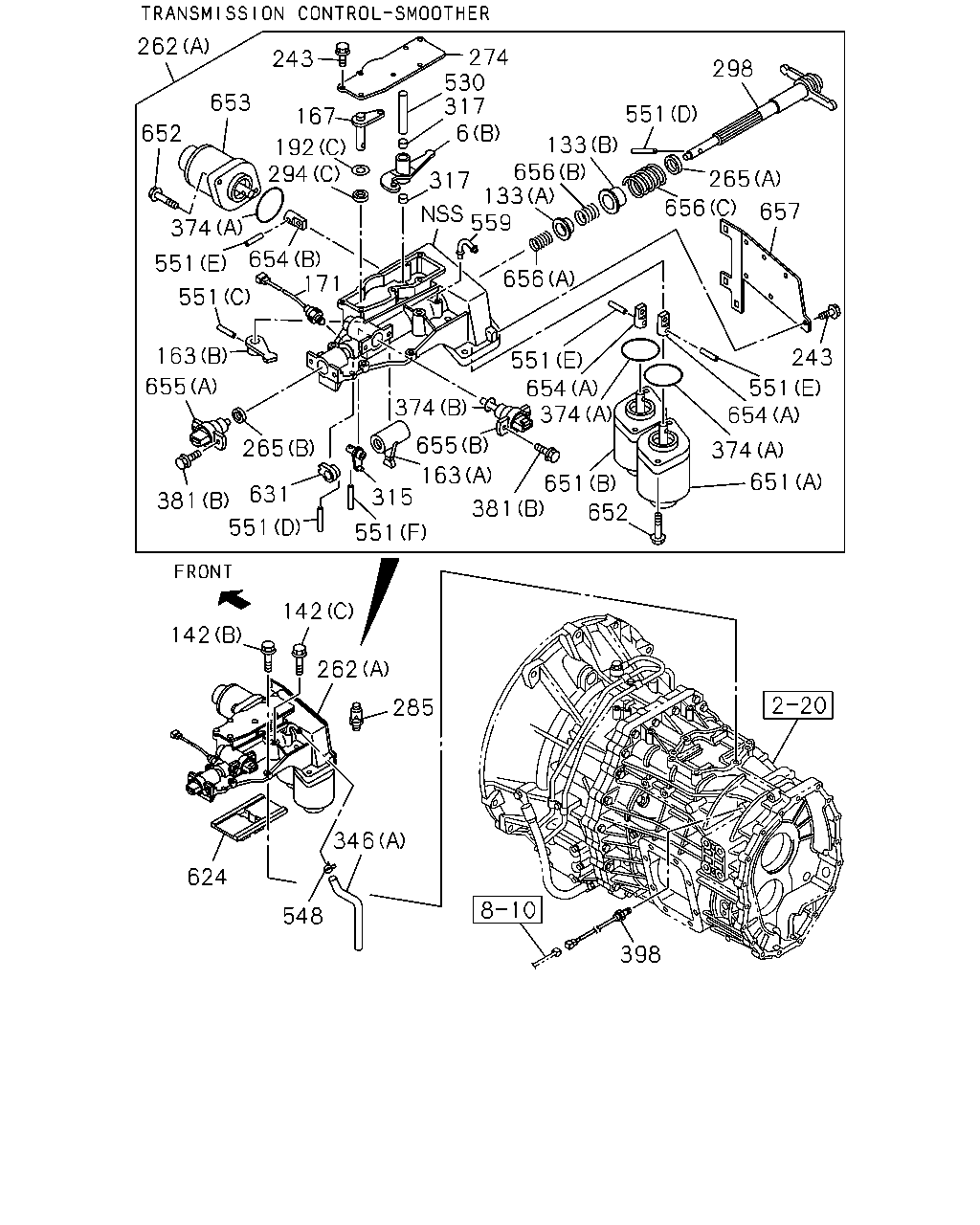

2-30 — GEAR SHIFTER AND QUADRANT BOX (#57922) — 309 parça

262 59 6 189 59 294 322 298 559 317 306 549 645 333 189 317 535 58 192 551 130 163 535 273 129 171 294 181 59 167 192 631 285 262 624 554 142 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1010-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1010-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1010-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1010-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1010-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1010-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1010-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1010-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1010-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1204
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1010-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1010-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1010-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1010-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1010-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1010-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1010-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1010-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-841-0	01	1	1010-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1010-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1010-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1010-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1010-

398 548 346 624 285 262 142 142 651 374 654 551 243 657 265 298 551 133 656 133 559 656 551 374 651 381 163 655 374 315 551 551 381 265 655 163 551 171 654 551 374 294 192 167 652 653 243 262 274 530 317 317 6 652 654 631 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1010-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	1010-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1010-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1010-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1010-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1204
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	1010-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	1010-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1010-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1010-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1010-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1010-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	1010-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1010-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	1010-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	1010-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1010-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1010-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1010-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1010-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	1010-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1010-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1010-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1010-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	1010-1010
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1011-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	1010-1010
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1011-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1010-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1010-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1010-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1010-

51 551 65 78 551 32 684 551 89 99 66 551 102 6 192 192 6 192 6 192 320 685 234 682 683 551 82 551 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1010-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1010-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1010-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1010-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1010-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1010-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1010-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1010-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1010-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1010-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1010-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1010-
320	SHAFT; LEVER	8-97377-928-0	01	1	1010-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1010-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1010-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1010-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1010-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1010-

262 59 6 317 189 549 128 294 559 129 535 317 189 333 58 192 130 551 163 535 273 192 645 167 59 181 294 171 554 285 262 624 142 398 548 346 631

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1010-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1010-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1010-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1010-
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1103-1507
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1010-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1010-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1010-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1010-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1010-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1204
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1010-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1208-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1010-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1010-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1010-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-841-0	01	1	1010-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1010-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1010-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1010-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1010-

237 346 195 552 195 651 680 679 630 681 637 636 158 406 637 178 687 381 391 381 632 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1010-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1010-
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1010-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	1010-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1010-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1010-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1010-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1010-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	1010-
630	DETENT ASM	8-98019-536-0	04	1	1010-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1010-
636	BRACKET; CLIP	8-97610-096-2	01	1	1010-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1010-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	1010-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1010-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	1010-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	1010-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
