3-10 — BRAKE PEDAL AND CONTROL (#5792) — 93 parça

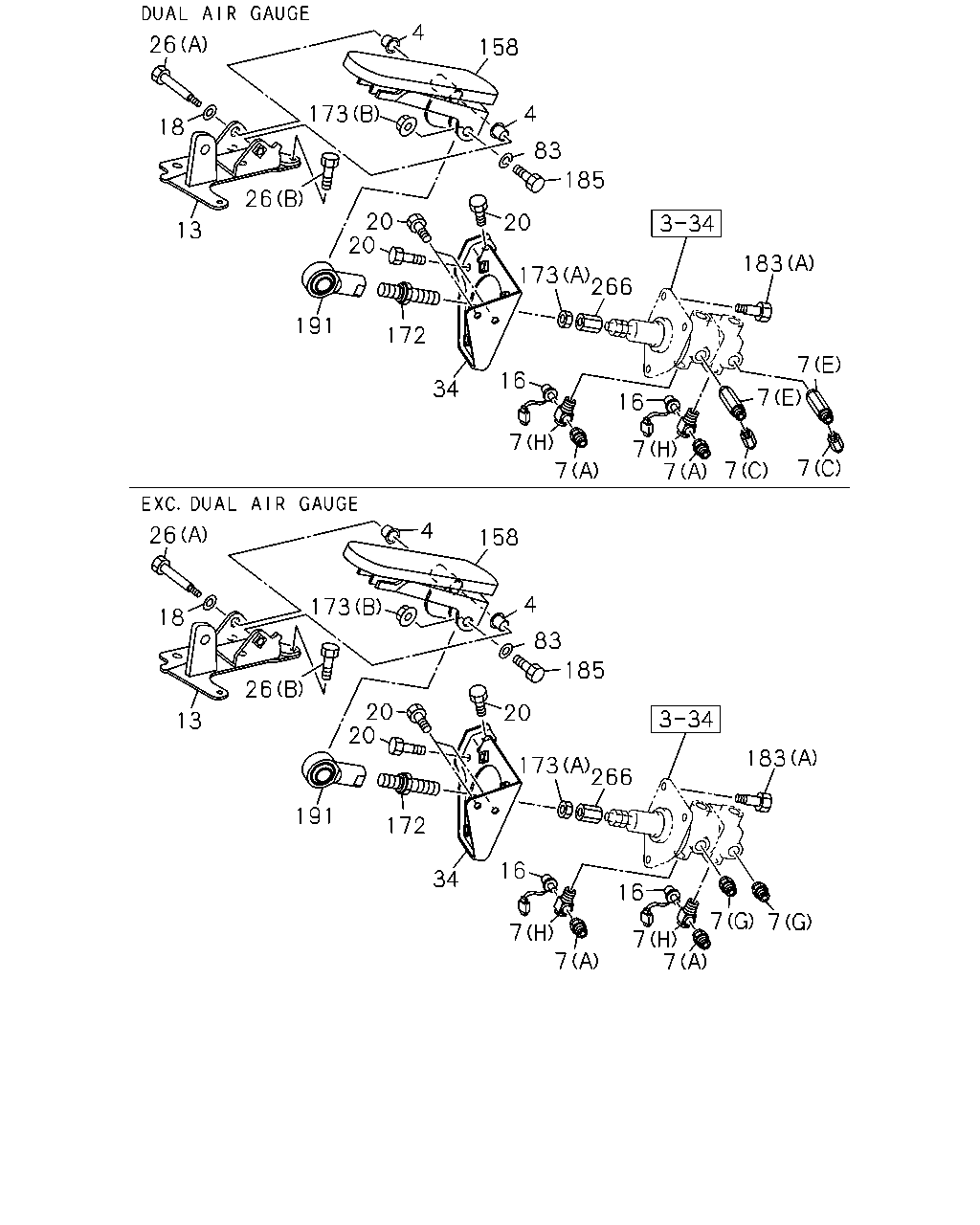

4 26 158 173 4 18 83 185 26 20 20 20 13 183 173 266 191 172 7 16 34 7 16 7 7 7 7 7 7 4 26 158 4 173 18 83 185 26 20 20 20 13 183 173 266 191 172 16 34 16 7 7 7 7 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BUSHING; BRK PEDAL	1-73908-201-1	02	1	9603-	●
7	CONNECTOR; BRK VALVE (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (D)	1-09660-802-0	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (D)	1-09661-284-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09660-803-0	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09661-285-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (F) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9910	●	●
7	CONNECTOR; BRK VALVE (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9910	●
7	CONNECTOR; BRK VALVE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●	●
7	CONNECTOR; BRK VALVE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (C) DIN6 & R1/8 STRAIGHT	1-09660-691-1	02	1	9603-9910	●	●
7	CONNECTOR; BRK VALVE (H)	1-09656-708-0	02	1	9603-	●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09660-803-0	02	1	9603-9910	●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09661-285-0	02	1	9911-	●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9603-9910	●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9911-	●
13	BRACKET; BRK PEDAL	1-73908-203-1	01	1	9603-	●
16	SWITCH; STOP LAMP GREEN	1-82410-176-0	02	1	9603-	●	●
18	WASHER; PL ID=12.5	9-09164-512-0	01	1	9603-	●
20	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-	●
26	BOLT; PEDAL (A)	1-09980-614-0	01	1	9603-	●
26	BOLT; PEDAL (B) M6X25	8-94279-204-0	02	1	9603-	●
34	BRACKET ASM; BRK VLV	1-79738-808-3	01	1	9603-	●
83	WASHER; LK,BRKT ID=14.2	9-09150-814-0	01	1	9603-	●
158	PEDAL ASM; BRK	1-73908-068-5	01	1	9603-	●
172	JOINT; JAW,BRK PEDAL	1-73908-167-1	01	1	9603-	●
173	NUT; JOINT LOCK (A) M10 FLANGE	0-91150-110-0	01	1	9603-	●
173	NUT; JOINT LOCK (B) M12	9-99110-412-0	01	1	9603-	●
183	BOLT; BRK VLV (A) M10X25 W/LK WASHER	1-09980-503-0	01	1	9603-		●
183	BOLT; BRK VLV (B) M10X35 W/LK WASHER	1-09980-504-0	02	1	9603-		●
183	BOLT; BRK VLV (A) M10X25 W/LK WASHER	1-09980-503-0	03	1	9603-	●
185	BOLT; BRKT	1-73996-282-1	01	1	9603-	●
191	JOINT; BALL,PUSH ROD	1-47355-001-0	01	1	9603-	●
266	JOINT ROD	1-73908-166-3	01	1	9603-	●

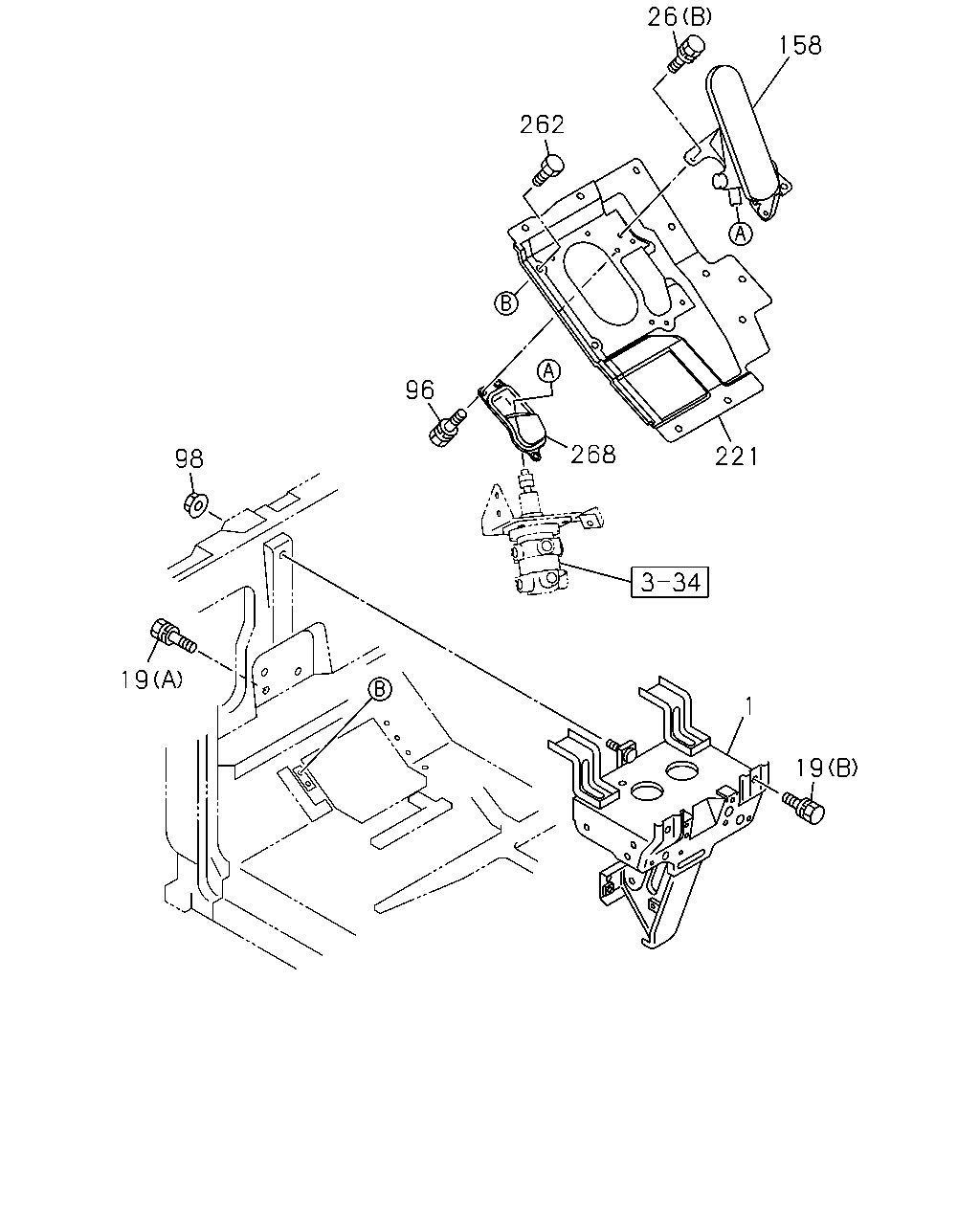

26 158 262 96 268 221 98 19 1 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET ASM; PEDAL ISUZU M/T<X9A>,FULLER M/T<X9B>	1-73998-935-9	01	1	9603-9705		●
1	BRACKET ASM; PEDAL ISUZU M/T<X9A>,FULLER M/T<X9B>	1-73908-280-1	01	1	9706-		●
1	BRACKET ASM; PEDAL ZF M/T<X9E>	1-73907-392-6	01	1	9603-		●
1	BRACKET ASM; PEDAL ISUZU M/T<X9A>,FULLER M/T<X9B>	1-73908-144-6	01	1	9603-	●
1	BRACKET ASM; PEDAL ZF M/T<X9E>	1-73907-443-6	01	1	9603-	●
19	BOLT; BRKT (A) M8X20	1-79198-002-0	02	1	9603-	●	●
19	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-	●	●
26	BOLT; PEDAL (A)	1-09980-614-0	01	1	9603-	●
26	BOLT; PEDAL (B) M6X25	8-94279-204-0	02	1	9603-	●
96	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-	●
98	NUT; BRKT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9603-	●	●
158	PEDAL ASM; BRK	1-73908-068-5	01	1	9603-	●
221	PLATE ASM; SIDE	1-73996-280-4	01	1	9603-	●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-		●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9603-	●
268	COVER; ROD	1-73908-192-1	01	1	9603-	●

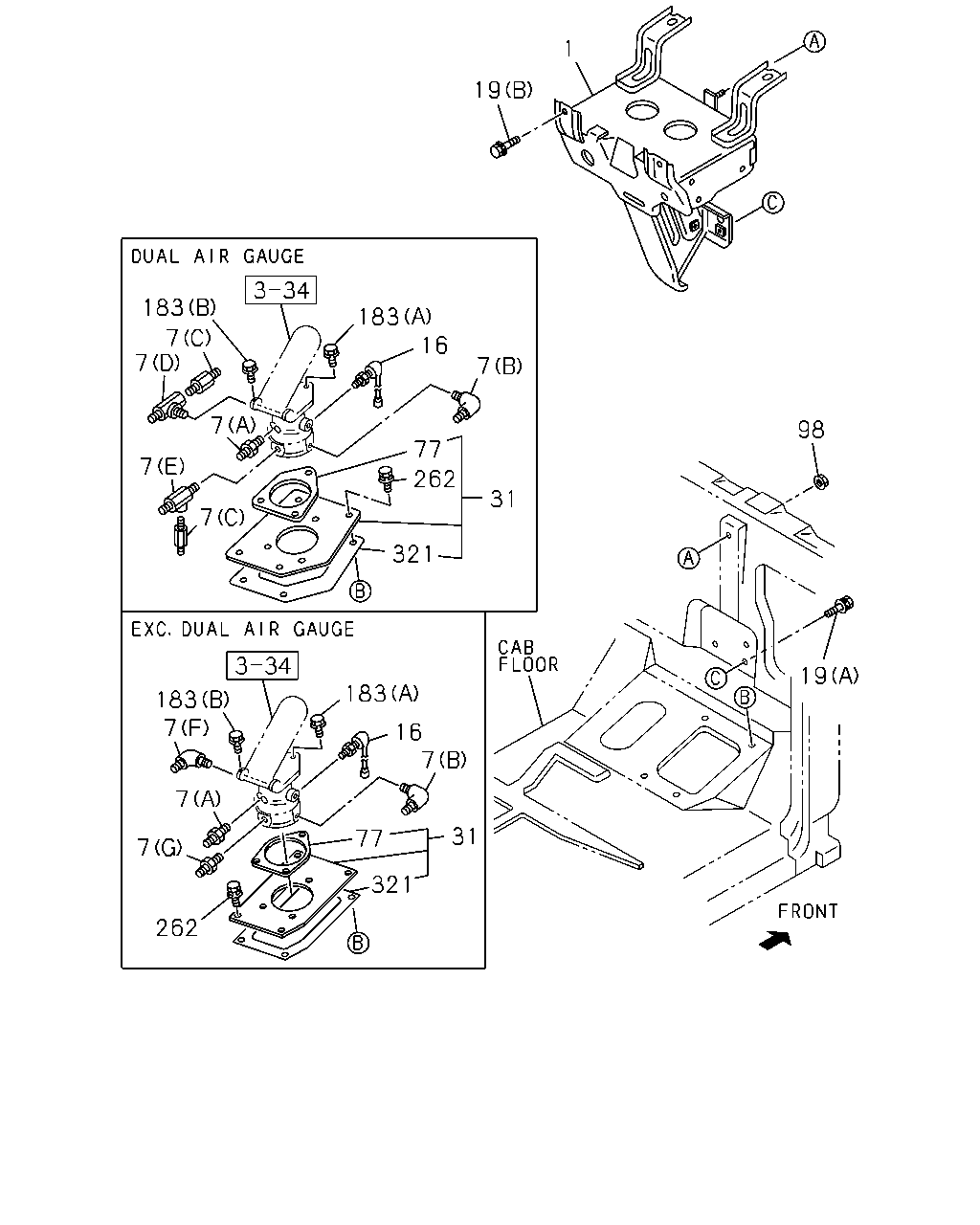

1 19 183 183 16 7 7 7 7 98 77 7 262 31 7 321 19 183 183 7 16 7 7 31 77 7 321 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET ASM; PEDAL ISUZU M/T<X9A>,FULLER M/T<X9B>	1-73998-935-9	01	1	9603-9705		●
1	BRACKET ASM; PEDAL ISUZU M/T<X9A>,FULLER M/T<X9B>	1-73908-280-1	01	1	9706-		●
1	BRACKET ASM; PEDAL ZF M/T<X9E>	1-73907-392-6	01	1	9603-		●
1	BRACKET ASM; PEDAL ISUZU M/T<X9A>,FULLER M/T<X9B>	1-73908-144-6	01	1	9603-	●
1	BRACKET ASM; PEDAL ZF M/T<X9E>	1-73907-443-6	01	1	9603-	●
7	CONNECTOR; BRK VALVE (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (D)	1-09660-802-0	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (D)	1-09661-284-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09660-803-0	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09661-285-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (F) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9603-9910		●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9911-		●
7	CONNECTOR; BRK VALVE (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9910	●	●
7	CONNECTOR; BRK VALVE (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9910	●
7	CONNECTOR; BRK VALVE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●	●
7	CONNECTOR; BRK VALVE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9911-	●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (C) DIN6 & R1/8 STRAIGHT	1-09660-691-1	02	1	9603-9910	●	●
7	CONNECTOR; BRK VALVE (H)	1-09656-708-0	02	1	9603-	●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09660-803-0	02	1	9603-9910	●
7	CONNECTOR; BRK VALVE DUAL AIR GAUGE<UG2> (E)	1-09661-285-0	02	1	9911-	●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9603-9910	●
7	CONNECTOR; BRK VALVE EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9911-	●
16	SWITCH; STOP LAMP GREEN	1-82410-176-0	02	1	9603-	●	●
19	BOLT; BRKT (A) M8X20	1-79198-002-0	02	1	9603-	●	●
19	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-	●	●
31	PLATE; MTG,BRKT VLV DUAL AIR GAUGE<UG2>	1-73996-271-2	01	1	9603-		●
31	PLATE; MTG,BRKT VLV EXC. DUAL AIR GAUGE<UG2>	1-73996-329-0	01	1	9603-		●
77	RUBBER; SEAL,BRK	1-73996-207-0	01	1	9905-		●
98	NUT; BRKT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9603-	●	●
183	BOLT; BRK VLV (A) M10X25 W/LK WASHER	1-09980-503-0	01	1	9603-		●
183	BOLT; BRK VLV (B) M10X35 W/LK WASHER	1-09980-504-0	02	1	9603-		●
183	BOLT; BRK VLV (A) M10X25 W/LK WASHER	1-09980-503-0	03	1	9603-	●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-		●
262	BOLT; PLATE M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9603-	●
321	SEAL; VALVE	1-73996-143-0	01	1	9905-		●
