◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#57917) — 24 parça

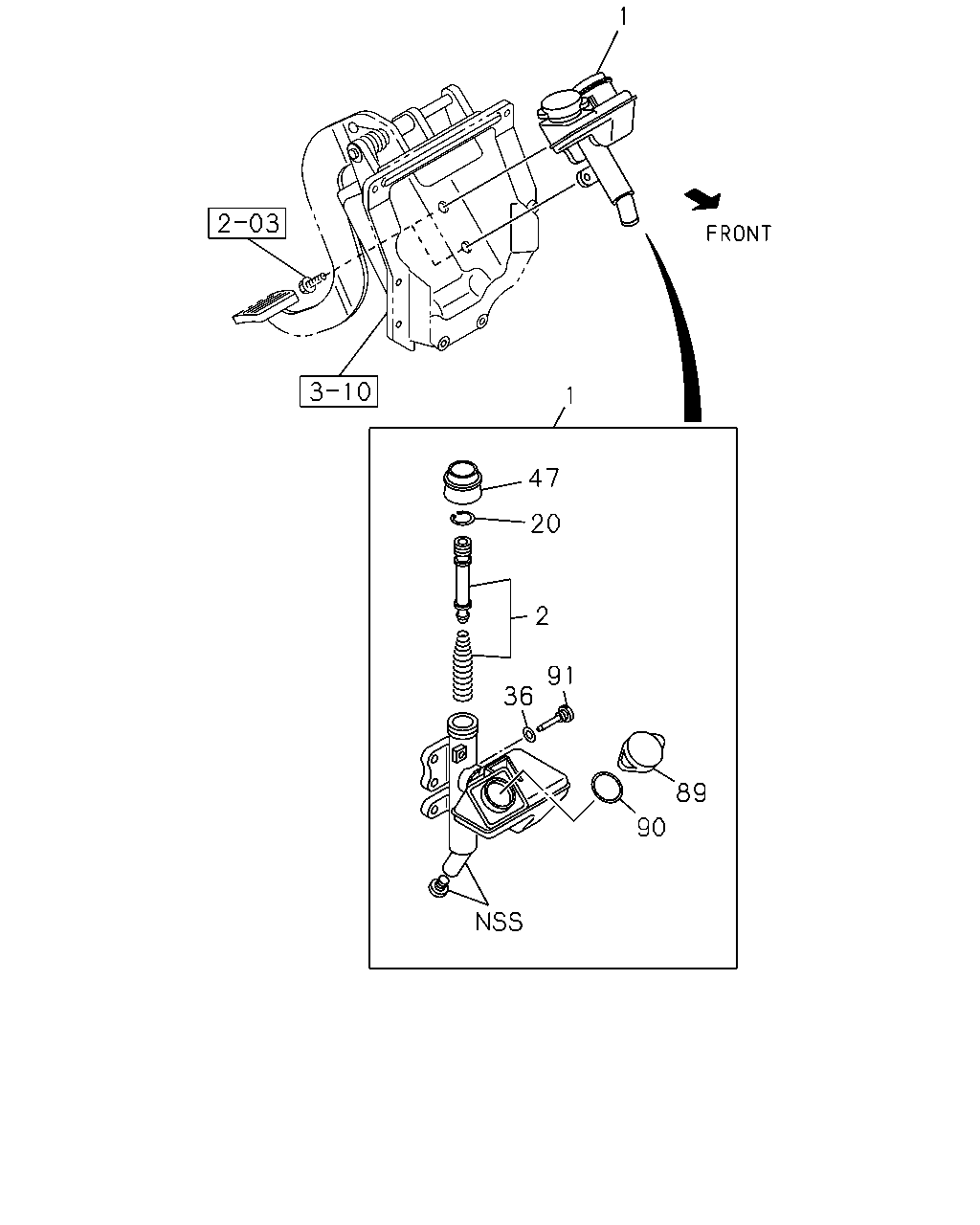

çizim 171806
1 1 47 2 20 91 36 90 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47500-250-2 01 1 1010-1203 ● ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47500-250-2 01 1 1204-1306 ● ●
1 CYLINDER ASM; CLUTCH MASTER
15" CLUTCH(RE9) 		1-47500-250-2 01 1 1307- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-85576-461-0 01 1 1010-1203 ● ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-85576-461-0 01 1 1204-1306 ● ●
2 REPAIR KIT; CLU M/CYL
15" CLUTCH(RE9) 		1-85576-461-0 01 1 1307- ● ●
20 RING; SNAP,BODY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-013-0 01 1 1010-1203 ● ●
20 RING; SNAP,BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47519-013-0 01 1 1204-1306 ● ●
20 RING; SNAP,BODY
15" CLUTCH(RE9) 		1-47519-013-0 01 1 1307- ● ●
36 GASKET; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-014-0 01 1 1010-1203 ● ●
36 GASKET; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47519-014-0 01 1 1204-1306 ● ●
36 GASKET; CLU M/CYL
15" CLUTCH(RE9) 		1-47519-014-0 01 1 1307- ● ●
47 COVER; DUST,PUSH ROD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-018-0 01 1 1010-1203 ● ●
47 COVER; DUST,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47519-018-0 01 1 1204-1306 ● ●
47 COVER; DUST,PUSH ROD
15" CLUTCH(RE9) 		1-47519-018-0 01 1 1307- ● ●
89 CAP; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-017-0 01 1 1010-1203 ● ●
89 CAP; OIL FILLER,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47519-017-0 01 1 1204-1306 ● ●
89 CAP; OIL FILLER,CLU M/CYL
15" CLUTCH(RE9) 		1-47519-017-0 01 1 1307- ● ●
90 GASKET; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-016-0 01 1 1010-1203 ● ●
90 GASKET; OIL FILLER,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47519-016-0 01 1 1204-1306 ● ●
90 GASKET; OIL FILLER,CLU M/CYL
15" CLUTCH(RE9) 		1-47519-016-0 01 1 1307- ● ●
91 BOLT; STOPPER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-015-0 01 1 1010-1203 ● ●
91 BOLT; STOPPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47519-015-0 01 1 1204-1306 ● ●
91 BOLT; STOPPER
15" CLUTCH(RE9) 		1-47519-015-0 01 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
