◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#57915) — 80 parça

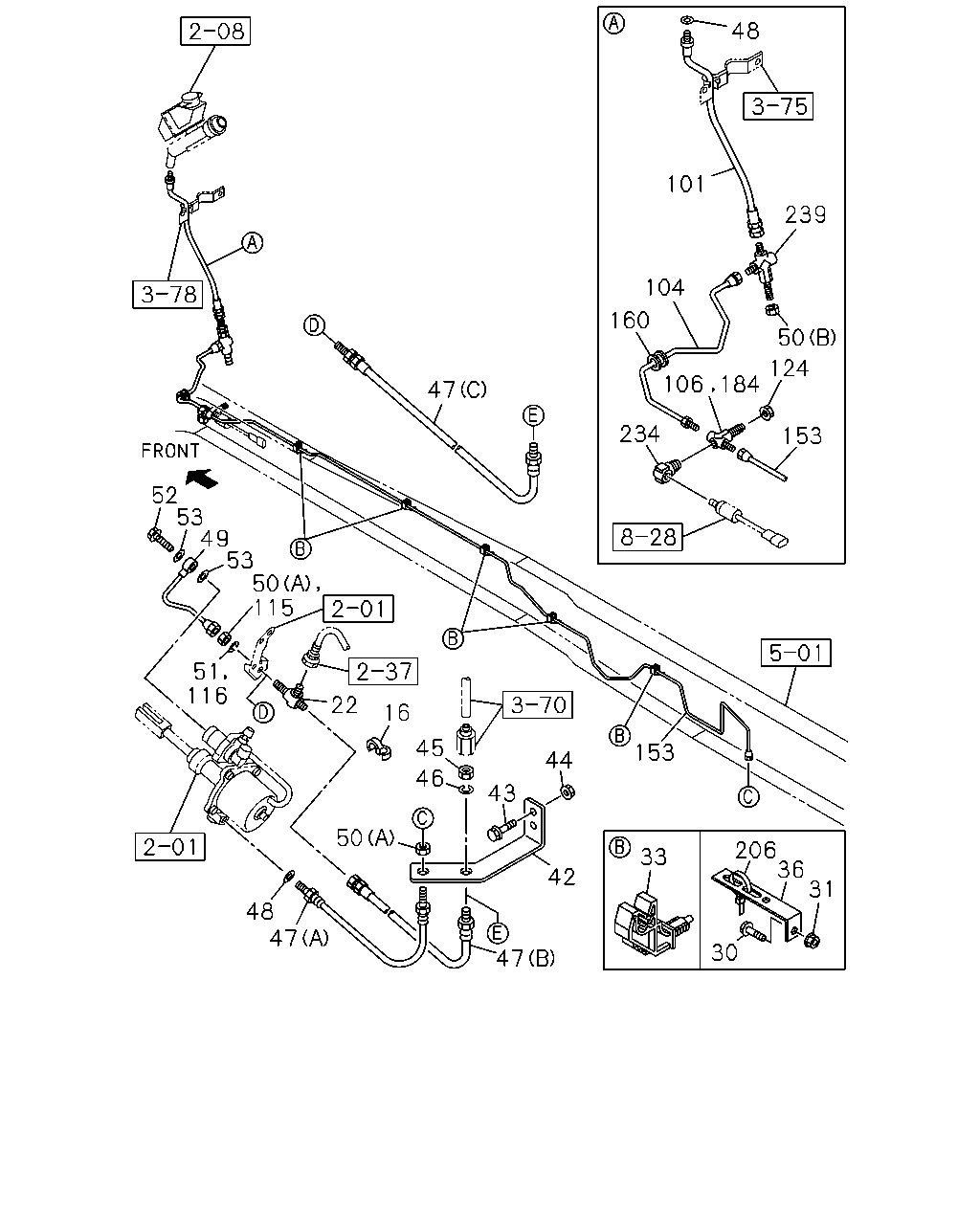

çizim 171763
48 101 239 104 160 50 106 184 124 153 234 47 52 53 49 53 50 115 51 116 22 16 45 46 43 44 153 33 206 36 31 42 50 48 47 47 30
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12 		1-09709-278-1 01 1 1010-1306 ● ●
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 01 1 1307- ●
16 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 01 1 1307- ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1010- ● ●
30 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
30 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
31 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ●
31 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
33 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=6.35 		1-09701-247-1 05 1 1010-1306 ● ●
33 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6.35 		1-09701-247-1 05 1 1307- ● ●
36 BRACKET; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=100 H=30 		1-47477-645-2 01 1 1010-1306 ●
36 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=100 H=30 		1-47477-645-2 01 1 1307- ●
42 BRACKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-654-0 01 1 1010-1306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98105-654-0 01 1 1307- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
45 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 1010-1306 ● ●
45 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1307- ●
45 NUT; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1307- ●
46 WASHER; LK,FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010-1011 ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=380 		1-09363-884-0 01 1 1010-1306 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=380 		1-09363-884-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=470 		1-09363-716-0 01 1 1010-1306 ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=375 		1-09364-407-0 01 1 1010-1306 ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=375 		1-09364-407-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=375 		1-09364-407-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=360 		1-09363-823-0 01 1 1010-1306 ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=360 		1-09363-823-0 01 1 1307- ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010-1306 ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1307- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1010- ● ●
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1010-1306 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010-1306 ● ●
50 NUT; UNION
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1307- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1307- ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010-1306 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1307- ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-812-0 01 1 1012-1306 ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1307- ● ●
51 WASHER; LK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1307- ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1010-1011 ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010-1011 ● ●
51 WASHER; LK
15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1012-1306 ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1010- ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1010-1312 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1010-1306 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1307- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 1010-1306 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440 		8-98072-346-0 01 1 1307- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=554 		8-98114-452-0 01 1 1010-1306 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554 		8-98114-452-0 01 1 1307- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 3WAY 		8-98051-113-0 01 1 1010-1306 ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 3WAY 		8-98051-113-0 01 1 1307- ● ●
115 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 1010-1306 ● ●
115 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1307- ●
115 NUT; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1307- ●
116 WASHER; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010-1011 ● ●
124 NUT; PIPE UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1010-1306 ● ●
124 NUT; PIPE UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		0-91111-512-0 01 1 1307- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2749 		8-98152-243-0 01 1 1010-1306 ●
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2738 		8-98152-246-0 01 1 1307- ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2715 SERVICED BY L=2900 		1-47428-744-0 01 1 1010-1101 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2726 SERVICED BY L=2900 		1-47428-744-0 01 1 1102-1306 ●
153 PIPE ASM; CLU,UNION TO FLEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2726 SERVICED BY L=2900 		1-47428-744-0 01 1 1307- ●
160 GROMMET; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010-1306 ● ●
160 GROMMET; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307- ● ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1010-1306 ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1307- ● ●
206 CLIP; TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=350 		1-09707-183-0 01 1 1010-1306 ●
206 CLIP; TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=350 		1-09707-183-0 01 1 1307- ●
206 CLIP; TUBE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=350 		1-09707-183-0 02 1 1010-1306 ●
206 CLIP; TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=350 		1-09707-183-0 02 1 1307- ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/8 ELBOW 		8-94338-418-1 01 1 1010-1306 ● ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW 		8-94338-418-1 01 1 1307- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 2WAY 		1-09654-059-2 01 1 1010-1306 ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1307- ● ●
