◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11328 - FTR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#57912) — 40 parça

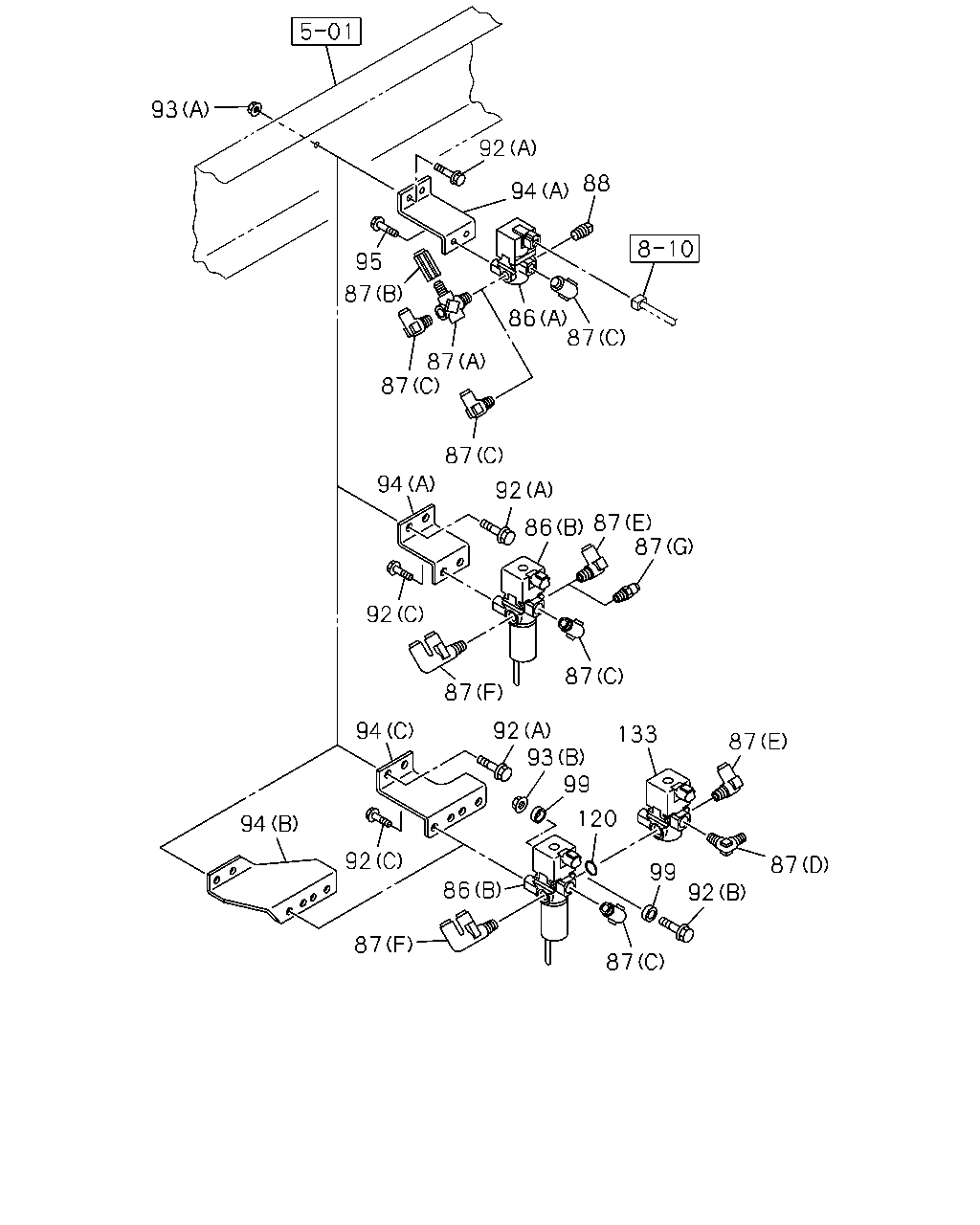

çizim 171773
93 92 95 87 94 88 86 87 87 87 87 94 92 92 86 87 87 87 87 94 92 133 87 93 99 120 87 92 99 87 86 87 92 94
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 1010-
87 CONNECTOR
PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-1306
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307-
87 CONNECTOR
SGL CAB(FG**M*) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-1306
87 CONNECTOR
DBL CAB(FG**W*) PTO CONTROL<SV6> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-1306
87 CONNECTOR
SGL CAB(FG**M*) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307-
87 CONNECTOR
DBL CAB(FG**W*) TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1307-
87 CONNECTOR
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
(F) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112-
87 CONNECTOR
DBL CAB(FG**W*) EXC. PTO CONTROL<SV6> (G) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1112-1306
87 CONNECTOR
DBL CAB(FG**W*) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1307-
87 CONNECTOR
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1010-
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1010-1306
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1307-
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010-1306
87 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
88 PLUG
PT1/4 		9-99204-513-0 01 1 1010-
92 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 1112-1306
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1307-
92 BOLT; MAG VLV
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010-
93 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112-1306
93 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 1307-
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FG**M*) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112-1306
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FG**M*) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98101-296-0 01 1 1307-
94 BRACKET; MAG VLV,EXH BRAKE
DBL CAB(FG**W*) (B) 		8-98114-298-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98154-633-0 01 1 1010-1111
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98154-633-0 01 1 1112-1306
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FG**M*) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112-1306
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98154-633-0 01 1 1307-
94 BRACKET; MAG VLV,EXH BRAKE
SGL CAB(FG**M*) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98154-633-0 01 1 1307-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1010-
99 WASHER; MAG VLV
PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112-1306
99 WASHER; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1307-
120 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112-1306
120 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1307-
133 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112-1306
133 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1307-
