1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#57911) — 64 parça

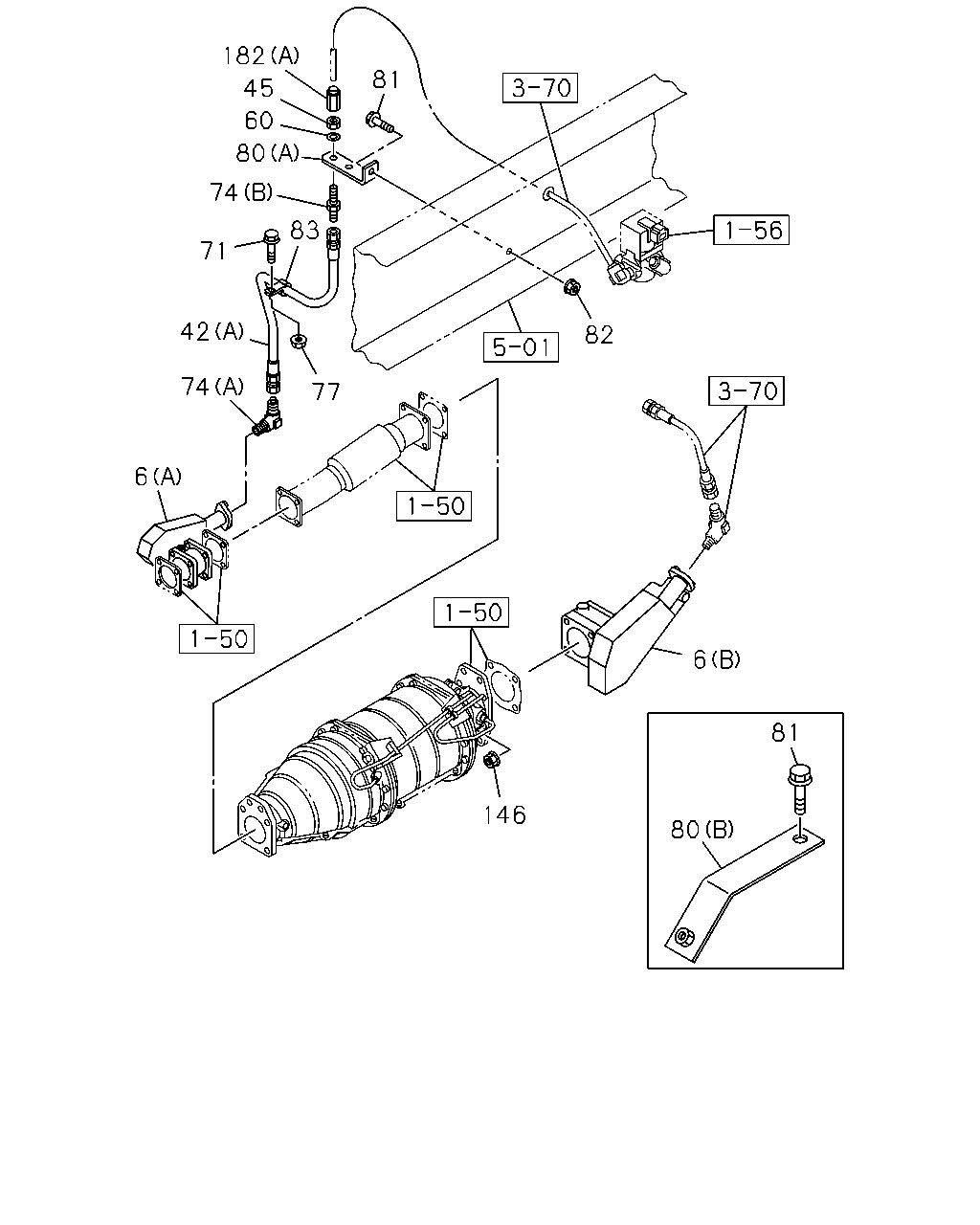

146 80 81 6 6 74 77 42 71 74 83 80 60 45 182 81 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	1010-1302
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-
6	VALVE; EXH BRAKE (B)	8-98054-186-6	01	1	1010-
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) WHEEL BASE 4200MM(42W) (B) L=250	1-09363-618-0	01	1	1307-
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) (B) L=280	1-09363-672-0	01	1	1307-
42	HOSE; FLEX,EXH BRK DBL CAB(FG*W) (B) L=280	1-09363-672-0	01	1	1307-
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) (A) L=600	8-98107-431-0	01	1	1010-
42	HOSE; FLEX,EXH BRK DBL CAB(FG*W) (A) L=780	8-98114-706-0	01	1	1010-
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1010-
60	WASHER; PL ID=12.2	0-91510-512-0	01	1	1010-
71	BOLT; CLIP SGL CAB(FG*M) M8X25 FLANGE	0-28650-825-0	01	1	1010-
71	BOLT; CLIP DBL CAB(FG*W) M8X25 FLANGE	0-28650-825-0	02	1	1010-1306
71	BOLT; CLIP DBL CAB(FG*W) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28650-825-0	02	1	1307-
74	CONNECTOR; EXH BRK VLV (B) M12 L=56.5	0-92113-106-0	01	1	1010-1306
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-
77	NUT; CLIP DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	1010-1306
77	NUT; CLIP DBL CAB(FG*W) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	1307-
80	BRACKET; FLEX HOSE SGL CAB(FG*M) (A)	8-98100-228-0	01	1	1010-
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (B)	8-98113-377-0	01	1	1010-1306
80	BRACKET; FLEX HOSE DBL CAB(FG*W) WHEEL BASE 6000MM(60W) (B)	8-98113-377-0	01	1	1307-
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (A)	8-98114-273-0	01	1	1010-1306
80	BRACKET; FLEX HOSE DBL CAB(FG*W) WHEEL BASE 6000MM(60W) (A)	8-98114-273-0	01	1	1307-
81	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1010-
81	BOLT; HOSE BRKT DBL CAB(FG*W) M8X30 FLANGE	0-28650-830-0	01	1	1010-
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	1010-
83	CLIP; FLEX HOSE SGL CAB(FG*M) ID=13	1-09701-030-1	01	1	1010-
83	CLIP; FLEX HOSE DBL CAB(FG*W) ID=13	1-09701-030-1	02	1	1010-1306
83	CLIP; FLEX HOSE DBL CAB(FG*W) WHEEL BASE 6000MM(60W) ID=13	1-09701-030-1	02	1	1307-
146	NUT; EXH BRK VLV M10 FLANGE	0-91180-210-0	04	1	1010-
182	CONNECTOR (B) M12 L=56.5	0-92113-106-0	01	1	1307-
182	CONNECTOR (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1010-

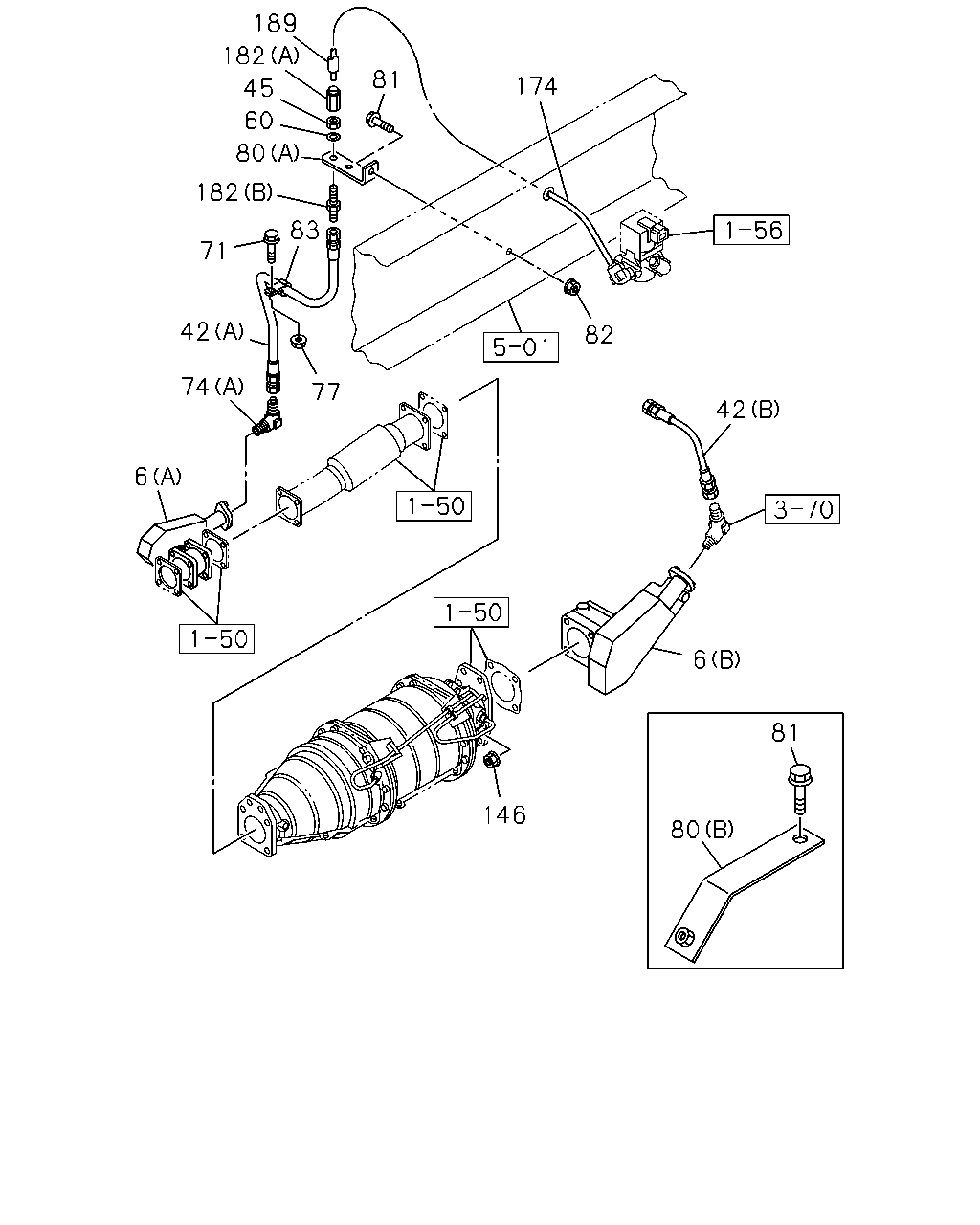

189 182 60 45 80 182 71 83 42 74 6 77 81 174 82 42 6 146 81 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE (A)	8-98054-173-6	01	1	1010-1302
6	VALVE; EXH BRAKE (A)	8-98233-801-0	01	1	1303-
6	VALVE; EXH BRAKE (B)	8-98054-186-6	01	1	1010-
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) WHEEL BASE 4200MM(42W) (B) L=250	1-09363-618-0	01	1	1307-
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) (B) L=280	1-09363-672-0	01	1	1307-
42	HOSE; FLEX,EXH BRK DBL CAB(FG*W) (B) L=280	1-09363-672-0	01	1	1307-
42	HOSE; FLEX,EXH BRK SGL CAB(FG*M) (A) L=600	8-98107-431-0	01	1	1010-
42	HOSE; FLEX,EXH BRK DBL CAB(FG*W) (A) L=780	8-98114-706-0	01	1	1010-
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1010-
60	WASHER; PL ID=12.2	0-91510-512-0	01	1	1010-
71	BOLT; CLIP SGL CAB(FG*M) M8X25 FLANGE	0-28650-825-0	01	1	1010-
71	BOLT; CLIP DBL CAB(FG*W) M8X25 FLANGE	0-28650-825-0	02	1	1010-1306
71	BOLT; CLIP DBL CAB(FG*W) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28650-825-0	02	1	1307-
74	CONNECTOR; EXH BRK VLV (B) M12 L=56.5	0-92113-106-0	01	1	1010-1306
74	CONNECTOR; EXH BRK VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-
77	NUT; CLIP DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	1010-1306
77	NUT; CLIP DBL CAB(FG*W) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	1307-
80	BRACKET; FLEX HOSE SGL CAB(FG*M) (A)	8-98100-228-0	01	1	1010-
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (B)	8-98113-377-0	01	1	1010-1306
80	BRACKET; FLEX HOSE DBL CAB(FG*W) WHEEL BASE 6000MM(60W) (B)	8-98113-377-0	01	1	1307-
80	BRACKET; FLEX HOSE DBL CAB(FG*W) (A)	8-98114-273-0	01	1	1010-1306
80	BRACKET; FLEX HOSE DBL CAB(FG*W) WHEEL BASE 6000MM(60W) (A)	8-98114-273-0	01	1	1307-
81	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1010-
81	BOLT; HOSE BRKT DBL CAB(FG*W) M8X30 FLANGE	0-28650-830-0	01	1	1010-
82	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	01	1	1010-
83	CLIP; FLEX HOSE SGL CAB(FG*M) ID=13	1-09701-030-1	01	1	1010-
83	CLIP; FLEX HOSE DBL CAB(FG*W) ID=13	1-09701-030-1	02	1	1010-1306
83	CLIP; FLEX HOSE DBL CAB(FG*W) WHEEL BASE 6000MM(60W) ID=13	1-09701-030-1	02	1	1307-
146	NUT; EXH BRK VLV M10 FLANGE	0-91180-210-0	04	1	1010-
174	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1307-
182	CONNECTOR (B) M12 L=56.5	0-92113-106-0	01	1	1307-
182	CONNECTOR (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1010-
189	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1307-
