Sayfa 1-50 - Isuzu EPC

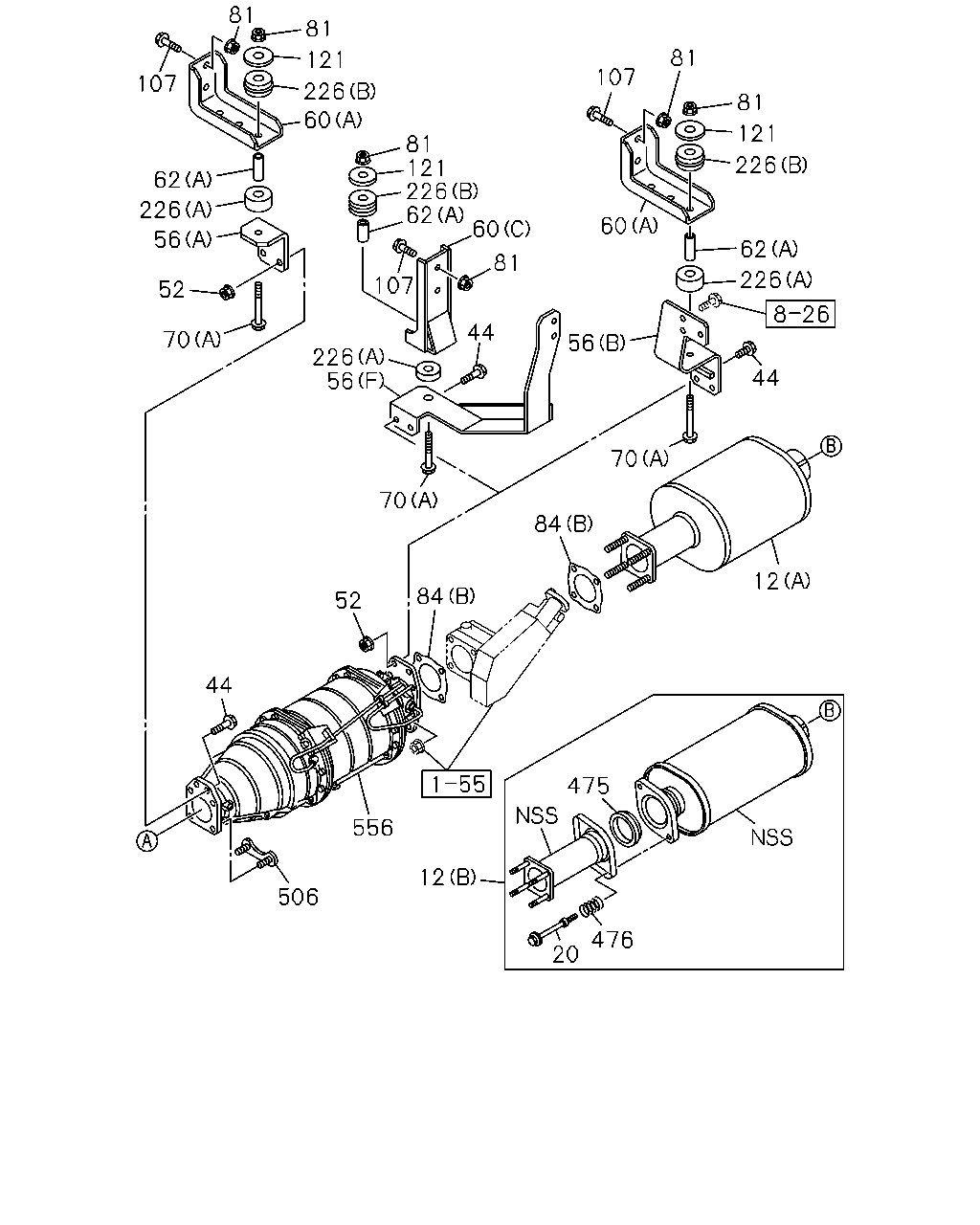

1-50 — EXHAUST PIPE AND SILENCER (#57910) — 409 parça

81 20 475 476 12 506 556 44 52 84 84 12 70 70 44 226 62 226 121 81 81 107 60 56 44 56 226 107 81 60 62 226 121 81 70 52 56 226 62 107 60 226 121 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH (A)	8-98041-925-1	01	1	1010-1301	●	●
12	SILENCER ASM; EXH (B)	8-98234-507-0	01	1	1302-	●	●
20	BOLT; FLANGE,EXH PIPE	8-98233-481-0	02	1	1302-	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1010-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	1010-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (C)	8-98070-639-0	01	1	1110-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (E) L=180	1-22131-521-1	01	1	1010-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=180	1-22131-521-1	01	1	1010-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-98077-361-0	01	1	1010-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98077-361-0	01	1	1010-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98078-088-1	01	1	1010-	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98078-088-1	01	1	1010-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	1010-1109	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	1110-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (A)	1-22152-324-0	01	1	1010-1109	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-22152-324-0	01	1	1110-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98072-104-0	01	1	1010-1109	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F)	8-98072-104-0	01	1	1110-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (C)	8-98101-361-0	01	1	1010-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6000MM(60W) (D)	8-98071-312-0	01	1	1010-1101	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (D)	8-98071-312-0	01	1	1102-1309	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98071-312-0	01	1	1102-1309		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (D)	8-98245-537-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-537-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (E)	8-98233-552-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT (E)	8-98233-552-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (D)	8-98234-014-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-98070-640-0	01	1	1010-1309	●
60	BRACKET; FRAME TO BRKT (B)	8-98070-640-0	01	1	1010-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-98245-521-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (B)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1010-1109	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1110-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (D)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	02	1	1010-1109	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	02	1	1110-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98245-532-0	02	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	1010-1109	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	1110-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1010-1101	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1010-1101	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1010-1101	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1010-1101		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1010-1101		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1102-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1102-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1102-1301	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1102-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1102-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1102-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1302-1306	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1302-1306	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1306		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1306		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	02	1	1307-1309	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	02	1	1307-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98245-531-0	02	1	1310-	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-531-0	02	1	1310-		●
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	02	1	1307-	●
62	TUBE; DIST,BRKT WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	02	1	1010-1109	●
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	02	1	1110-1306	●
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	01	1	1307-	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1010-1101	●	●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1010-1101	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1010-1101	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1010-1101		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1102-1306	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1102-1306	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1102-1306	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1102-1306		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1102-1306		●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	03	1	1307-	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	03	1	1307-		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1010-	●	●
70	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1307-	●
70	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1010-1109	●
70	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1110-1306	●
70	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1307-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1010-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101	●	●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	03	1	1307-	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	03	1	1307-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	1307-	●
81	NUT; BRKT WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1306	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1306	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1102-1306	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1102-1306	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	03	1	1307-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1307-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-1109	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-1109	●	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	1010-1109	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1110-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1110-	●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	1110-	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	1010-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1010-	●	●
107	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	1010-	●	●
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	02	1	1307-	●
121	WASHER; PL,BRKT WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	02	1	1010-1109	●
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	02	1	1110-1306	●
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	01	1	1307-	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1010-1101	●	●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1010-1101	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1010-1101	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1010-1101		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1102-1306	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1102-1306	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1102-1306	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1102-1306		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1102-1306		●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	03	1	1307-	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	03	1	1307-		●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	1307-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	1307-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	02	1	1010-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	02	1	1010-	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1010-1101	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1010-1101		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1102-1306	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1102-1306	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1102-1306	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1102-1306		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1102-1306		●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	03	1	1307-	●
226	RUBBER; CUSHION (A)	8-94457-277-1	03	1	1307-		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1010-1101	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1010-1101		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1102-1306	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1102-1306	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1102-1306	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1102-1306		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1102-1306		●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	03	1	1307-	●
226	RUBBER; CUSHION (B)	8-94457-278-1	03	1	1307-		●
475	BEARING; SEAL,VIBNON,EXH PIPE	8-98233-479-0	01	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE	8-98233-482-0	02	1	1302-	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1010-1203	●	●
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1204-1306	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1204-1306		●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1307-	●	●
556	DPD ASM	8-97613-331-6	01	1	1010-1010	●	●
556	DPD ASM	8-97622-883-4	01	1	1011-	●	●

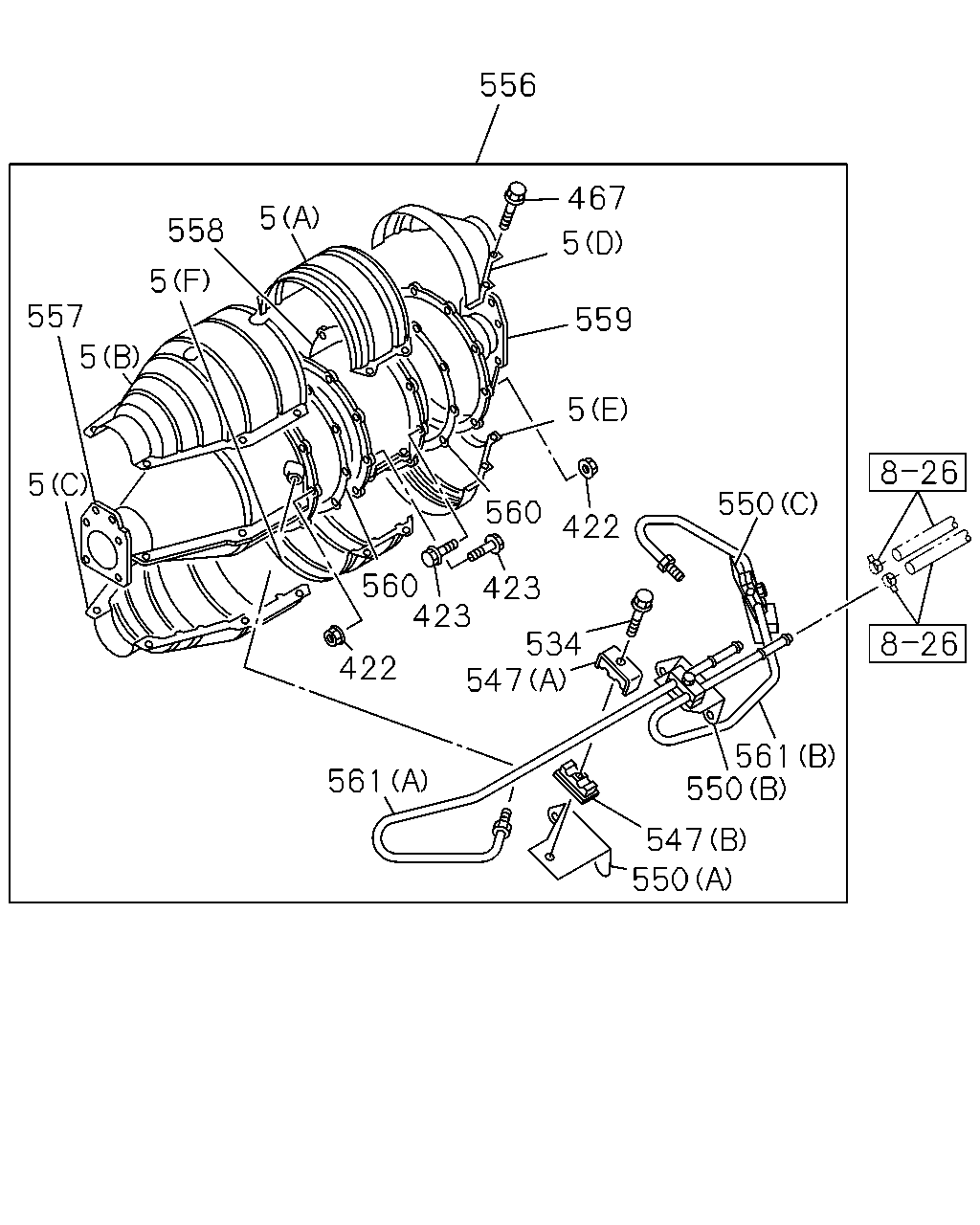

557 5 5 5 558 5 556 467 5 559 5 560 422 423 423 560 422 547 561 534 550 561 550 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	1010-1306	●	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1010-	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	1010-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	1010-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1010-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	1010-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	1010-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	1010-	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	1010-	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	1010-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	1010-	●	●
556	DPD ASM	8-97613-331-6	01	1	1010-1010	●	●
556	DPD ASM	8-97622-883-4	01	1	1011-	●	●
557	CATALYST ASM	8-97608-055-8	01	1	1010-	●	●
558	FILTER ASM	8-97608-057-3	01	1	1010-	●	●
559	COVER; RR	8-97611-078-0	01	1	1010-1010	●	●
559	COVER; RR	8-97622-887-0	01	1	1011-	●	●
560	GASKET; DPD	8-97611-080-0	02	1	1010-	●	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	1010-1010	●	●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-	●	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	1010-1010	●	●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-	●	●

107 118 60 81 105 105 81 75 62 56 75 60 81 70 105 107 22 22 94 126 94 94 22 56 62 226 121 70 22 105 105 81 226 107 118 60 22 94 81 56 226 62 226 121 70 118 60 107 105 22 94 94 22 56 226 62 60 226 121 70 22

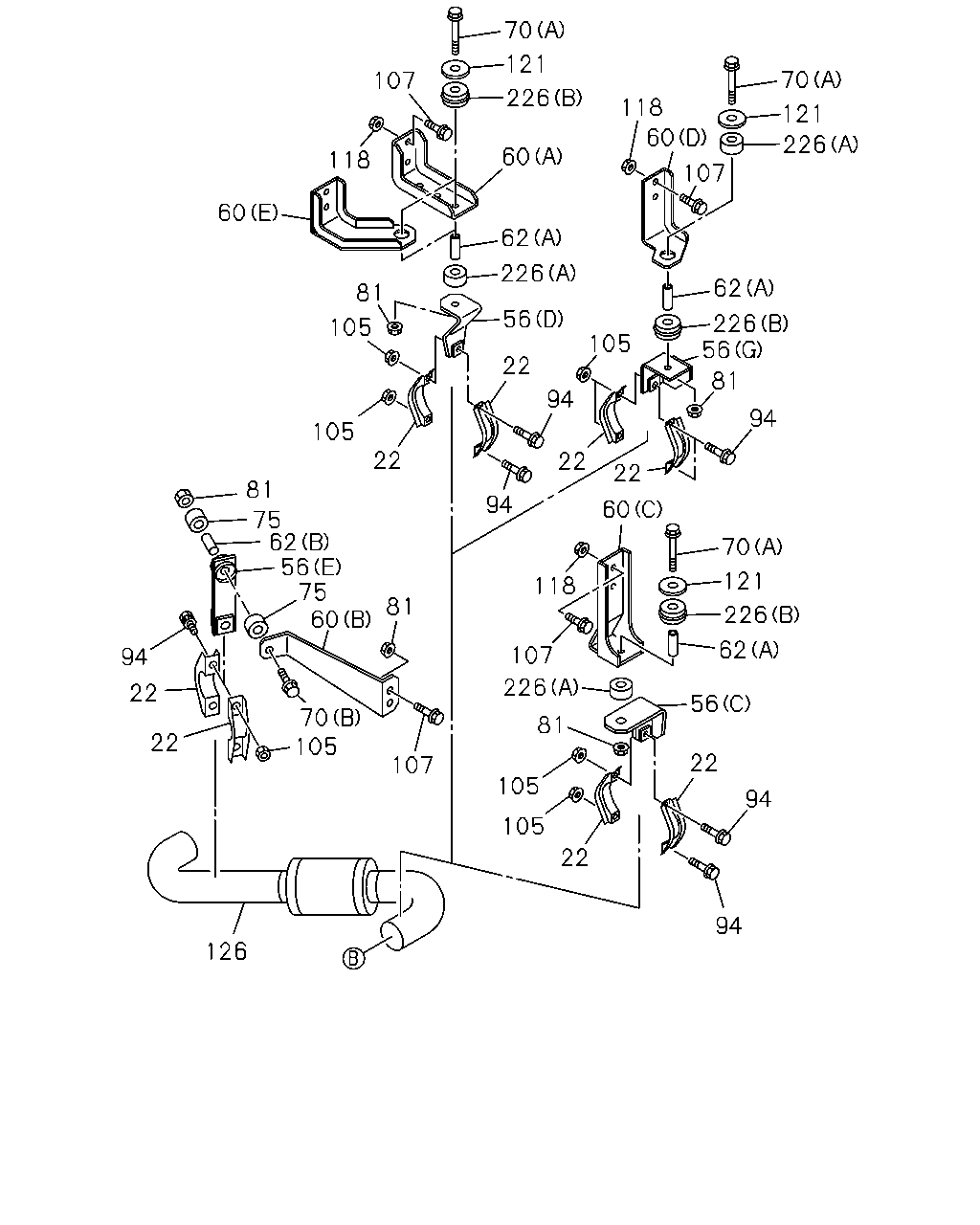

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1010-1101	●	●
22	CLAMP; EXH PIPE WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) ID=80-84	1-22133-233-0	02	1	1010-1101	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1010-1101		●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1102-	●	●
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1102-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W) (C)	8-98070-639-0	01	1	1110-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98233-450-0	01	1	1302-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (E) L=180	1-22131-521-1	01	1	1010-	●
56	BRACKET; CLAMP,EXH PIPE (E) L=180	1-22131-521-1	01	1	1010-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-98077-361-0	01	1	1010-	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98077-361-0	01	1	1010-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98078-088-1	01	1	1010-	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98078-088-1	01	1	1010-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	1010-1109	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=204	1-22131-520-1	01	1	1110-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (A)	1-22152-324-0	01	1	1010-1109	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-22152-324-0	01	1	1110-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (F)	8-98072-104-0	01	1	1010-1109	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F)	8-98072-104-0	01	1	1110-	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6500MM(65W) (C)	8-98101-361-0	01	1	1010-1301	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6000MM(60W) (D)	8-98071-312-0	01	1	1010-1101	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (D)	8-98071-312-0	01	1	1102-1309	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98071-312-0	01	1	1102-1309		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (D)	8-98245-537-0	01	1	1310-	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-537-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (E)	8-98233-552-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT (E)	8-98233-552-0	01	1	1302-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (D)	8-98234-014-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-98070-640-0	01	1	1010-1309	●
60	BRACKET; FRAME TO BRKT (B)	8-98070-640-0	01	1	1010-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-98245-521-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT (B)	8-98245-521-0	01	1	1310-		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1010-1109	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	01	1	1110-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W) (D)	8-98233-451-0	01	1	1302-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	02	1	1010-1109	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98070-628-0	02	1	1110-1309	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98245-532-0	02	1	1310-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	1010-1109	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98070-641-0	01	1	1110-	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1010-1101	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1010-1101	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1010-1101	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1010-1101		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1010-1101		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1102-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1102-1301	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1102-1301	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1102-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1102-1301		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1102-1301		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1302-1306	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	01	1	1302-1306	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1306		●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	01	1	1302-1306		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98070-622-0	02	1	1307-1309	●
60	BRACKET; FRAME TO BRKT (A)	8-98070-622-0	02	1	1307-1309		●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-98245-531-0	02	1	1310-	●
60	BRACKET; FRAME TO BRKT (A)	8-98245-531-0	02	1	1310-		●
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	02	1	1307-	●
62	TUBE; DIST,BRKT WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	02	1	1010-1109	●
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	02	1	1110-1306	●
62	TUBE; DIST,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=39	8-98060-852-0	01	1	1307-	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1010-1101	●	●
62	TUBE; DIST,BRKT WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1010-1101	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1010-1101	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1010-1101		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1102-1306	●	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1102-1306	●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	01	1	1102-1306	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1102-1306		●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1102-1306		●
62	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) L=39	8-98060-852-0	03	1	1307-	●
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	03	1	1307-		●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1010-	●	●
70	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1307-	●
70	BOLT; BRKT WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1010-1109	●
70	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	02	1	1110-1306	●
70	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1307-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1010-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101	●	●
70	BOLT; BRKT WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1010-1101		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306		●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1102-1306		●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A) M10X70 FLANGE	0-28051-070-0	03	1	1307-	●
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	03	1	1307-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1010-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	1307-	●
81	NUT; BRKT WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	01	1	1010-1101	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1306	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1102-1306	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1102-1306	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	01	1	1102-1306	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) M10 FLANGE	0-91180-210-0	03	1	1307-	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1307-		●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-1109	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-1109	●	●
81	NUT; BRKT WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	1010-1109	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1110-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1110-	●	●
81	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	1110-	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1010-1101	●	●
94	BOLT; CLAMP WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) M10X40 FLANGE	0-28651-040-0	02	1	1010-1101	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1010-1101		●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1102-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1102-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1010-1101	●	●
105	NUT; CLAMP WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	1010-1101	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1010-1101		●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1102-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1102-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1010-	●	●
107	BOLT; BRKT M10X40 FLANGE	0-28651-040-0	02	1	1010-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1010-1306	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	02	1	1307-	●
121	WASHER; PL,BRKT WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	02	1	1010-1109	●
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	02	1	1110-1306	●
121	WASHER; PL,BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=11 OD=54	1-09503-154-2	01	1	1307-	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1010-1101	●	●
121	WASHER; PL,BRKT WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1010-1101	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1010-1101	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1010-1101		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1102-1306	●	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1102-1306	●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	01	1	1102-1306	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1102-1306		●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1102-1306		●
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) ID=11 OD=54	1-09503-154-2	03	1	1307-	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	03	1	1307-		●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)	8-98043-365-2	01	1	1010-1301	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	1010-1301		●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)	8-98233-516-0	01	1	1302-	●
126	PIPE; EXH,RR	8-98233-516-0	01	1	1302-		●
126	PIPE; EXH,RR WHEEL BASE 6500MM(65W)	1-22126-646-2	01	1	1010-1109	●
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-22126-646-2	01	1	1110-1301	●
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98233-519-0	01	1	1302-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	01	1	1307-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	01	1	1307-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-94457-277-1	02	1	1010-	●
226	RUBBER; CUSHION WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-94457-278-1	02	1	1010-	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1010-1101	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1010-1101		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1102-1306	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1102-1306	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	01	1	1102-1306	●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1102-1306		●
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1102-1306		●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (A)	8-94457-277-1	03	1	1307-	●
226	RUBBER; CUSHION (A)	8-94457-277-1	03	1	1307-		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1010-1101	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1010-1101	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1010-1101		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1102-1306	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1102-1306	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	01	1	1102-1306	●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1102-1306		●
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1102-1306		●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (B)	8-94457-278-1	03	1	1307-	●
226	RUBBER; CUSHION (B)	8-94457-278-1	03	1	1307-		●

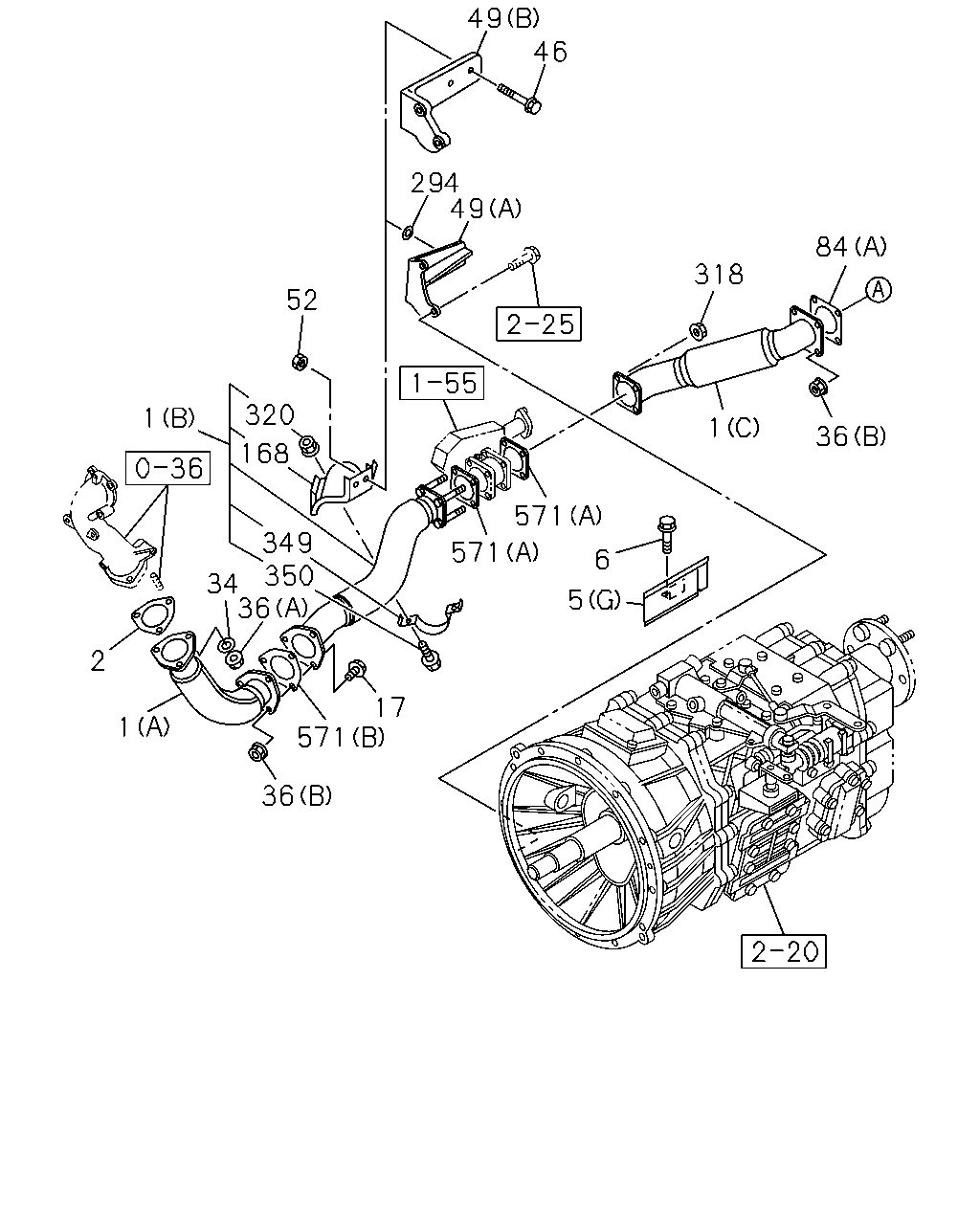

36 1 2 1 34 168 320 52 349 350 36 571 17 571 571 294 49 49 46 84 318 1 36 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (C)	1-22123-892-1	01	1	1010-	●
1	PIPE; EXH (C)	1-22123-892-1	01	1	1010-		●
1	PIPE; EXH WHEEL BASE 6500MM(65W) (C)	1-22123-984-1	01	1	1010-1109	●
1	PIPE; EXH WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	1-22123-984-1	01	1	1110-	●
1	PIPE; EXH (B)	8-98115-164-0	01	1	1010-1209	●	●
1	PIPE; EXH (B)	8-98220-351-0	01	1	1210-	●	●
1	PIPE; EXH (A)	8-98120-560-0	01	1	1010-1209	●	●
1	PIPE; EXH (A)	8-98215-406-0	01	1	1210-	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1010-1306	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1307-	●	●
5	PROTECTOR; HEAT (G)	8-98073-436-0	01	1	1010-1306	●	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1010-	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1010-1306	●	●
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> M12X35 FLANGE	0-28051-235-0	04	1	1204-1306	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1010-1306	●	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1307-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1010-1306	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1307-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1010-1306	●	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1307-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1010-1306	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1307-	●	●
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1010-	●	●
49	BRACKET; EXH PIPE TO TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98120-495-0	01	1	1010-	●	●
49	BRACKET; EXH PIPE TO TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98120-493-0	01	1	1010-1306	●	●
49	BRACKET; EXH PIPE TO TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98120-493-0	01	1	1307-	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	1010-	●	●
84	GASKET; EXH PIPE (A)	1-22116-040-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	02	1	1010-	●	●
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	1010-1209	●	●
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-1306	●	●
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1307-	●	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1010-1306	●	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1307-	●	●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1010-1306	●	●
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	1010-	●	●
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	1010-	●	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1010-1306	●	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1307-	●	●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1010-1306	●	●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
