3-08C — PARKING BRAKE (#5791) — 146 parça

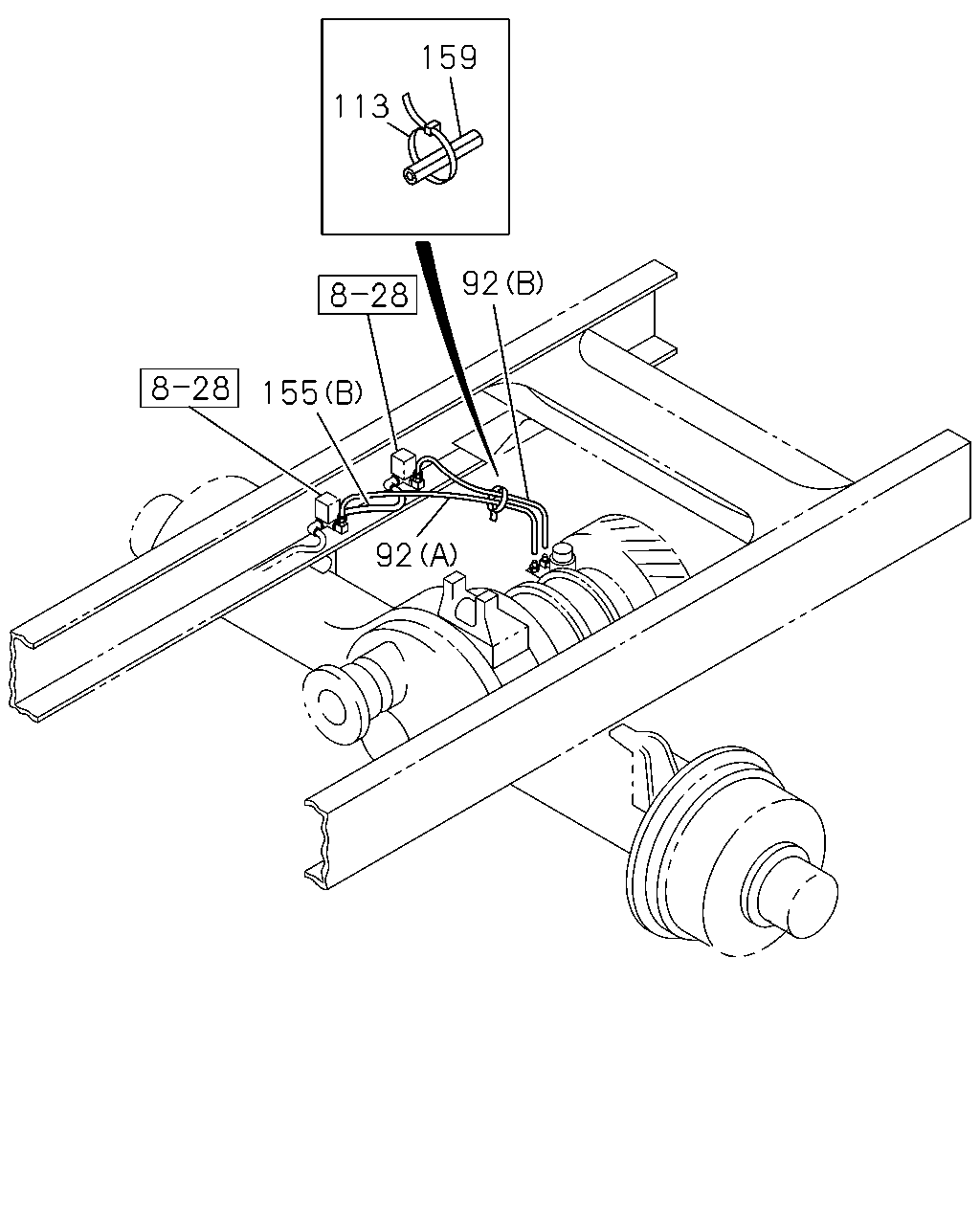

çizim 7028
159 113 92 155 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=680 		1-09363-619-0 02 1 9707-9708 ● ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-09363-668-0 02 1 9709-9711 ● ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=580 		1-09363-641-0 01 1 9712-9904 ● ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-09363-650-0 01 1 9712-9904 ● ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-09363-650-0 02 1 9905- ● ● ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=140 		5-09707-031-1 01 1 9707-9904 ● ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=140 		5-09707-031-1 01 1 9905- ● ● ● ●
155 TUBE
(A) 		1-48629-092-0 01 1 9707-9904 ● ●
155 TUBE
(A) 		1-48629-092-0 01 1 9905-9908 ● ● ●
155 TUBE
(A) 		1-48629-092-0 01 1 9909- ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9707-9708 ● ●
159 SLEEVE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 9707-9904 ● ●
159 SLEEVE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 9905- ● ● ● ●

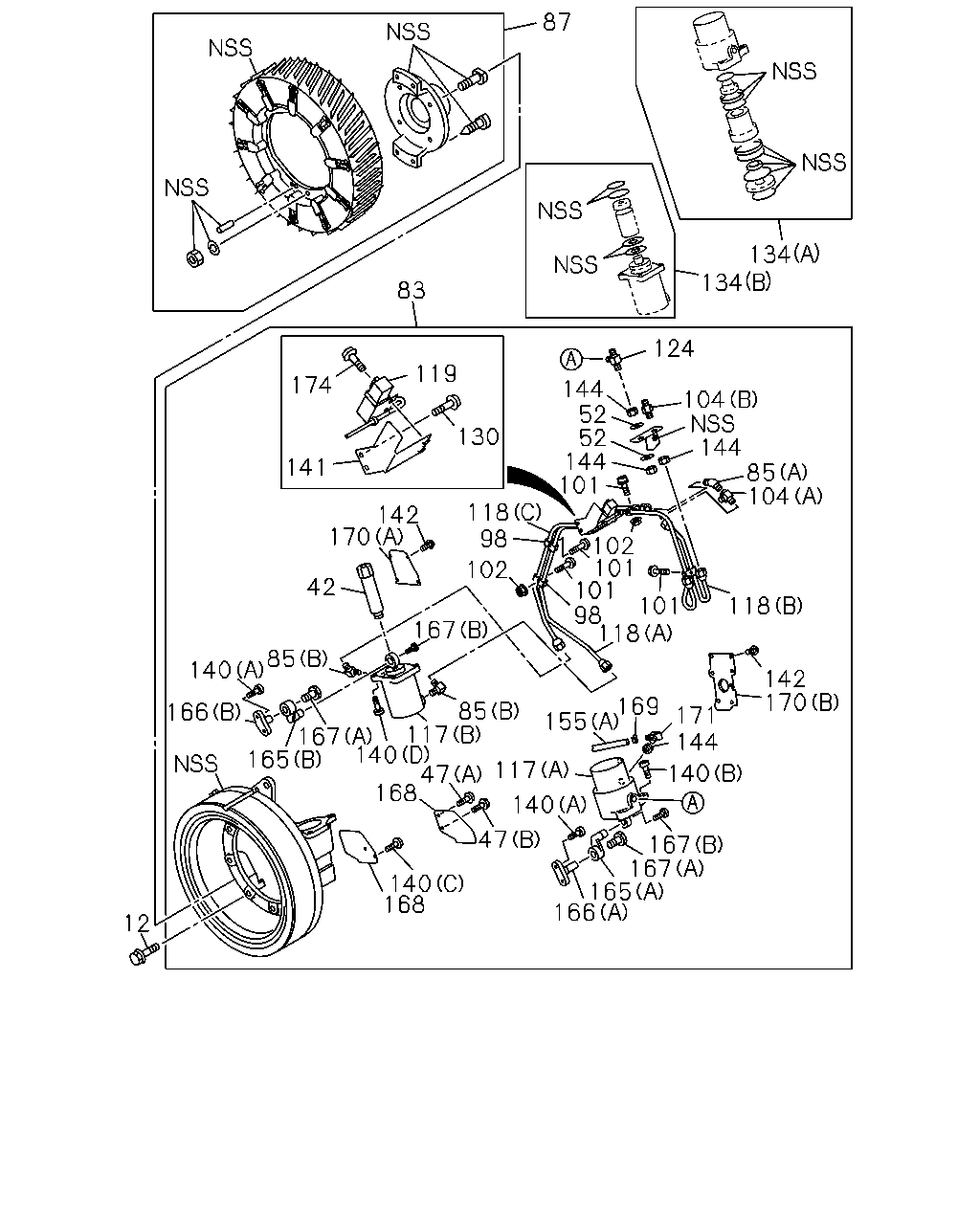

çizim 8410
87 134 134 83 124 119 174 144 52 52 144 101 104 144 85 104 130 141 118 98 142 170 102 101 101 101 98 118 102 42 118 167 85 171 144 140 142 170 169 85 167 117 140 165 47 168 166 155 117 140 140 47 167 167 165 166 140 168 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 BOLT; FIX
M12X35 FLANGE 		0-28791-235-0 08 1 9707-9904 ● ●
12 BOLT; FIX
M12X35 FLANGE 		0-28791-235-0 08 1 9905-9908 ● ● ●
12 BOLT; FIX
M12X35 FLANGE 		0-28791-235-0 08 1 9909- ● ● ● ●
42 SPRING; RETURN,LEVER 1-48629-071-1 01 1 9707-9904 ● ●
42 SPRING; RETURN,LEVER 1-48629-071-1 01 1 9905-9908 ● ● ●
42 SPRING; RETURN,LEVER 1-48629-071-1 01 1 9909- ● ● ● ●
47 BOLT; SUPPORT PLATE
(A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9707-9904 ● ●
47 BOLT; SUPPORT PLATE
(A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9905-9908 ● ● ●
47 BOLT; SUPPORT PLATE
(A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9909- ● ● ● ●
47 BOLT; SUPPORT PLATE
(B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 9707-9904 ● ●
47 BOLT; SUPPORT PLATE
(B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 9905-9908 ● ● ●
47 BOLT; SUPPORT PLATE
(B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 9909- ● ● ● ●
52 WASHER; PL
ID=12.5 OD=26 		9-09160-612-0 02 1 9707-9904 ● ●
52 WASHER; PL
ID=12.5 OD=26 		9-09160-612-0 02 1 9905-9908 ● ● ●
52 WASHER; PL
ID=12.5 OD=26 		9-09160-612-0 02 1 9909- ● ● ● ●
83 RETARDER ASM; PARKING BRK 1-46200-245-2 01 1 9707-9904 ● ●
83 RETARDER ASM; PARKING BRK 1-46200-245-2 01 1 9905-9908 ● ● ●
83 RETARDER ASM; PARKING BRK 1-46200-245-3 01 1 9909- ● ● ● ●
85 CONNECTOR; RETARDER
(A) 		1-48629-150-0 01 1 9707-9904 ● ●
85 CONNECTOR; RETARDER
(A) 		1-48629-150-0 01 1 9905-9908 ● ● ●
85 CONNECTOR; RETARDER
(A) 		1-48629-150-0 01 1 9909- ● ● ● ●
85 CONNECTOR; RETARDER
(B) M12 & PT1/8 		9-09224-306-2 02 1 9707-9904 ● ●
85 CONNECTOR; RETARDER
(B) M12 & PT1/8 		9-09224-306-2 02 1 9905-9908 ● ● ●
85 CONNECTOR; RETARDER
(B) M12 & PT1/8 		9-09224-306-2 02 1 9909- ● ● ● ●
87 DRUM; RETARDER,PARKING BRK 1-46210-269-1 01 1 9707-9904 ● ●
87 DRUM; RETARDER,PARKING BRK 1-46210-269-1 01 1 9905-9908 ● ● ●
87 DRUM; RETARDER,PARKING BRK 1-46210-269-3 01 1 9909- ● ● ● ●
98 CLIP; AIR PIPE 1-48629-131-0 06 1 9707-9904 ● ●
98 CLIP; AIR PIPE 1-48629-131-0 06 1 9905-9908 ● ● ●
98 CLIP; AIR PIPE 1-48629-131-0 06 1 9909- ● ● ● ●
101 BOLT; CLIP
M8X18 		1-48629-134-0 03 1 9707-9904 ● ●
101 BOLT; CLIP
M8X18 		1-48629-134-0 03 1 9905-9908 ● ● ●
101 BOLT; CLIP
M8X18 		1-48629-134-0 03 1 9909- ● ● ● ●
102 NUT; CLIP,AIR PIPE
M6 FLANGE 		5-09440-004-0 01 1 9707-9904 ● ●
102 NUT; CLIP,AIR PIPE
M6 FLANGE 		5-09440-004-0 01 1 9905-9908 ● ● ●
102 NUT; CLIP,AIR PIPE
M6 FLANGE 		5-09440-004-0 01 1 9909- ● ● ● ●
104 CONNECTOR
(A) 		1-48629-149-0 01 1 9707-9904 ● ●
104 CONNECTOR
(A) 		1-48629-149-0 01 1 9905-9908 ● ● ●
104 CONNECTOR
(A) 		1-48629-149-0 01 1 9909- ● ● ● ●
104 CONNECTOR
(B) 		1-48629-187-0 01 1 9707-9904 ● ●
104 CONNECTOR
(B) 		1-48629-187-0 01 1 9905-9908 ● ● ●
104 CONNECTOR
(B) 		1-48629-187-0 01 1 9909- ● ● ● ●
117 CYLINDER ASM; AIR
(A) 		1-48629-142-0 01 1 9707-9904 ● ●
117 CYLINDER ASM; AIR
(A) 		1-48629-142-0 01 1 9905-9908 ● ● ●
117 CYLINDER ASM; AIR
(A) 		1-48629-142-0 01 1 9909- ● ● ● ●
117 CYLINDER ASM; AIR
(B) 		1-48629-146-0 01 1 9707-9904 ● ●
117 CYLINDER ASM; AIR
(B) 		1-48629-146-0 01 1 9905-9908 ● ● ●
117 CYLINDER ASM; AIR
(B) 		1-48629-146-0 01 1 9909- ● ● ● ●
118 PIPE ASM; AIR CYL
(A) 		1-49115-875-0 01 1 9707-9904 ● ●
118 PIPE ASM; AIR CYL
(A) 		1-49115-875-0 01 1 9905-9908 ● ● ●
118 PIPE ASM; AIR CYL
(A) 		1-49115-875-0 01 1 9909- ● ● ● ●
118 PIPE ASM; AIR CYL
(C) 		1-49115-877-0 01 1 9707-9904 ● ●
118 PIPE ASM; AIR CYL
(C) 		1-49115-877-0 01 1 9905-9908 ● ● ●
118 PIPE ASM; AIR CYL
(C) 		1-49115-877-0 01 1 9909- ● ● ● ●
118 PIPE ASM; AIR CYL
(B) 		1-49118-551-0 01 1 9707-9904 ● ●
118 PIPE ASM; AIR CYL
(B) 		1-49118-551-0 01 1 9905-9908 ● ● ●
118 PIPE ASM; AIR CYL
(B) 		1-49118-551-0 01 1 9909- ● ● ● ●
119 SWITCH; THERMO 1-82450-054-0 01 1 9707-9904 ● ●
119 SWITCH; THERMO 1-82450-054-0 01 1 9905-9908 ● ● ●
119 SWITCH; THERMO 1-82450-054-0 01 1 9909- ● ● ● ●
124 CONNECTOR; FLEX HOSE 1-48629-188-0 01 1 9707-9904 ● ●
124 CONNECTOR; FLEX HOSE 1-48629-188-0 01 1 9905-9908 ● ● ●
124 CONNECTOR; FLEX HOSE 1-48629-188-0 01 1 9909- ● ● ● ●
130 BOLT; BRKT
M6X14 HEX SOCKET 		1-48629-145-0 01 1 9707-9904 ● ●
130 BOLT; BRKT
M6X14 HEX SOCKET 		1-48629-145-0 01 1 9905-9908 ● ● ●
130 BOLT; BRKT
M6X14 HEX SOCKET 		1-48629-145-0 01 1 9909- ● ● ● ●
134 REPAIR KIT; AIR CYL
(A) 		1-48629-137-0 01 1 9707-9904 ● ●
134 REPAIR KIT; AIR CYL
(A) 		1-48629-137-0 01 1 9905-9908 ● ● ●
134 REPAIR KIT; AIR CYL
(A) 		1-48629-137-0 01 1 9909- ● ● ● ●
134 REPAIR KIT; AIR CYL
(B) 		1-48629-138-0 01 1 9707-9904 ● ●
134 REPAIR KIT; AIR CYL
(B) 		1-48629-138-0 01 1 9905-9908 ● ● ●
134 REPAIR KIT; AIR CYL
(B) 		1-48629-138-0 01 1 9909- ● ● ● ●
140 BOLT
(A) M10X20 		1-48629-070-0 04 1 9707-9904 ● ●
140 BOLT
(A) M10X20 		1-48629-070-0 04 1 9905-9908 ● ● ●
140 BOLT
(A) M10X20 		1-48629-070-0 04 1 9909- ● ● ● ●
140 BOLT
(B) 		1-48629-104-0 03 1 9707-9904 ● ●
140 BOLT
(B) 		1-48629-104-0 03 1 9905-9908 ● ● ●
140 BOLT
(B) 		1-48629-104-0 03 1 9909- ● ● ● ●
140 BOLT
(C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9707-9904 ● ●
140 BOLT
(C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9905-9908 ● ● ●
140 BOLT
(C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9909- ● ● ● ●
140 BOLT
(D) 		1-48629-148-0 04 1 9707-9904 ● ●
140 BOLT
(D) 		1-48629-148-0 04 1 9905-9908 ● ● ●
140 BOLT
(D) 		1-48629-148-0 04 1 9909- ● ● ● ●
141 BRACKET 1-48629-111-2 01 1 9707-9904 ● ●
141 BRACKET 1-48629-111-2 01 1 9905-9908 ● ● ●
141 BRACKET 1-48629-111-2 01 1 9909- ● ● ● ●
142 SCREW
M5X10 PAN-HD 		9-93490-510-0 11 1 9707-9904 ● ●
142 SCREW
M5X10 PAN-HD 		9-93490-510-0 11 1 9905-9908 ● ● ●
142 SCREW
M5X10 PAN-HD 		9-93490-510-0 11 1 9909- ● ● ● ●
144 NUT
M12 		9-09840-280-0 04 1 9707-9904 ● ●
144 NUT
M12 		9-09840-280-0 04 1 9905-9908 ● ● ●
144 NUT
M12 		9-09840-280-0 04 1 9909- ● ● ● ●
155 TUBE
(A) 		1-48629-092-0 01 1 9707-9904 ● ●
155 TUBE
(A) 		1-48629-092-0 01 1 9905-9908 ● ● ●
155 TUBE
(A) 		1-48629-092-0 01 1 9909- ● ● ● ●
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9707-9708 ● ●
165 LINK; RETARDER
(A) 		1-48629-140-0 01 1 9707-9904 ● ●
165 LINK; RETARDER
(A) 		1-48629-140-0 01 1 9905-9908 ● ● ●
165 LINK; RETARDER
(A) 		1-48629-140-0 01 1 9909- ● ● ● ●
165 LINK; RETARDER
(B) 		1-48629-141-0 01 1 9707-9904 ● ●
165 LINK; RETARDER
(B) 		1-48629-141-0 01 1 9905-9908 ● ● ●
165 LINK; RETARDER
(B) 		1-48629-141-0 01 1 9909- ● ● ● ●
166 ATTACHMENT; YOKE
(A) 		1-48629-066-0 01 1 9707-9904 ● ●
166 ATTACHMENT; YOKE
(A) 		1-48629-066-0 01 1 9905-9908 ● ● ●
166 ATTACHMENT; YOKE
(A) 		1-48629-066-0 01 1 9909- ● ● ● ●
166 ATTACHMENT; YOKE
(B) 		1-48629-067-0 01 1 9707-9904 ● ●
166 ATTACHMENT; YOKE
(B) 		1-48629-067-0 01 1 9905-9908 ● ● ●
166 ATTACHMENT; YOKE
(B) 		1-48629-067-0 01 1 9909- ● ● ● ●
167 STOPPER; LINKAGE
(A) 		1-48629-069-0 02 1 9707-9904 ● ●
167 STOPPER; LINKAGE
(A) 		1-48629-069-0 02 1 9905-9908 ● ● ●
167 STOPPER; LINKAGE
(A) 		1-48629-069-0 02 1 9909- ● ● ● ●
167 STOPPER; LINKAGE
(B) 		1-48629-127-0 02 1 9707-9904 ● ●
167 STOPPER; LINKAGE
(B) 		1-48629-127-0 02 1 9905-9908 ● ● ●
167 STOPPER; LINKAGE
(B) 		1-48629-127-0 02 1 9909- ● ● ● ●
168 PROTECTOR; HEAT 1-48629-190-0 02 1 9707-9904 ● ●
168 PROTECTOR; HEAT 1-48629-190-0 02 1 9905-9908 ● ● ●
168 PROTECTOR; HEAT 1-48629-190-0 02 1 9909- ● ● ● ●
169 CLAMP 1-48629-126-0 01 1 9707-9904 ● ●
169 CLAMP 1-48629-126-0 01 1 9905-9908 ● ● ●
169 CLAMP 1-48629-126-0 01 1 9909- ● ● ● ●
170 COVER; CASE
(A) 		1-48629-063-0 01 1 9707-9904 ● ●
170 COVER; CASE
(A) 		1-48629-063-0 01 1 9905-9908 ● ● ●
170 COVER; CASE
(A) 		1-48629-063-0 01 1 9909- ● ● ● ●
170 COVER; CASE
(B) 		1-48629-240-0 01 1 9707-9904 ● ●
170 COVER; CASE
(B) 		1-48629-240-0 01 1 9905-9908 ● ● ●
170 COVER; CASE
(B) 		1-48629-240-0 01 1 9909- ● ● ● ●
171 BREATHER 1-48629-144-0 01 1 9707-9904 ● ●
171 BREATHER 1-48629-144-0 01 1 9905-9908 ● ● ●
171 BREATHER 1-48629-144-0 01 1 9909- ● ● ● ●
174 BOLT; SWITCH
M6X10 HEX SOCKET 		1-48629-133-0 02 1 9707-9904 ● ●
174 BOLT; SWITCH
M6X10 HEX SOCKET 		1-48629-133-0 02 1 9905-9908 ● ● ●
174 BOLT; SWITCH
M6X10 HEX SOCKET 		1-48629-133-0 02 1 9909- ● ● ● ●
