1-41 — FUEL PIPING; CHASSIS (#57908) — 169 parça

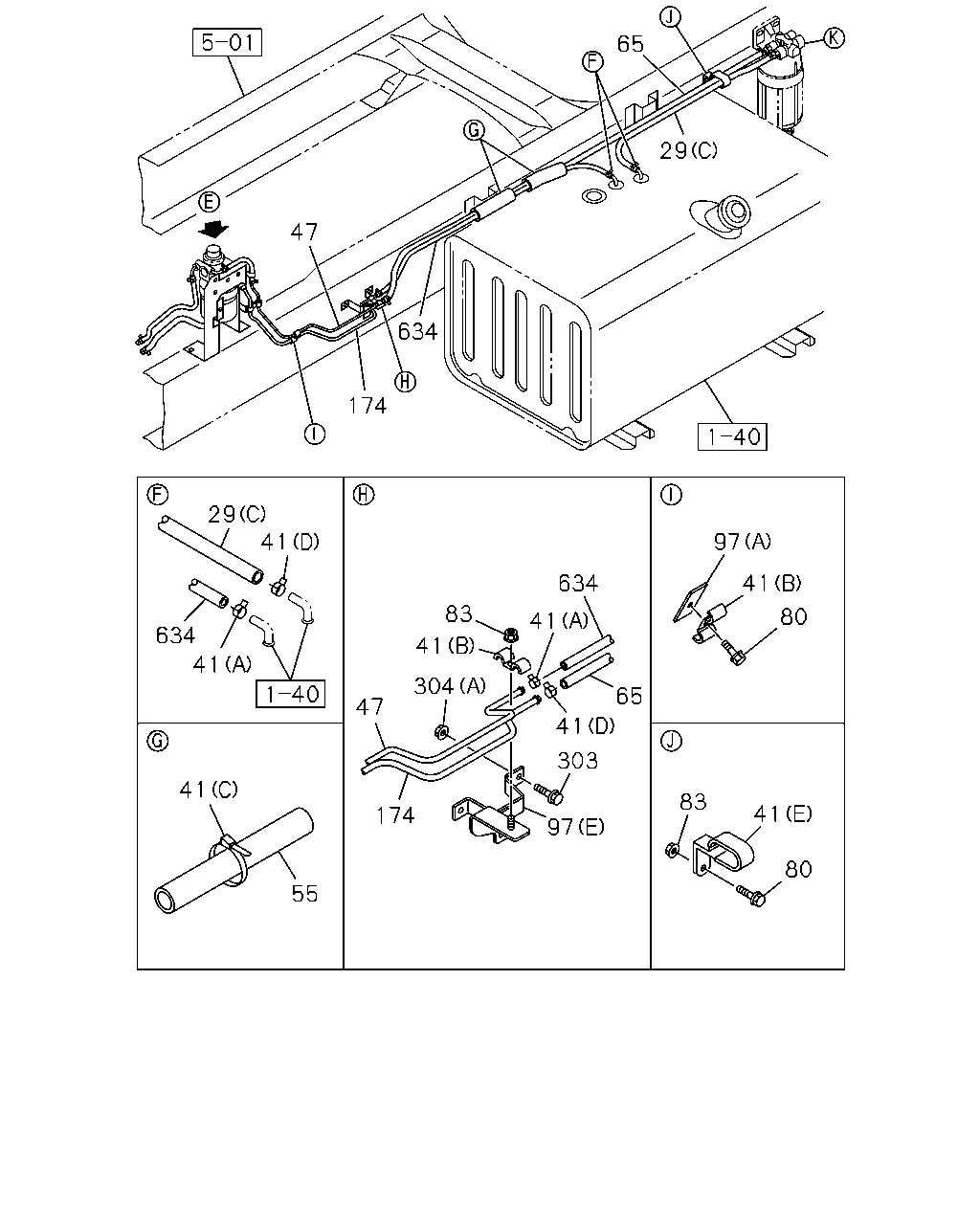

çizim 171670
47 174 634 65 29 29 41 634 41 41 55 174 47 304 41 83 634 41 65 41 303 97 97 41 80 83 41 80
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=730 		8-98232-243-0 01 1 1307- ●
29 HOSE; FUEL
(C) 		8-98232-373-0 01 1 1307- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010-1408 ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1409- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=24 & 24 L=49 		1-09701-018-0 01 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
L=688 		8-98129-921-0 01 1 1307- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1010-1306 ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1307- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=860 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE
L=1380 		8-98232-240-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1600 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE 8-98232-242-0 01 1 1307- ●
80 BOLT; CLIP,FUEL TANK
M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1010- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1010- ● ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 1010-1306 ● ●
97 BRACKET; CLIP
(E) 		8-98129-922-0 01 1 1307- ● ●
97 BRACKET; CLIP
(D) L=68.5 		1-47475-591-0 01 1 1010-1306 ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
303 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ●
634 HOSE; RUBBER RETURN
L=810 		8-98186-973-0 01 1 1307- ●
634 HOSE; RUBBER RETURN
L=1600 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ●
634 HOSE; RUBBER RETURN
L=1550 		8-98232-245-0 01 1 1307- ●

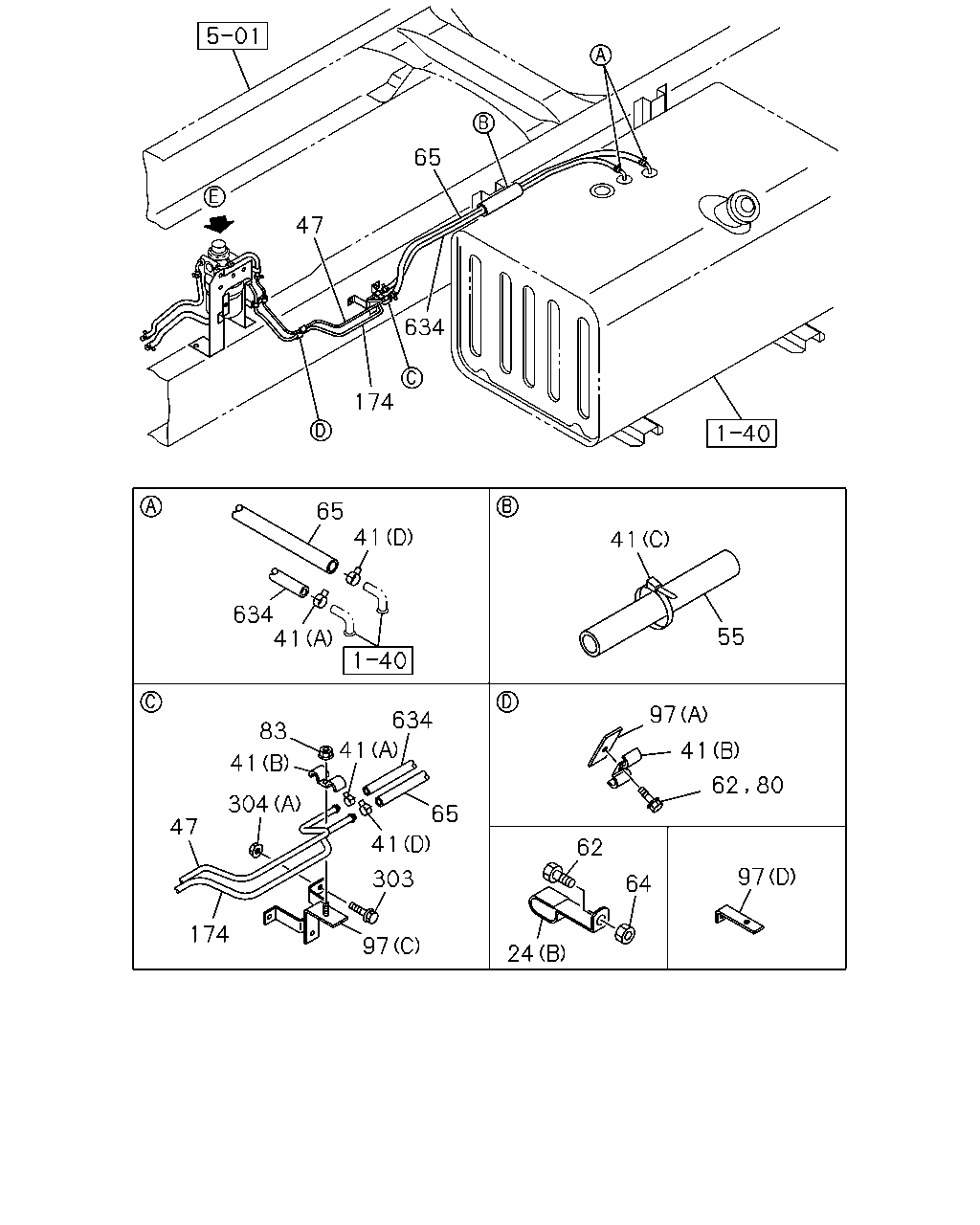

çizim 171724
47 65 634 174 65 41 634 41 41 55 97 41 62 80 97 62 64 83 634 41 65 41 303 97 41 304 47 174 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(B) ID=20 L=70 		1-09701-033-0 01 1 1010-1306 ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1010-1306 ●
24 CLIP; FUEL HOSE
(A) ID=15 & 19 H=33 L=25 		1-09701-317-0 02 1 1307- ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=24 & 24 L=49 		1-09701-018-0 01 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
L=688 		8-98129-921-0 01 1 1307- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1010-1306 ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1307- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ●
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ●
64 NUT; CLIP
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE
L=860 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE
L=1380 		8-98232-240-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1600 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE 8-98232-242-0 01 1 1307- ●
80 BOLT; CLIP,FUEL TANK
M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1010- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1010- ● ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 1010-1306 ● ●
97 BRACKET; CLIP
(E) 		8-98129-922-0 01 1 1307- ● ●
97 BRACKET; CLIP
(D) L=68.5 		1-47475-591-0 01 1 1010-1306 ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
303 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ●
634 HOSE; RUBBER RETURN
L=810 		8-98186-973-0 01 1 1307- ●
634 HOSE; RUBBER RETURN
L=1600 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ●
634 HOSE; RUBBER RETURN
L=1550 		8-98232-245-0 01 1 1307- ●
çizim 362686
279 345 228 345 39 41 29 39 41 65 304
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=730 		8-98232-243-0 01 1 1307- ●
29 HOSE; FUEL
(C) 		8-98232-373-0 01 1 1307- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010-1408 ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1409- ● ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=24 & 24 L=49 		1-09701-018-0 01 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=860 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE
L=1380 		8-98232-240-0 01 1 1307- ●
65 HOSE; FUEL,DELIVERY PIPE
L=1600 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ●
65 HOSE; FUEL,DELIVERY PIPE 8-98232-242-0 01 1 1307- ●
228 BOLT; BRKT,SEDIMENTER
(B) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1010-1306 ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1307- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1307- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1307- ● ●

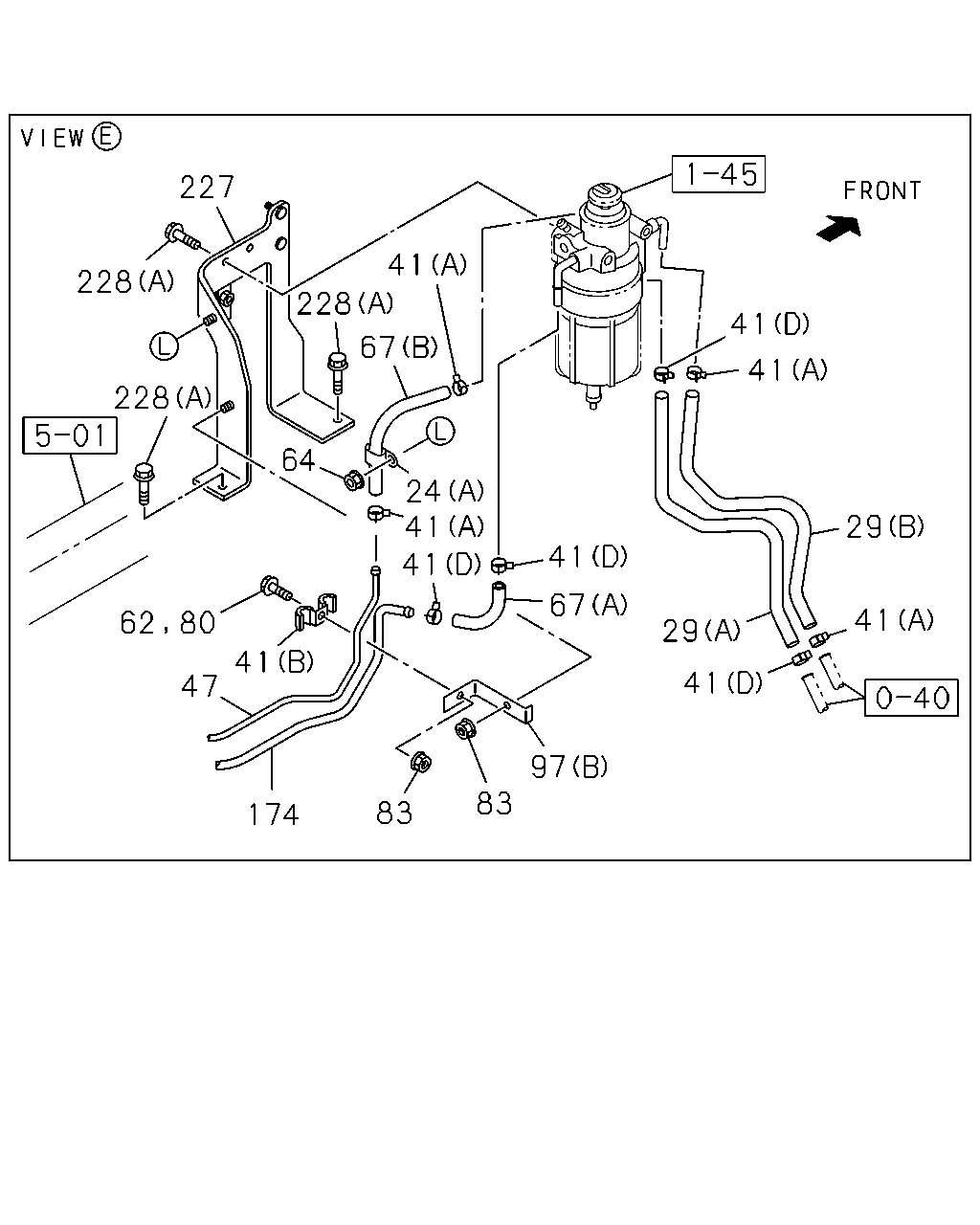

çizim 362762
227 228 228 228 41 67 64 62 80 47 41 174 83 83 97 67 41 29 41 41 29 41 41 24 41 41
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
(B) ID=20 L=70 		1-09701-033-0 01 1 1010-1306 ●
24 CLIP; FUEL HOSE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1010-1306 ●
24 CLIP; FUEL HOSE
(A) ID=15 & 19 H=33 L=25 		1-09701-317-0 02 1 1307- ●
29 HOSE; FUEL
(C) L=730 		8-98232-243-0 01 1 1307- ●
29 HOSE; FUEL
(C) 		8-98232-373-0 01 1 1307- ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010-1408 ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1409- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=24 & 24 L=49 		1-09701-018-0 01 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 03 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) L=250 		5-09707-030-1 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
47 PIPE; FUEL,RETURN
L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
L=688 		8-98129-921-0 01 1 1307- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ●
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ●
64 NUT; CLIP
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1010- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01859-300-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1010- ● ●
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1010- ● ●
97 BRACKET; CLIP
(C) 		8-98076-024-0 01 1 1010-1306 ● ●
97 BRACKET; CLIP
(E) 		8-98129-922-0 01 1 1307- ● ●
97 BRACKET; CLIP
(D) L=68.5 		1-47475-591-0 01 1 1010-1306 ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1010-1306 ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1307- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1010-1306 ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1307- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
