1-31 — AIR DUCT (#57905) — 126 parça

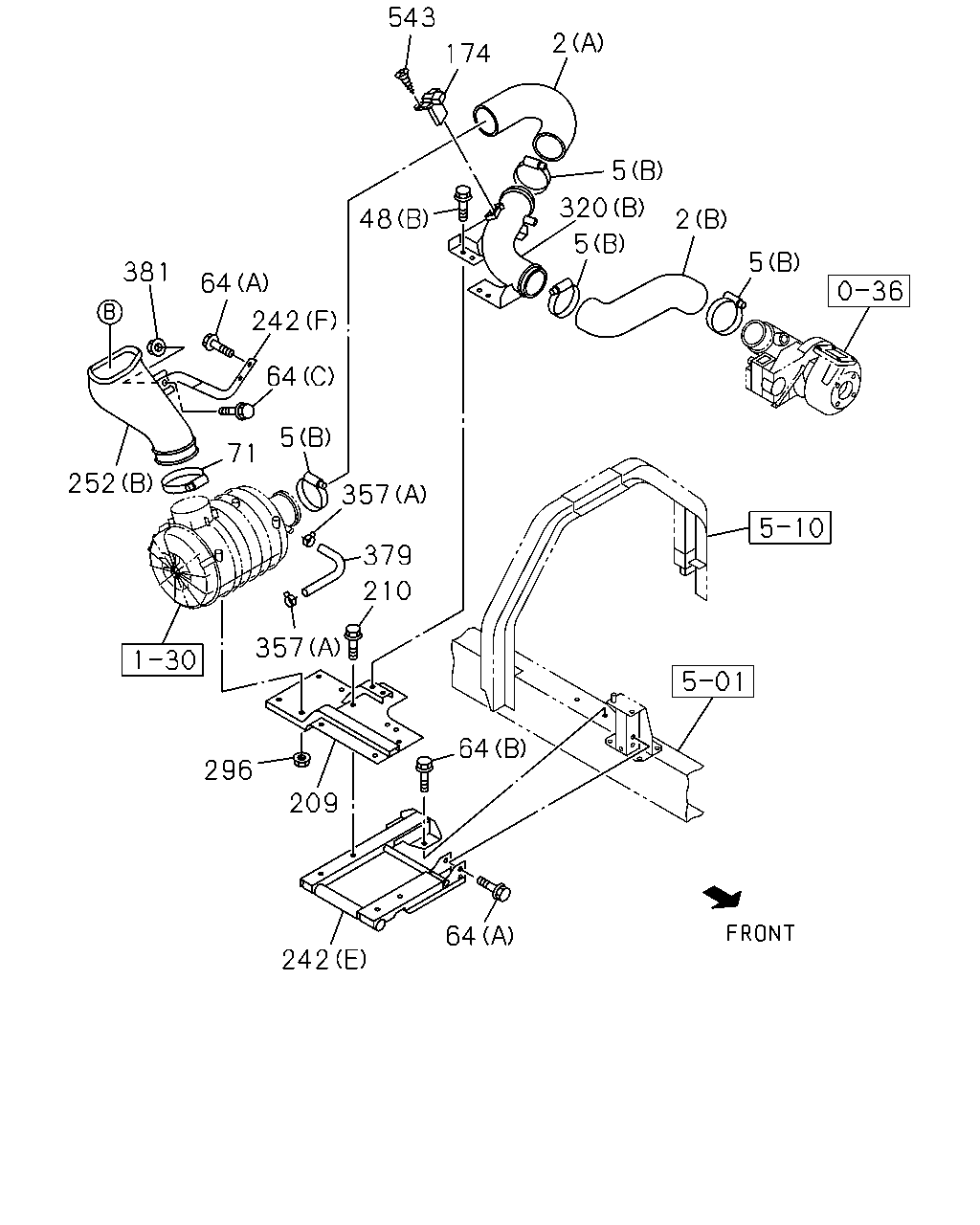

çizim 171695
543 2 5 320 5 2 5 381 242 64 64 5 71 252 357 379 210 357 296 209 64 64 242 174 48
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL
DBL CAB(FG**W*) (A) 		8-98050-682-0 01 1 1010-
2 HOSE; ACL
DBL CAB(FG**W*) (B) 		8-98068-254-0 01 1 1010-
5 CLIP; AIR DUCT
SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1110-1306
5 CLIP; AIR DUCT
SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1110-1306
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1010-1109
5 CLIP; AIR DUCT
SGL CAB(FG**M*) (A) ID=104-142 		1-09707-139-0 01 1 1010-1109
5 CLIP; AIR DUCT
SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1110-1306
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 01 1 1110-1306
5 CLIP; AIR DUCT
SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1110-1306
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-
5 CLIP; AIR DUCT
SGL CAB(FG**M*) (A) ID=104-142 		1-09707-139-0 01 1 1307-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1010-
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 03 1 1010-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1010-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1010-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (A) M10X25 FLANGE 		0-28651-025-0 05 1 1010-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (B) M10X35 FLANGE 		0-28651-035-0 02 1 1010-
64 BOLT; BRKT,AIR DUCT
DBL CAB(FG**W*) (C) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1010-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1010-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1010-
209 BRACKET; ACL
SGL CAB(FG**M*) 		8-98021-995-1 01 1 1010-
209 BRACKET; ACL
DBL CAB(FG**W*) 		8-98089-455-1 01 1 1010-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1010-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1010-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 1010-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 1010-
252 DUCT; AIR INT
SGL CAB(FG**M*) (A) 		8-98012-861-1 01 1 1010-
252 DUCT; AIR INT
DBL CAB(FG**W*) (B) 		8-98050-681-0 01 1 1010-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1010-
320 HOSE; CONN,ACL
SGL CAB(FG**M*) (A) 		8-98012-859-2 01 1 1010-
320 HOSE; CONN,ACL
DBL CAB(FG**W*) (B) 		8-98092-944-1 01 1 1010-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1307-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1010-
379 HOSE; RUBBER
SGL CAB(FG**M*) 		8-98077-469-0 01 1 1010-
379 HOSE; RUBBER
DBL CAB(FG**W*) 		8-98081-489-0 01 1 1010-
381 NUT; BRKT,AIR DUCT
DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 01 1 1010-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1010-

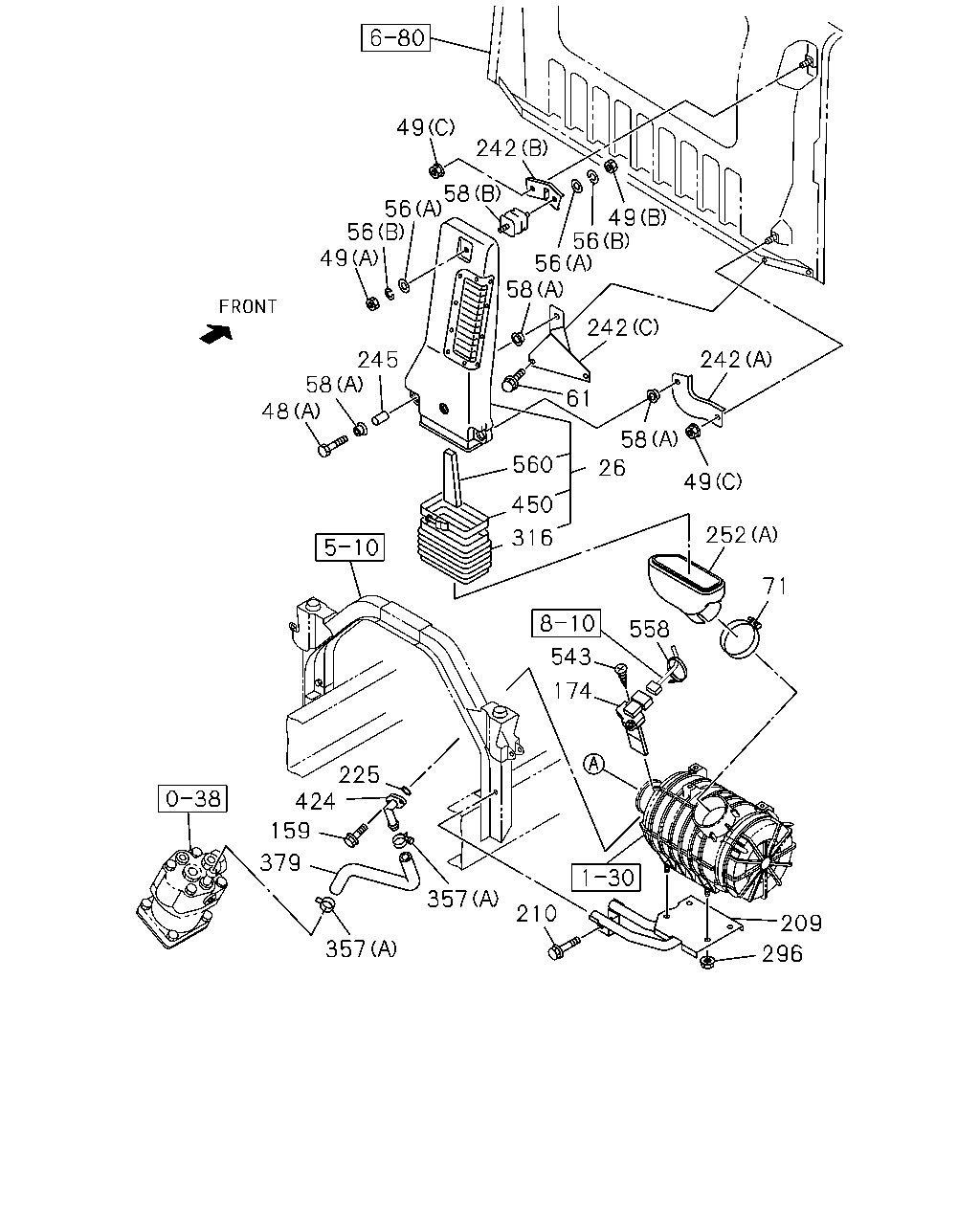

çizim 171717
49 242 49 56 56 58 242 242 61 58 26 49 252 71 558 543 174 209 296 210 357 357 379 159 424 225 316 450 560 48 58 245 49 56 56 58
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1010-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1010-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1010-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1010-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1010-
49 NUT; AIR DUCT
SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1010-
49 NUT; AIR DUCT
DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1010-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1010-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1010-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1010-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1010-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1010-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1010-
159 BOLT; AIR PIPE
SGL CAB(FG**M*) M6X16 FLANGE 		0-28050-616-0 02 1 1010-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1010-
209 BRACKET; ACL
SGL CAB(FG**M*) 		8-98021-995-1 01 1 1010-
209 BRACKET; ACL
DBL CAB(FG**W*) 		8-98089-455-1 01 1 1010-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1010-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1010-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1010-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 1010-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 1010-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1010-
252 DUCT; AIR INT
SGL CAB(FG**M*) (A) 		8-98012-861-1 01 1 1010-
252 DUCT; AIR INT
DBL CAB(FG**W*) (B) 		8-98050-681-0 01 1 1010-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1010-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1010-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1307-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1010-
379 HOSE; RUBBER
SGL CAB(FG**M*) 		8-98077-469-0 01 1 1010-
379 HOSE; RUBBER
DBL CAB(FG**W*) 		8-98081-489-0 01 1 1010-
424 PIPE; AIR,INL
SGL CAB(FG**M*) 		8-98081-834-0 01 1 1010-
450 CLAMP; HOSE 9-09915-504-1 01 1 1010-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1010-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1010-1306
558 CLIP; AIR FLOW SENSOR
SGL CAB(FG**M*) L=250 		5-09707-030-1 02 1 1010-1306
558 CLIP; AIR FLOW SENSOR
DBL CAB(FG**W*) L=250 		5-09707-030-1 01 1 1010-1306
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1307-
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 1010-1306

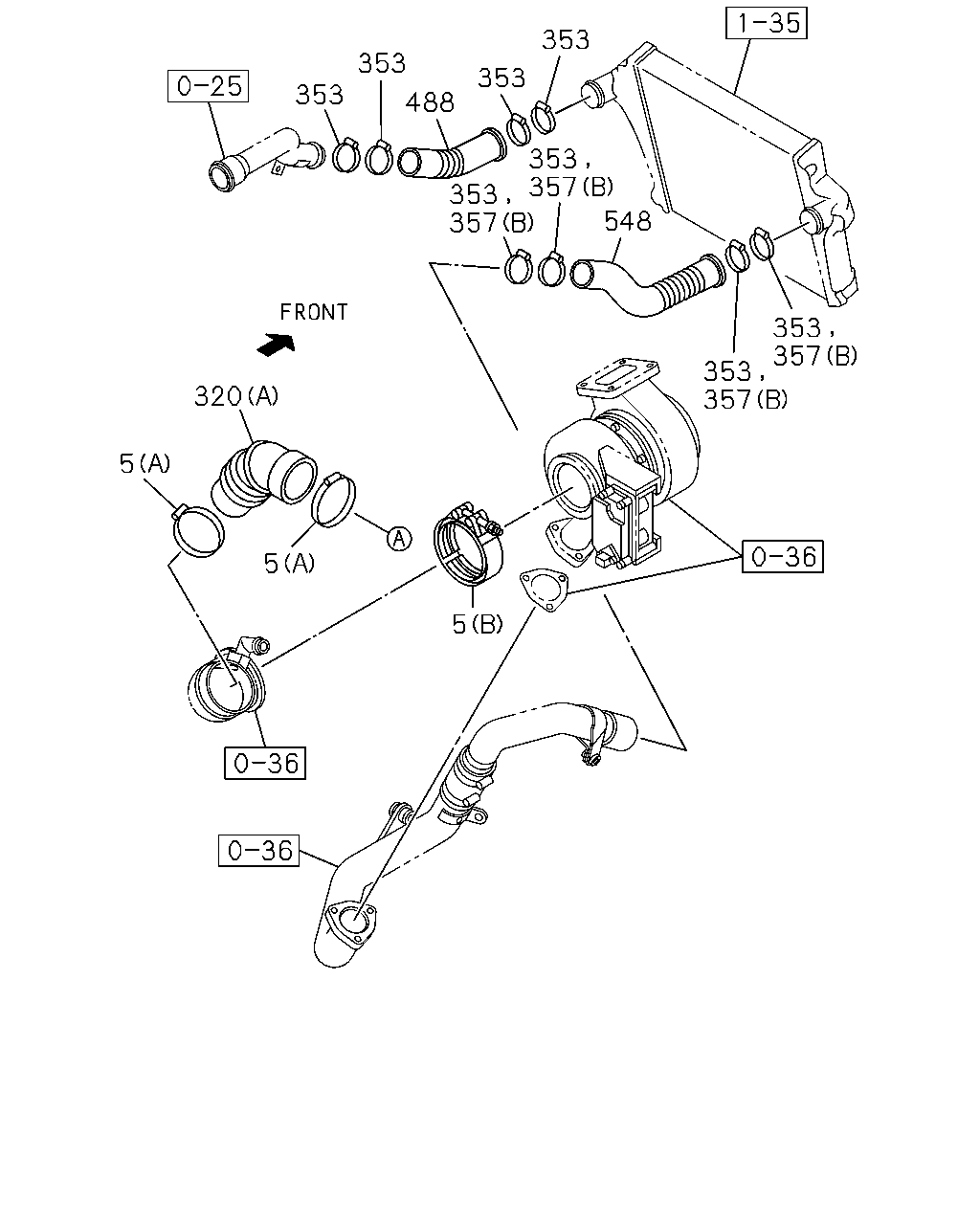

çizim 171718
353 353 353 353 488 353 353 548 357 357 353 353 357 357 5 320 5 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1110-1306
5 CLIP; AIR DUCT
SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1110-1306
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1010-1109
5 CLIP; AIR DUCT
SGL CAB(FG**M*) (A) ID=104-142 		1-09707-139-0 01 1 1010-1109
5 CLIP; AIR DUCT
SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1110-1306
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 01 1 1110-1306
5 CLIP; AIR DUCT
SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1110-1306
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1307-
5 CLIP; AIR DUCT
SGL CAB(FG**M*) (A) ID=104-142 		1-09707-139-0 01 1 1307-
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1010-
5 CLIP; AIR DUCT
DBL CAB(FG**W*) (A) ID=104-142 		1-09707-139-0 03 1 1010-
320 HOSE; CONN,ACL
SGL CAB(FG**M*) (A) 		8-98012-859-2 01 1 1010-
320 HOSE; CONN,ACL
DBL CAB(FG**W*) (B) 		8-98092-944-1 01 1 1010-
353 CLIP; RUBBER HOSE
SGL CAB(FG**M*) KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1110-1306
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 08 1 1010-1109
353 CLIP; RUBBER HOSE
SGL CAB(FG**M*) EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1110-1306
353 CLIP; RUBBER HOSE
DBL CAB(FG**W*) ID=58-79 		1-09707-136-0 08 1 1110-1306
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1307-
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1307-
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1010-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1010-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1010-

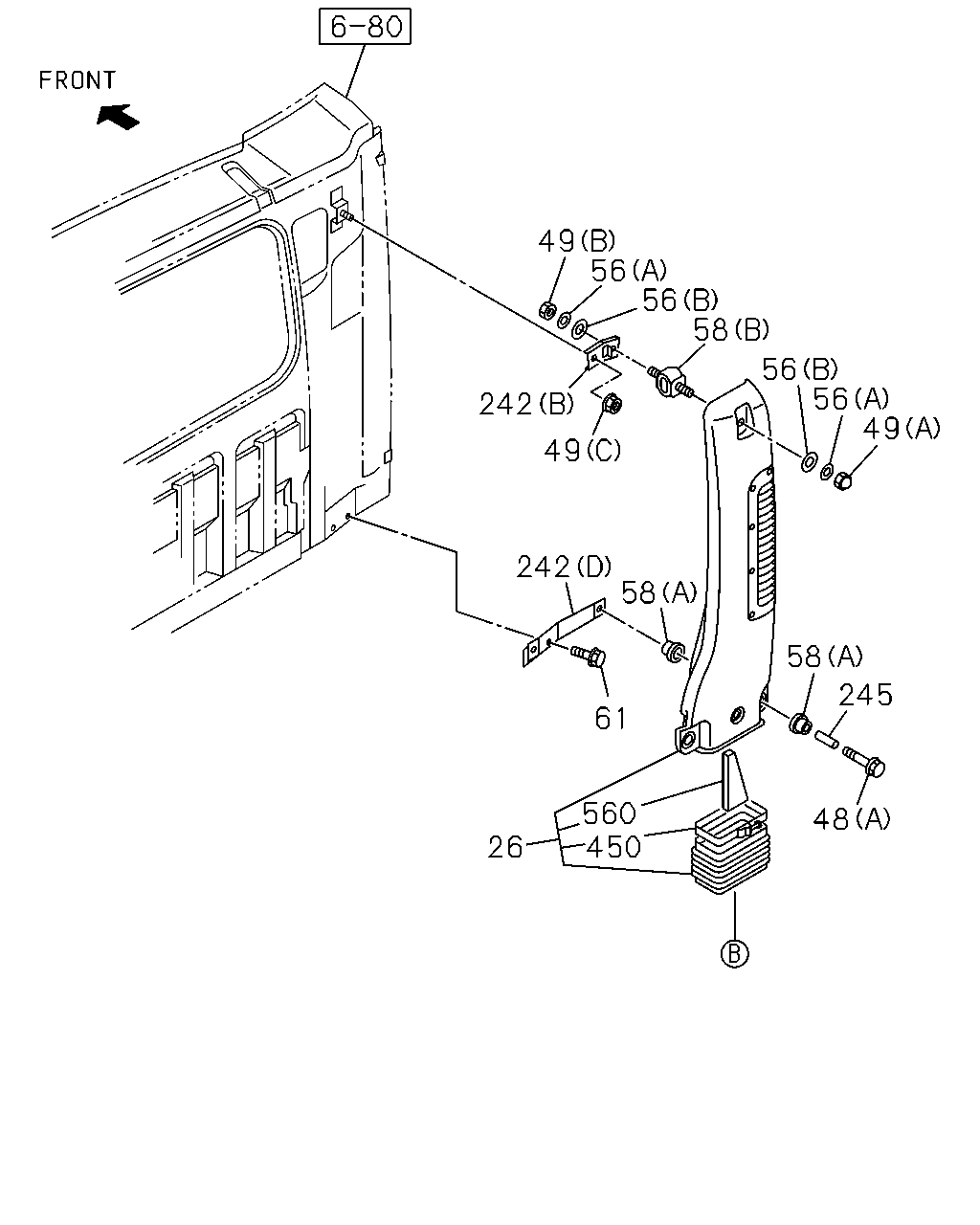

çizim 171719
26 450 560 48 61 245 58 58 242 49 56 56 49 242 58 56 56 49
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1010-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1010-
48 BOLT; AIR DUCT
DBL CAB(FG**W*) (B) M10X25 FLANGE 		0-28651-025-0 04 1 1010-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1010-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1010-
49 NUT; AIR DUCT
SGL CAB(FG**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1010-
49 NUT; AIR DUCT
DBL CAB(FG**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1010-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1010-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1010-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1010-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1010-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1010-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1010-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (C) 		8-98019-302-1 01 1 1010-
242 BRACKET; AIR DUCT
SGL CAB(FG**M*) (A) 		8-98019-304-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (D) 		8-98050-679-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (E) 		8-98089-457-1 01 1 1010-
242 BRACKET; AIR DUCT
DBL CAB(FG**W*) (F) 		8-98092-772-0 01 1 1010-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1010-
450 CLAMP; HOSE 9-09915-504-1 01 1 1010-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1307-
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 1010-1306
