0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#57898) — 95 parça

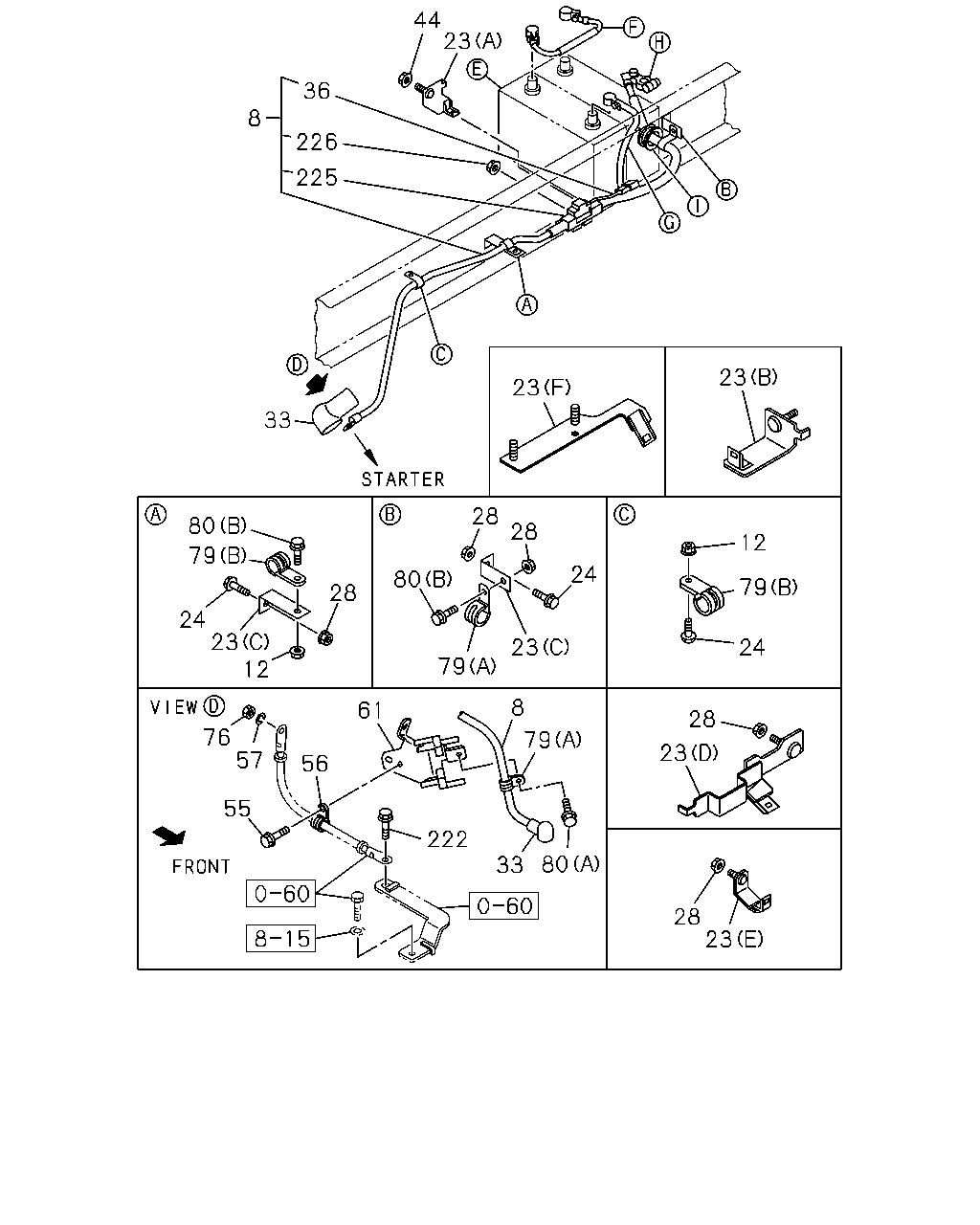

23 44 8 36 226 225 33 23 23 80 79 24 23 12 28 28 28 80 24 79 12 23 79 24 76 57 56 55 61 8 79 222 33 80 28 23 28 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA>	8-98159-397-0	01	1	1010-1109	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98159-397-0	01	1	1110-1502	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98295-498-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1010-1109	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1110-1502	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-482-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98159-417-0	01	1	1010-1306		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA>	8-98159-417-0	01	1	1307-1502		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA>	8-98295-517-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-416-0	01	1	1010-1306		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-416-0	01	1	1307-1502		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-516-0	01	1	1503-		●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1010-1109	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1110-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1010-		●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (C) L=95	1-82699-085-0	01	1	1010-1109	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1110-1306	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1307-1308	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1307-1308	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1309-	●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98085-160-4	01	1	1010-1111	●
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98201-025-0	01	1	1112-1306	●
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98201-025-0	01	1	1307-1404	●	●
23	BRACKET; CABLE CLIP TO FRAME (F)	8-98201-025-0	01	1	1405-	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1010-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1010-1306		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1307-1308		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1307-1308		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1309-		●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-97612-957-1	01	1	1010-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98091-358-0	01	1	1010-		●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	01	1	1010-1109	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1110-	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1010-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1010-1109	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1010-1109	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1010-1109		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1110-1111	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1110-1111	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1306	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1306	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1306	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1307-1308	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1307-1308	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1309-	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	01	1	1307-		●
28	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	1010-1306		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	1010-	●	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1010-1502	●	●
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-	●	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1010-	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1010-	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1010-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) ID=21 L=24	8-98019-191-0	01	1	1010-1109	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	1110-	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1010-	●	●
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	02	1	1010-		●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1010-1109	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1110-	●
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-		●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1010-	●	●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1010-1502	●	●
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-	●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1010-1502	●	●
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-	●	●

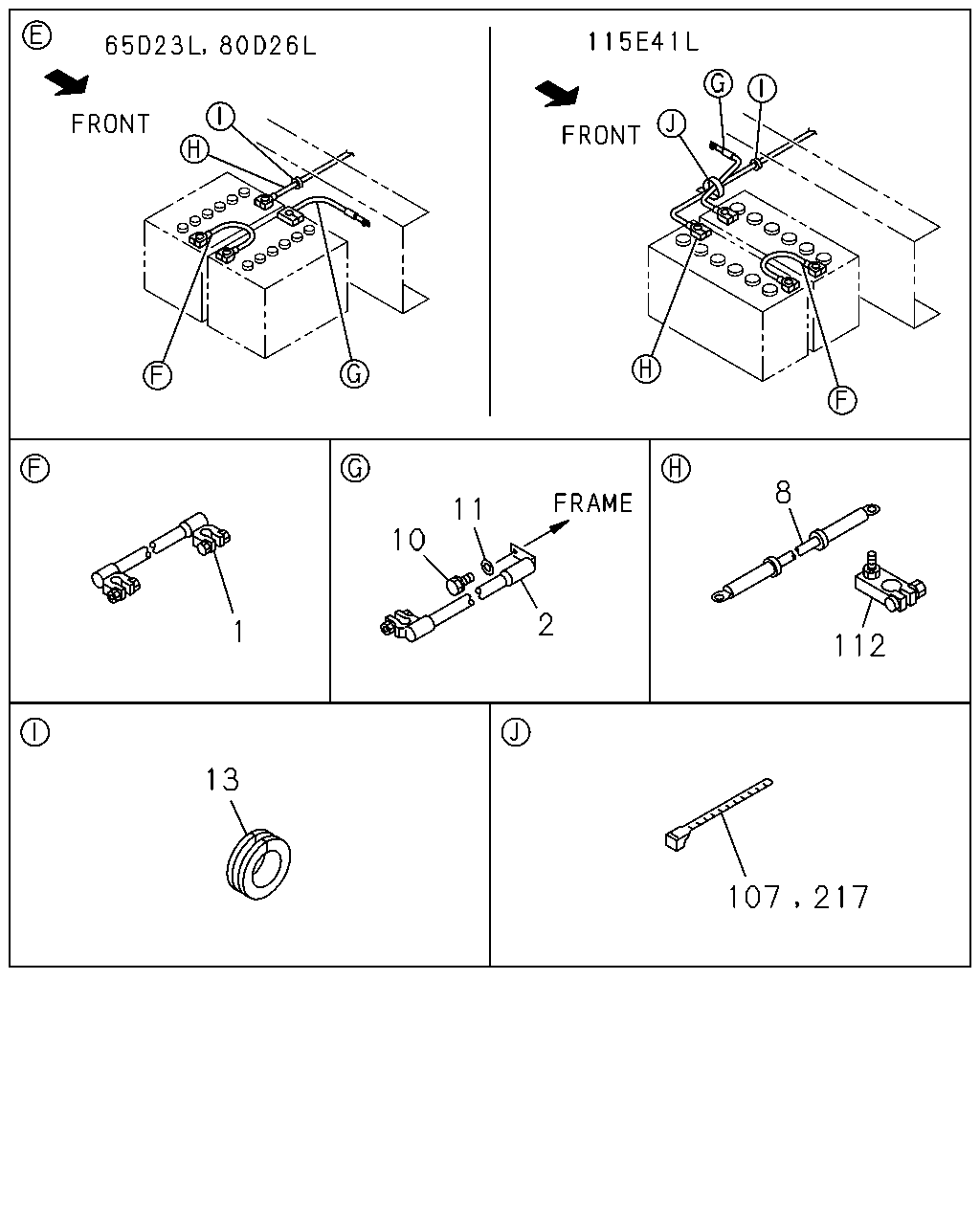

1 10 11 2 112 8 13 107 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1010-	●	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	1010-	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1010-	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA>	8-98159-397-0	01	1	1010-1109	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98159-397-0	01	1	1110-1502	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98295-498-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1010-1109	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1110-1502	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-482-0	01	1	1503-	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA>	8-98159-417-0	01	1	1010-1306		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA>	8-98159-417-0	01	1	1307-1502		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA>	8-98295-517-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-416-0	01	1	1010-1306		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-416-0	01	1	1307-1502		●
8	CABLE; BATTERY,STARTER WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-516-0	01	1	1503-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1010-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1010-1306	●	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1307-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1010-	●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1010-1408	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-	●	●
217	CLIP; BAND,CABLE WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	02	1	1010-1109	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	1110-	●
