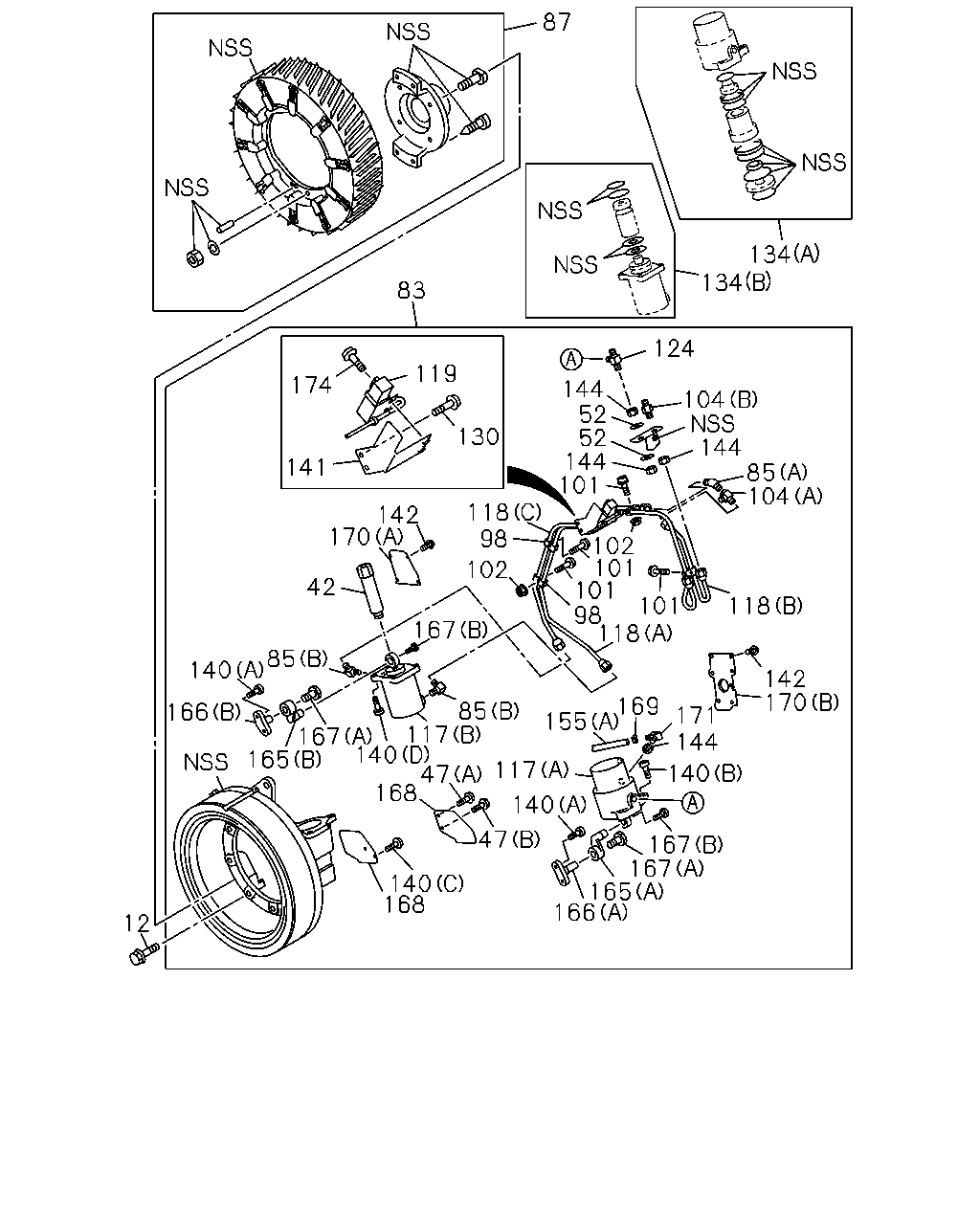

3-08A — PARKING BRAKE (#5789) — 132 parça

87 134 134 83 124 119 174 144 52 52 144 101 104 144 85 104 130 141 118 98 142 170 102 101 101 101 98 118 102 42 118 167 85 171 144 140 142 170 169 85 167 117 140 165 47 168 166 155 117 140 140 47 167 167 165 166 140 168 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX SHORT CHASSIS&RHD(EXZ5MC) M12X35 FLANGE	0-28791-235-0	08	1	9707-9904	●	●
12	BOLT; FIX SHORT CHASSIS&RHD(EXZ5MC) M12X35 FLANGE	0-28791-235-0	08	1	9905-9908	●	●
12	BOLT; FIX SHORT CHASSIS&RHD(EXZ5MC) M12X35 FLANGE	0-28791-235-0	08	1	9909-	●	●
42	SPRING; RETURN,LEVER SHORT CHASSIS&RHD(EXZ5MC)	1-48629-071-1	01	1	9707-9904	●	●
42	SPRING; RETURN,LEVER SHORT CHASSIS&RHD(EXZ5MC)	1-48629-071-1	01	1	9905-9908	●	●
42	SPRING; RETURN,LEVER SHORT CHASSIS&RHD(EXZ5MC)	1-48629-071-1	01	1	9909-	●	●
47	BOLT; SUPPORT PLATE SHORT CHASSIS&RHD(EXZ5MC) (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	9707-9904	●	●
47	BOLT; SUPPORT PLATE SHORT CHASSIS&RHD(EXZ5MC) (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	9905-9908	●	●
47	BOLT; SUPPORT PLATE SHORT CHASSIS&RHD(EXZ5MC) (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	9909-	●	●
47	BOLT; SUPPORT PLATE SHORT CHASSIS&RHD(EXZ5MC) (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	9707-9904	●	●
47	BOLT; SUPPORT PLATE SHORT CHASSIS&RHD(EXZ5MC) (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	9905-9908	●	●
47	BOLT; SUPPORT PLATE SHORT CHASSIS&RHD(EXZ5MC) (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	9909-	●	●
52	WASHER; PL SHORT CHASSIS&RHD(EXZ5MC) ID=12.5 OD=26	9-09160-612-0	02	1	9707-9904	●	●
52	WASHER; PL SHORT CHASSIS&RHD(EXZ5MC) ID=12.5 OD=26	9-09160-612-0	02	1	9905-9908	●	●
52	WASHER; PL SHORT CHASSIS&RHD(EXZ5MC) ID=12.5 OD=26	9-09160-612-0	02	1	9909-	●	●
83	RETARDER ASM; PARKING BRK SHORT CHASSIS&RHD(EXZ5MC)	1-46200-245-2	01	1	9707-9904	●	●
83	RETARDER ASM; PARKING BRK SHORT CHASSIS&RHD(EXZ5MC)	1-46200-245-2	01	1	9905-9908	●	●
83	RETARDER ASM; PARKING BRK SHORT CHASSIS&RHD(EXZ5MC)	1-46200-245-3	01	1	9909-	●	●
85	CONNECTOR; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-150-0	01	1	9707-9904	●	●
85	CONNECTOR; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-150-0	01	1	9905-9908	●	●
85	CONNECTOR; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-150-0	01	1	9909-	●	●
85	CONNECTOR; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/8	9-09224-306-2	02	1	9707-9904	●	●
85	CONNECTOR; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/8	9-09224-306-2	02	1	9905-9908	●	●
85	CONNECTOR; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (B) M12 & PT1/8	9-09224-306-2	02	1	9909-	●	●
87	DRUM; RETARDER,PARKING BRK SHORT CHASSIS&RHD(EXZ5MC)	1-46210-269-1	01	1	9707-9904	●	●
87	DRUM; RETARDER,PARKING BRK SHORT CHASSIS&RHD(EXZ5MC)	1-46210-269-1	01	1	9905-9908	●	●
87	DRUM; RETARDER,PARKING BRK SHORT CHASSIS&RHD(EXZ5MC)	1-46210-269-3	01	1	9909-	●	●
98	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC)	1-48629-131-0	06	1	9707-9904	●	●
98	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC)	1-48629-131-0	06	1	9905-9908	●	●
98	CLIP; AIR PIPE SHORT CHASSIS&RHD(EXZ5MC)	1-48629-131-0	06	1	9909-	●	●
101	BOLT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X18	1-48629-134-0	03	1	9707-9904	●	●
101	BOLT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X18	1-48629-134-0	03	1	9905-9908	●	●
101	BOLT; CLIP SHORT CHASSIS&RHD(EXZ5MC) M8X18	1-48629-134-0	03	1	9909-	●	●
102	NUT; CLIP,AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) M6 FLANGE	5-09440-004-0	01	1	9707-9904	●	●
102	NUT; CLIP,AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) M6 FLANGE	5-09440-004-0	01	1	9905-9908	●	●
102	NUT; CLIP,AIR PIPE SHORT CHASSIS&RHD(EXZ5MC) M6 FLANGE	5-09440-004-0	01	1	9909-	●	●
104	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-149-0	01	1	9707-9904	●	●
104	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-149-0	01	1	9905-9908	●	●
104	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-149-0	01	1	9909-	●	●
104	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-187-0	01	1	9707-9904	●	●
104	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-187-0	01	1	9905-9908	●	●
104	CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-187-0	01	1	9909-	●	●
117	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-142-0	01	1	9707-9904	●	●
117	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-142-0	01	1	9905-9908	●	●
117	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-142-0	01	1	9909-	●	●
117	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-146-0	01	1	9707-9904	●	●
117	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-146-0	01	1	9905-9908	●	●
117	CYLINDER ASM; AIR SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-146-0	01	1	9909-	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-49115-875-0	01	1	9707-9904	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-49115-875-0	01	1	9905-9908	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-49115-875-0	01	1	9909-	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (C)	1-49115-877-0	01	1	9707-9904	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (C)	1-49115-877-0	01	1	9905-9908	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (C)	1-49115-877-0	01	1	9909-	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-49118-551-0	01	1	9707-9904	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-49118-551-0	01	1	9905-9908	●	●
118	PIPE ASM; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-49118-551-0	01	1	9909-	●	●
119	SWITCH; THERMO SHORT CHASSIS&RHD(EXZ5MC)	1-82450-054-0	01	1	9707-9904	●	●
119	SWITCH; THERMO SHORT CHASSIS&RHD(EXZ5MC)	1-82450-054-0	01	1	9905-9908	●	●
119	SWITCH; THERMO SHORT CHASSIS&RHD(EXZ5MC)	1-82450-054-0	01	1	9909-	●	●
124	CONNECTOR; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-48629-188-0	01	1	9707-9904	●	●
124	CONNECTOR; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-48629-188-0	01	1	9905-9908	●	●
124	CONNECTOR; FLEX HOSE SHORT CHASSIS&RHD(EXZ5MC)	1-48629-188-0	01	1	9909-	●	●
130	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M6X14 HEX SOCKET	1-48629-145-0	01	1	9707-9904	●	●
130	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M6X14 HEX SOCKET	1-48629-145-0	01	1	9905-9908	●	●
130	BOLT; BRKT SHORT CHASSIS&RHD(EXZ5MC) M6X14 HEX SOCKET	1-48629-145-0	01	1	9909-	●	●
134	REPAIR KIT; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-137-0	01	1	9707-9904	●	●
134	REPAIR KIT; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-137-0	01	1	9905-9908	●	●
134	REPAIR KIT; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-137-0	01	1	9909-	●	●
134	REPAIR KIT; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-138-0	01	1	9707-9904	●	●
134	REPAIR KIT; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-138-0	01	1	9905-9908	●	●
134	REPAIR KIT; AIR CYL SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-138-0	01	1	9909-	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (A) M10X20	1-48629-070-0	04	1	9707-9904	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (A) M10X20	1-48629-070-0	04	1	9905-9908	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (A) M10X20	1-48629-070-0	04	1	9909-	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-104-0	03	1	9707-9904	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-104-0	03	1	9905-9908	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-104-0	03	1	9909-	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9707-9904	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9905-9908	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9909-	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (D)	1-48629-148-0	04	1	9707-9904	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (D)	1-48629-148-0	04	1	9905-9908	●	●
140	BOLT SHORT CHASSIS&RHD(EXZ5MC) (D)	1-48629-148-0	04	1	9909-	●	●
141	BRACKET SHORT CHASSIS&RHD(EXZ5MC)	1-48629-111-2	01	1	9707-9904	●	●
141	BRACKET SHORT CHASSIS&RHD(EXZ5MC)	1-48629-111-2	01	1	9905-9908	●	●
141	BRACKET SHORT CHASSIS&RHD(EXZ5MC)	1-48629-111-2	01	1	9909-	●	●
142	SCREW SHORT CHASSIS&RHD(EXZ5MC) M5X10 PAN-HD	9-93490-510-0	11	1	9707-9904	●	●
142	SCREW SHORT CHASSIS&RHD(EXZ5MC) M5X10 PAN-HD	9-93490-510-0	11	1	9905-9908	●	●
142	SCREW SHORT CHASSIS&RHD(EXZ5MC) M5X10 PAN-HD	9-93490-510-0	11	1	9909-	●	●
144	NUT SHORT CHASSIS&RHD(EXZ5MC) M12	9-09840-280-0	04	1	9707-9904	●	●
144	NUT SHORT CHASSIS&RHD(EXZ5MC) M12	9-09840-280-0	04	1	9905-9908	●	●
144	NUT SHORT CHASSIS&RHD(EXZ5MC) M12	9-09840-280-0	04	1	9909-	●	●
155	TUBE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-092-0	01	1	9707-9904	●	●
155	TUBE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-092-0	01	1	9905-9908	●	●
155	TUBE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-092-0	01	1	9909-	●	●
165	LINK; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-140-0	01	1	9707-9904	●	●
165	LINK; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-140-0	01	1	9905-9908	●	●
165	LINK; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-140-0	01	1	9909-	●	●
165	LINK; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-141-0	01	1	9707-9904	●	●
165	LINK; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-141-0	01	1	9905-9908	●	●
165	LINK; RETARDER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-141-0	01	1	9909-	●	●
166	ATTACHMENT; YOKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-066-0	01	1	9707-9904	●	●
166	ATTACHMENT; YOKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-066-0	01	1	9905-9908	●	●
166	ATTACHMENT; YOKE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-066-0	01	1	9909-	●	●
166	ATTACHMENT; YOKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-067-0	01	1	9707-9904	●	●
166	ATTACHMENT; YOKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-067-0	01	1	9905-9908	●	●
166	ATTACHMENT; YOKE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-067-0	01	1	9909-	●	●
167	STOPPER; LINKAGE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-069-0	02	1	9707-9904	●	●
167	STOPPER; LINKAGE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-069-0	02	1	9905-9908	●	●
167	STOPPER; LINKAGE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-069-0	02	1	9909-	●	●
167	STOPPER; LINKAGE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-127-0	02	1	9707-9904	●	●
167	STOPPER; LINKAGE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-127-0	02	1	9905-9908	●	●
167	STOPPER; LINKAGE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-127-0	02	1	9909-	●	●
168	PROTECTOR; HEAT SHORT CHASSIS&RHD(EXZ5MC)	1-48629-190-0	02	1	9707-9904	●	●
168	PROTECTOR; HEAT SHORT CHASSIS&RHD(EXZ5MC)	1-48629-190-0	02	1	9905-9908	●	●
168	PROTECTOR; HEAT SHORT CHASSIS&RHD(EXZ5MC)	1-48629-190-0	02	1	9909-	●	●
169	CLAMP SHORT CHASSIS&RHD(EXZ5MC)	1-48629-126-0	01	1	9707-9904	●	●
169	CLAMP SHORT CHASSIS&RHD(EXZ5MC)	1-48629-126-0	01	1	9905-9908	●	●
169	CLAMP SHORT CHASSIS&RHD(EXZ5MC)	1-48629-126-0	01	1	9909-	●	●
170	COVER; CASE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-063-0	01	1	9707-9904	●	●
170	COVER; CASE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-063-0	01	1	9905-9908	●	●
170	COVER; CASE SHORT CHASSIS&RHD(EXZ5MC) (A)	1-48629-063-0	01	1	9909-	●	●
170	COVER; CASE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-240-0	01	1	9707-9904	●	●
170	COVER; CASE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-240-0	01	1	9905-9908	●	●
170	COVER; CASE SHORT CHASSIS&RHD(EXZ5MC) (B)	1-48629-240-0	01	1	9909-	●	●
171	BREATHER SHORT CHASSIS&RHD(EXZ5MC)	1-48629-144-0	01	1	9707-9904	●	●
171	BREATHER SHORT CHASSIS&RHD(EXZ5MC)	1-48629-144-0	01	1	9905-9908	●	●
171	BREATHER SHORT CHASSIS&RHD(EXZ5MC)	1-48629-144-0	01	1	9909-	●	●
174	BOLT; SWITCH SHORT CHASSIS&RHD(EXZ5MC) M6X10 HEX SOCKET	1-48629-133-0	02	1	9707-9904	●	●
174	BOLT; SWITCH SHORT CHASSIS&RHD(EXZ5MC) M6X10 HEX SOCKET	1-48629-133-0	02	1	9905-9908	●	●
174	BOLT; SWITCH SHORT CHASSIS&RHD(EXZ5MC) M6X10 HEX SOCKET	1-48629-133-0	02	1	9909-	●	●
