2-85C — POWER TAKE OFF CONTROL (#5786) — 13 parça

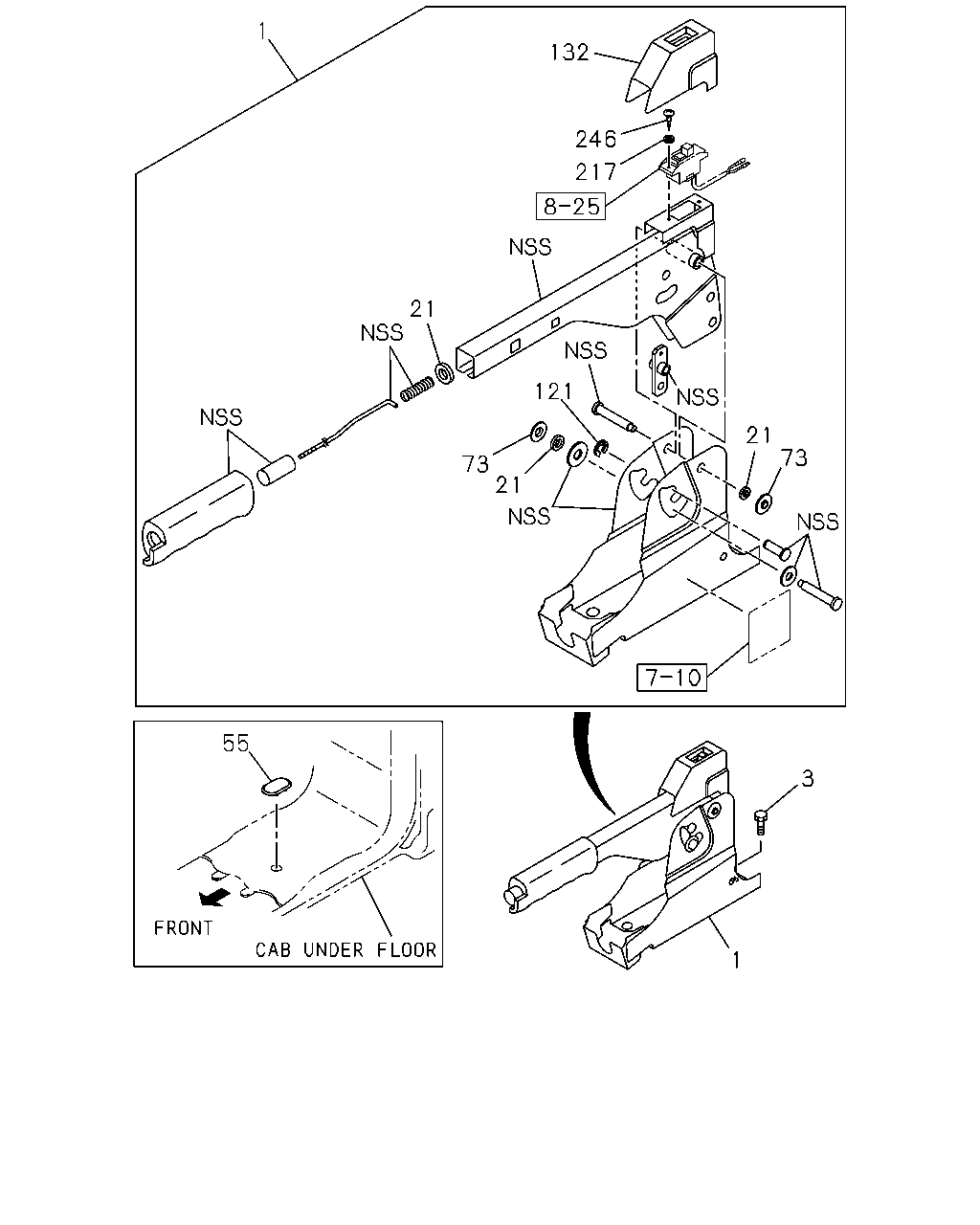

çizim 41303
1 132 246 217 21 121 21 73 73 21 55 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-244-0 01 1 9603-9904 ● ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-244-0 01 1 9905- ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9904 ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ● ● ● ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=6.4 OD=14 		9-09160-606-0 03 1 9905- ● ● ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 9603-9904 ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 9905- ● ● ● ●
73 NUT; LEVER
DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT 		8-97015-036-0 02 1 9905- ● ● ● ●
121 RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5 		9-09185-405-0 01 1 9905- ● ● ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9603-9904 ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9905- ● ● ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 9905- ● ● ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9905- ● ● ● ●
