6-47 — MUD GUARD AND INSULATOR
(#57848) — 132 parça
◀
[647A] UNDER PANEL (12 parça)
[647A] SPLASH GUARD (33 parça)
[647A] FIXING;SIDE PANEL (23 parça)
[647A] INSULATOR AND MUD GUARD (39 parça)
[647A] COMPONENT;SIDE PANEL (25 parça)
▶

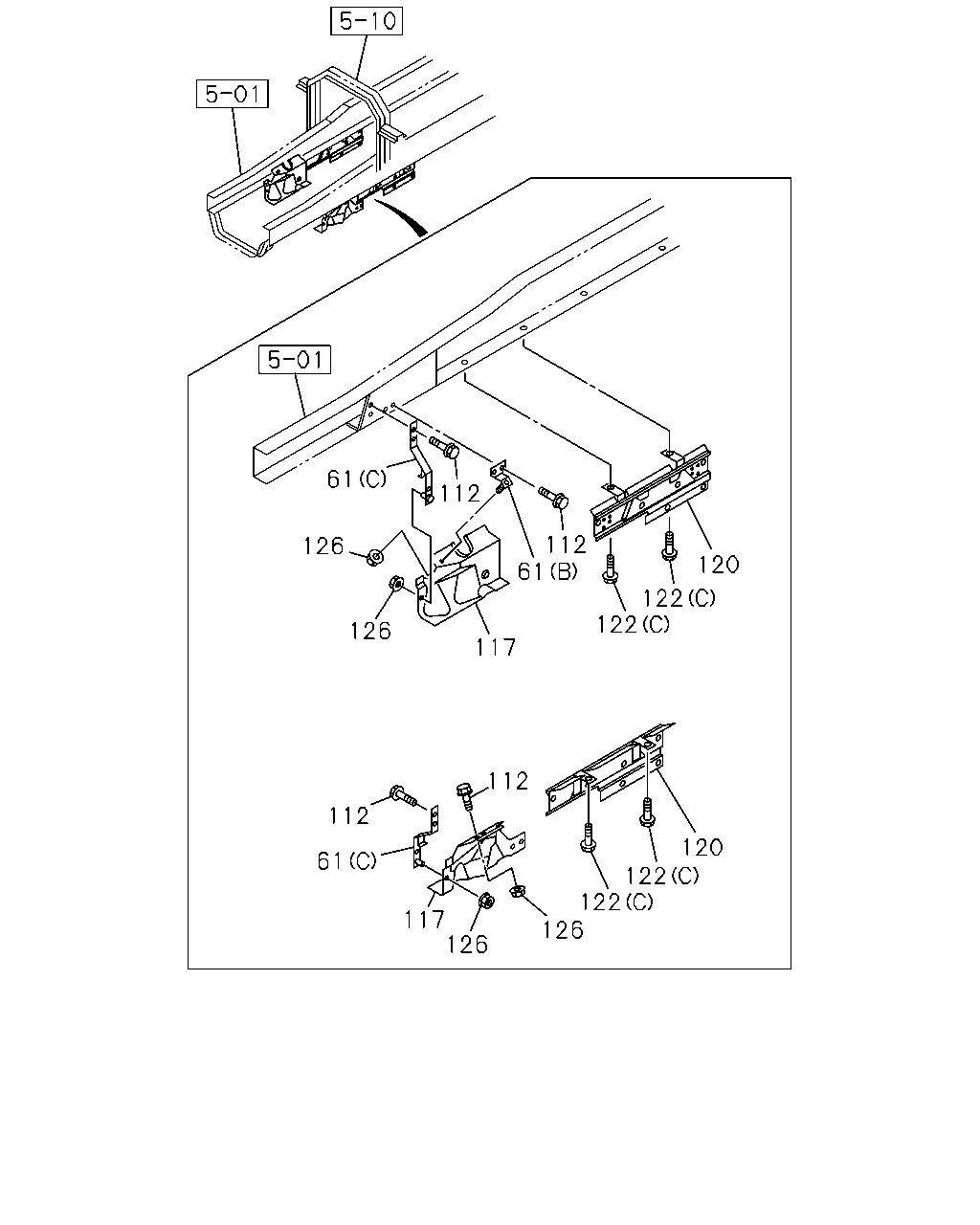

61
112
112
61
126
120
122
122
126
117
112
112
120
122
122
126
61
117
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BRACKET; COVER
RUSSIA EQUIPMENT(B12) (C)
1-53441-610-1
02
1
1008-
61
BRACKET; COVER
RUSSIA EQUIPMENT(B12) (B)
1-53441-611-1
01
1
1008-
61
BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A)
8-98039-501-1
01
1
1008-
112
BOLT; BRKT
RUSSIA EQUIPMENT(B12) M8X25 FLANGE
0-28650-825-0
06
1
1008-
117
PANEL; SIDE,B UNDER
RUSSIA EQUIPMENT(B12)
1-53194-508-2
01
1
1008-
117
PANEL; SIDE,B UNDER
RUSSIA EQUIPMENT(B12)
1-53194-510-2
01
1
1008-
120
PANEL; UNDER
RUSSIA EQUIPMENT(B12)
1-53194-557-1
01
1
1008-
120
PANEL; UNDER
RUSSIA EQUIPMENT(B12)
1-53194-263-2
01
1
1008-
122
BOLT
RUSSIA EQUIPMENT(B12) (C) M8X35 FLANGE
0-28650-835-0
04
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE
0-28650-820-0
03
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE
0-28650-830-0
03
1
1008-
126
NUT; PANEL
RUSSIA EQUIPMENT(B12) M8 FLANGE
1-09464-018-1
04
1
1008-

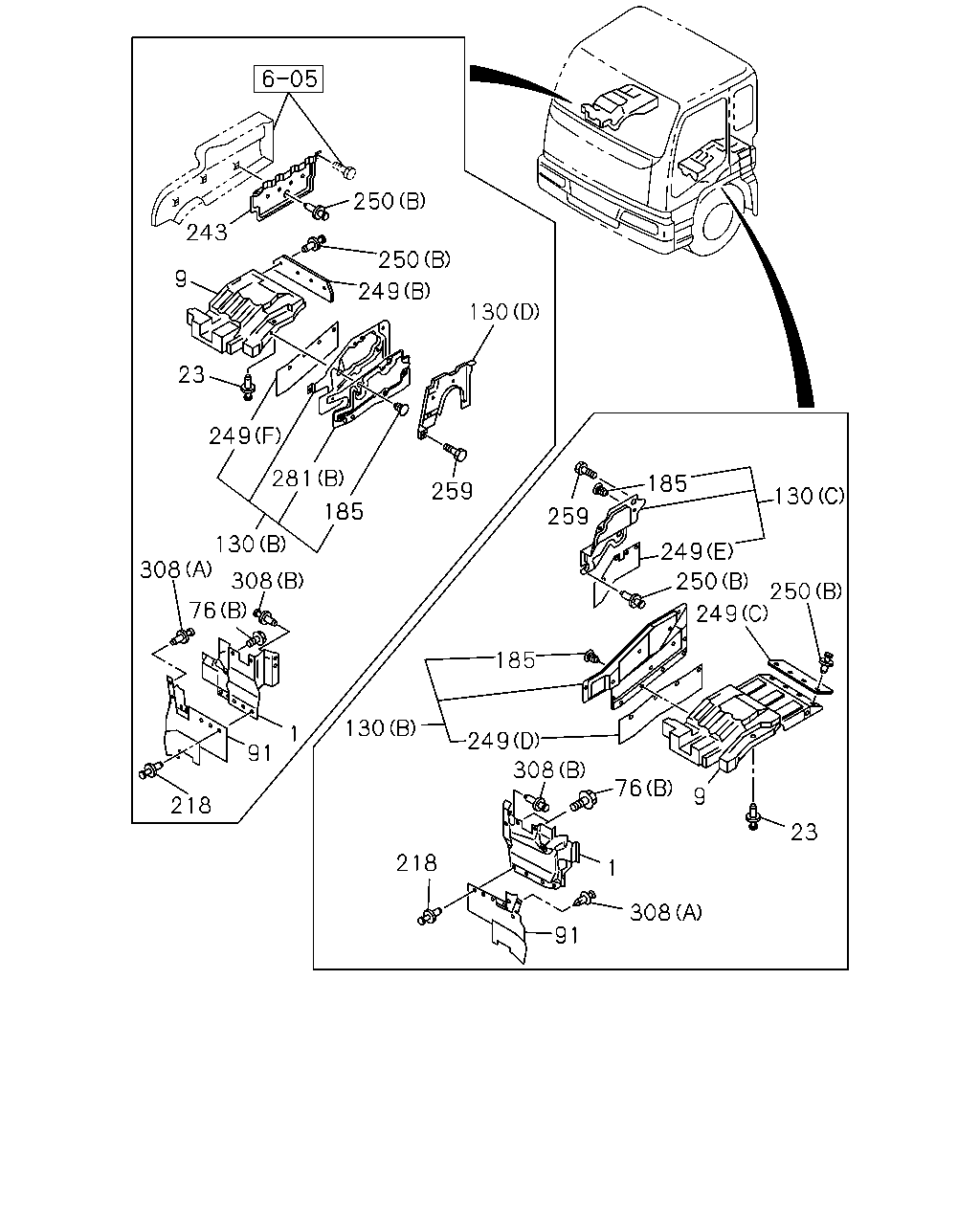

243
250
250
9
249
130
23
249
281
185
259
130
185
259
130
249
308
308
250
250
249
76
185
130
1
249
91
308
76
9
218
23
218
1
308
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
1-79937-894-6
01
1
1008-
1
GUARD; MUD,FRT
1-79937-895-5
01
1
1008-
9
GUARD; SPLASH,WHEEL HOUSE
1-79937-908-4
01
1
1008-
9
GUARD; SPLASH,WHEEL HOUSE
1-79937-907-4
01
1
1008-
23
FASTENER; MUD COVER
D8X13.5
1-09987-248-1
21
1
1008-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1008-
76
BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
8-94279-210-0
06
1
1008-
91
COVER; MUD,FRT
8-98134-826-2
01
1
1008-
91
COVER; MUD,FRT
8-98134-825-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(A)
1-53194-376-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-435-1
01
1
1008-
130
PANEL; SHUTTER NOISE
(C)
8-98159-129-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(D)
1-79937-943-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-434-1
01
1
1008-
130
PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A)
1-53192-818-6
01
1
1008-
130
PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53194-380-2
01
1
1008-
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
21
1
1008-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1008-
243
PROTECTOR; NOISE SHUT PANEL
1-79937-906-2
01
1
1008-
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1008-
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1008-
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1008-
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1008-
249
RUBBER; SHUTTER
(D)
8-98146-437-0
01
1
1008-
249
RUBBER; SHUTTER
(F)
8-98146-436-0
01
1
1008-
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1008-
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
09
1
1008-
259
BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER
8-98059-720-0
10
1
1008-
281
INSULATOR; NOISE
(B)
1-79937-956-1
01
1
1008-
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A)
1-73237-445-4
01
1
1008-
308
FASTENER; MUD GUARD
(A)
1-09470-007-0
08
1
1008-
308
FASTENER; MUD GUARD
(B) ID=6X6 OD=8
1-09987-194-0
02
1
1008-

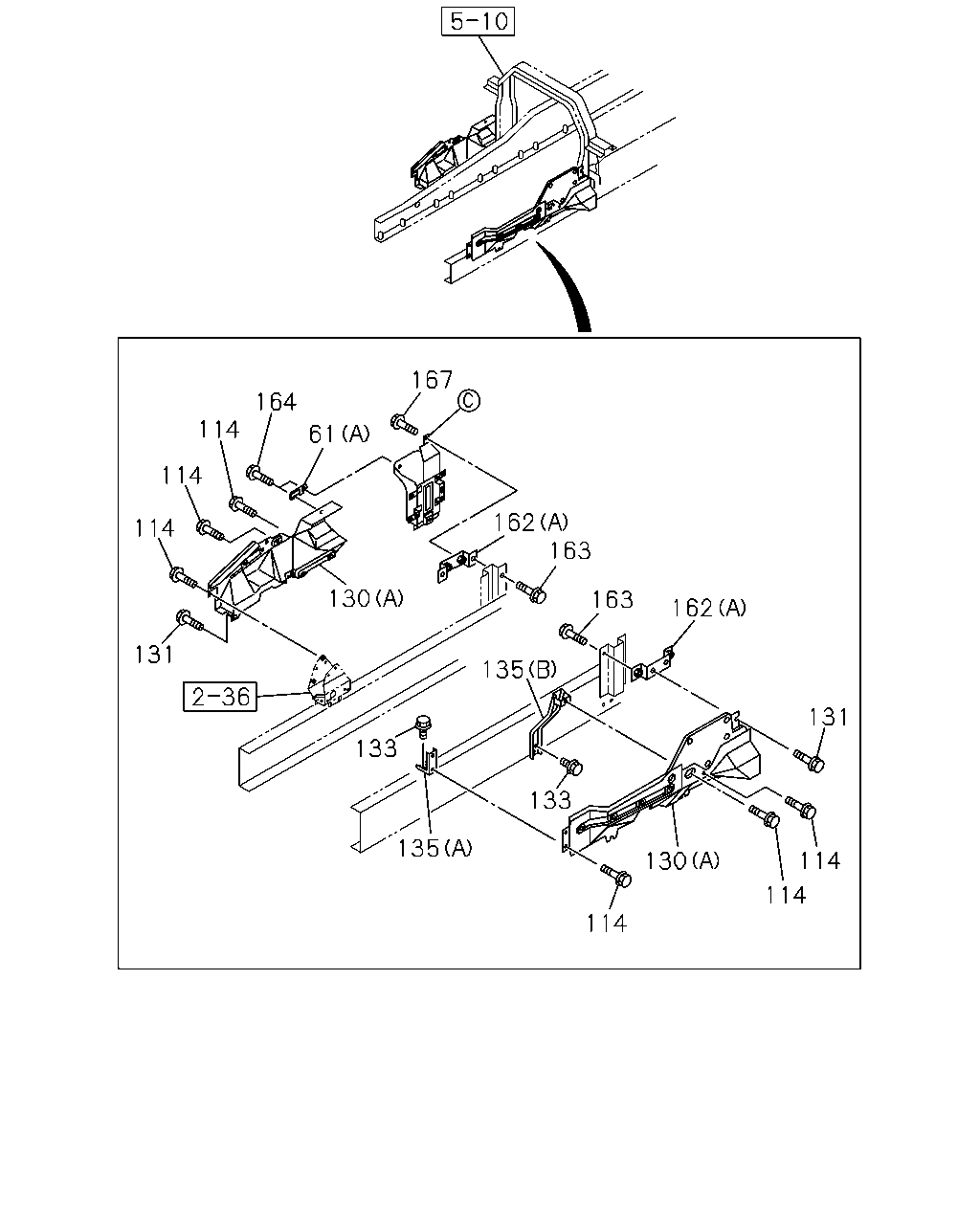

167
164
114
61
114
162
163
114
130
163
162
131
135
131
133
133
135
130
114
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BRACKET; COVER
RUSSIA EQUIPMENT(B12) (C)
1-53441-610-1
02
1
1008-
61
BRACKET; COVER
RUSSIA EQUIPMENT(B12) (B)
1-53441-611-1
01
1
1008-
61
BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A)
8-98039-501-1
01
1
1008-
114
BOLT
M8X20 FLANGE
0-28650-820-0
05
1
1008-
114
BOLT
M8X22 W/LK&PL WASHER
1-09030-042-0
05
1
1008-
130
PANEL; SHUTTER NOISE
(A)
1-53194-376-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-435-1
01
1
1008-
130
PANEL; SHUTTER NOISE
(C)
8-98159-129-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(D)
1-79937-943-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-434-1
01
1
1008-
130
PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A)
1-53192-818-6
01
1
1008-
130
PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53194-380-2
01
1
1008-
131
BOLT; PANEL
M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1008-
133
BOLT; FRAME
M8X25 FLANGE
0-28650-825-0
04
1
1008-
135
BRACKET; SIDE PANEL
(A)
1-53441-507-0
01
1
1008-
135
BRACKET; SIDE PANEL
ENGINE CONTROL COMMON RAIL(Q4R) (B)
1-53441-598-1
01
1
1008-
135
BRACKET; SIDE PANEL
ENGINE CONTROL-B2(Q4T) (B)
1-53441-508-1
01
1
1008-
162
BRACKET
(A)
1-53441-520-0
02
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-53441-521-2
01
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C)
1-53441-522-0
01
1
1008-
163
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
164
BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
02
1
1008-
167
BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
05
1
1008-

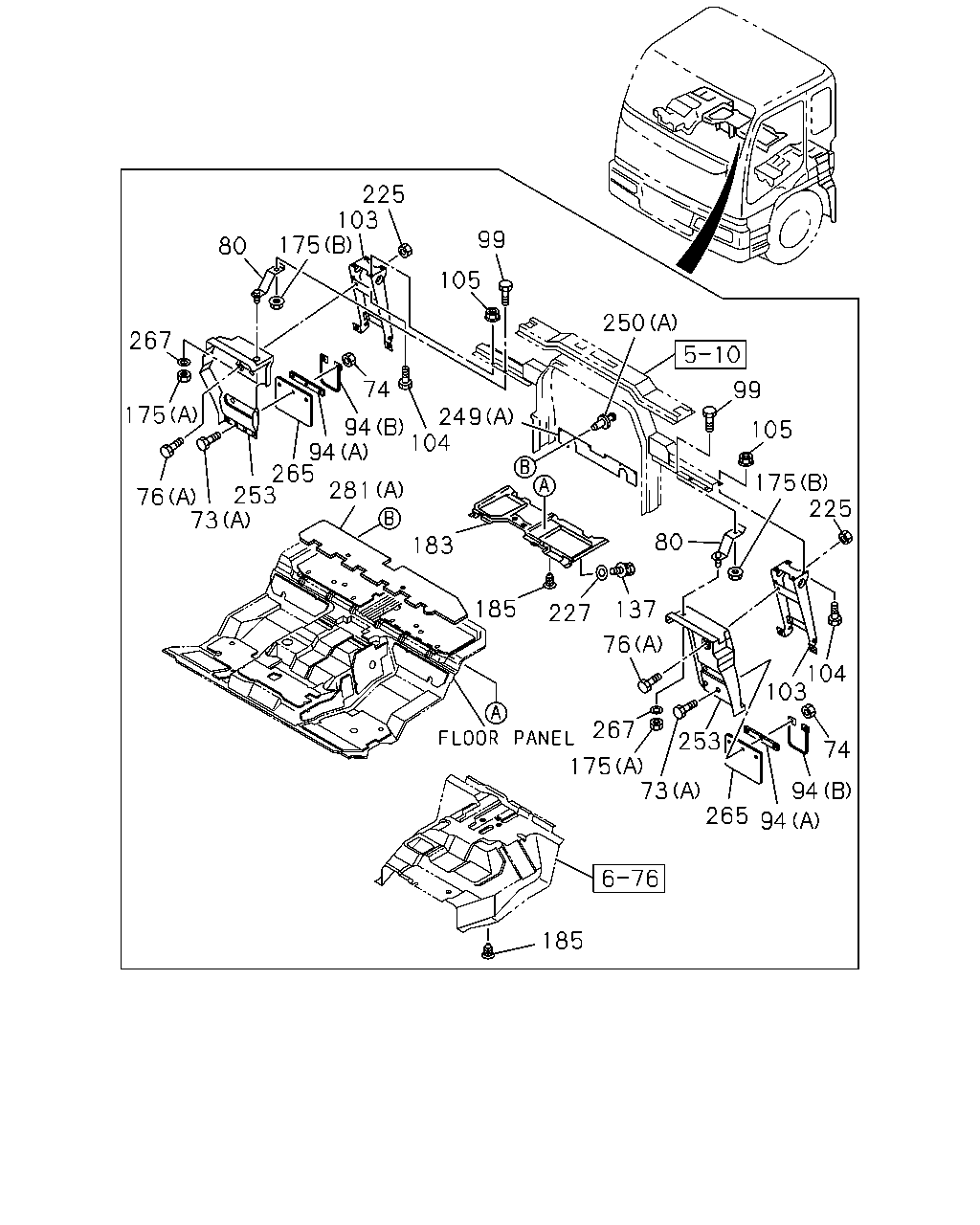

225
103
175
99
80
105
250
267
74
99
175
249
94
104
94
265
253
73
105
175
225
281
76
80
183
185
137
227
76
104
103
267
253
74
175
73
265
94
94
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
(B) M8X16 FLANGE
0-28250-816-0
05
1
1008-
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1008-
74
NUT
M8 FLANGE
0-91180-108-0
04
1
1008-
74
NUT
M8 FLANGE
0-91180-108-0
03
1
1008-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1008-
76
BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
8-94279-210-0
06
1
1008-
80
BRACKET; MUD GUARD STAY
1-79931-159-1
02
1
1008-
94
RETAINER; FLAP RUBBER
(A)
1-79931-091-2
02
1
1008-
94
RETAINER; FLAP RUBBER
(B)
1-79931-194-0
02
1
1008-
99
BOLT; STAY TO MUD GUARD
M10X25 FLANGE
0-28651-025-0
02
1
1008-
103
BRACKET ASM; RR MUD FLAP
1-79931-446-0
01
1
1008-1502
103
BRACKET ASM; RR MUD FLAP
8-98306-894-0
01
1
1503-
103
BRACKET ASM; RR MUD FLAP
1-79931-444-0
01
1
1008-1502
103
BRACKET ASM; RR MUD FLAP
8-98306-892-0
01
1
1503-
104
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1008-
105
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
1008-
137
BOLT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1008-
175
NUT; STAY FIX
(A) M8 FLANGE
0-91180-108-0
02
1
1008-
175
NUT; STAY FIX
(B) M10 FLANGE
0-91180-210-0
02
1
1008-
183
INSULATOR; HEAT,BED PAN
1-71907-539-4
01
1
1008-
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
21
1
1008-
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
08
1
1008-
227
SEAL; MUD GUARD
T=2.0
8-94279-641-0
01
1
1008-
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1008-
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1008-
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1008-
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1008-
249
RUBBER; SHUTTER
(D)
8-98146-437-0
01
1
1008-
249
RUBBER; SHUTTER
(F)
8-98146-436-0
01
1
1008-
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1008-
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
09
1
1008-
253
GUARD; MUD
8-98134-766-1
01
1
1008-
253
GUARD; MUD
SILENCER SINGLE VERTICAL<N28>
8-98134-760-0
01
1
1008-
253
GUARD; MUD
EXC. SILENCER SINGLE VERTICAL<N28>
8-98134-759-0
01
1
1008-
265
RUBBER; FLAP,REAR
1-79930-978-0
02
1
1008-
267
WASHER; PL,STAY
ID=8.4 OD=26
0-91614-808-0
02
1
1008-
281
INSULATOR; NOISE
(B)
1-79937-956-1
01
1
1008-
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A)
1-73237-445-4
01
1
1008-
130
251
74
251
130
73
251
251
122
168
167
122
167
162
160
122
162
160
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
(B) M8X16 FLANGE
0-28250-816-0
05
1
1008-
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1008-
74
NUT
M8 FLANGE
0-91180-108-0
04
1
1008-
74
NUT
M8 FLANGE
0-91180-108-0
03
1
1008-
122
BOLT
RUSSIA EQUIPMENT(B12) (C) M8X35 FLANGE
0-28650-835-0
04
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE
0-28650-820-0
03
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE
0-28650-830-0
03
1
1008-
130
PANEL; SHUTTER NOISE
(A)
1-53194-376-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-435-1
01
1
1008-
130
PANEL; SHUTTER NOISE
(C)
8-98159-129-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(D)
1-79937-943-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-434-1
01
1
1008-
130
PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A)
1-53192-818-6
01
1
1008-
130
PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53194-380-2
01
1
1008-
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-79931-408-4
01
1
1008-1207
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-79931-411-2
01
1
1208-
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-79931-412-1
01
1
1008-
162
BRACKET
(A)
1-53441-520-0
02
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-53441-521-2
01
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C)
1-53441-522-0
01
1
1008-
167
BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
05
1
1008-
168
NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE
0-91180-108-0
01
1
1008-
251
CLIP; NOISE INSULATOR
(A)
8-94165-394-0
04
1
1008-
251
CLIP; NOISE INSULATOR
(A)
8-94165-394-0
05
1
1008-
251
CLIP; NOISE INSULATOR
(B)
8-94279-048-0
05
1
1008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
