◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-82B - POWER TAKE OFF; TRANSMISSION REAR ▶
2-82B — POWER TAKE OFF; TRANSMISSION REAR (#5783) — 82 parça

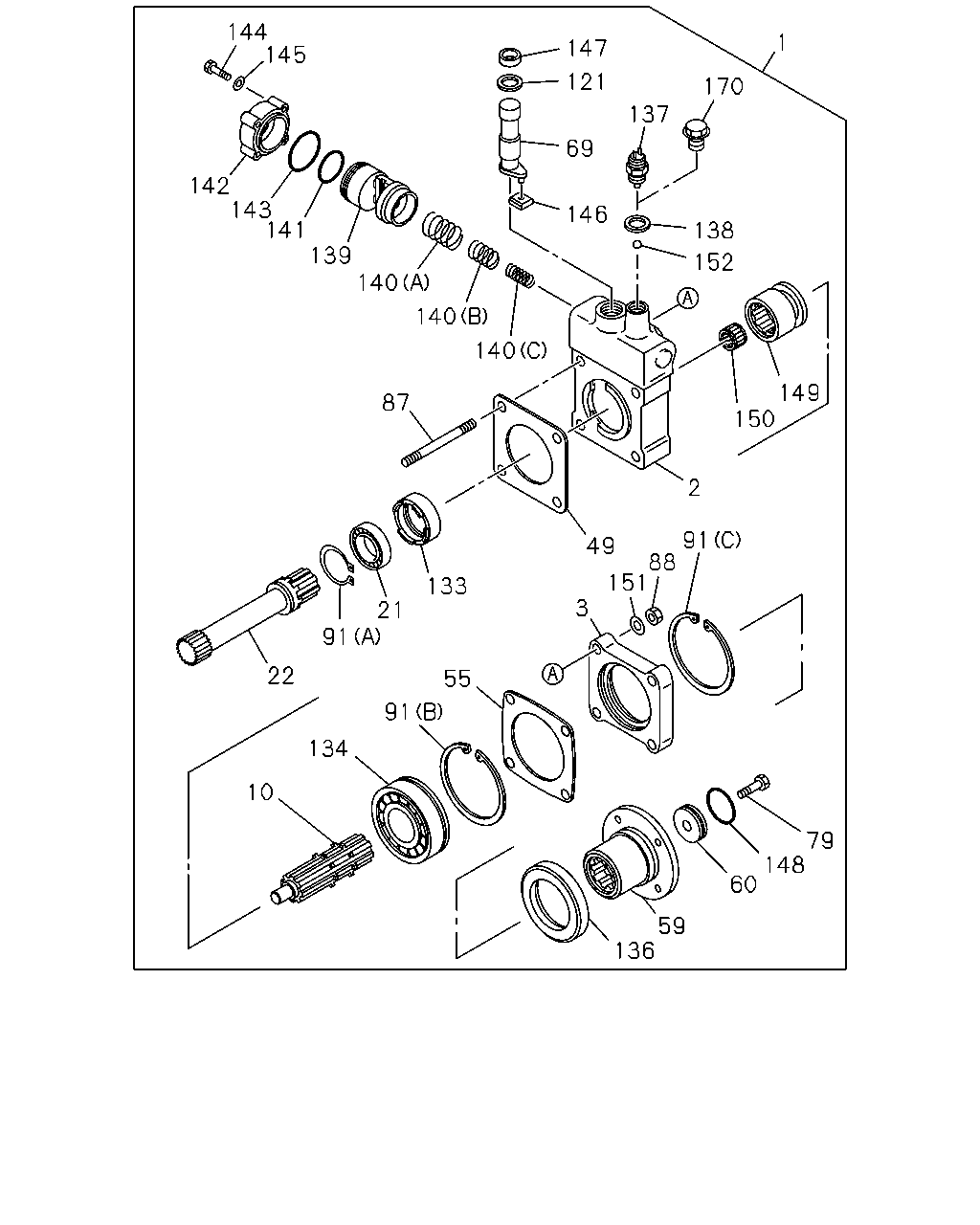

çizim 8411
144 145 1 147 121 170 137 69 142 143 141 146 138 139 140 152 140 140 149 150 87 2 91 88 151 49 133 3 21 91 22 55 91 134 10 79 148 60 59 136
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS RR
PTO ZF TRANS RR(BDM) 		1-38000-377-0 01 1 0006- ● ●
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38111-076-0 01 1 0006- ● ●
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38111-076-0 01 1 9603-9904 ●
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-002-0 01 1 9603-9904 ●
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-002-0 01 1 0006- ● ●
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38221-047-0 01 1 0006- ● ●
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38221-047-0 01 1 9603-9904 ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38219-033-0 01 1 0006- ● ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-36289-013-0 01 1 9603-9707 ●
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38219-033-0 01 1 9708-9711 ●
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33381-011-0 01 1 0006- ● ●
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33381-011-0 01 1 9603-9711 ●
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0006- ● ●
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9603-9711 ●
55 GASKET; BRG COVER,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0006- ● ●
55 GASKET; BRG COVER,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 9603-9904 ●
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-012-0 01 1 9603-9707 ●
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-012-0 01 1 0006- ● ●
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-013-0 01 1 0006- ● ●
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR(BDM) 		1-38519-013-0 01 1 9603-9904 ●
69 LEVER; PTO CONT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38361-032-0 01 1 9603-9707 ●
69 LEVER; PTO CONT,TRANS RR PTO
PTO ZF TRANS RR(BDM) 		1-38361-032-0 01 1 0006- ● ●
79 BOLT
PTO ZF TRANS RR(BDM) 		1-38519-019-0 01 1 0006- ● ●
79 BOLT
PTO ZF TRANS RR(BDM) 		1-41329-062-0 01 1 9603-9707 ●
79 BOLT
PTO ZF TRANS RR(BDM) 		1-38519-019-0 01 1 9708-9711 ●
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) 		1-38119-034-0 04 1 9603-9904 ●
87 STUD; GEAR CASE
PTO ZF TRANS RR(BDM) 		1-33119-413-0 04 1 0006- ● ●
88 NUT; COVER
PTO ZF TRANS RR(BDM) 		1-38119-027-0 04 1 0006- ● ●
88 NUT; COVER
PTO ZF TRANS RR(BDM) 		1-38119-027-0 04 1 9603-9904 ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (A) 		1-38219-010-0 01 1 9603-9711 ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (B) 		1-38219-016-0 01 1 9603-9904 ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (C) 		1-38219-017-0 01 1 9603-9904 ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (A) 		1-38219-010-0 01 1 0006- ● ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (B) 		1-38219-016-0 01 1 0006- ● ●
91 RING; SNAP
PTO ZF TRANS RR(BDM) (C) 		1-38219-017-0 01 1 0006- ● ●
121 RING; SNAP,SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-38369-004-0 01 1 9603-9707 ●
121 RING; SNAP,SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-38369-004-0 01 1 0006- ● ●
133 BUSHING; SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-011-0 01 1 0006- ● ●
133 BUSHING; SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-011-0 01 1 9603-9711 ●
134 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-015-0 01 1 0006- ● ●
134 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38219-015-0 01 1 9603-9904 ●
136 SEAL; SHAFT
PTO ZF TRANS RR(BDM) 		1-38519-010-0 01 1 0006- ● ●
137 SWITCH; RR PTO
PTO ZF TRANS RR(BDM) 		1-82440-080-1 01 1 9603-9904 ●
138 GASKET; SW
PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 0006- ● ●
138 GASKET; SW
PTO ZF TRANS RR(BDM) 		1-33119-249-0 01 1 9603-9711 ●
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-016-0 01 1 0006- ● ●
139 PISTON; RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-016-0 01 1 9603-9711 ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-38129-013-0 01 1 9603-9711 ●
140 SPRING; PISTON,RR PTO
PTO TRANS RR RATIO 1.68(BEY) (A) 		1-38129-013-0 01 1 9712-9904 ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (B) 		1-38129-014-0 01 1 9603-9711 ●
140 SPRING; PISTON,RR PTO
PTO TRANS RR RATIO 1.68(BEY) (B) 		1-38129-014-0 01 1 9712-9904 ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (C) 		1-38129-015-0 01 1 9603-9711 ●
140 SPRING; PISTON,RR PTO
PTO TRANS RR RATIO 1.68(BEY) (C) 		1-38129-015-0 01 1 9712-9904 ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (A) 		1-38129-013-0 01 1 0006- ● ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (B) 		1-38129-014-0 01 1 0006- ● ●
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR(BDM) (C) 		1-38129-015-0 01 1 0006- ● ●
141 GASKET; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-023-0 01 1 0006- ● ●
141 GASKET; PISTON,RR PTO
PTO ZF TRANS RR(BDM) 		1-38129-023-0 01 1 9603-9711 ●
142 CYLINDER; RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-003-0 01 1 0006- ● ●
142 CYLINDER; RR PTO
PTO ZF TRANS RR(BDM) 		1-38159-003-0 01 1 9603-9711 ●
143 GASKET; CYL
PTO ZF TRANS RR(BDM) 		1-38129-018-0 01 1 0006- ● ●
143 GASKET; CYL
PTO ZF TRANS RR(BDM) 		1-38129-018-0 01 1 9603-9711 ●
144 BOLT; CYL
PTO ZF TRANS RR(BDM) 		1-38519-020-0 04 1 0006- ● ●
144 BOLT; CYL
PTO ZF TRANS RR(BDM) 		1-38129-024-0 04 1 9603-9707 ●
144 BOLT; CYL
PTO ZF TRANS RR(BDM) 		1-38519-020-0 04 1 9708-9711 ●
145 WASHER; LK,CYL
PTO ZF TRANS RR(BDM) 		1-38129-025-0 04 1 0006- ● ●
145 WASHER; LK,CYL
PTO ZF TRANS RR(BDM) 		1-38129-025-0 04 1 9603-9711 ●
146 PAD; CONT LEVER
PTO ZF TRANS RR(BDM) 		1-38369-009-0 01 1 0006- ● ●
146 PAD; CONT LEVER
PTO ZF TRANS RR(BDM) 		1-38369-009-0 01 1 9603-9711 ●
147 CUP; SEALING
PTO ZF TRANS RR(BDM) 		1-38369-006-0 01 1 9603-9707 ●
147 CUP; SEALING
PTO ZF TRANS RR(BDM) 		1-38369-006-0 01 1 0006- ● ●
148 GASKET; YOKE
PTO ZF TRANS RR(BDM) 		1-38519-014-0 01 1 0006- ● ●
148 GASKET; YOKE
PTO ZF TRANS RR(BDM) 		1-38519-014-0 01 1 9603-9904 ●
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) 		1-38229-008-0 01 1 0006- ● ●
149 SLEEVE; SLIDING
PTO ZF TRANS RR(BDM) 		1-38229-008-0 01 1 9603-9711 ●
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38249-018-0 01 1 0006- ● ●
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR(BDM) 		1-38249-018-0 01 1 9603-9904 ●
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) 		1-38119-028-0 04 1 0006- ● ●
151 WASHER; PL,COVER
PTO ZF TRANS RR(BDM) 		1-38119-028-0 04 1 9603-9904 ●
152 BALL; SW
PTO ZF TRANS RR(BDM) 		1-38119-032-0 01 1 0006- ● ●
152 BALL; SW
PTO ZF TRANS RR(BDM) 		1-38119-032-0 01 1 9603-9711 ●
170 PLUG; SWITCH HOLE,PTO
PTO ZF TRANS RR(BDM) 		1-33119-253-0 01 1 0006- ● ●
