4-55 — FRONT LEAF SPRING (#57825) — 45 parça

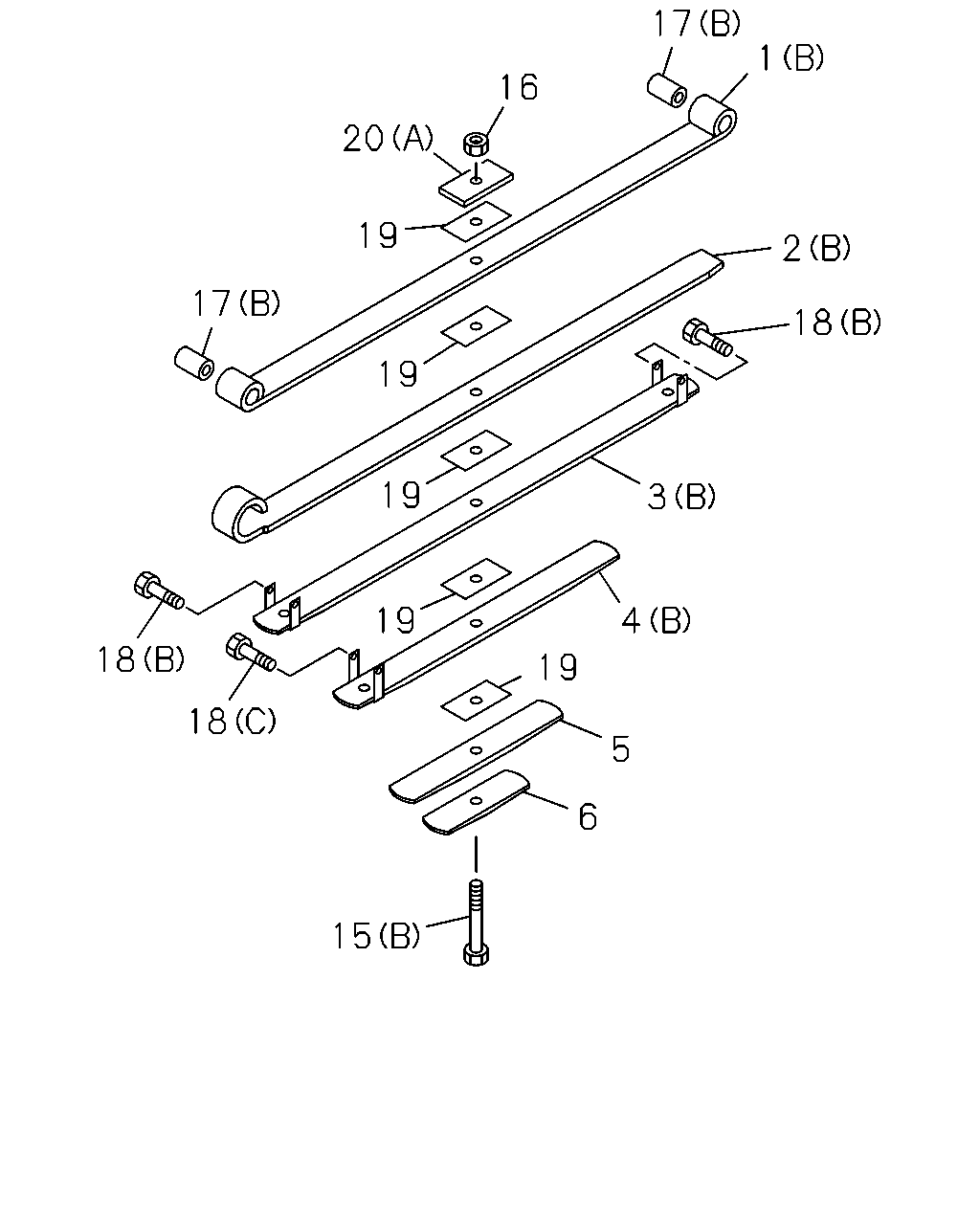

17 1 16 20 19 2 17 18 19 19 3 19 4 18 19 18 5 6 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51131-917-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98157-785-0	8-98162-079-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51132-917-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98157-785-0	8-98162-080-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51133-917-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98157-785-0	8-97615-384-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51134-917-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98157-785-0	8-97615-385-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98157-785-0	8-97615-386-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98157-785-0	8-97615-387-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=120 ASM PART: B = 8-97617-986-0	1-51156-299-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=135 ASM PART: A = 1-51130-918-0	1-51156-333-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=130 ASM PART: C = 8-98157-785-0	8-98013-247-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0, C = 8-98157-785-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: C = 8-98157-785-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-98157-785-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: C = 8-98157-785-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98157-785-0	1-51177-071-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=12 ASM PART: A = 1-51130-918-0	1-51177-069-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0, C = 8-98157-785-0	1-51177-097-0	01	1	-

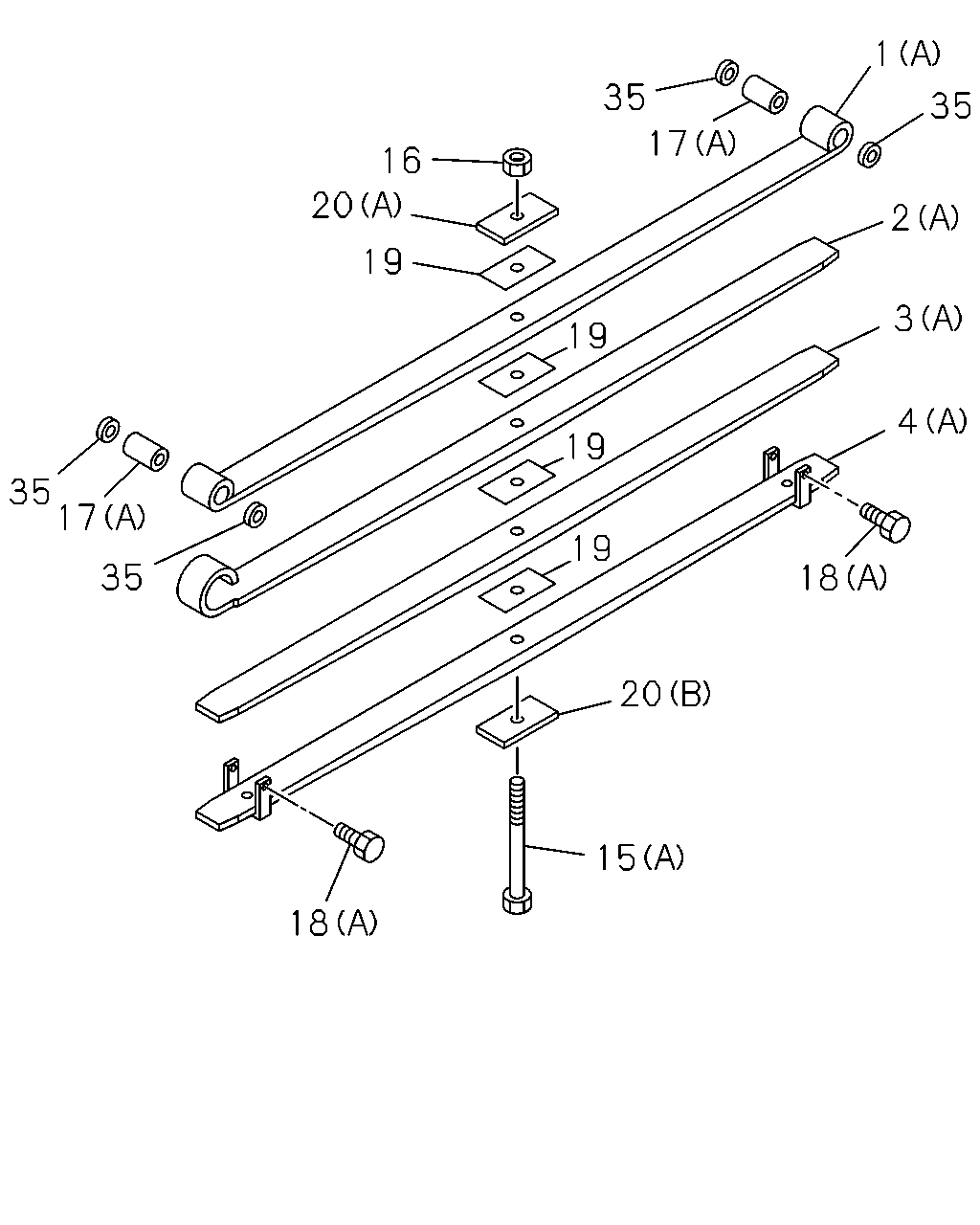

1 35 35 17 16 20 2 19 3 19 4 19 35 17 19 35 18 20 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51131-917-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98157-785-0	8-98162-079-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51132-917-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98157-785-0	8-98162-080-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51133-917-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98157-785-0	8-97615-384-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51134-917-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98157-785-0	8-97615-385-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=120 ASM PART: B = 8-97617-986-0	1-51156-299-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=135 ASM PART: A = 1-51130-918-0	1-51156-333-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=130 ASM PART: C = 8-98157-785-0	8-98013-247-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0, C = 8-98157-785-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: C = 8-98157-785-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: C = 8-98157-785-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X99 ASM PART: C = 8-98157-785-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98157-785-0	1-51177-071-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=12 ASM PART: A = 1-51130-918-0	1-51177-069-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-918-0, B = 8-97617-986-0, C = 8-98157-785-0	1-51177-097-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-918-0, B = 8-97617-986-0	1-51177-321-0	04	1	-
