2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#5781) — 49 parça

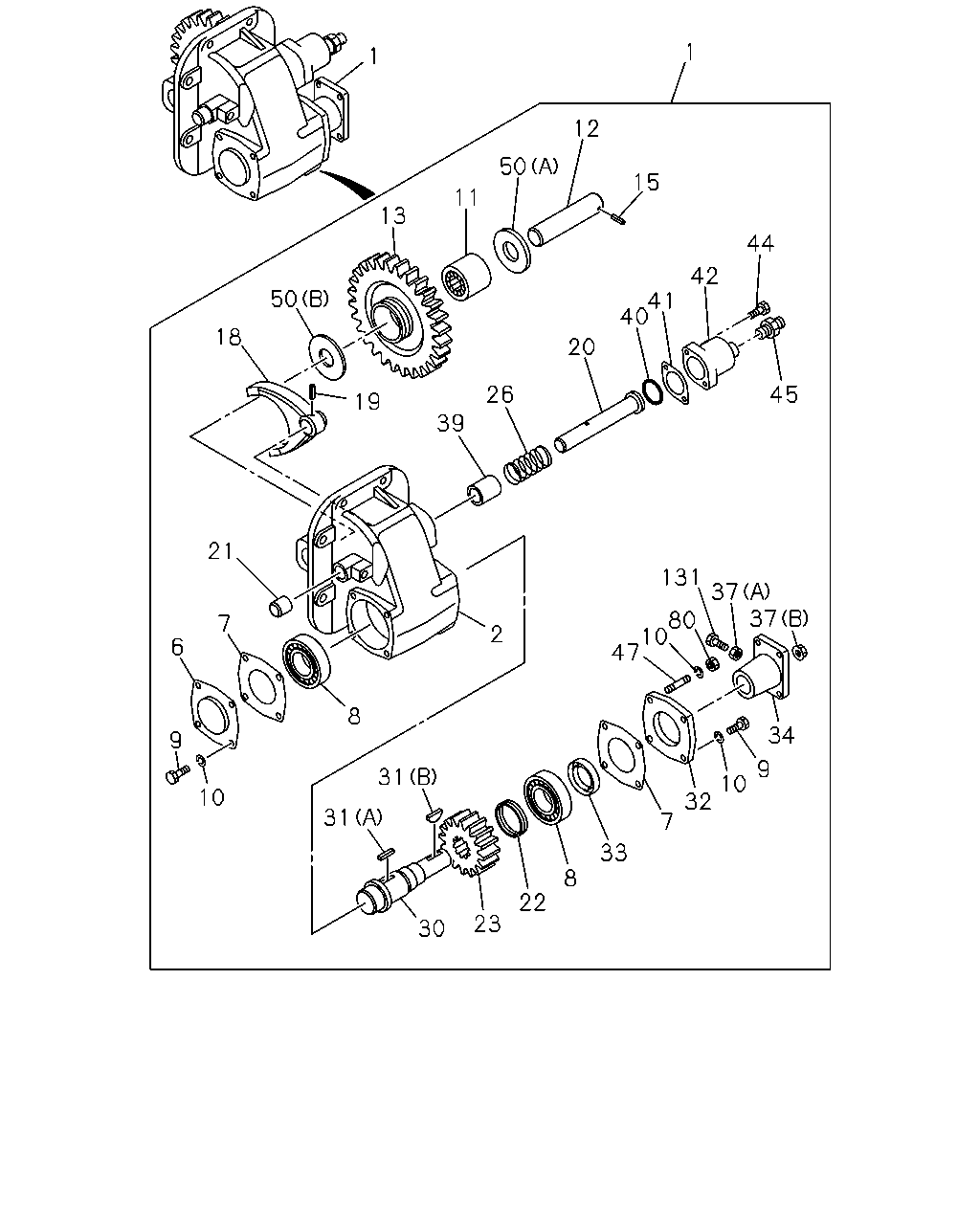

çizim 8409
1 1 12 50 15 11 13 44 42 50 41 40 18 20 26 45 19 39 21 131 37 37 80 10 47 7 2 6 8 34 9 9 31 10 10 32 31 7 33 8 22 23 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-253-2 01 1 9603-9612 ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-327-0 01 1 9701-9702 ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-328-1 01 1 9703- ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-057-1 01 1 9603- ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-006-0 01 1 9603- ● ●
7 GASKET; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-003-0 02 1 9603-9612 ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		5-00098-057-0 02 1 9603- ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		9-02341-016-0 07 1 9603-9612 ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		9-02341-016-0 08 1 9701- ● ●
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 08 1 9603- ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-144-0 01 1 9603- ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38221-024-0 01 1 9905- ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-006-0 01 1 9603-9612 ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-024-0 01 1 9701-9904 ● ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-065-0 01 1 9603- ● ●
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 9603- ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-025-0 01 1 9603- ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09748-019-0 01 1 9603- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-027-2 01 1 9603- ● ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 9603- ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-041-0 01 1 9603-9612 ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21 		1-38241-057-0 01 1 9603-9612 ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21 		1-38241-087-0 01 1 9701- ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-001-0 01 1 9603-9612 ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-1 01 1 9701- ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-020-0 01 1 9603-9612 ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-030-0 01 1 9701- ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		9-08011-235-0 01 1 9603-9612 ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		9-08050-732-0 01 1 9603-9612 ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-010-0 01 1 9603-9612 ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-016-0 01 1 9701- ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09924-142-0 01 1 9603-9612 ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-040-0 01 1 9701- ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 9603-9612 ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-019-1 01 1 9701- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8 		9-09111-508-0 01 1 9603-9612 ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16 		1-38119-036-0 01 1 9701- ● ●
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38379-006-0 01 1 9603- ● ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 9603- ● ●
41 GASKET; CYL TO CASE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-009-0 01 1 9603-9612 ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 9603- ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28181-025-0 02 1 9603- ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703- ● ●
47 STUD; COVER FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-04501-016-0 01 1 9603-9612 ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38226-045-0 01 1 9603- ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38226-052-0 01 1 9603- ● ●
80 NUT; OUTPUT SHAFT COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09111-410-0 01 1 9603-9612 ● ●
131 BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 		0-20800-820-0 01 1 9603-9612 ● ●
