Isuzu WW
▶
TRUCKS
▶
EXR
▶
11273 - EXR LHD EURO2/3/4 WITH 3STEPS
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#57809) — 26 parça
◀

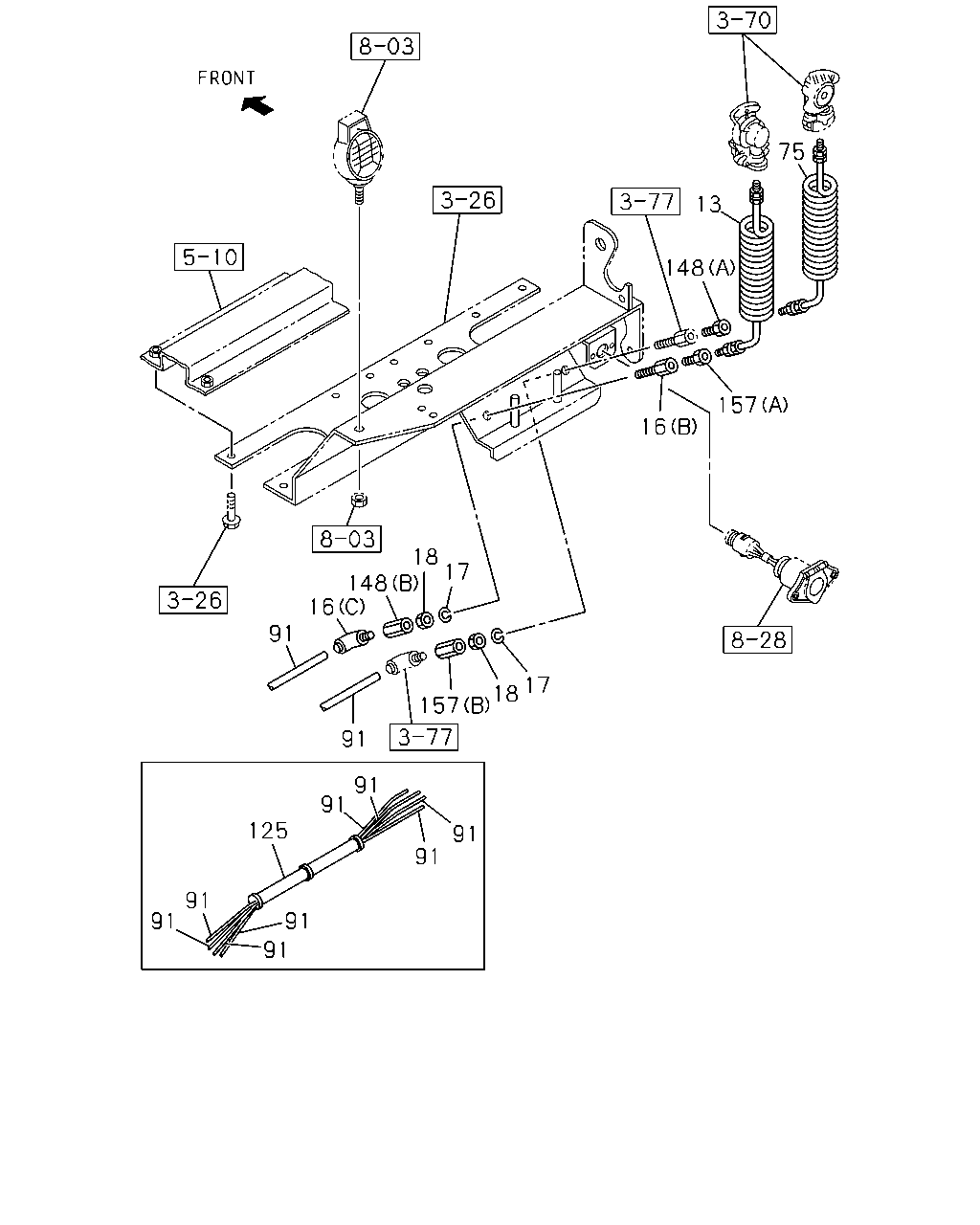

[380A] SPIRAL TUBE (17 parça)

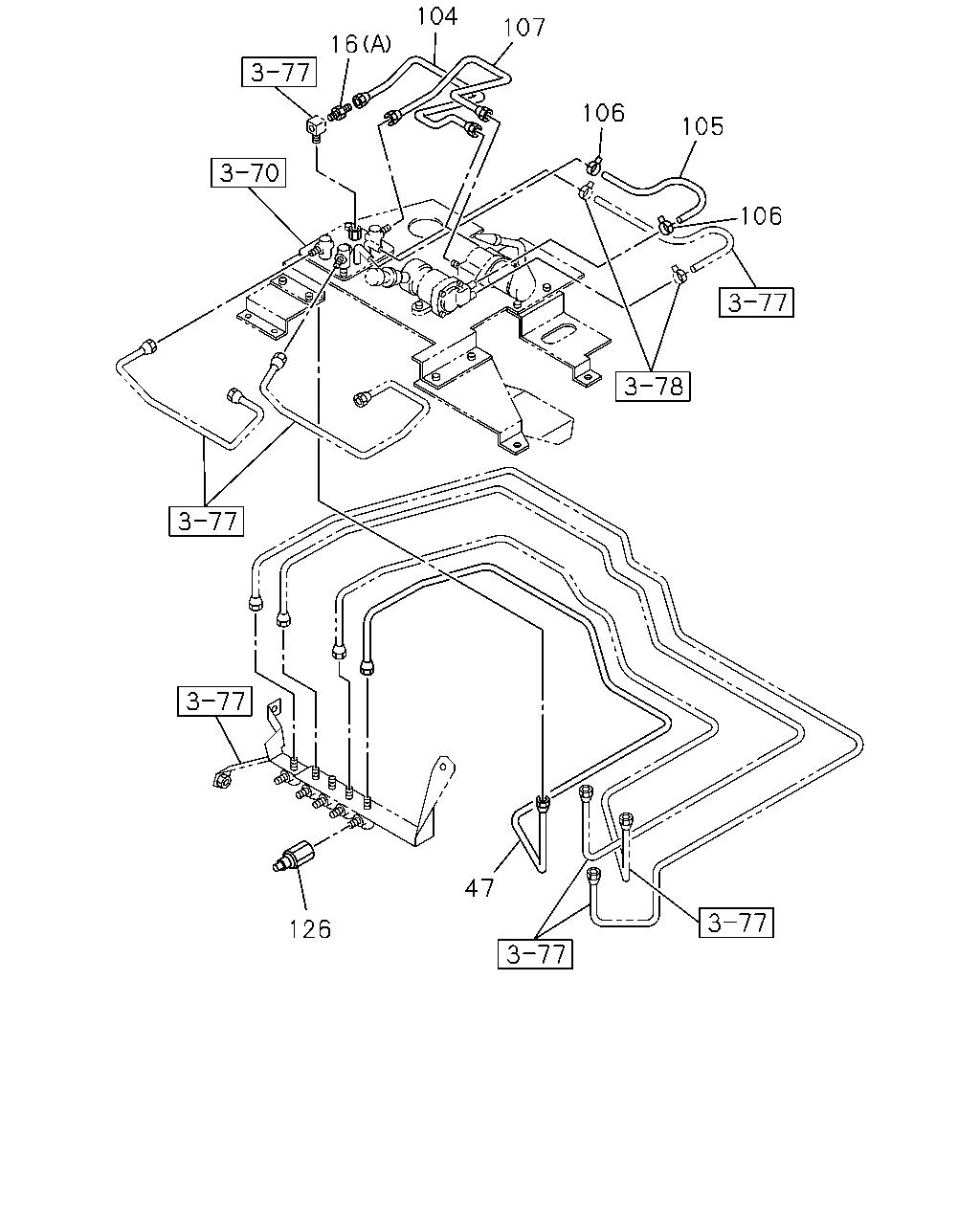

[380A] CAB SIDE (9 parça)
▶
75
13
148
157
16
18
17
148
16
91
17
18
157
91
91
91
125
91
91
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49212-518-0
01
1
1008-
16
UNION; AIR PIPE
(B)
1-09650-222-1
01
1
1008-
16
UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1008-
16
UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1008-
17
WASHER; LK,UNION
ID=16.2
0-91510-516-0
02
1
1008-
18
NUT; UNION
M16
0-91111-516-0
02
1
1008-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49212-518-0
01
1
1008-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1008-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1008-
91
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1008-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1008-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1008-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1008-
148
ADAPTER; NYLON TUBE
(A)
1-09660-078-0
01
1
1008-
148
ADAPTER; NYLON TUBE
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1008-
157
ADAPTER
(A)
1-09660-078-0
01
1
1008-
157
ADAPTER
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1008-
104
107
16
106
105
106
47
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
UNION; AIR PIPE
(B)
1-09650-222-1
01
1
1008-
16
UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1008-
16
UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1008-
47
PIPE; AIR,UNION TO UNION
L=1894 SERVICED BY L=1950
1-47428-854-0
01
1
1008-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-49122-878-0
01
1
1008-
105
PIPE; VINYL,EXH,PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1008-
106
CLIP; PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> ID=14
8-94238-572-0
02
1
1008-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-49116-328-1
01
1
1008-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1008-
