◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11273 - EXR LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#57808) — 152 parça

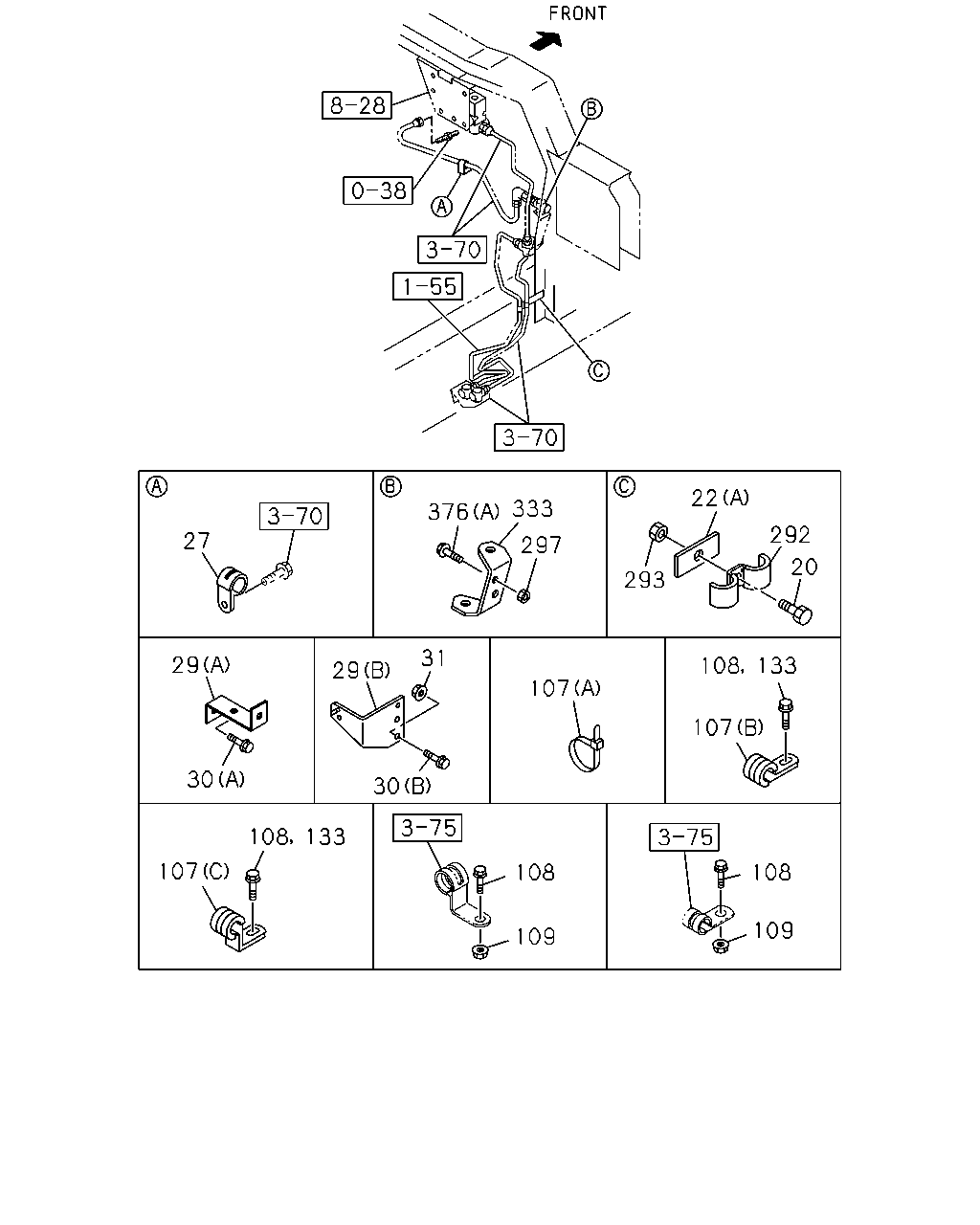

çizim 167731
22 333 376 292 27 297 20 293 31 29 108 133 29 107 107 30 30 108 133 107 108 108 109 109
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
22 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 1008-
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1008-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1008-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1008-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1008-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
107 CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 1008-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
108 BOLT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
108 BOLT; TUBE CLIP
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 07 1 1008-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1008-
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		0-91180-108-0 01 1 1008-
109 NUT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		0-91180-108-0 01 1 1008-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1008-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1008-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
376 BOLT; BRKT
EXC. EURO4 SPECIFICATION<KBT> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-

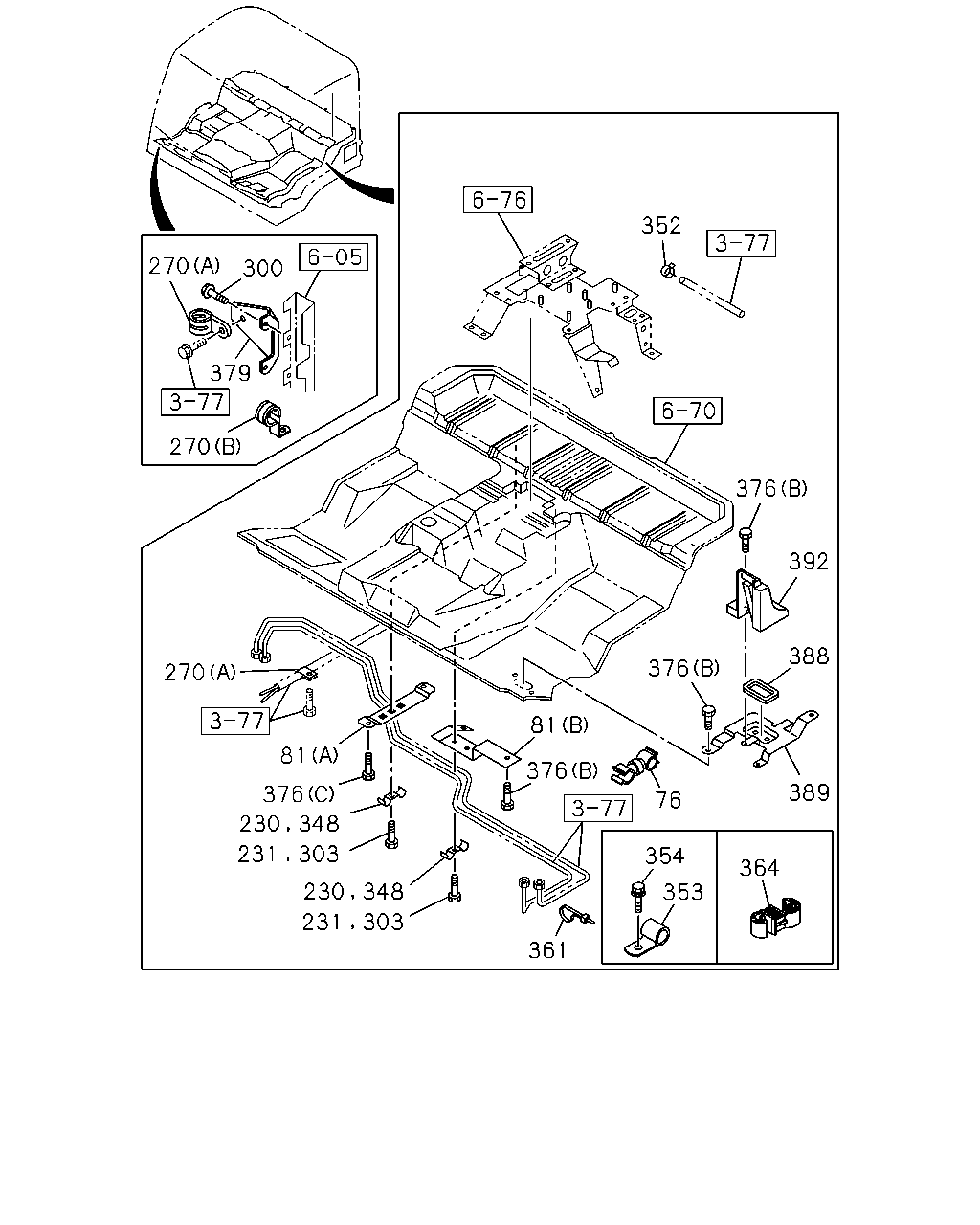

çizim 167899
352 270 300 379 270 376 392 388 376 270 81 81 389 376 76 231 303 354 364 353 231 303 361 230 348 230 348 376
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
EXC. EURO4 SPECIFICATION<KBT> ID=6 & 8.3 		8-94167-742-0 01 1 1008-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1008-
81 BRACKET; CLIP
(C) 		1-47471-274-0 02 1 1008-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1008-
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 1008-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 1008-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008-
230 CLIP; PIPE,AIR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-
231 BOLT; CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1008-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-
303 BOLT; PIPE CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
303 BOLT; PIPE CLIP
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1008-
348 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1008-
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 1008-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
EXC. EURO4 SPECIFICATION<KBT> L=250 		5-09707-030-1 01 1 1008-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 1008-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
376 BOLT; BRKT
EXC. EURO4 SPECIFICATION<KBT> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1008-
388 SEAL
L=215 		1-79738-794-1 01 1 1008-
389 BRACKET; UNION
EURO4 SPECIFICATION<KBT> 		1-79738-795-1 01 1 1008-
389 BRACKET; UNION
EXC. EURO4 SPECIFICATION<KBT> 		1-79738-790-1 01 1 1008-
392 COVER; BRKT
EXC. EURO4 SPECIFICATION<KBT> 		1-73996-264-1 01 1 1008-

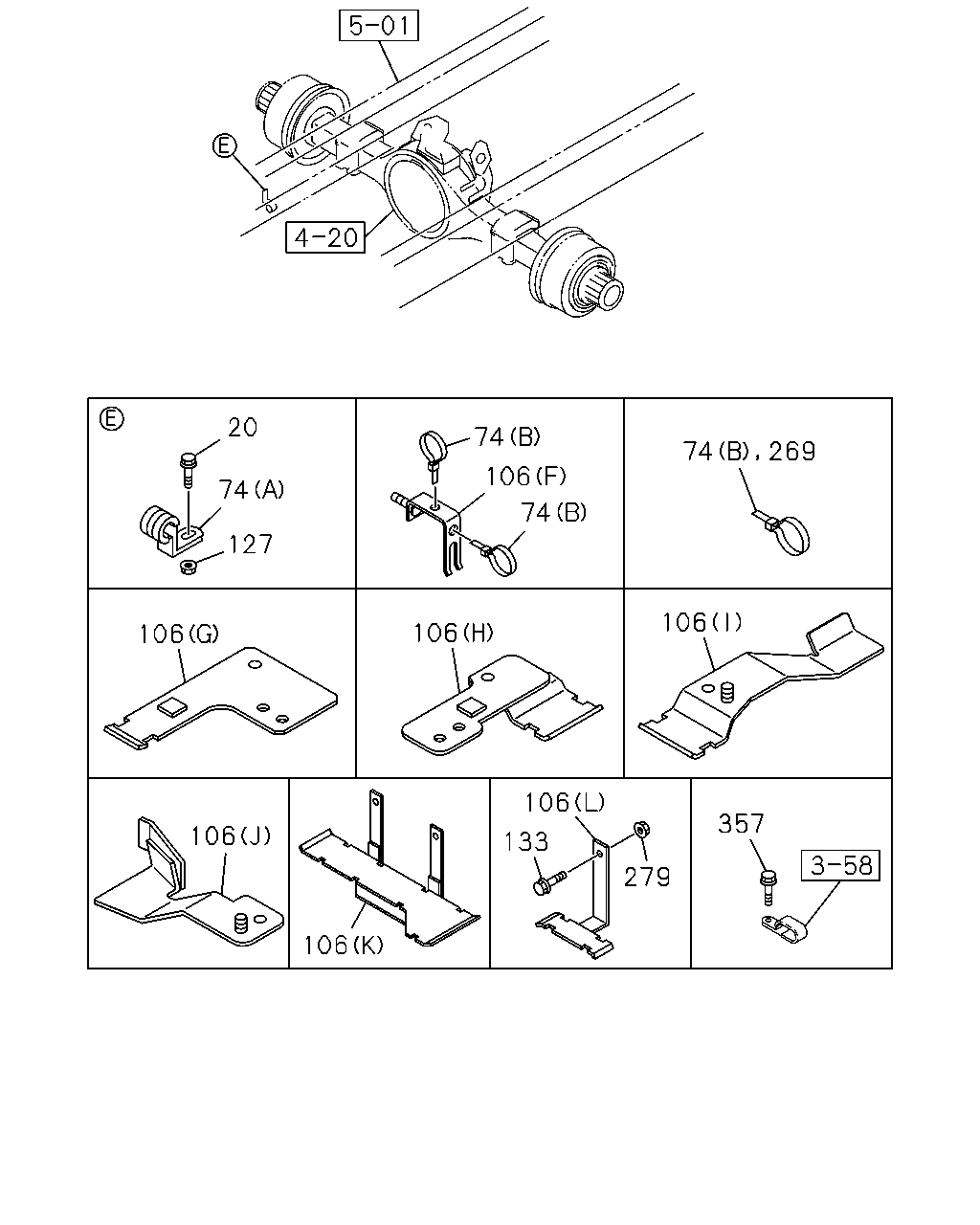

çizim 167951
20 74 106 74 74 127 106 106 106 106 357 106 133 279 106 74 269
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
74 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1008-
74 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1008-
74 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 11 1 1008-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1008-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1008-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1008-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1008-
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1008-
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1008-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1008-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1008-
106 BRACKET; TUBE CLIP
(A) 		8-98057-133-0 01 1 1008-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1008-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1008-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 1008-

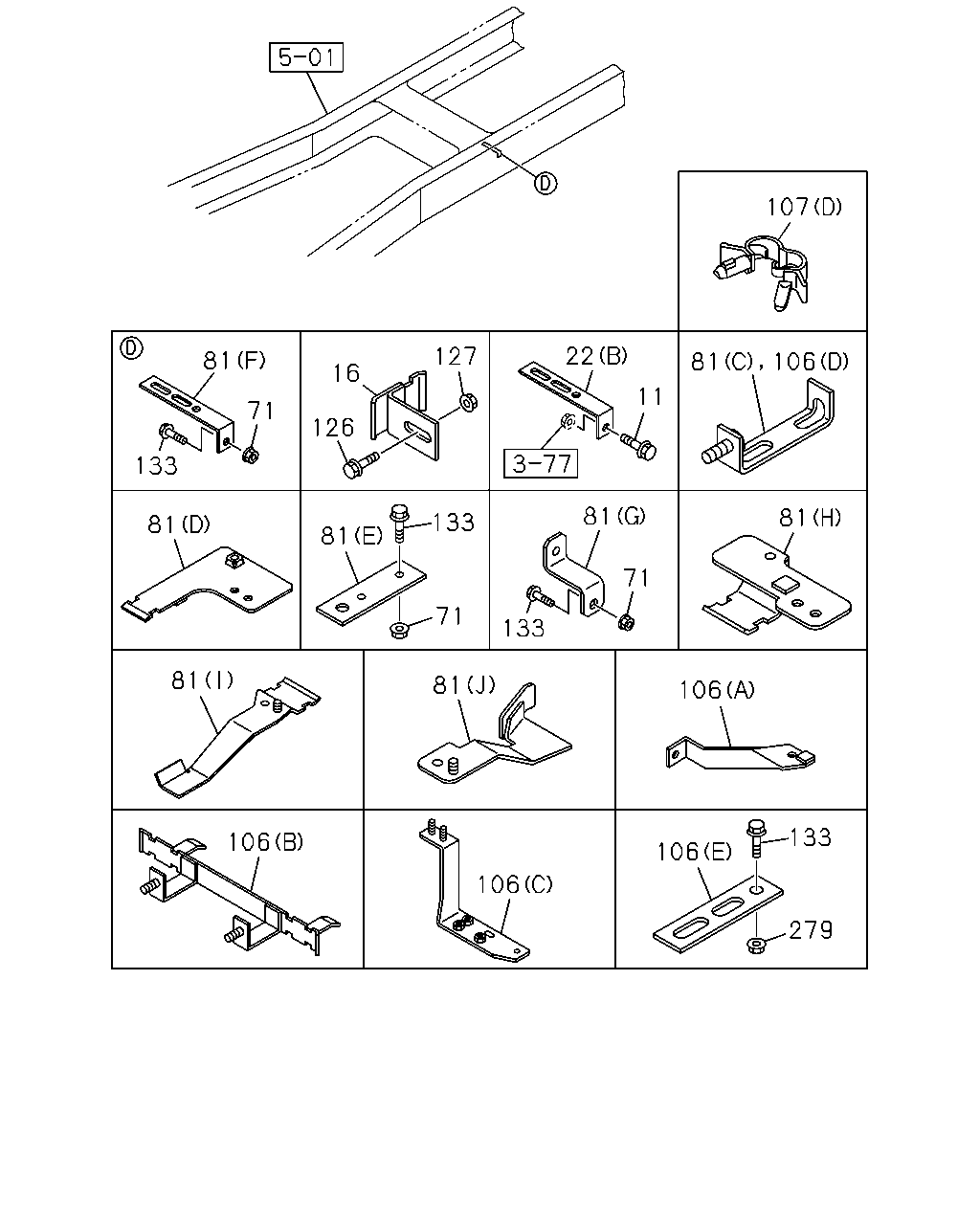

çizim 167967
107 22 127 81 81 106 16 11 71 126 133 81 81 133 81 81 71 71 133 81 81 106 133 106 106 106 279
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-
16 BRACKET; PIPE CLIP 1-47479-693-0 01 1 1008-
22 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 1008-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1008-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1008-
81 BRACKET; CLIP
(C) 		1-47471-274-0 02 1 1008-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1008-
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 1008-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 1008-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1008-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1008-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1008-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1008-
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1008-
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1008-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1008-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1008-
106 BRACKET; TUBE CLIP
(A) 		8-98057-133-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1008-
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
107 CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 1008-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1008-
