◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11273 - EXR LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#57807) — 153 parça
çizim 167740
192 192 72 262 105 100 280 126 76 192
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
72 NUT; BRKT
DIFF LOCK(C3N) M8 FLANGE 		0-91180-108-0 02 1 1008-
76 ADAPTER; NYLON TUBE
DIFF LOCK(C3N) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
100 NUT; UNION
(A) M14 FLANGE 		0-91150-114-0 01 1 1008-
100 NUT; UNION
DIFF LOCK(C3N) (B) M12 		9-09840-280-0 01 1 1008-
105 HOSE; FLEX
DIFF LOCK(C3N) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> L=320 		1-09363-625-0 01 1 1008-
105 HOSE; FLEX
FINAL GEAR 19.5"<BDC> DIFF LOCK(C3N) L=390 		1-09363-616-0 01 1 1008-
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) DIN12 M22 STRAIGHT 		8-98107-103-0 02 1 1008-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1008-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
262 BRACKET
(C) 		1-47471-015-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1008-
280 WASHER; LK
DIFF LOCK(C3N) ID=12.2 		0-91510-512-0 01 1 1008-

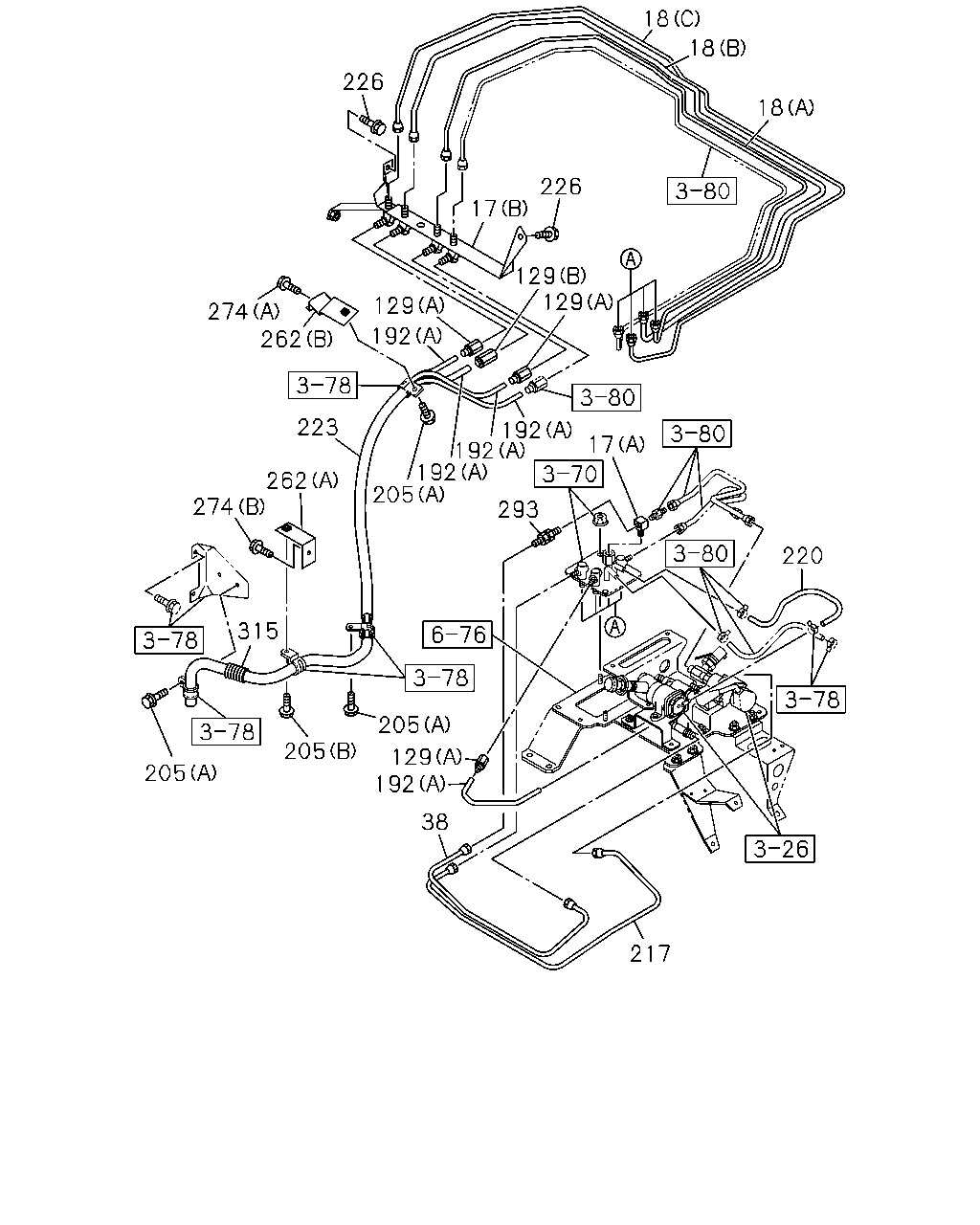

çizim 167744
18 18 226 18 226 17 129 129 129 274 262 192 223 192 192 192 205 17 262 274 293 220 315 205 205 129 192 205 38 217
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-09656-708-0 01 1 1008-
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (B) 		1-47470-656-0 01 1 1008-
17 UNION; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1008-
17 UNION; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> (B) 		8-98151-901-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
(C) L=2316 SERVICED BY L=2400 		1-47428-856-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
(B) L=2098 SERVICED BY L=2100 		1-47428-882-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-
38 PIPE; AIR,UNION TO MAG VLV 1-49122-879-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1008-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1008-
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 1008-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
262 BRACKET
(C) 		1-47471-015-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1008-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
293 VALVE; CHECK
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> 		1-48410-479-1 01 1 1008-
293 VALVE; CHECK
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> 		1-09650-352-1 01 1 1008-
315 CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> 		8-97332-148-0 01 1 1109-
315 CLIP
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> 		8-97332-148-0 01 1 1109-

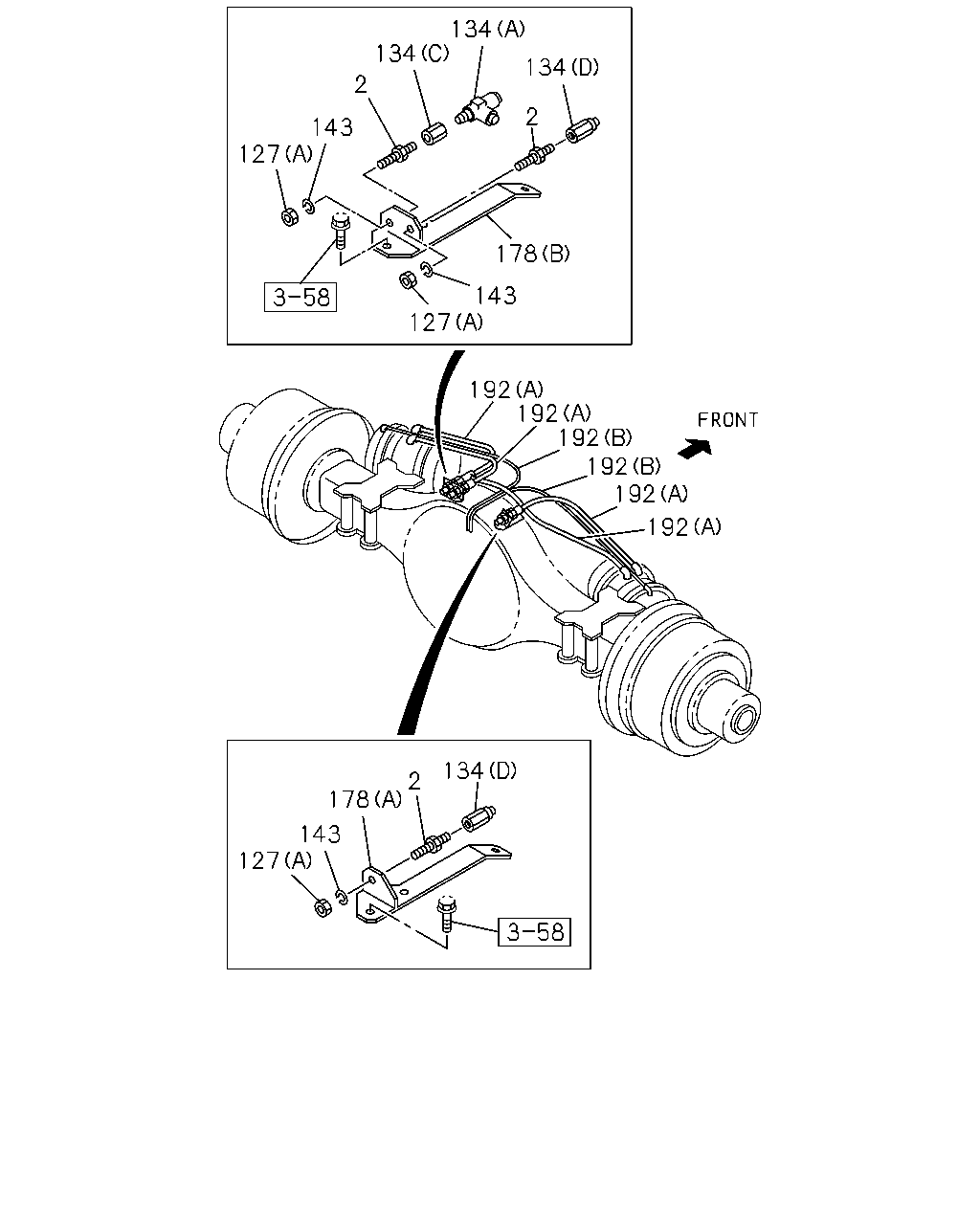

çizim 167782
134 134 134 2 2 143 127 178 143 127 192 192 192 192 192 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M20 STRAIGHT 		1-09654-240-1 03 1 1008-
127 NUT; UNION
(A) M20 		0-91111-520-0 03 1 1008-
127 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 03 1 1008-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1008-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1008-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1008-
134 CONNECTOR
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
143 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 03 1 1008-1008
143 WASHER; LK,UNION
ID=20.2 		0-91510-620-0 03 1 1009-
178 BRACKET; UNION
(A) 		1-42119-186-0 01 1 1008-
178 BRACKET; UNION
(B) 		1-42119-187-0 01 1 1008-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-

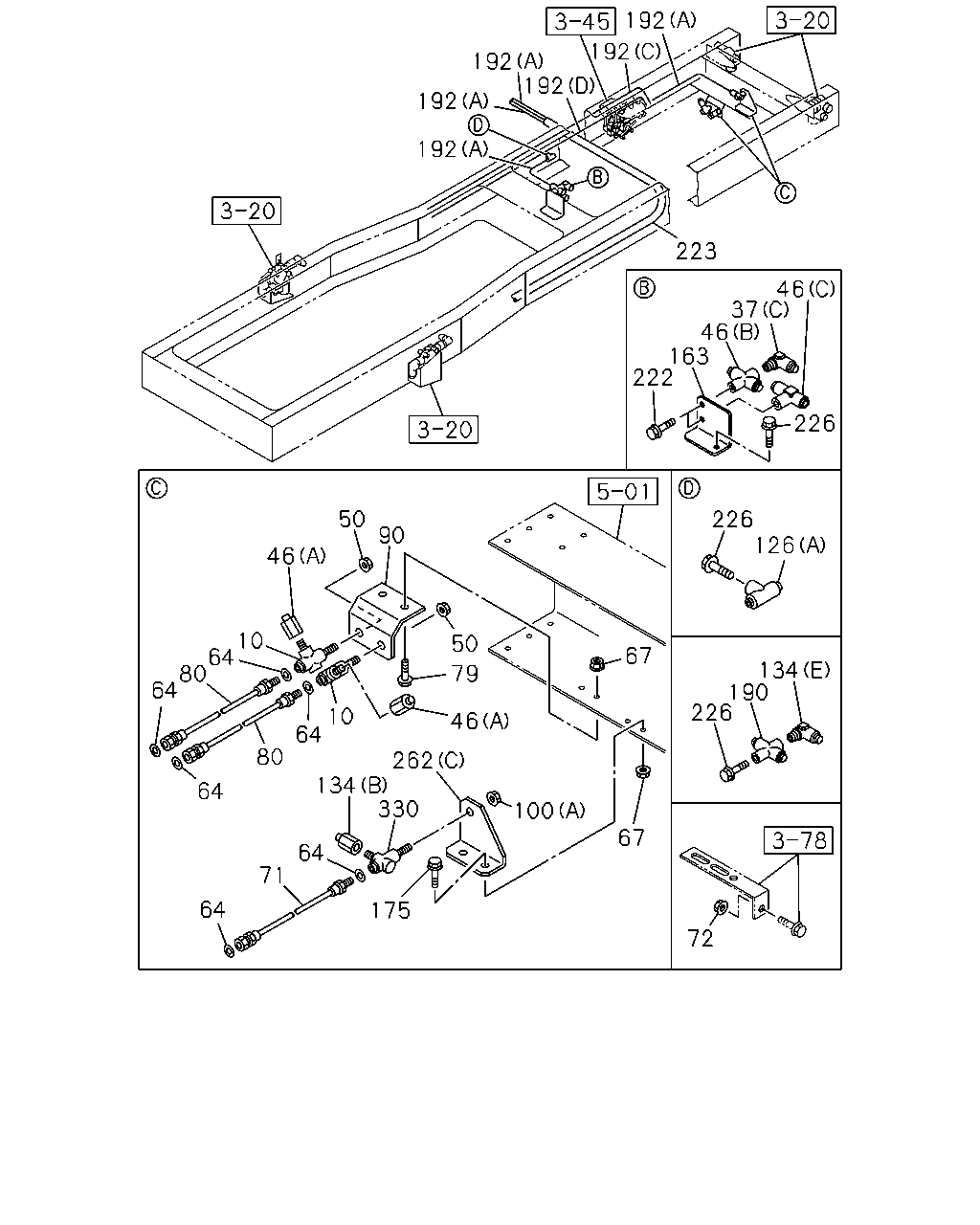

çizim 167791
192 192 192 192 192 192 223 46 37 46 163 222 226 50 226 126 90 46 10 64 80 64 50 67 134 190 226 79 10 64 46 80 262 134 330 64 100 67 64 71 64 175 72
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE 1-09650-360-1 02 1 1008-
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
37 UNION; AIR PIPE
(B) 		1-09650-222-1 01 1 1008-
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1008-
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1008-
50 NUT; UNION BRKT
M14 FLANGE 		0-91150-114-0 02 1 1008-
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 06 1 1008-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
71 HOSE; FLEX,RWD RR
L=630 		0-57846-630-1 01 1 1008-
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
72 NUT; BRKT
DIFF LOCK(C3N) M8 FLANGE 		0-91180-108-0 02 1 1008-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-57846-630-1 02 1 1008-
90 BRACKET; PIPE UNION 1-47471-007-0 01 1 1008-
100 NUT; UNION
(A) M14 FLANGE 		0-91150-114-0 01 1 1008-
100 NUT; UNION
DIFF LOCK(C3N) (B) M12 		9-09840-280-0 01 1 1008-
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) DIN12 M22 STRAIGHT 		8-98107-103-0 02 1 1008-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1008-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1008-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1008-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1008-
134 CONNECTOR
EXC. TRAILER BRAKE HAND CONTROL<NLG> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 1008-
175 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
190 UNION; 3 WAY
EXC. TRAILER BRAKE HAND CONTROL<NLG> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28050-810-0 02 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
262 BRACKET
(C) 		1-47471-015-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1008-
330 UNION; FLEX HOSE 1-09650-360-1 01 1 1008-

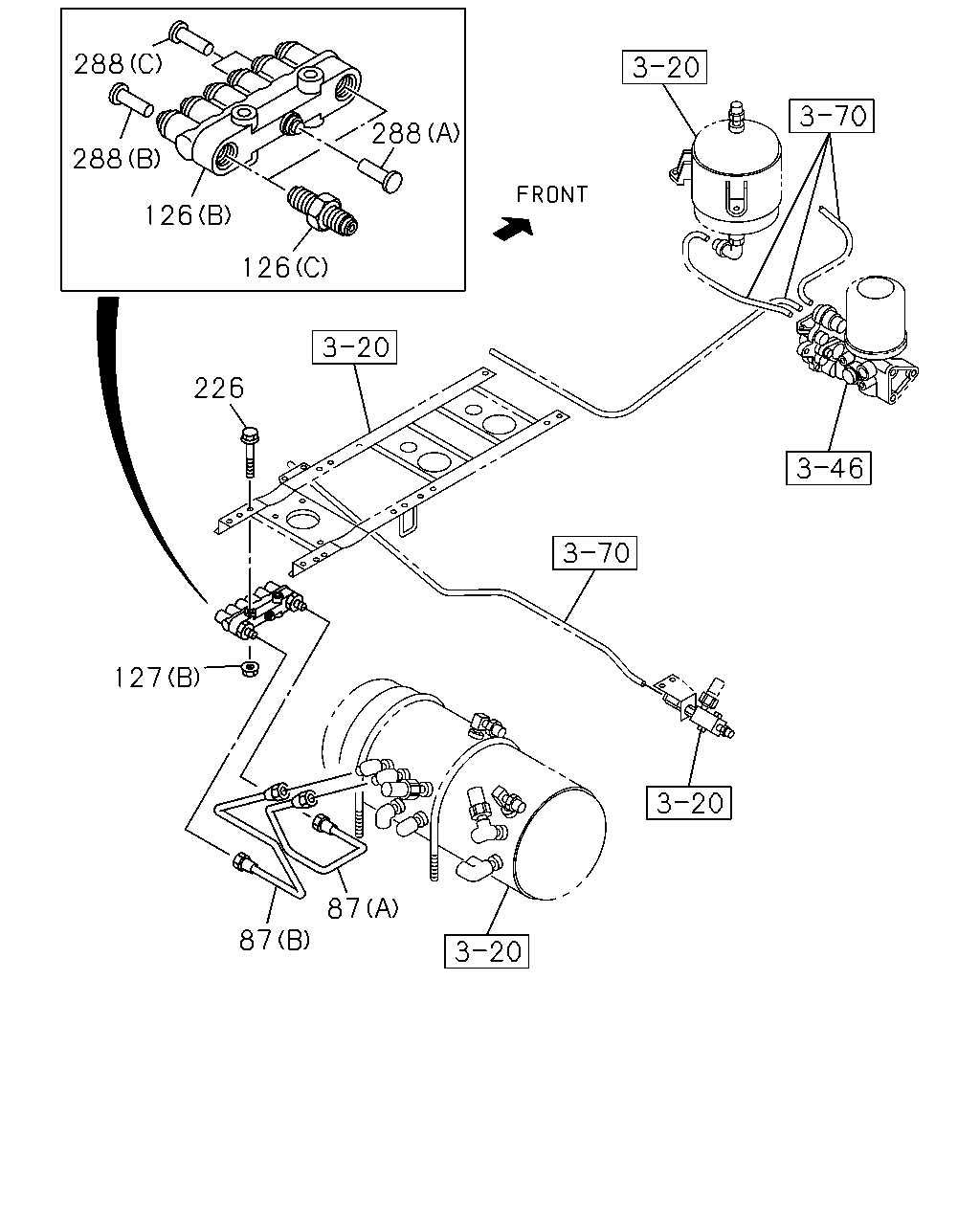

çizim 167793
288 288 288 126 126 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 1008-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 1008-
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) DIN12 M22 STRAIGHT 		8-98107-103-0 02 1 1008-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1008-
127 NUT; UNION
(A) M20 		0-91111-520-0 03 1 1008-
127 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 03 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X25 FLANGE 		0-28650-825-0 01 1 1008-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1008-
288 PLUG
(B) OD=8 		1-09661-616-0 01 1 1008-
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 1008-

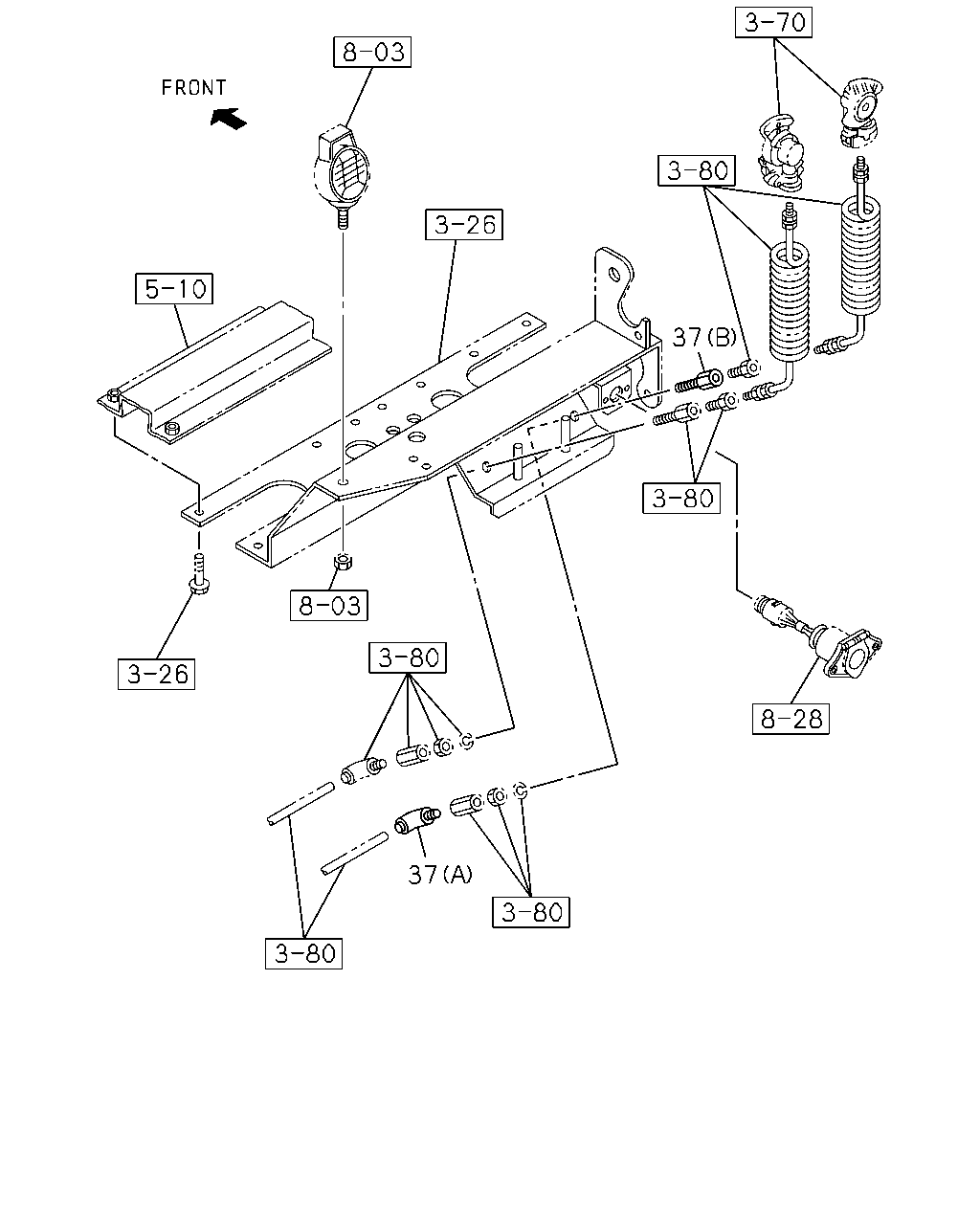

çizim 167894
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
37 UNION; AIR PIPE
(B) 		1-09650-222-1 01 1 1008-
