◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11273 - EXR LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#57805) — 183 parça
çizim 167732
434 337 337 232 231 330 334 330 232 231 343 343 297 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> 		1-47470-655-0 01 1 1008-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> 		8-98138-506-1 01 1 1008-
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09656-713-2 01 1 1008-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09656-713-2 01 1 1008-
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 H=8 		1-09400-029-0 01 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
330 WASHER; LK,UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> ID=10.2 		0-91510-510-0 02 1 1008-
334 SPACER; PIPE UNION
EXC. EURO4 SPECIFICATION<KBT> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1008-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. EURO4 SPECIFICATION<KBT> L=720 		0-57210-720-0 02 1 1008-
343 UNION; NYLON TUBE
EXC. EURO4 SPECIFICATION<KBT> 		1-09660-796-1 02 1 1008-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1008-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1008-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
EXC. EURO4 SPECIFICATION<KBT> (C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-

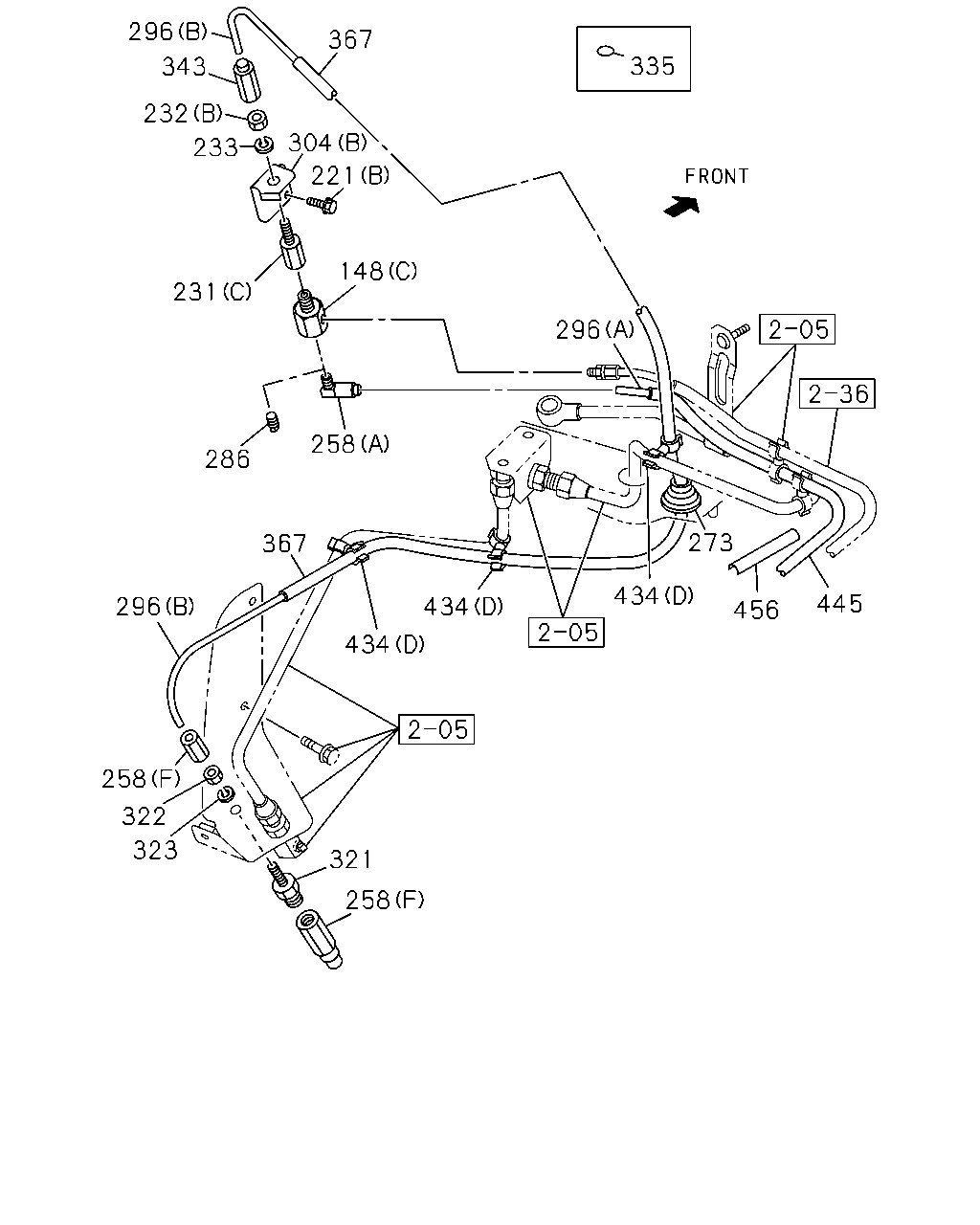

çizim 167758
296 367 335 343 232 304 233 221 148 231 296 258 286 273 367 434 445 296 434 456 434 258 322 323 321 258
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
148 CONNECTOR; UNION
(B) 		1-09661-729-0 01 1 1008-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008-
221 BOLT; BRKT
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09656-713-2 01 1 1008-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09656-713-2 01 1 1008-
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
EXC. EURO4 SPECIFICATION<KBT> (B) M10 H=8 		1-09400-029-0 01 1 1008-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1008-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1008-
273 GROMMET
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 1008-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 1008-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 1008-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1008-
304 BRACKET; UNION
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1008-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1008-
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1008-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1008-
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1008-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1008-
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1008-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1008-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 1008-
343 UNION; NYLON TUBE
EXC. EURO4 SPECIFICATION<KBT> 		1-09660-796-1 02 1 1008-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1008-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
EXC. EURO4 SPECIFICATION<KBT> (C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1008-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1008-

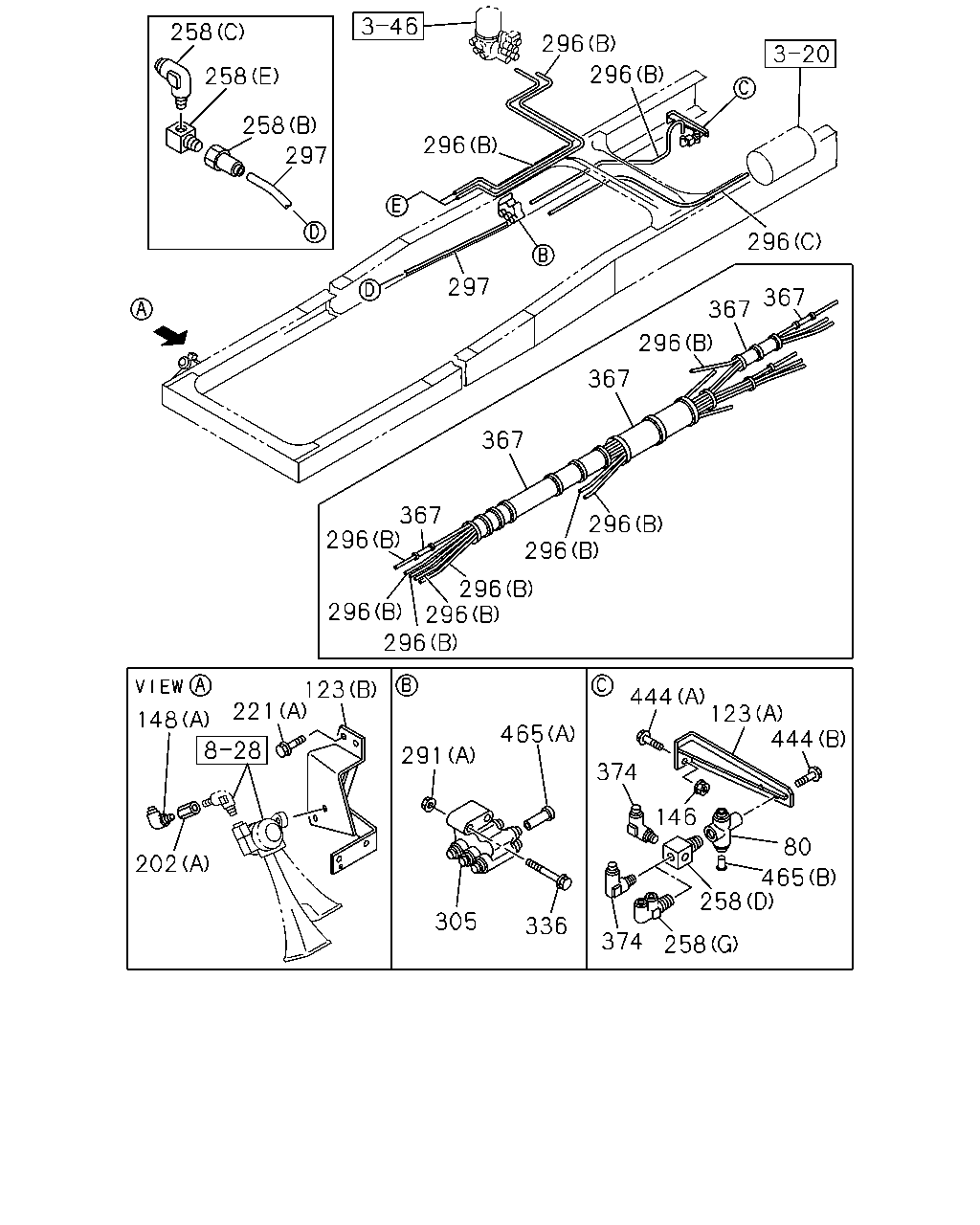

çizim 167762
258 296 296 258 258 296 297 296 297 367 367 296 367 367 367 296 296 296 296 296 296 296 123 444 123 444 221 148 465 291 374 146 80 202 465 258 305 336 374 258
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1008-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1008-
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
148 CONNECTOR; UNION
(B) 		1-09661-729-0 01 1 1008-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
202 ADAPTER
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008-
221 BOLT; BRKT
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1008-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1008-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1008-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 1008-
465 PLUG
MJT7S M/T(Y3E) DIFF LOCK(C3N) (B) OD=8 		1-09661-616-0 01 1 1008-
465 PLUG
MJX16P M/T(Y3Z) (B) OD=8 		1-09661-616-0 01 1 1008-
465 PLUG
MJT7S M/T(Y3E) EXC. DIFF LOCK(C3N) (B) OD=8 		1-09661-616-0 02 1 1008-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1008-
465 PLUG
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1008-

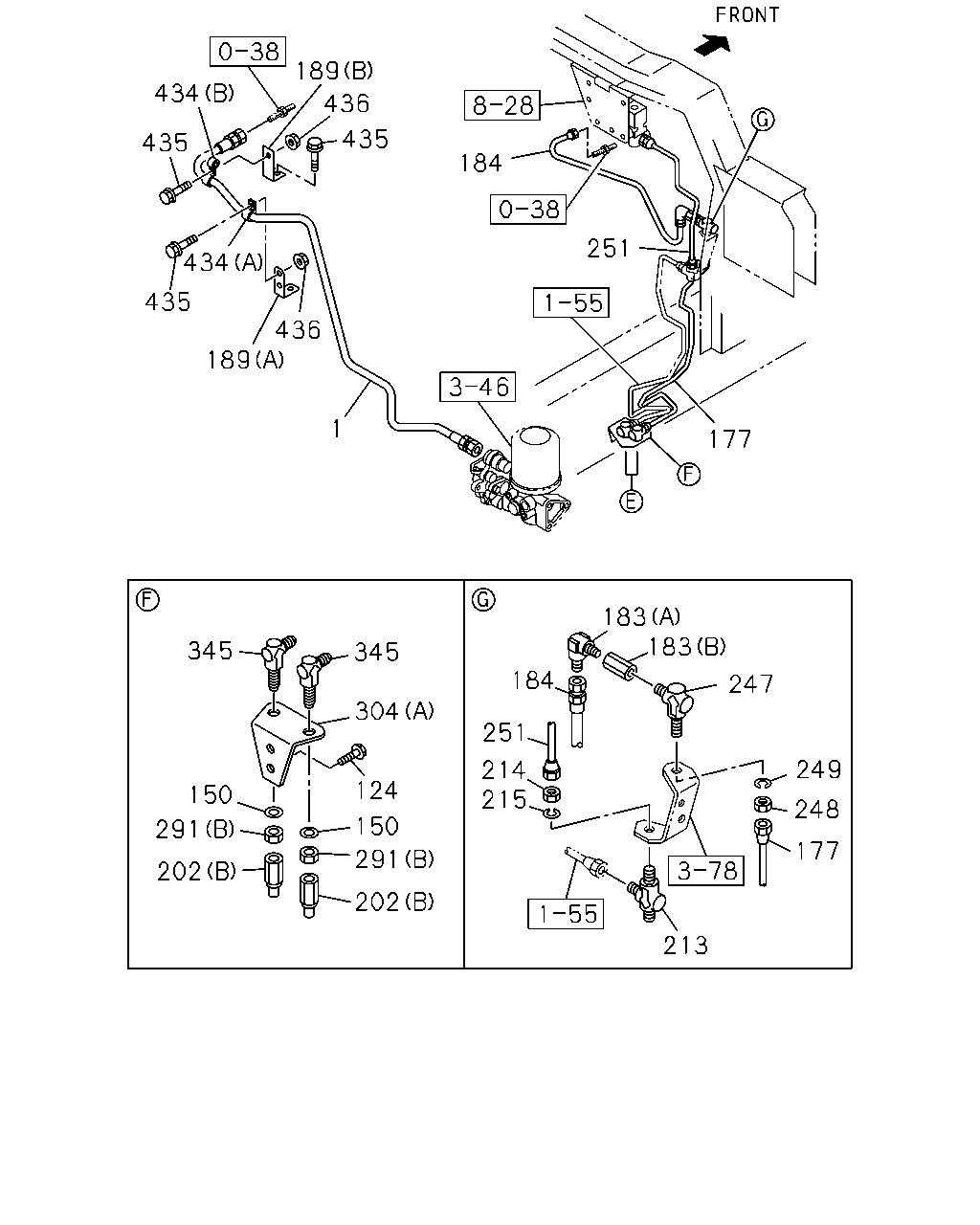

çizim 167764
189 434 436 435 435 184 251 434 435 436 189 1 177 183 183 345 345 184 247 251 249 214 215 124 150 248 150 291 177 291 202 202 213 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1008-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1008-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1008-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1008-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1008-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1008-
202 ADAPTER
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1008-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1008-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1008-
304 BRACKET; UNION
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1008-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1008-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
EXC. EURO4 SPECIFICATION<KBT> (C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-

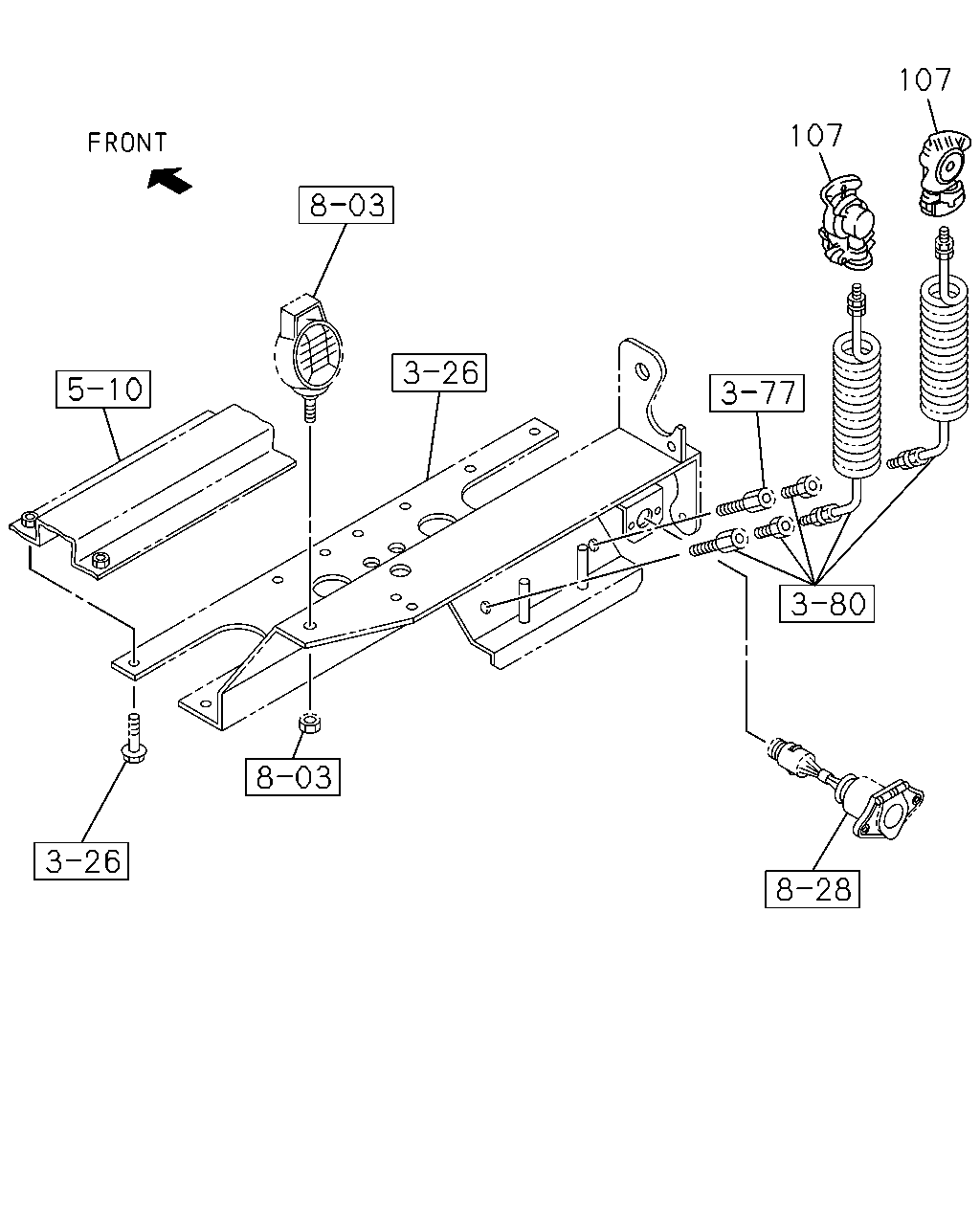

çizim 167765
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1008-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1008-

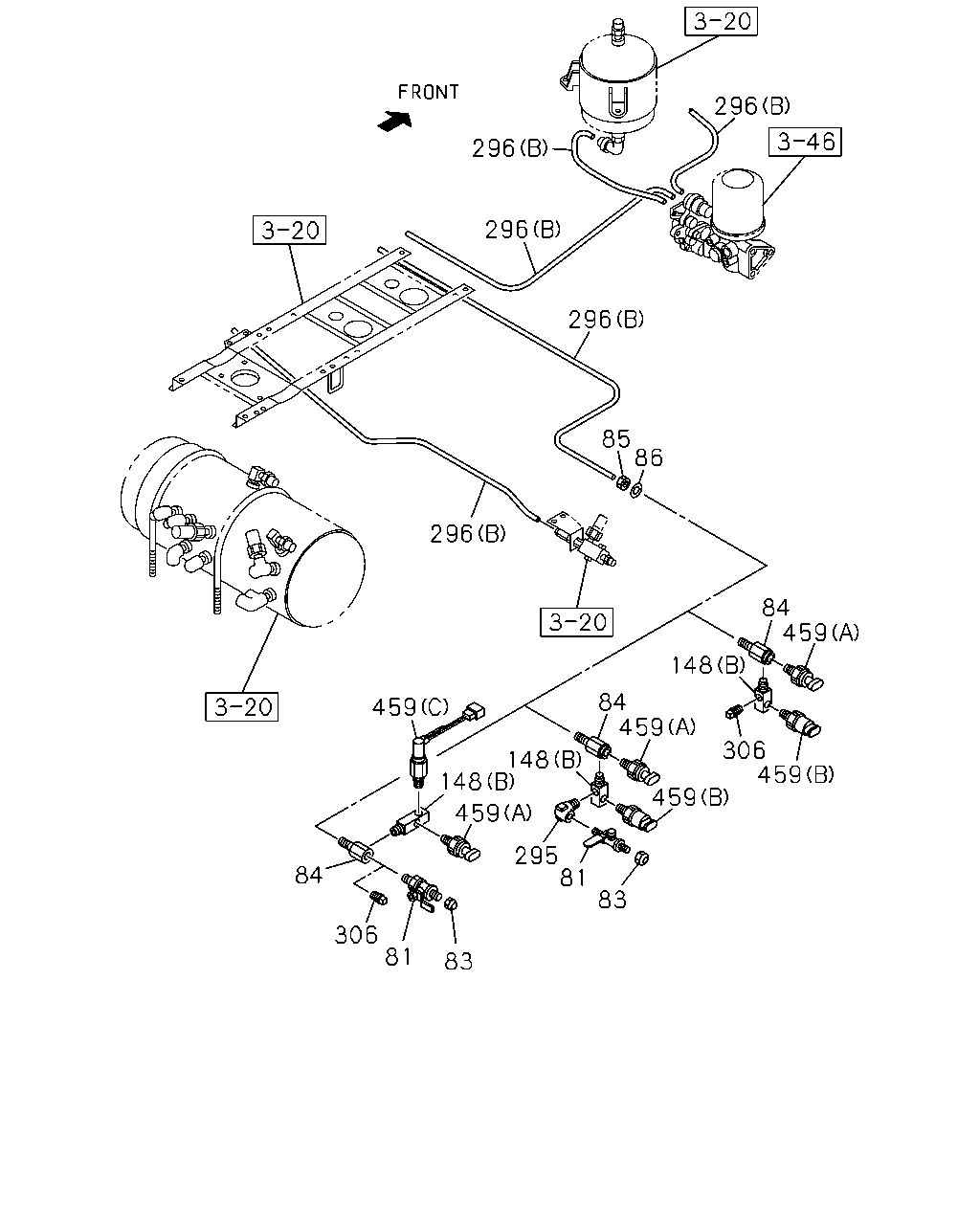

çizim 167819
296 296 296 296 85 86 296 84 459 148 84 459 459 306 459 148 148 459 459 295 81 84 83 306 81 83
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1008-
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1008-
84 UNION; NYLON TUBE 1-09661-092-0 01 1 1008-
85 NUT; UNION
M18 		0-91110-518-0 01 1 1008-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1008-
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
148 CONNECTOR; UNION
(B) 		1-09661-729-0 01 1 1008-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
295 CONNECTOR; NYLON TUBE
6WG1 TC-R(75L) TIRE INFLATOR DEVICE<SG4> PT1/4 2WAY 		1-09660-693-0 01 1 1008-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 1008-
459 SWITCH; PRESS
(A) THREAD R1/4 		1-80220-023-1 01 1 1008-
459 SWITCH; PRESS
6WF1 TC-C(1B8) (B) 		1-48340-058-2 01 1 1008-
459 SWITCH; PRESS
6WG1 TC-R(75L) (C) 		8-97615-622-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
