3-45 — LOAD SENSING PROPORTIONING VALVE (#57801) — 33 parça

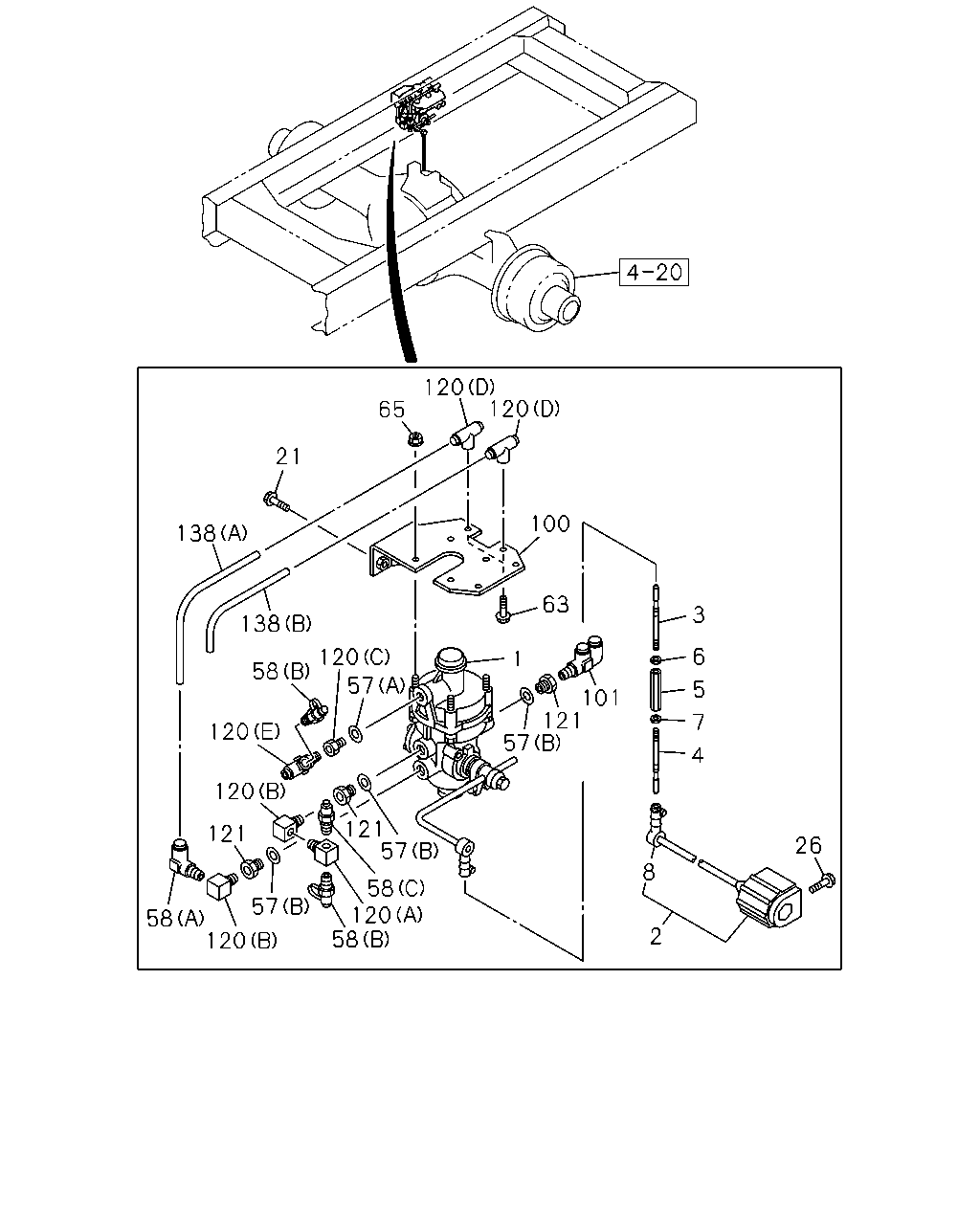

çizim 167858
120 120 65 21 100 138 63 3 138 6 120 1 58 57 5 101 121 57 7 120 4 120 121 57 121 26 8 58 120 58 57 58 120 2
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 8-98138-156-0 01 1 1008-
2 DAMPER 1-47725-012-0 01 1 1008-
3 ROD; UPR
LOW DECK WO/REAR BODY VAR2<XR8> 		1-09765-282-0 01 1 1008-
3 ROD; UPR
STD DECK WO/REAR BODY<TFR> 		1-09765-290-0 01 1 1008-
4 ROD; LWR
LOW DECK WO/REAR BODY VAR2<XR8> 		1-09765-315-0 01 1 1008-
4 ROD; LWR
STD DECK WO/REAR BODY<TFR> 		1-09765-283-0 01 1 1008-
5 JOINT 1-09768-091-0 01 1 1008-
6 NUT; LK,UPR
M8 		0-91111-508-0 01 1 1008-
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 1008-
8 ROD END 1-47723-001-0 02 1 1008-
21 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
26 BOLT; DAMPER
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
57 GASKET; CONNECTOR
(A) ID=16.2 OD=24 		9-09571-416-0 01 1 1008-
57 GASKET; CONNECTOR
(B) ID=22.5 		9-09571-422-0 03 1 1008-
58 CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
58 CONNECTOR; LSPV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1008-
58 CONNECTOR; LSPV
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1008-
63 BOLT; LSPV
M8X16 FLANGE 		0-28050-816-0 02 1 1008-
65 NUT; LSPV
M8 FLANGE 		0-91180-108-0 04 1 1008-
100 BRACKET; LSPV 8-98145-852-0 01 1 1008-
101 CONNECTOR; LSPV
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008-
120 CONNECTOR
(A) 		1-09656-708-0 01 1 1008-
120 CONNECTOR
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
120 CONNECTOR
(C) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1008-
120 CONNECTOR
(D) 		1-09661-128-0 02 1 1008-
120 CONNECTOR
(E) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 1008-
121 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1008-
138 TUBE; NYLON,UNION TO UNION
(A) 		1-49221-595-1 01 1 1008-
138 TUBE; NYLON,UNION TO UNION
(B) 		1-49221-596-1 01 1 1008-

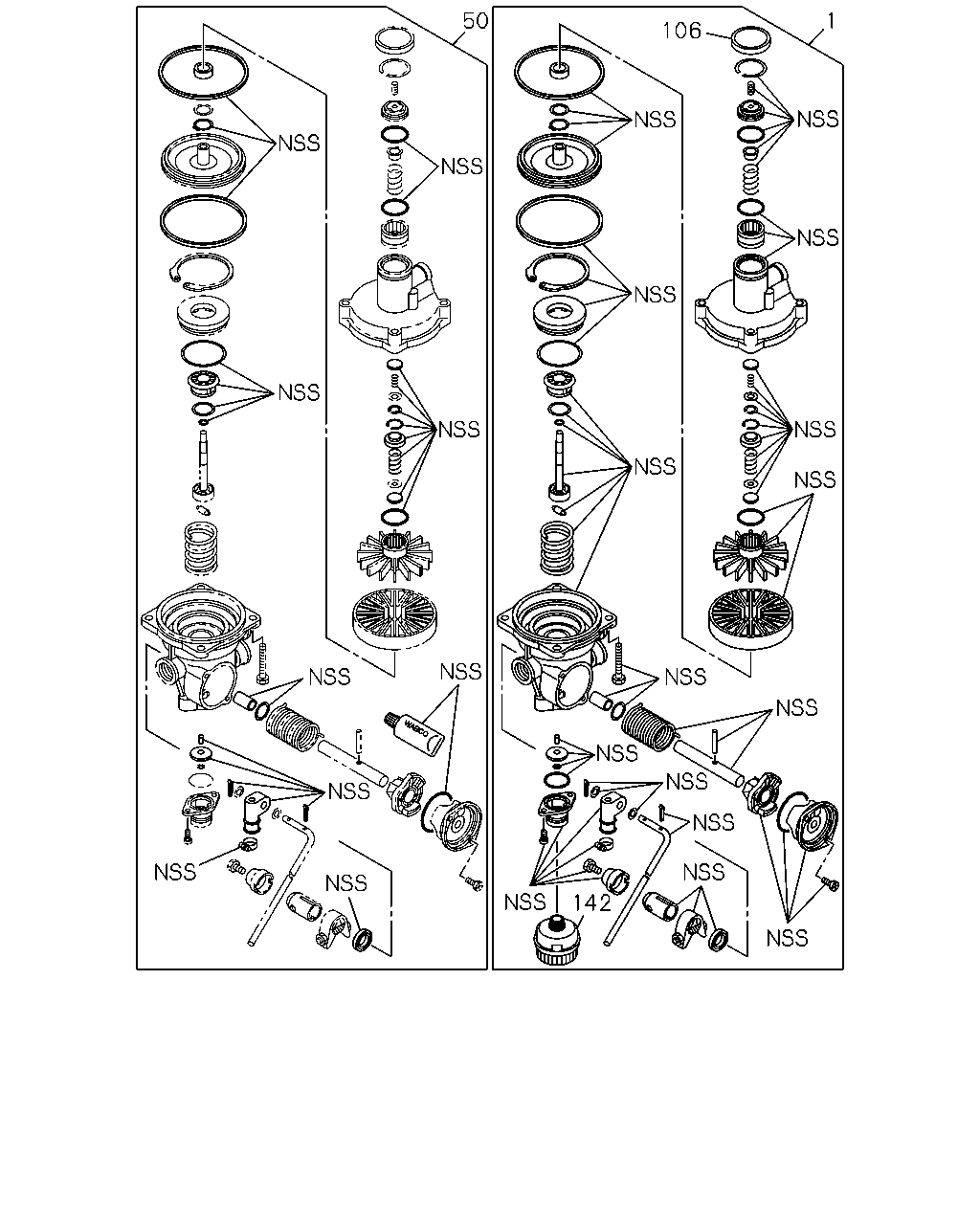

çizim 167904
50 1 106 142
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 8-98138-156-0 01 1 1008-
50 REPAIR KIT; LSPV 1-85576-393-0 01 1 1008-
106 COVER; PISTON 1-47729-001-0 01 1 1008-
142 SILENCER; VALVE 8-98163-464-0 01 1 1008-
