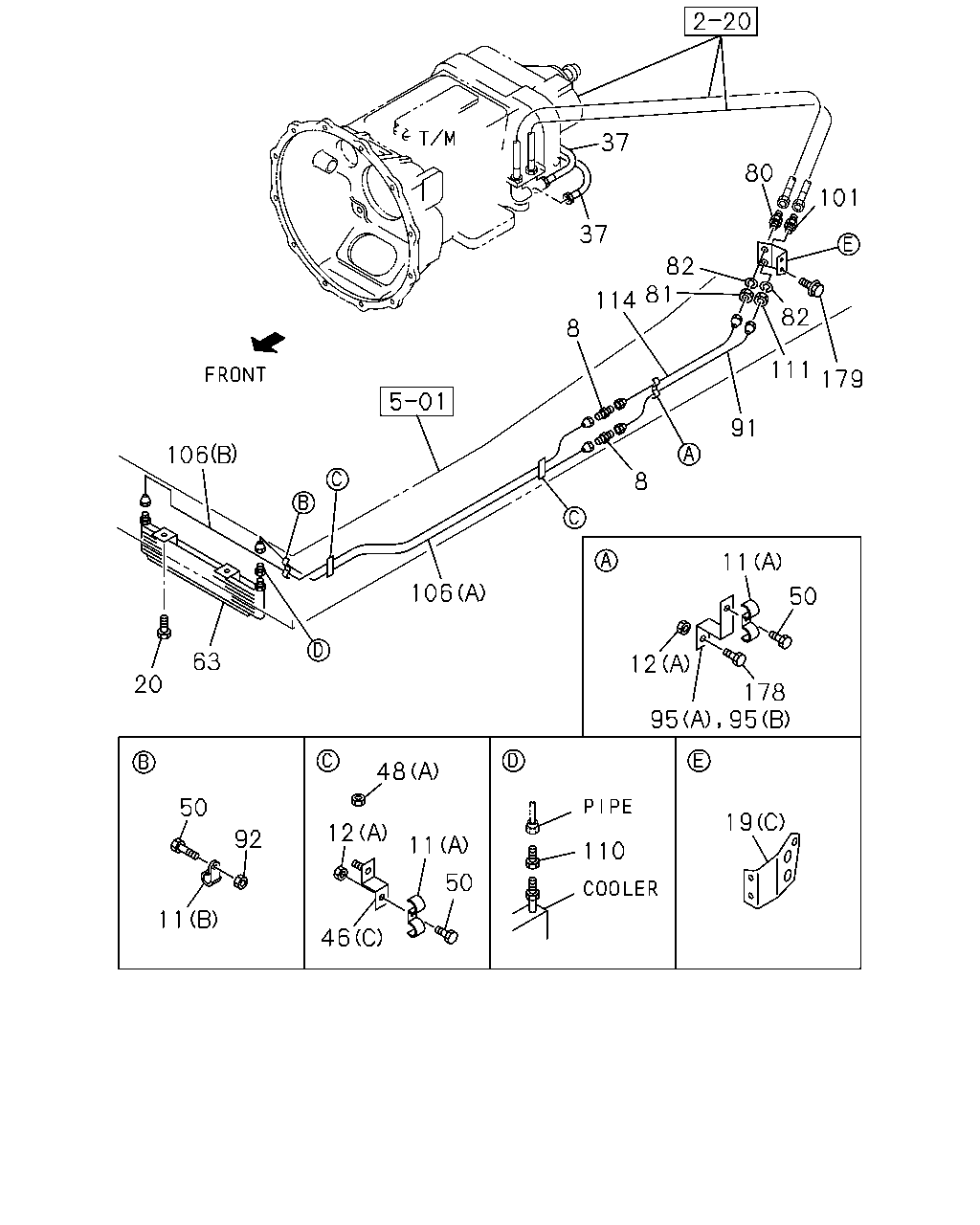

2-53C — TRANSMISSION OIL COOLER SYSTEM (#5780) — 50 parça

37 80 101 37 82 81 114 82 8 111 179 91 106 8 11 106 50 63 12 20 178 95 95 48 50 19 12 92 11 110 50 11 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9905-	●	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9905-	●	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-0002	●	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (C)	1-47478-566-0	01	1	9905-	●	●	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9905-0006	●	●	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0007-	●	●	●	●
37	HOSE; FLEX,OIL COOLER PIPE TO A/T L=1120	1-09365-010-0	02	1	9712-9803					●
37	HOSE; FLEX,OIL COOLER PIPE TO A/T L=1120	1-09365-010-0	02	1	9804-9904					●	●
37	HOSE; FLEX,OIL COOLER PIPE TO A/T L=1120	1-09365-010-0	02	1	9905-9907	●	●	●
37	HOSE; FLEX,OIL COOLER PIPE TO A/T L=1120	1-09365-010-0	02	1	9908-	●	●	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	02	1	9603-9904					●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	02	1	0003-	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	02	1	0003-	●	●	●	●
50	BOLT; CLIP L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0003-	●	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9905-0002	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	02	1	0003-	●	●	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9603-9904				●	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9905-	●	●	●	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9709-9802					●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9803-9904					●	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-	●	●	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9905-	●	●	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=837	1-49163-182-0	01	1	9905-	●	●	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C>	1-47429-062-0	01	1	9603-9603					●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C>	1-47429-789-0	01	1	9603-9904					●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-881-0	01	1	9909-0002	●	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-881-0	01	1	9909-0002	●	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-881-0	01	1	0003-	●	●	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-881-0	01	1	0003-	●	●	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-881-0	01	1	9905-9908	●	●	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9709-9904					●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-	●	●	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A) L=2317	1-49164-311-0	01	1	9905-	●	●	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B)	1-47429-502-0	01	1	9603-9904					●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B) L=1703	1-49164-312-0	01	1	9905-	●	●	●	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9905-	●	●	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=1013	1-47429-790-0	01	1	9603-9904					●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=998	1-49163-183-0	01	1	9905-	●	●	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
