Isuzu WW
▶
TRUCKS
▶
EXR
▶
11273 - EXR LHD EURO2/3/4 WITH 3STEPS
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#57797) — 103 parça
◀
[326A] HAND BRK VALVE (25 parça)
[326A] JUMPER CABLE (9 parça)
[326A] REPAIR KIT;HAND CONT VALVE (1 parça)
[326A] HAND CONT VALVE (30 parça)
[326A] FIXING;CAB SIDE (21 parça)
[326A] FRAME SIDE (16 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
▶

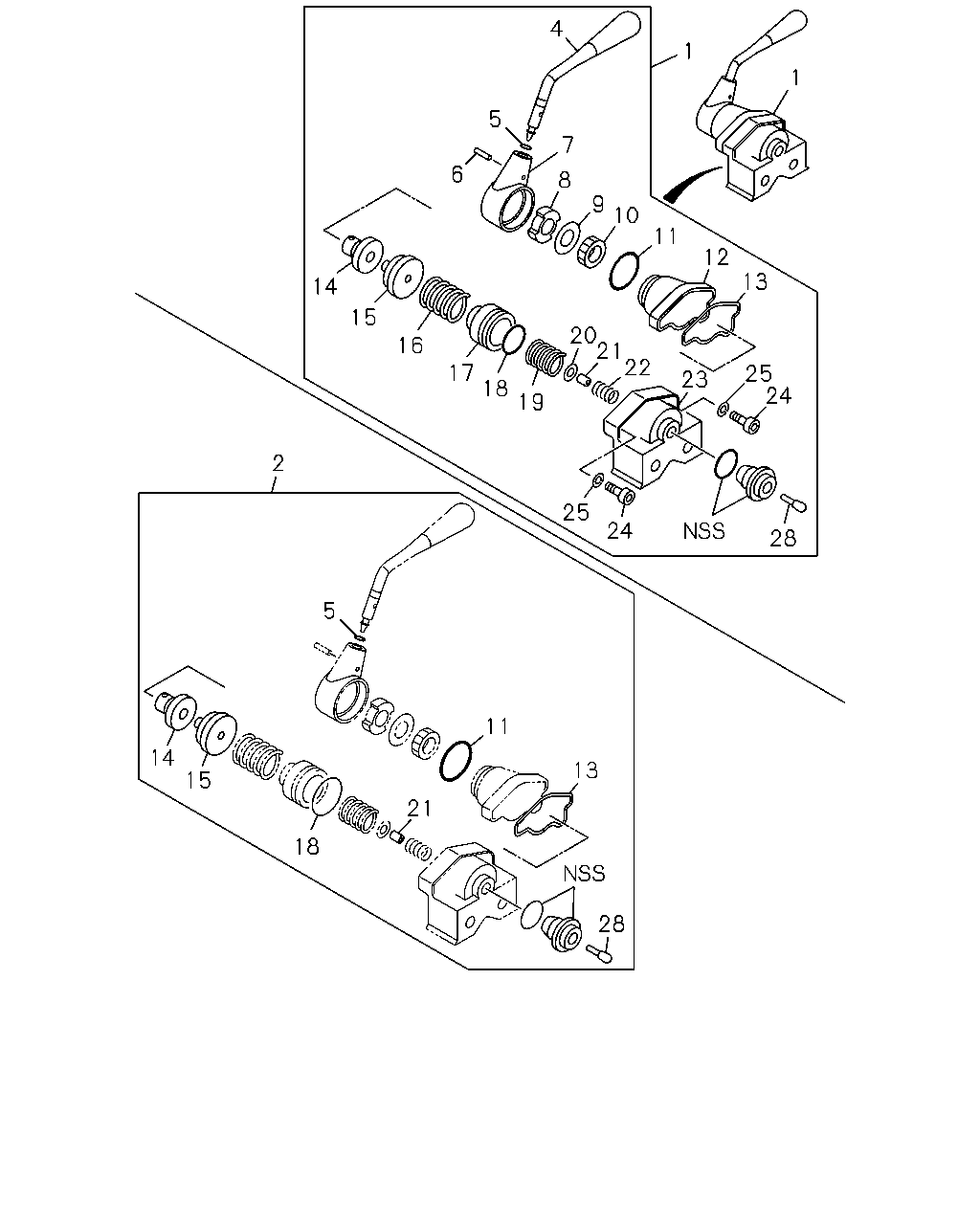

4
1
1
5
7
6
8
9
10
11
12
13
14
15
20
21
22
16
23
17
25
24
18
19
2
25
24
28
5
11
14
13
15
21
18
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48100-849-0
01
1
1008-
2
REPAIR KIT; HAND BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-85576-180-0
01
1
1008-
4
HANDLE ASM; BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-517-0
01
1
1008-
5
GASKET; HANDLE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-128-0
01
1
1008-
6
PIN; SPR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-143-0
01
1
1008-
7
HEAD; BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-131-1
01
1
1008-
8
STOPPER; BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-136-0
01
1
1008-
9
WASHER; LK,ADJ
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-123-0
01
1
1008-
10
RING; ADJ
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-122-0
01
1
1008-
11
GASKET; HD TO COVER
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-130-0
01
1
1008-
12
COVER; BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-097-1
01
1
1008-
13
GASKET; BODY TO COVER
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48119-120-0
01
1
1008-
14
FOLLOWER; CAM
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-109-0
01
1
1008-
15
CAM; FOLLOWER
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-110-0
01
1
1008-
16
SPRING; GRUDUATING
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-101-0
01
1
1008-
17
PISTON; SPR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-095-0
01
1
1008-
18
GASKET; BODY
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-096-0
01
1
1008-
19
SPRING; PISTON
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-094-0
01
1
1008-
20
GUIDE; VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-090-0
01
1
1008-
21
VALVE; IN & EXH
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48121-017-0
01
1
1008-
22
SPRING; VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48123-024-0
01
1
1008-
23
BODY; BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48111-060-1
01
1
1008-
24
BOLT; EXH VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-092-0
02
1
1008-
25
WASHER; LK,EXH VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-093-0
02
1
1008-
28
STEM ASM; BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48129-089-0
01
1
1008-

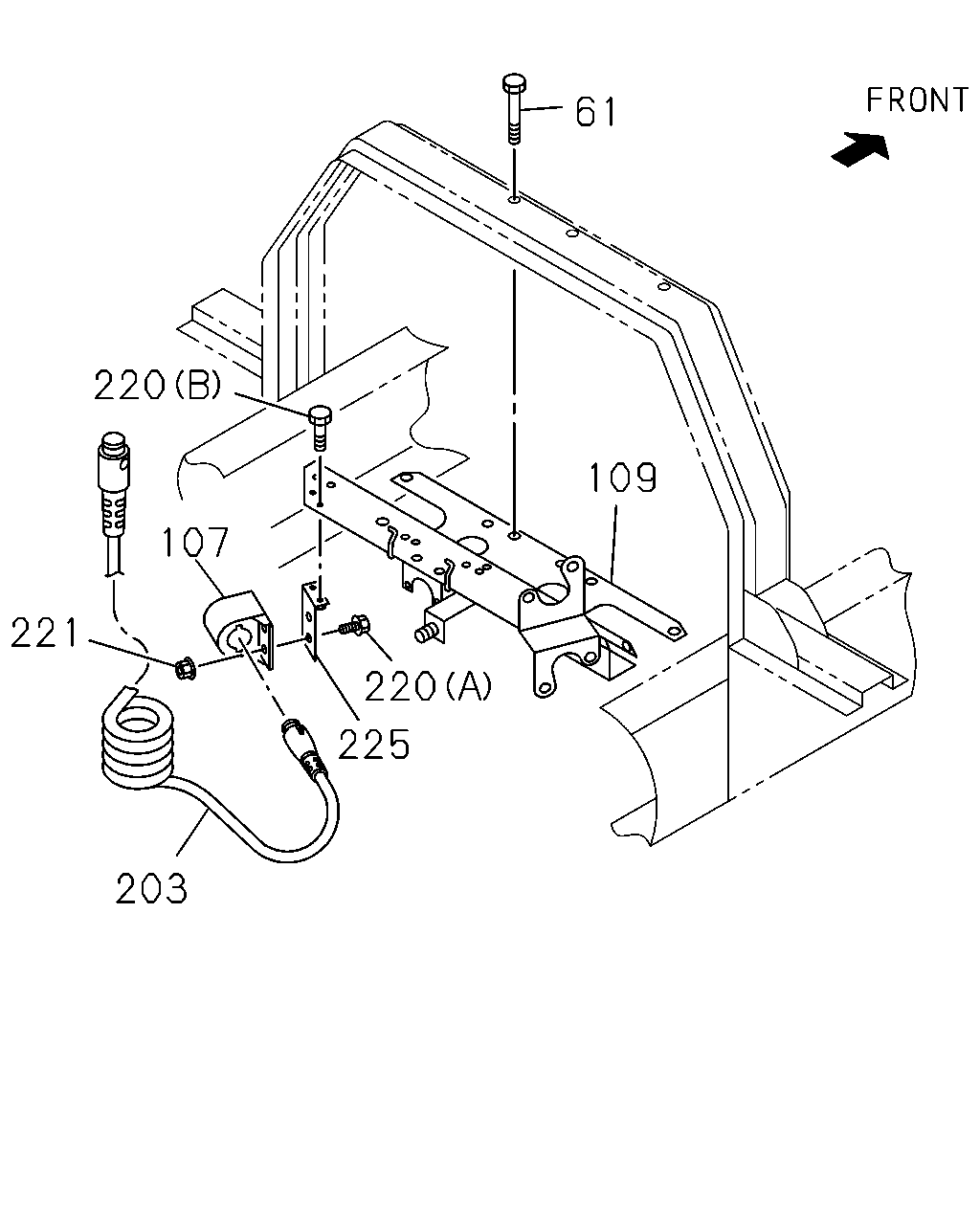

61
220
109
107
221
220
225
203
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BOLT; STEP BOARD
M10X25 FLANGE
0-28651-025-0
08
1
1008-1109
61
BOLT; STEP BOARD
M10X30 FLANGE
0-28651-030-0
06
1
1110-
107
HANGER; JUMPER HOSE
1-57550-022-2
01
1
1008-
109
BRACKET; HOSE HANGER
8-98146-281-1
01
1
1008-
203
CABLE; JUMPER
L=4000
8-98107-177-0
01
1
1008-
220
BOLT; HANGER
(A) M6X16 FLANGE
0-28650-616-0
02
1
1008-
220
BOLT; HANGER
(B) M8X25 FLANGE
0-28650-825-0
02
1
1008-
221
NUT; HANGER
M6 FLANGE
0-91180-106-0
02
1
1008-
225
BRACKET; HANGER
1-82698-002-0
01
1
1008-

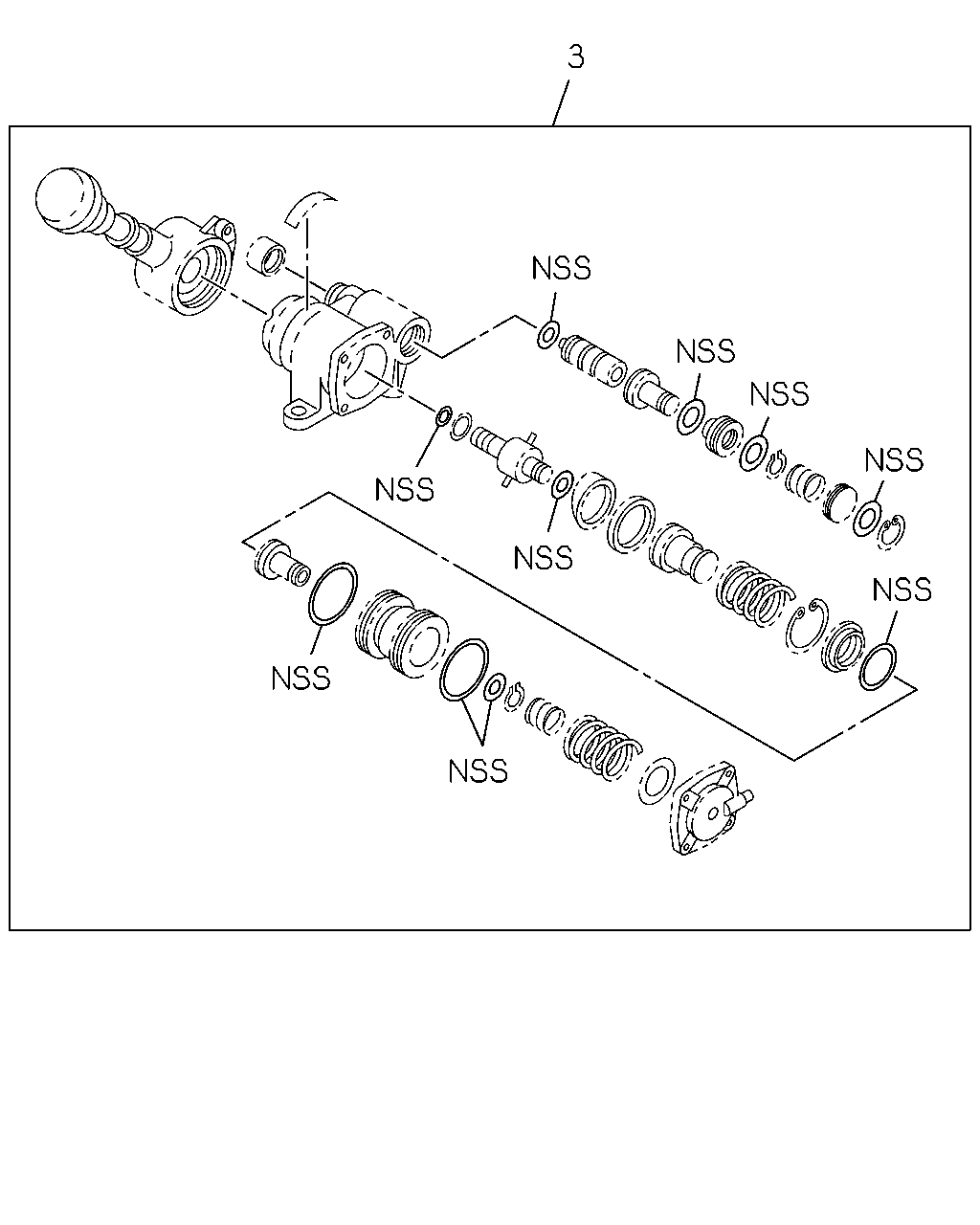

3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-083-0
01
1
1008-

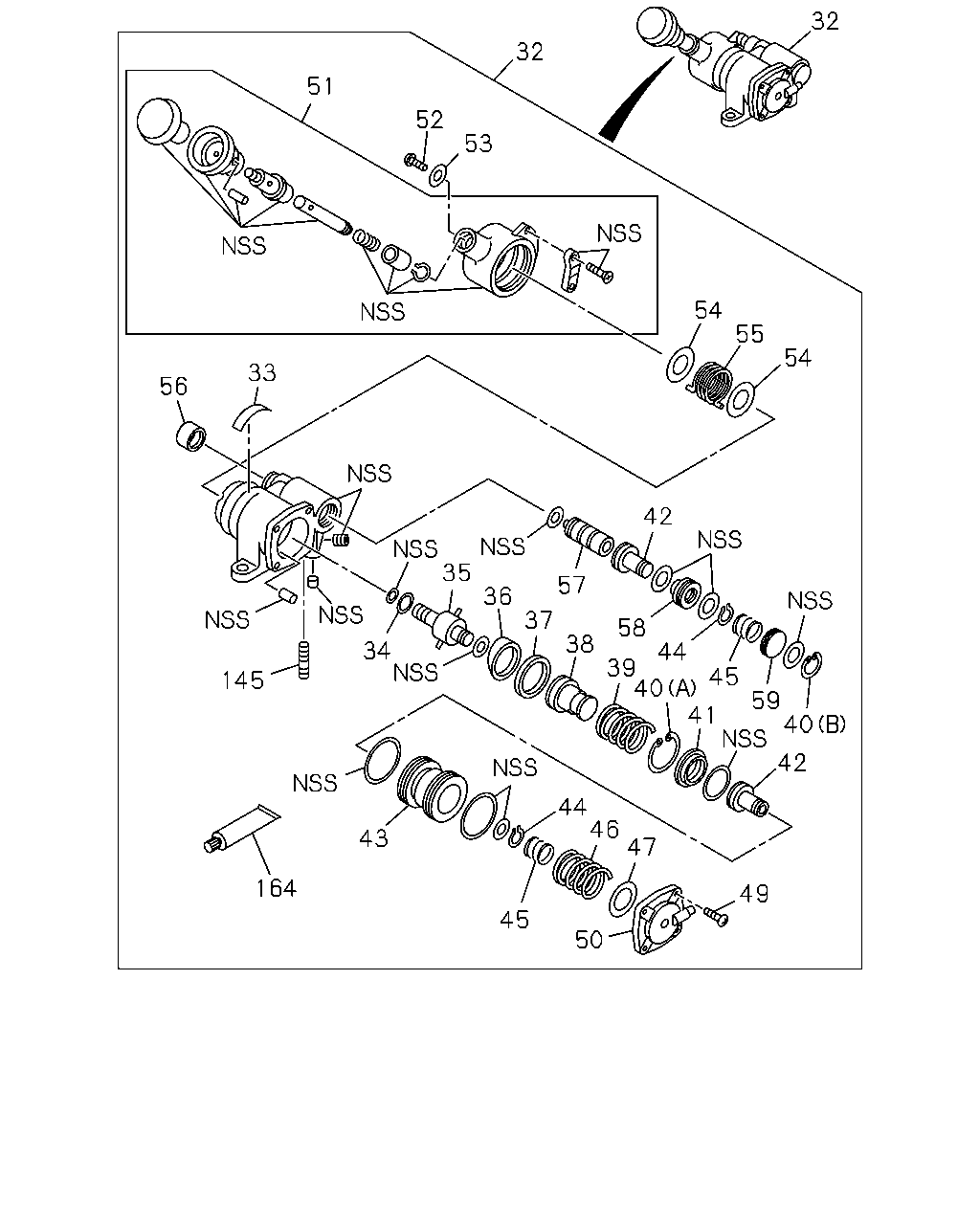

32
32
51
52
53
54
55
54
33
56
42
35
57
36
37
58
38
34
44
39
40
45
145
41
42
59
40
44
46
47
43
164
49
45
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
1008-
33
PLATE; CAUTION
1-48469-121-0
01
1
1008-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1008-
35
HOLDER; CAM
1-48469-054-0
01
1
1008-
36
RING; CAM
1-48469-056-0
01
1
1008-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1008-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1008-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1008-
40
RING; SNAP
(A)
1-48469-067-0
01
1
1008-
40
RING; SNAP
(B)
1-48469-079-0
01
1
1008-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1008-
42
VALVE; FEED
1-48469-065-0
02
1
1008-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1008-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1008-
45
SPRING; FEED VLV
1-48469-070-0
02
1
1008-
46
SPRING; MAIN,PISTON
1-48469-119-0
01
1
1008-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1008-
49
SCREW; COVER
1-48469-120-0
04
1
1008-
50
COVER; HAND BRK VLV
1-48469-073-0
01
1
1008-
51
HANDLE ASM; HAND BRK VLV
1-48469-060-0
01
1
1008-
52
SCREW; HANDLE
1-48469-062-0
01
1
1008-
53
WASHER; HANDLE
1-48469-061-0
01
1
1008-
54
SEAT; SPRING
1-48469-082-0
02
1
1008-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1008-
56
BOOT; PLUNGER
1-48469-080-0
01
1
1008-
57
PLUNGER; HAND BRK VLV
1-48469-076-0
01
1
1008-
58
HOLDER; FEED VLV
1-48469-077-0
01
1
1008-
59
HOLDER; SPRING
1-48469-078-0
01
1
1008-
145
STUD; HAND BRK VLV
1-48469-069-0
01
1
1008-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1008-

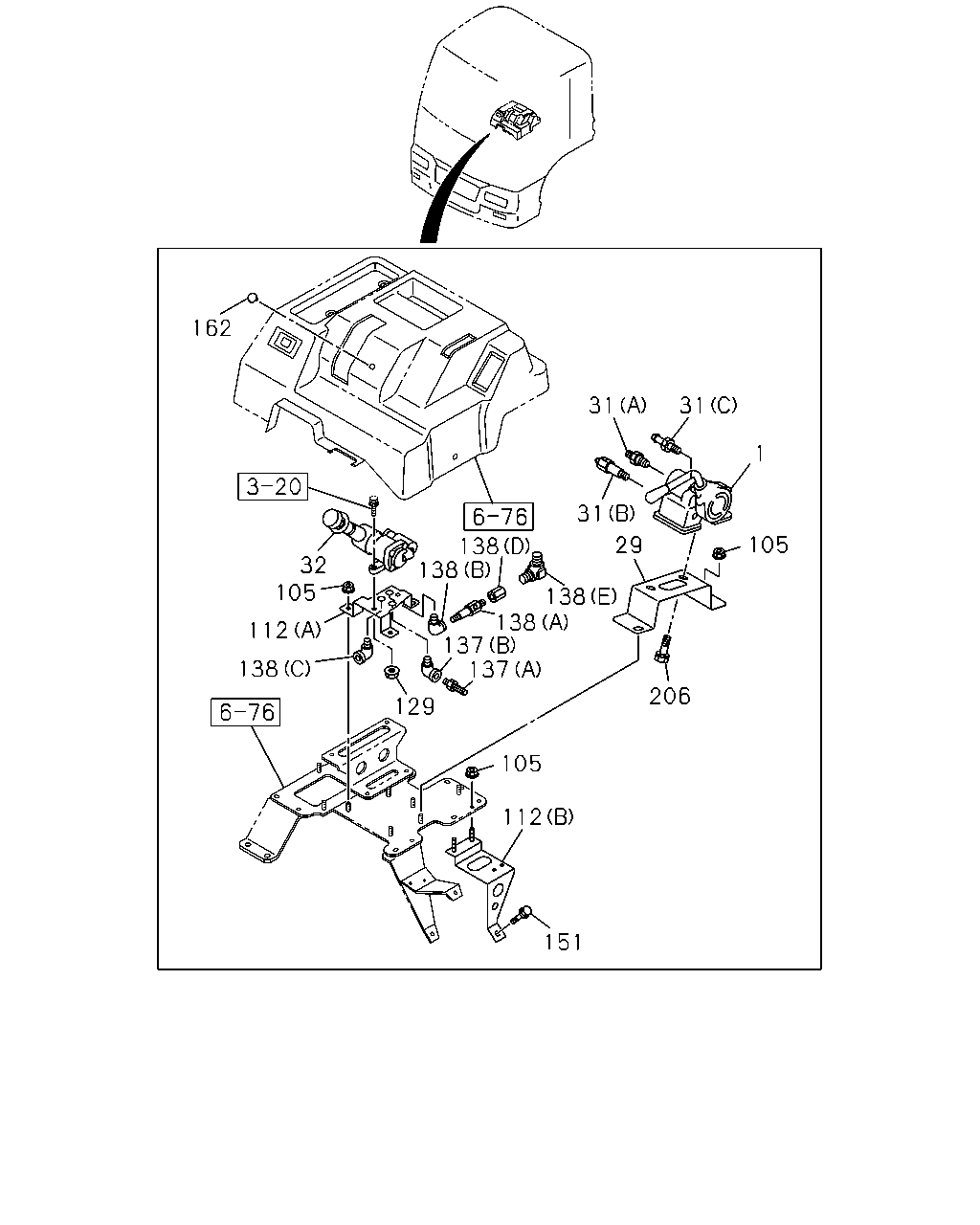

162
31
31
1
31
105
29
138
138
32
105
138
138
137
137
112
138
206
129
112
151
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; HAND BRK
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-48100-849-0
01
1
1008-
29
BRACKET; HAND BRK
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>
1-79996-131-2
01
1
1008-
31
CONNECTOR; HAND BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1008-
31
CONNECTOR; HAND BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (B) M14
1-09656-391-2
01
1
1008-
31
CONNECTOR; HAND BRK VLV
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (C) L=45
8-94338-874-0
01
1
1008-
32
VALVE; BRK,HAND CONT
1-48460-316-0
01
1
1008-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
1008-
105
NUT; BRKT
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M8 FLANGE
0-91180-108-0
02
1
1008-
112
BRACKET; CONT VLV
(A)
1-79996-112-2
01
1
1008-
112
BRACKET; CONT VLV
(B)
1-79996-113-2
01
1
1008-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1008-
137
CONNECTOR; SUPPLY
(A)
1-09650-352-1
01
1
1008-
137
CONNECTOR; SUPPLY
(B) PT1/4 2WAY
1-09660-693-0
01
1
1008-
138
CONNECTOR; DELIVERY
(E) M14 & PT1/4 ELBOW
1-09650-432-0
01
1
1008-
138
CONNECTOR; DELIVERY
(A) M14
1-09656-391-2
01
1
1008-
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
1008-
138
CONNECTOR; DELIVERY
(D)
1-09660-880-0
01
1
1008-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1008-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
1008-
162
SWITCH; PARKING BRK VLV
1-72447-390-0
01
1
1008-
206
BOLT; HAND BRK VALVE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M10X20 W/LK WASHER
0-50541-020-0
02
1
1008-

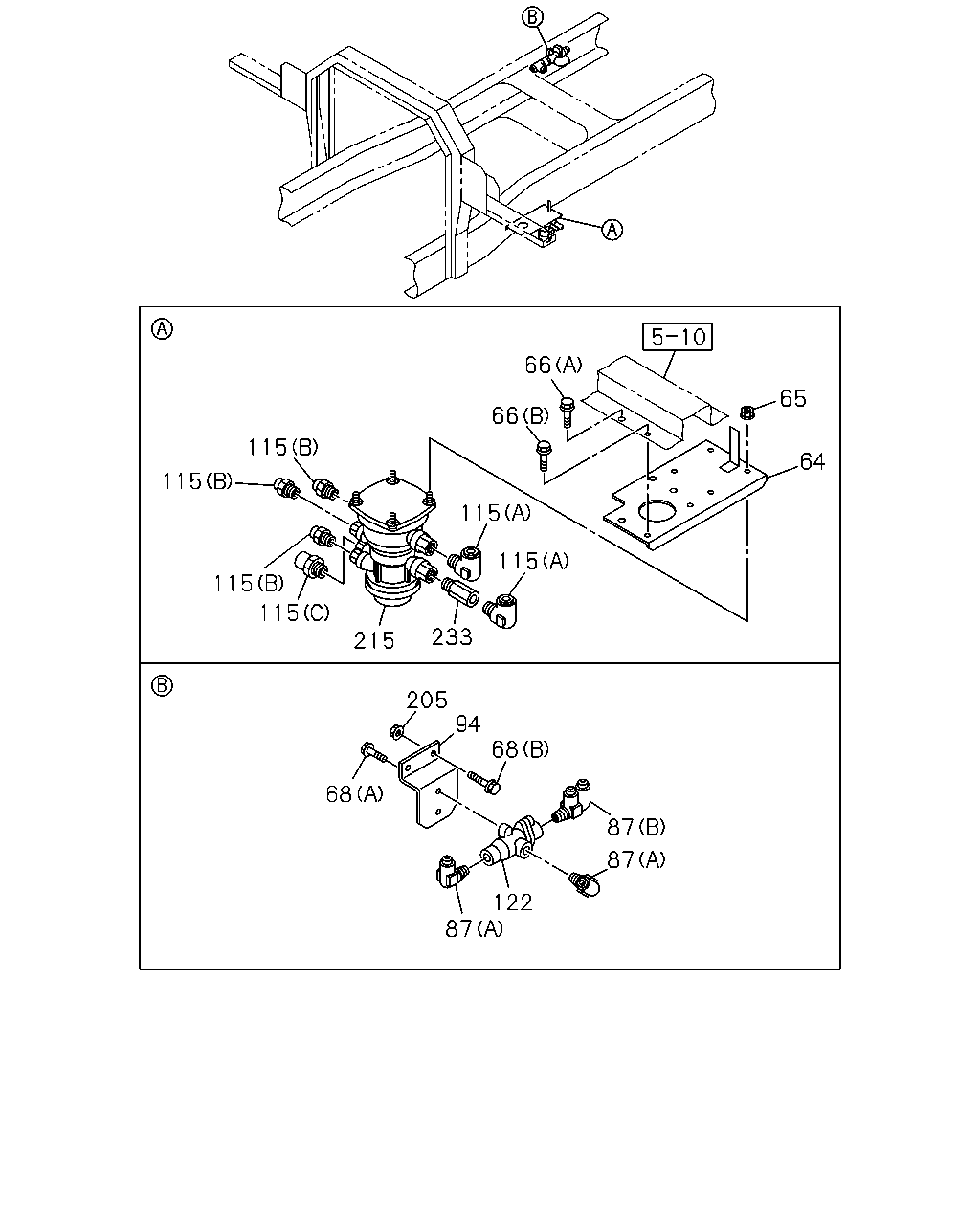

66
65
66
115
64
115
115
115
115
115
233
215
205
94
68
68
87
87
122
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
BRACKET; RELAY VLV
1-48495-216-0
01
1
1008-
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
04
1
1008-
66
BOLT; VLV BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1008-
66
BOLT; VLV BRKT
(B) M10X25 FLANGE
0-28651-025-0
02
1
1008-
68
BOLT; DOUBLE CHECK VLV
TRAILER BRAKE HAND CONTROL<NLG> (A) M8X14 FLANGE
0-28080-814-0
02
1
1008-
68
BOLT; DOUBLE CHECK VLV
TRAILER BRAKE HAND CONTROL<NLG> (B) M8X30 FLANGE
0-28650-830-0
02
1
1008-
87
CONNECTOR; DBL CHECK VLV
TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1008-
87
CONNECTOR; DBL CHECK VLV
TRAILER BRAKE HAND CONTROL<NLG> (B) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1008-
94
BRACKET; CHECK VLV
TRAILER BRAKE HAND CONTROL<NLG>
8-97614-381-0
01
1
1008-
115
CONNECTOR; DUAL RELAY VLV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1008-
115
CONNECTOR; DUAL RELAY VLV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
1008-
115
CONNECTOR; DUAL RELAY VLV
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1008-
122
VALVE ASM; DOUBLE CHECK
TRAILER BRAKE HAND CONTROL<NLG>
1-48410-531-1
01
1
1008-
205
NUT; DOUBLE CHECK VLV
TRAILER BRAKE HAND CONTROL<NLG> M8 FLANGE
0-91180-108-0
02
1
1008-
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1008-
233
ADAPTER; VLV
PT3/8
1-48319-058-0
01
1
1008-
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1008-
